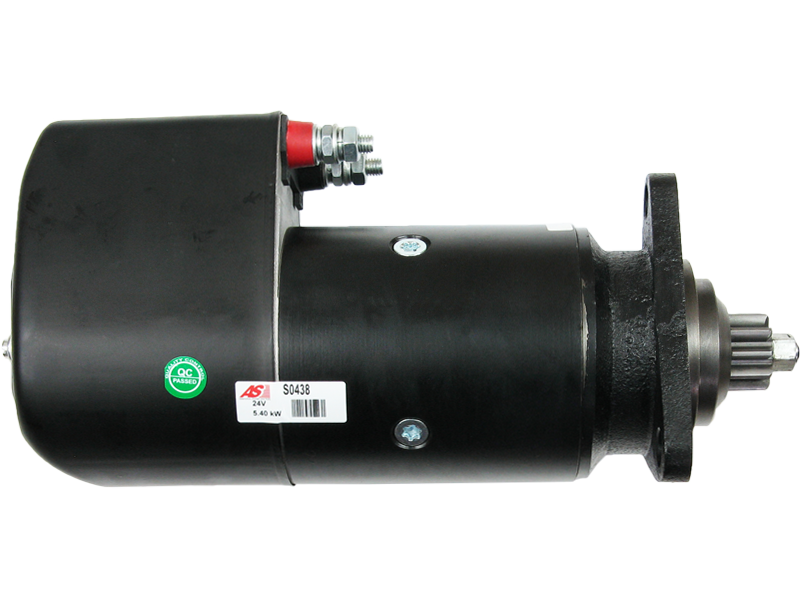

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 823.34 including GST
NZ$ 715.95 excluding GST
or four payments of $205.84
with
Learn More
each
S0438
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416046Associated Numbers
0001416046 0986021020 106023 11.139.150 19024041 20401136BN 20401136EL 25-0000 254398 254398P 2995118 4786023 6010631 860684 9125450 AZK5496 CST10631AS CST10631ES CST10631RS IS9136 STR50318 UD00227S UNIT BOM 120-820Specifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 386 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 16.50 mm |
| Mount Hole Diameter (C.2) | 16.50 mm |
| Mount Hole Diameter (C.3) | 16.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT-ALLIS | FD 5 3.7 | [8045.04.189] | 03.1981-04.1985 |
| FIAT-ALLIS | FD 5 3.9 | [8145.05.389] | 05.1985-10.1992 |
| FIAT-ALLIS | FL 5 3.7 | [8045.04.189] | 03.1981-04.1985 |
| FIAT-ALLIS | FL 5 3.9 | [8045.05.389] | 05.1985-10.1988 |
| FIAT-ALLIS | FL 5 B 3.9 | [8045.05.389] | 10.1987-12.1992 |
Reference Information
| 0001416046 | BOSCH |
| 0986021020 | BOSCH |
| 106023 | FIAT |
| 11.139.150 | ISKRA / LETRIKA |
| 114446 | CARGO |
| 19024041 | DELCO |
| 20401136BN | REAL |
| 20401136EL | REAL |
| 220270 | ERA |
| 25-0000 | ELSTOCK |
| 254398 | KUHNER |
| 254398P | KUHNER |
| 2995118 | IVECO |
| 4786023 | IVECO |
| 6010631 | SANDO |
| 860684 | PRESTOLITE |
| 9125450 | MAGNETON |
| AZK5496 | ISKRA / LETRIKA |
| CST10631AS | CASCO |
| CST10631ES | CASCO |
| CST10631RS | CASCO |
| F032114446 | CARGO |
| IS9136 | ISKRA / LETRIKA |
| MAV126310 | SIOM |
| MS 520 | MAHLE |
| STR1650 | ELECTROLOG |
| STR50318 | WOODAUTO |
| STR79577 | ELECTROLOG |
| STRS871 | 3EFFE |
| UD00227S | AS-PL |
| UNIT BOM 120-820 | WAI / TRANSPO |
Video/Publications
