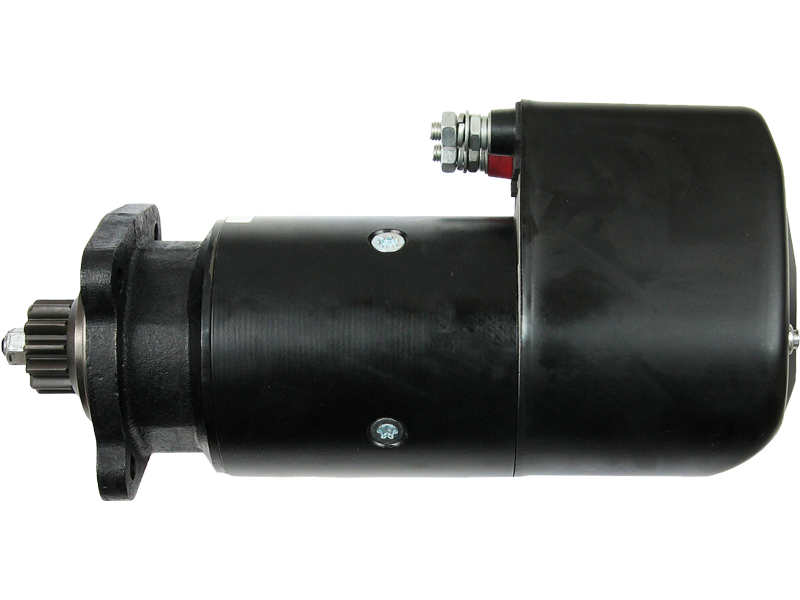

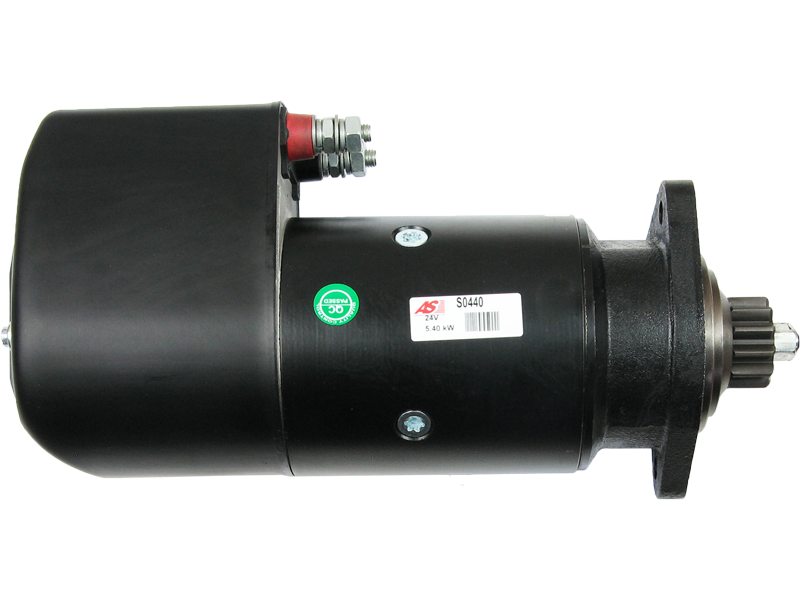

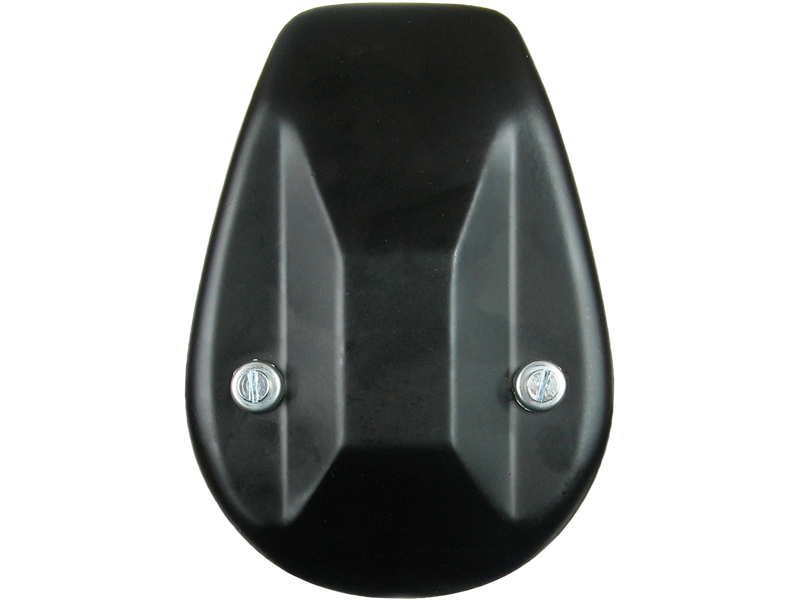

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 747.25 including GST
NZ$ 649.78 excluding GST
or four payments of $186.81
with
Learn More
each
S0440
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416051Associated Numbers
0001416051 11.139.082 19024045 AZK5436 IS9073 UD00230S UNIT BOM 920-1286Specifications
| Insulated Earth | Yes |
| Kilowatt | 5.40 kW |
| Length (L.1) | 385 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 39.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BAREIROS | B Turbo 300 11.9 | 01.1971-06.1978 | |
| BAREIROS | Turbo 300 12.0 | 01.1971-05.1978 | |
| RENAULT | 2626 Turbo 300 12.0 | 05.1983-01.1985 | |
| RENAULT | 2626 Turbo 350 12.0 | 05.1983-02.1985 | |
| RENAULT | 270.20 12.0 | 02.1985-08.1986 | |
| RENAULT | 270.26 12.0 | 02.1985-08.1986 | |
| RENAULT | 270.34 12.0 | 04.1984-08.1986 | |
| RENAULT | 270.35 12.0 | 02.1985-08.1986 | |
| RENAULT | 270.38 12.0 | 04.1985-08.1986 | |
| RENAULT | 270 T 12.0 | 03.1984-12.1985 | |
| RENAULT | 270 T 12.0 | 04.1985-08.1986 | |
| RENAULT | 300 12.0 | 05.1983-08.1986 | |
| RENAULT | 3064 12.0 | 05.1983-02.1985 | |
| RENAULT | 32012 | 09.1986-11.1987 | |
| RENAULT | 32012.0 | 09.1986-11.1987 | |
| RENAULT | 320.20 12.0 | 10.1984-12.1985 | |
| RENAULT | 320.26 12.0 | 11.1984-12.1985 | |
| RENAULT | 320.34 12.0 | 09.1984-12.1985 | |
| RENAULT | 320.35 12.0 | 05.1984-12.1985 | |
| RENAULT | 320.37 12.0 | 04.1985-12.1985 | |
| RENAULT | 320.37 12.0 | 10.1984-12.1985 | |
| RENAULT | 320.38 12.0 | 04.1985-08.1986 | |
| RENAULT | 320.38 12.0 | 04.1985-12.1985 | |
| RENAULT | 320 T 12.0 | 01.1985-12.1985 | |
| RENAULT | 320 T 12.0 | 03.1984-08.1986 | |
| RENAULT | 340.20 12.0 | 01.1986-11.1988 | |
| RENAULT | 340.26 12.0 | 01.1986-11.1988 | |
| RENAULT | 340.35 12.0 | 01.1986-11.1988 | |
| RENAULT | 340.37 12.0 | 01.1986-11.1988 | |
| RENAULT | 340.38 12.0 | 01.1986-11.1988 | |
| RENAULT | 340 T 12.0 | 01.1986-11.1988 | |
| RENAULT | 3464 Turbo 300 12.0 | 05.1983-03.1984 | |
| RENAULT | 3582 Turbo 300 12.0 | 05.1983-01.1985 | |
| RENAULT | 3582 Turbo 350 12.0 | 05.1983-02.1985 | |
| RENAULT | 3784 Turbo 300 12.0 | 05.1983-02.1985 | |
| RENAULT | 38 TR Turbo 355 12.0 | 05.1983-12.1984 |
Reference Information
| 0001416051 | BOSCH |
| 11.139.082 | ISKRA / LETRIKA |
| 19024045 | DELCO |
| AZK5436 | ISKRA / LETRIKA |
| CGB-11551 | AINDE |
| IS9073 | ISKRA / LETRIKA |
| MS 514 | MAHLE |
| STR10286 | ELECTROLOG |
| STR79512 | ELECTROLOG |
| STRJ480 | 3EFFE |
| UD00230S | AS-PL |
| UNIT BOM 920-1286 | WAI / TRANSPO |
Video/Publications
