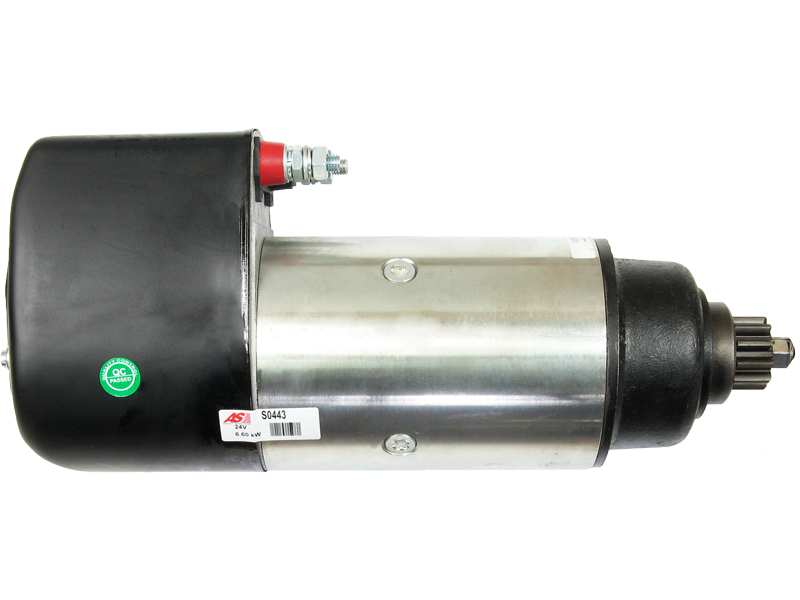

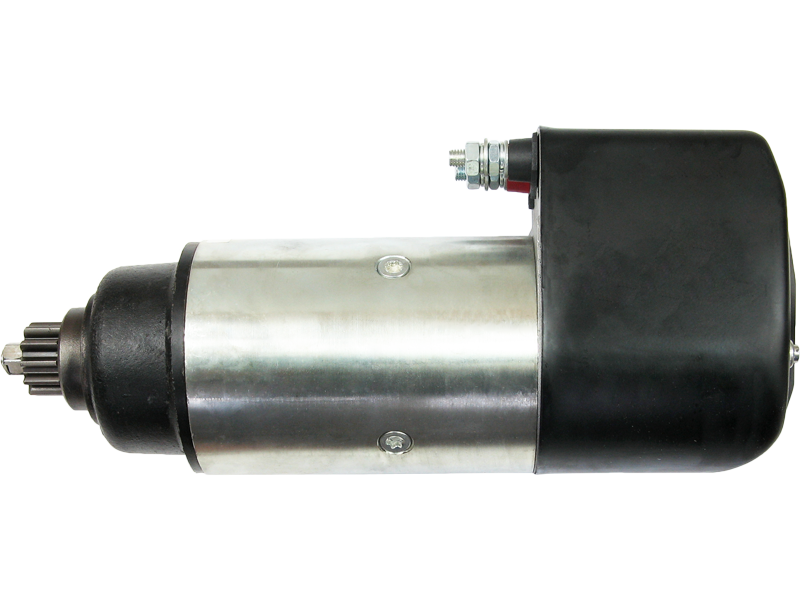

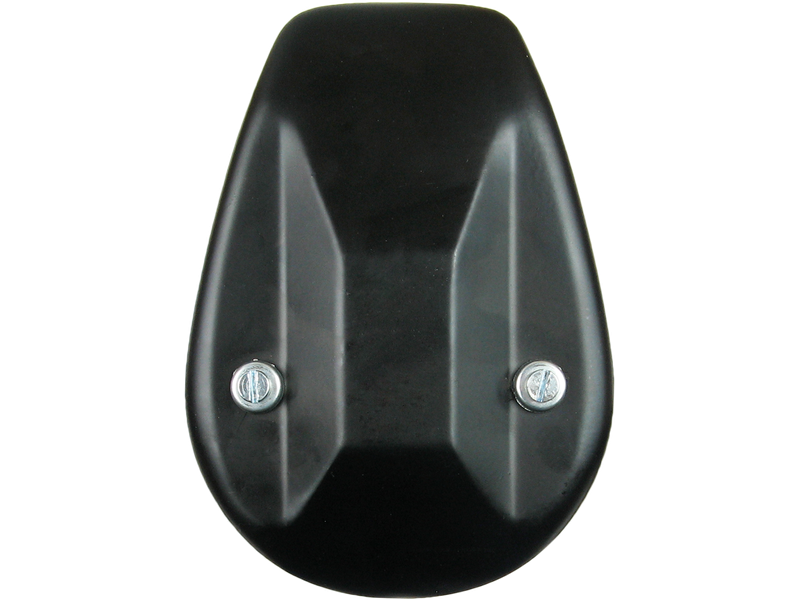

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 753.35 including GST
NZ$ 655.09 excluding GST
or four payments of $188.34
with
Learn More
each
S0443
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001417009Associated Numbers
0001410017 0001410018 0001417009 0144440711 11.139.061 19024160 7431032000 8300100548 AZK5529 D1R24X6H7623 IS9052 UD00245S UNIT BOM 120-6211Specifications
| Kilowatt | 6.60 kW |
| Length (L.1) | 424 mm |
| No./Mount holes | 0 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 37.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 55 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DEUTZ | Engine | [BF6M716] | |
| DEUTZ | Engine | [F4M716] | |
| DEUTZ | Engine | [F6M716] |
Reference Information
| 0001410017 | BOSCH |
| 0001410018 | BOSCH |
| 0001410034 | BOSCH |
| 0001417009 | BOSCH |
| 0001501014 | BOSCH |
| 0090000 | ELMOT |
| 11.139.061 | ISKRA / LETRIKA |
| 19024069 | DELCO |
| 19024160 | DELCO |
| 220294 | ERA |
| 260-47237 | DIXIE |
| 33671 | EAI |
| 551.240.110 | PSH |
| 613V090002 | STEYR |
| 7421032000 | KASSBOHRER |
| 860669GB | PRESTOLITE |
| 88214622 | POWERMAX |
| 90801105201 | MAN |
| AZK5529 | ISKRA / LETRIKA |
| IS9052 | ISKRA / LETRIKA |
| MAV3490 | SIOM |
| MS571 | MAHLE |
| MS 571 | MAHLE |
| R2209 | ELMOT |
| S133.355 | PSH |
| SG0463 | GHIBAUDI |
| STB2592 | KRAUF |
| STR50473 | WOODAUTO |
| STR79492 | ELECTROLOG |
| STRF294 | 3EFFE |
| UD00245S | AS-PL |
| UD16630S | AS-PL |
| UNIT BOM 120-6211 | WAI / TRANSPO |
