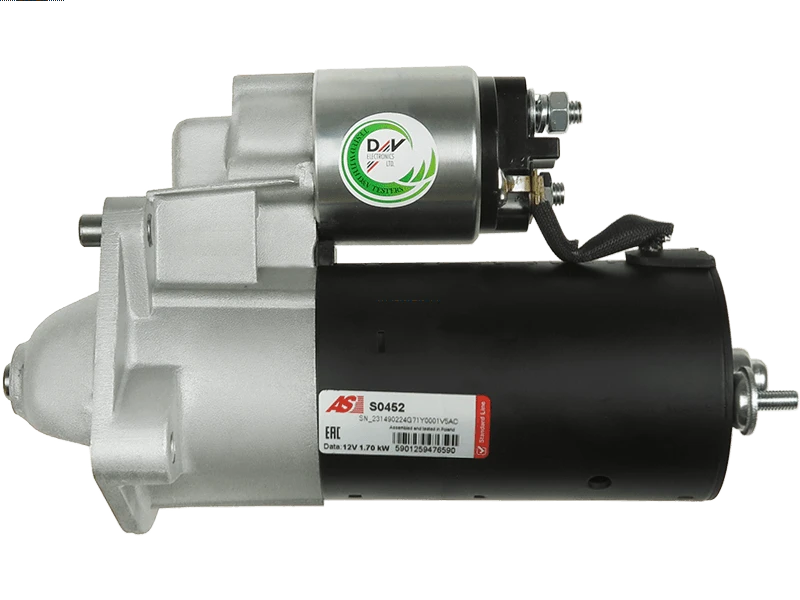

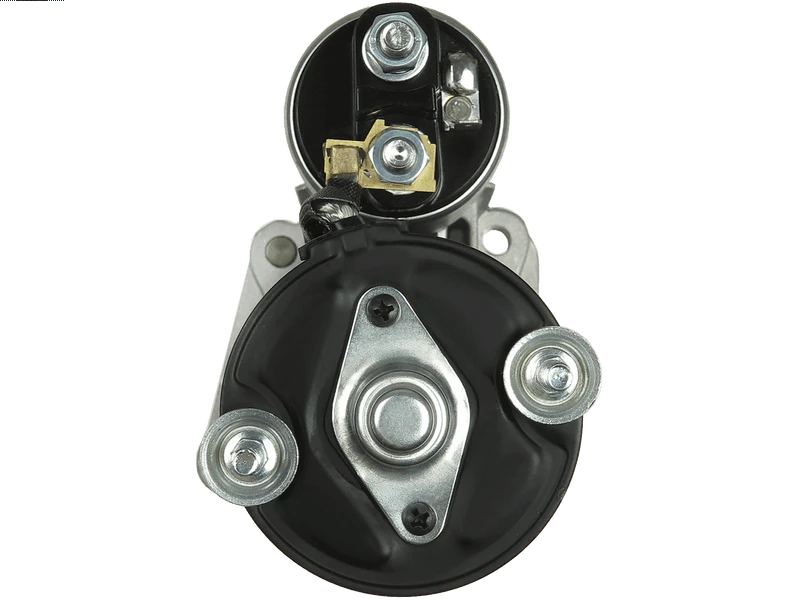

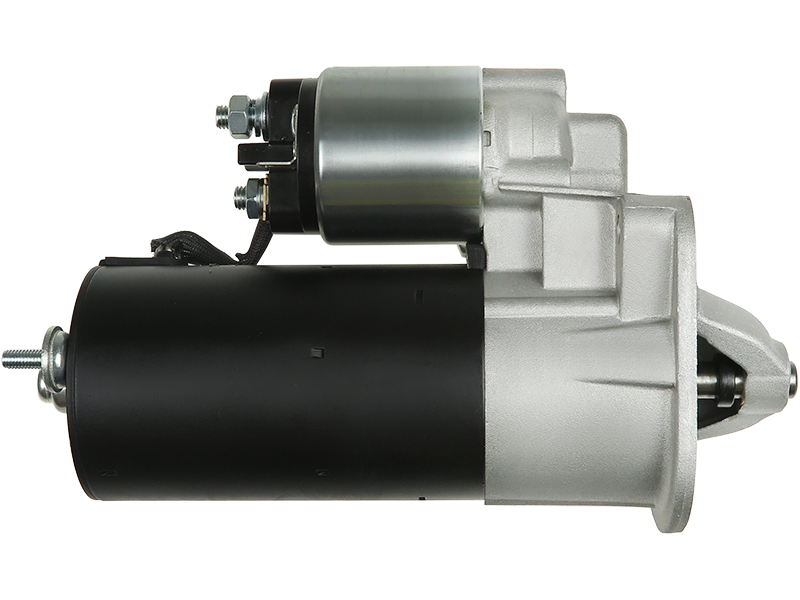

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 256.17 including GST
NZ$ 222.76 excluding GST
or four payments of $64.04
with
Learn More
each
S0452
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001115002Associated Numbers
0001110063 0001115002 101113 10600 11720 17408N 17753N 17756N 20401274BN 22.1113 22.1113M 25-2486 458232 6010472 8017910 8111007 8213116 9162400 AES1216 CS1113 CST10472AS DRS7190 EAA-121612 LRS01517 STR50228 UD00101SSpecifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 242 mm |
| Mount Hole Center - Center (O.1) | 106 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 0 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | 960 2.5 24V | [B6254S] | 07.1994-12.1996 |
| VOLVO | 960 2.5 24V | [B6254S] | 08.1994-12.1996 |
| VOLVO | 960 2.9 | [B6304F] | 01.1992-01.1997 |
| VOLVO | 960 2.9 | [B6304S] | 08.1990-07.1994 |
| VOLVO | 960 2.9 24V | [B6304S] | 07.1994-12.1996 |
| VOLVO | 960 2.9 24V | [B6304S] | 08.1995-12.1996 |
| VOLVO | 960 3.0 | [B6304F] | 08.1990-07.1994 |
| VOLVO | S80 2.8 T6 | [B6284T] | 05.1998-07.2006 |
| VOLVO | S80 2.8 Turbo | [B6284T] | 01.1999-01.2003 |
| VOLVO | S80 2.9 | [B6294S] | 01.2002-01.2003 |
| VOLVO | S80 2.9 24V | [B6304S3] | 05.1998-07.2006 |
| VOLVO | S90 2.5 | [B6244FS] | 11.1996-10.1997 |
| VOLVO | S90 2.5 | [B6254FS] | 11.1996-10.1998 |
| VOLVO | S90 2.9 | [B6304F] | 01.1998-01.1998 |
| VOLVO | S90 2.9 | [B6304G] | 01.1997-05.1998 |
| VOLVO | S90 2.9 | [B6304S2] | 01.1997-05.1998 |
| VOLVO | V90 2.5 | [B6244FS] | 11.1996-10.1997 |
| VOLVO | V90 2.5 | [B6254FS] | 11.1996-10.1998 |
| VOLVO | V90 2.9 | [B6304F] | 01.1998-01.1998 |
| VOLVO | V90 2.9 | [B6304G] | 01.1997-12.1998 |
| VOLVO | V90 2.9 | [B6304S2] | 01.1997-12.1998 |
Reference Information
| 0001110063 | BOSCH |
| 0001115002 | BOSCH |
| 101113 | KUHNER |
| 10600 | KUHNER |
| 11720 | EAI |
| 1363912 | VOLVO |
| 17408N | WAI / TRANSPO |
| 17753N | WAI / TRANSPO |
| 17756N | WAI / TRANSPO |
| 20401274BN | REAL |
| 220962 | ERA |
| 22.1113 | LAUBER |
| 22.1113M | LAUBER |
| 25-2486 | ELSTOCK |
| 331265 | LOGISTIK |
| 458232 | VALEO |
| 5003741 | VOLVO |
| 6010472 | SANDO |
| 8017910 | FRIESEN |
| 8111007 | VOLVO |
| 8213116 | POWERMAX |
| 9162400 | VOLVO |
| AES1216 | AUTOELECTRO |
| ANM19410X | ANDEL |
| CS1113 | HC PARTS |
| CST10472AS | CASCO |
| DRS7190 | DELCO |
| LRS01517 | LUCAS |
| LRS1517 | LUCAS |
| S12BH0738A2 | SIDAT |
| STR1171 | ELECTROLOG |
| STR50228 | WOODAUTO |
| STRF274 | 3EFFE |
| STRL800 | 3EFFE |
| STX200274 | STARDAX |
| STX200274R | STARDAX |
| UD00101S | AS-PL |
