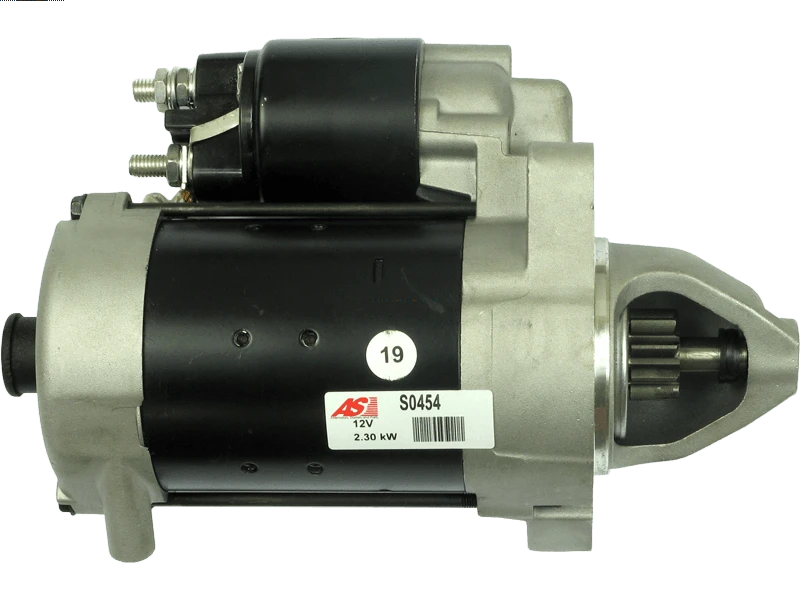

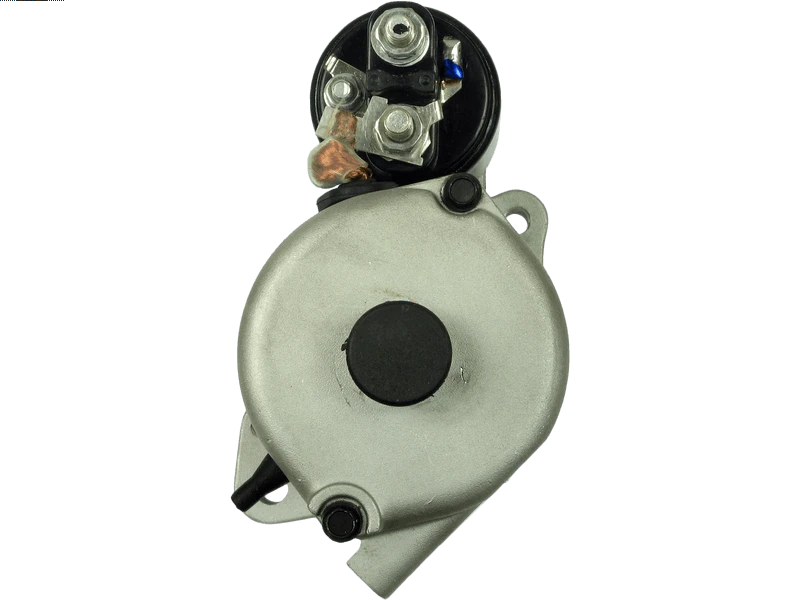

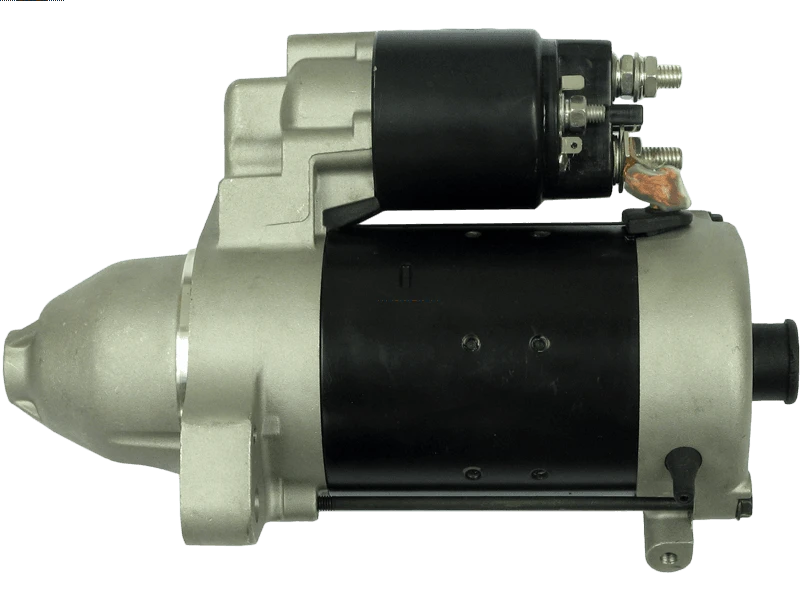

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 392.15 including GST
NZ$ 341.00 excluding GST
or four payments of $98.04
with
Learn More
each
S0454
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001223019Associated Numbers
0001223018 0001223019 057911023E 057911023EX 0986024120 114776 12156 200.524.092 20401664OE 25-3276 254414 254414B 254414R 3116 32720R 6010466 88214499 AEY1720 BOS0001223019 CST10466 CST10466AS CST10466ES CST10466GS CST10466OS CST10466RS DRS0224 DS1334 EAA-122488 LRS01720 LRS1720 STB0222 STR50626 UD10734S UNIT BOM 120-6361 Bosch show 0001223018SEL +line 0001OEAONE VW ruil 11090103 EuroTec Cargo 1206361 PIC EAI 1223019 200524092 PSH 253276 Elstock CEVAM 32720 Lester 8080323F Friesen 910224 EDR Remy Lucas 16-217Specifications
| Kilowatt | 2.30 kW |
| Length (L.1) | 247 mm |
| Mount Hole Center - Center (O.1) | 21.50 mm |
| Mount Hole Center - Center (O.2) | 121.50 mm |
| Mount Hole Center - Center (O.3) | 108.50 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A8 4.0 TDi Quattro | [ASE] | 05.2003-07.2005 |
| AUDI | A8 4.2 TDi Quattro | [BMC] | 01.2005-06.2005 |
| AUDI | A8 4.2 TDi Quattro | [BVN] | 07.2005-07.2010 |
| AUDI | Q7 4.2 TDi Quattro | [BTR] | 03.2007-06.2009 |
| AUDI | Q7 4.2 TDi Quattro | [CCFA] | 05.2009-08.2015 |
| AUDI | Q7 4.2 TDi Quattro | [CCFC] | 05.2009-08.2015 |
| VW | Touareg 4.2 TDi V8 | [CKDA] | 01.2010- |
Reference Information
| 0001223018 | BOSCH |
| 0001223019 | BOSCH |
| 057911023E | VW |
| 057911023EX | VW |
| 0986024120 | BOSCH |
| 114776 | CARGO |
| 12156 | EAI |
| 200.524.092 | PSH |
| 20401664OE | REAL |
| 25-3276 | ELSTOCK |
| 254414 | KUHNER |
| 254414B | KUHNER |
| 254414R | KUHNER |
| 3116 | CEVAM |
| 32720R | WAI / TRANSPO |
| 331702 | LOGISTIK |
| 6010466 | SANDO |
| 88214499 | POWERMAX |
| AEY1720 | AUTOELECTRO |
| BOS0001223019 | WOODAUTO |
| CST10466 | CASCO |
| CST10466AS | CASCO |
| CST10466ES | CASCO |
| CST10466GS | CASCO |
| CST10466OS | CASCO |
| CST10466RS | CASCO |
| DRS0224 | DELCO |
| DS1334 | DELCO |
| F032114776 | CARGO |
| LRS01720 | LUCAS |
| LRS1720 | LUCAS |
| RNL2412 | RNL |
| S0454 | AS-PL |
| S12BH0598A2 | SIDAT |
| STB0222 | KRAUF |
| STR1764 | ELECTROLOG |
| STR50626 | WOODAUTO |
| STRL673 | 3EFFE |
| STX200393 | STARDAX |
| STX200393R | STARDAX |
| UD10734S | AS-PL |
| UNIT BOM 120-6361 | WAI / TRANSPO |
Video/Publications
