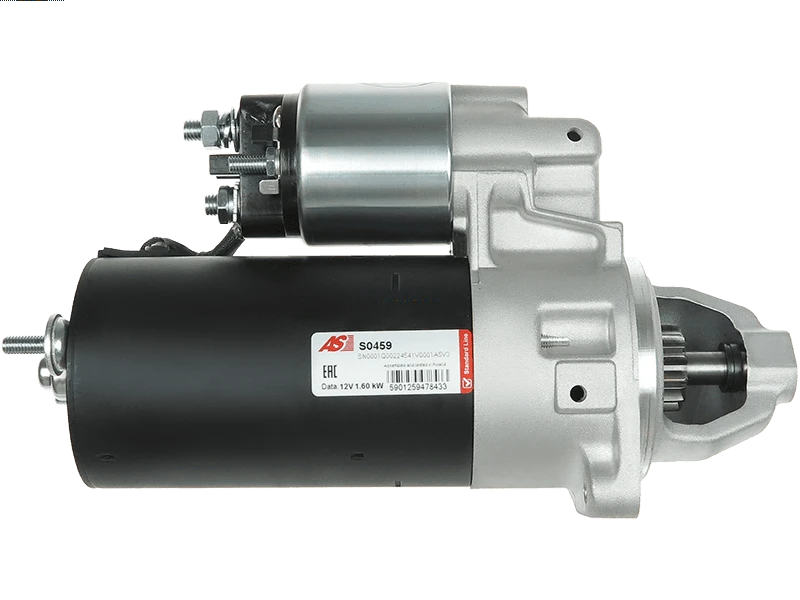

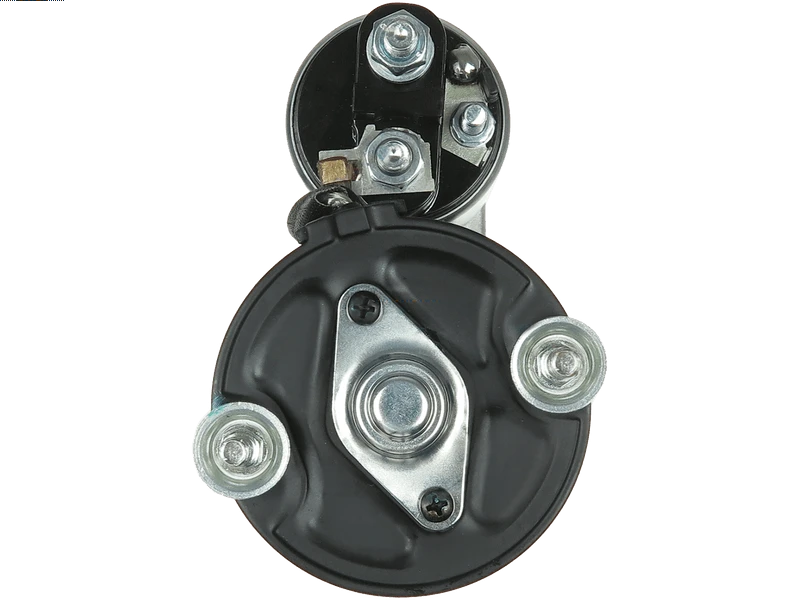

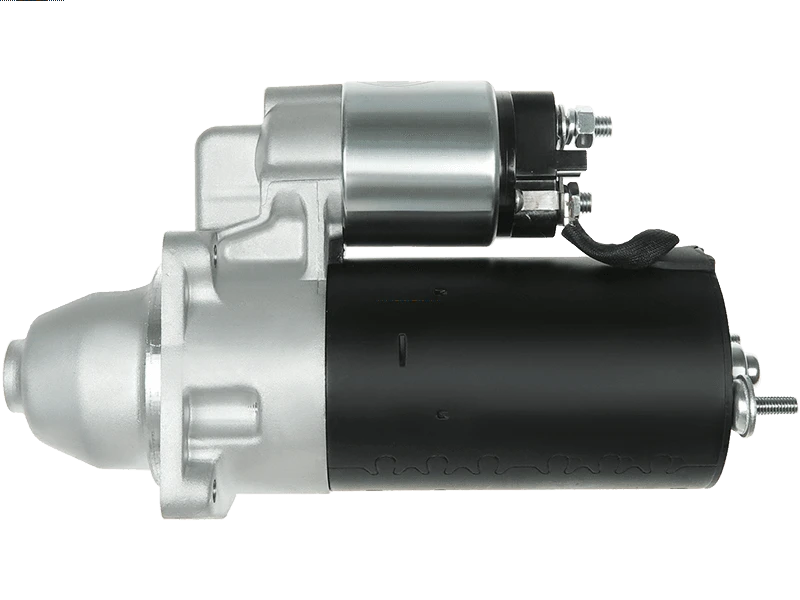

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 250.95 including GST
NZ$ 218.22 excluding GST
or four payments of $62.74
with
Learn More
each
S0459
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001109011Associated Numbers
0001109011 0001314040 114741 20401981OE 22.3263 25-4284 254006 254006B 292083 58402060 6010189 CST10189GS GS109011-A LRS02611 STR50336 UD01345SSpecifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 258 mm |
| Mount Hole Center - Center (O.1) | 73 mm |
| Mount Hole Center - Center (O.2) | 62 mm |
| Mount Hole Center - Center (O.3) | 96 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| PIAGGIO | Ape Car D 0.5 | 10.1986-12.1996 | |
| PIAGGIO | Ape Car TMD 0.5 | 10.1986-12.1996 | |
| PIAGGIO | Ape Poker Quadriciclo 0.4 | 10.1986-12.1996 |
Reference Information
| 0001109011 | BOSCH |
| 0001314040 | BOSCH |
| 011-001-000848R | REMANTE |
| 063521090110 | MAGNETI MARELLI |
| 10010189AV | ITAB AUTOMOTIVE |
| 10010189OV | ITAB AUTOMOTIVE |
| 10438311 | ALANKO |
| 11090313 | EUROTEC |
| 114741 | CARGO |
| 12130295 | AES |
| 1986S00717 | BOSCH |
| 20401981BN | REAL |
| 20401981OE | REAL |
| 220719 | ERA |
| 220719A | ERA |
| 22.3263 | CQ |
| 250761 | PIAGGIO |
| 254006 | KUHNER |
| 254006B | KUHNER |
| 25-4284 | ELSTOCK |
| 292083 | PIAGGIO |
| 3118737 | HENKEL PARTS |
| 31232N | WAI / TRANSPO |
| 331751 | LOGISTIK |
| 33944 | EAI |
| 500.529.113.010 | PSH |
| 5010091 | MEAT & DORIA |
| 58402060 | LOMBARDINI |
| 58402490 | LOMBARDINI |
| 6010189.0 | SANDO |
| 6010189.1 | SANDO |
| 618019112 | DRI |
| AC-CBS5734 | ACAUTO |
| BOS0001109011 | WOODAUTO |
| BREF032114741 | CARWOOD GROUP |
| BREF0321986S00717 | CARWOOD GROUP |
| CMA-622293 | COMLINE |
| CST10189AS | CASCO |
| CST10189GS | CASCO |
| DRS0922 | DELCO |
| F032114741 | BOSCH |
| GS109011-A | GPARTS |
| H5010091 | HOFFER |
| LRS02611 | LUCAS |
| LRS2611 | LUCAS |
| MAV6690 | SIOM |
| MSN2021 | MAGNETI MARELLI |
| PRSL283 | 3EFFE |
| RNL109011 | RNL |
| S0459 | AS-PL |
| S100185 | BTS TURBO |
| S12BH0791 | SIDAT |
| S12BH0791A2 | SIDAT |
| SBO189 | AUTOTEAM |
| SBO189A | AUTOTEAM |
| ST01783 | TMI |
| STR1696 | ELECTROLOG |
| STR50336 | WOODAUTO |
| STRL283 | 3EFFE |
| STX201286 | STARDAX |
| STX201286R | STARDAX |
| UD01345S | AS-PL |
| WG2013284 | WILMINK GROUP |
| WOOSTR50336 | WOODAUTO |
Video/Publications
