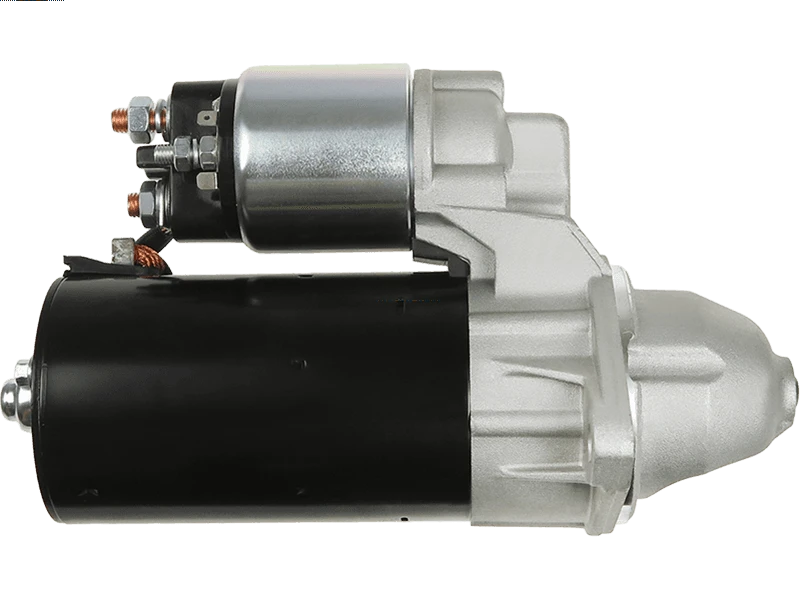

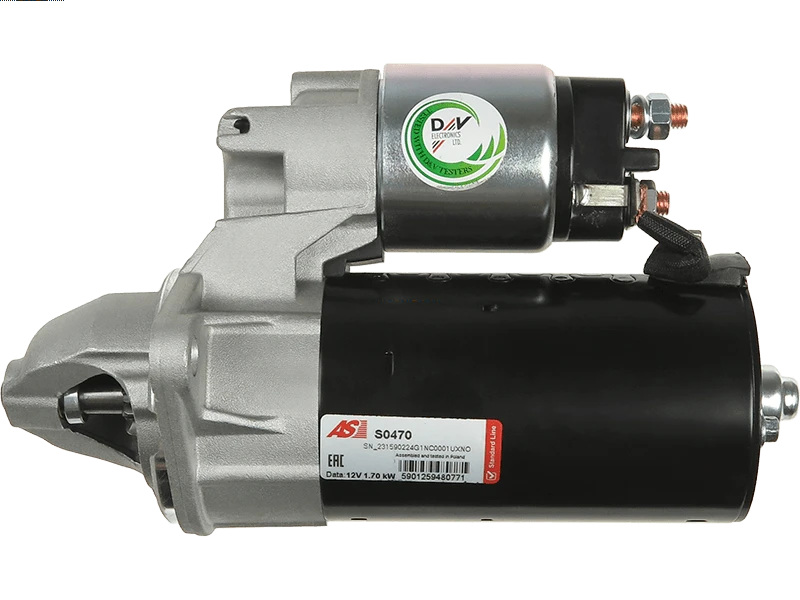

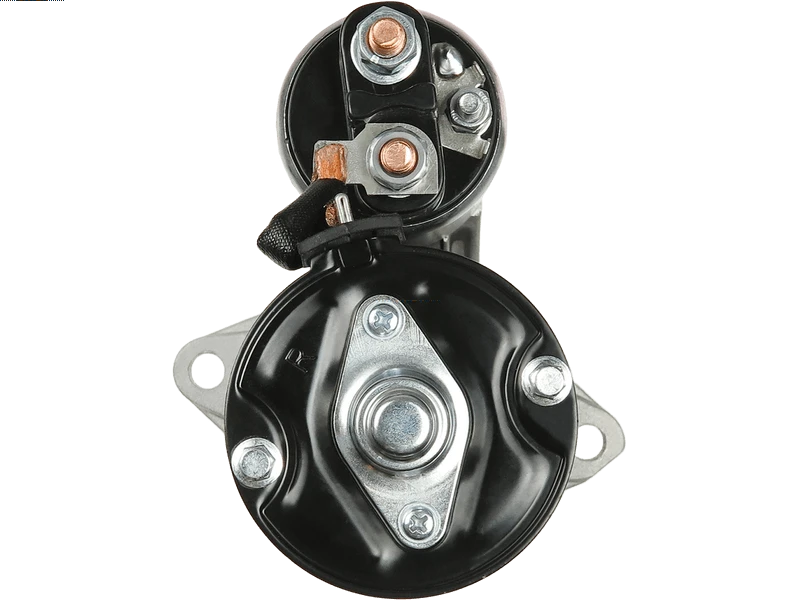

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 299.16 including GST
NZ$ 260.14 excluding GST
or four payments of $74.79
with
Learn More
each
S0470
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001115024Associated Numbers
0001115012 0001115024 101250 20510140 25-3169 32639R 55351631 9146359 91463599 9200610 93175886 93184539 AES1240 DRS3833 LRS01639 SS070 SS430 STR50371 UD00111SSpecifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 238 mm |
| Mount Hole Center - Center (O.1) | 117 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Omega B 2.6 V6 | [Y26SE] | 01.2000-12.2003 |
| OPEL | Omega B 3.2 V6 | [Y32SE] | 01.2000-12.2003 |
| VAUXHALL | Omega B 2.6 V6 | [Y26SE] | 01.2000-12.2004 |
| VAUXHALL | Omega B 3.2 V6 | [Y32SE] | 01.2000-12.2004 |
Reference Information
| 0001115012 | BOSCH |
| 0001115024 | BOSCH |
| 101250 | KUHNER |
| 20401205OE | REAL |
| 20510140 | PRESTOLITE |
| 25-3169 | ELSTOCK |
| 32639R | WAI / TRANSPO |
| 55351631 | OPEL |
| 6010502.1 | SANDO |
| 9146359 | OPEL |
| 91463599 | OPEL |
| 9200610 | OPEL |
| 93175886 | OPEL |
| 93176056 | VAUXHALL |
| 93176056 | OPEL |
| 93184539 | OPEL |
| AES1240 | AUTOELECTRO |
| ANM16053X | ANDEL |
| CST10502GS | CASCO |
| DRS3833 | DELCO |
| LRS01639 | LUCAS |
| LRS1639 | LUCAS |
| MAV6390 | SIOM |
| S12BH0533A2 | SIDAT |
| SS070 | SOVEREIGN |
| SS430 | SOVEREIGN |
| STR1542 | ELECTROLOG |
| STR50371 | WOODAUTO |
| STRF180 | 3EFFE |
| STX200415 | STARDAX |
| UD00111S | AS-PL |
Video/Publications
