Associated Numbers
0001109034 0001110132 0001218166 0986017500 112006 11879 190.528.102 201088 201135 20510182 25-2096 28100-01020 28100-06020 28100-08010 28100-0B010 28100-0B020 31184N 31184R 458260 6010113 88212897 8EA011610-631 8EA737543-001 943211351010 943253110010 944280175000 9521 AES1282 CST10113 CST10113AS CST10113ES CST10113GS CST10113OS CST10113RS DRS7500 DS8610 J5212117 JS1135 LRT00182 LRT182 MRS17500 MSRC1135 RAS38611 S1049B SG0991 STB1135 STB9135 STN1135 STR50147Specifications

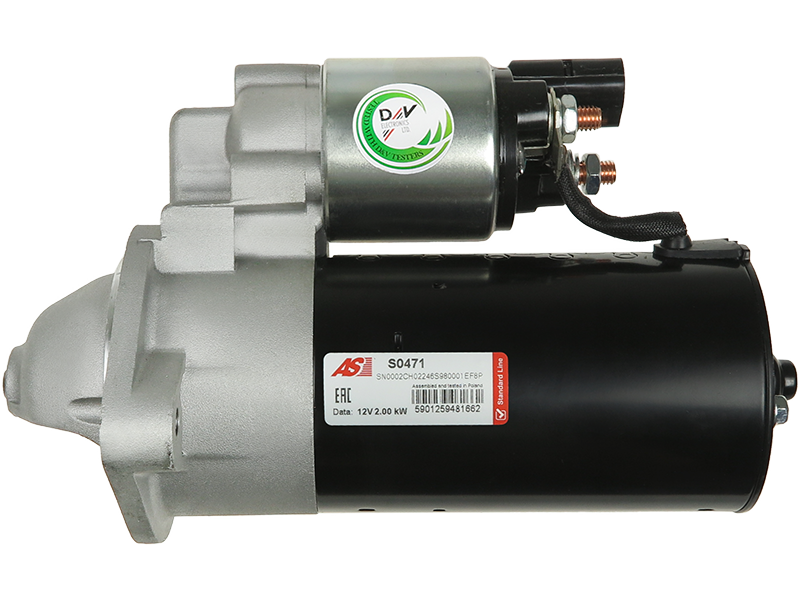

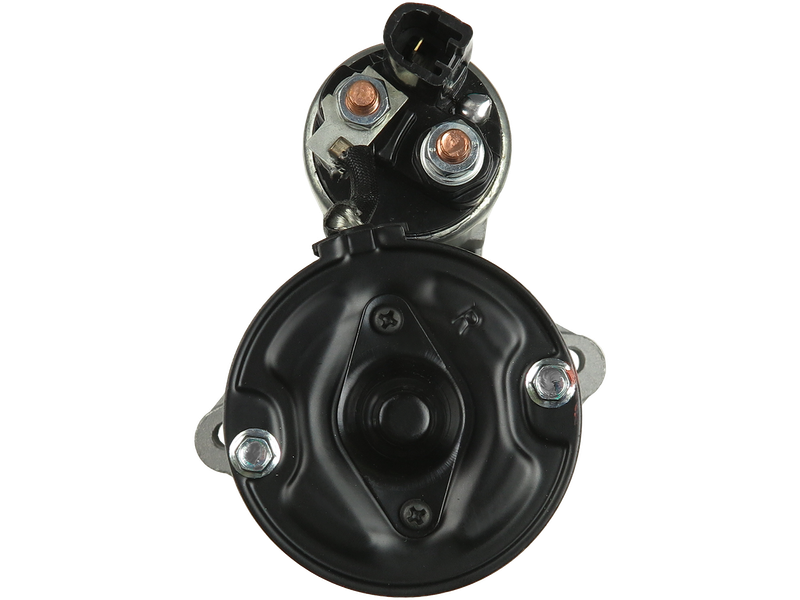

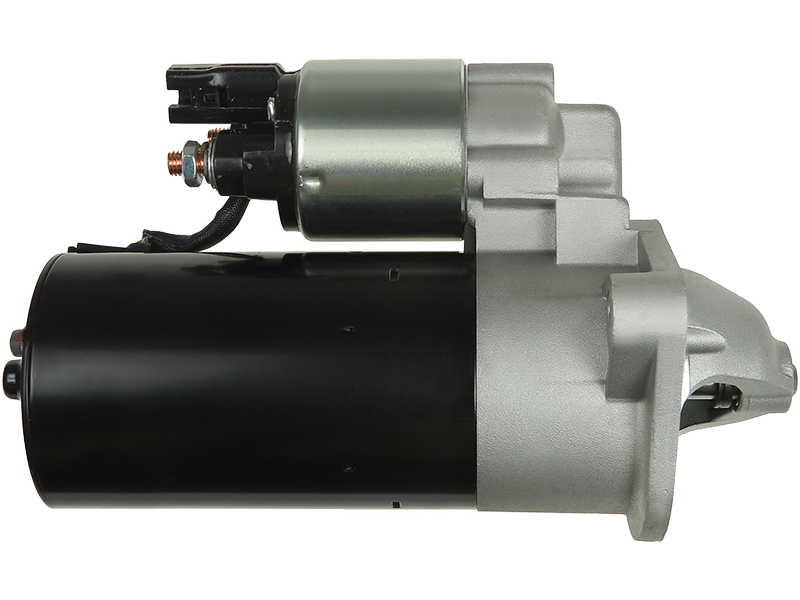

Kilowatt | 2 kW |
Length (L.1) | 240 mm |
Mount Hole Center - Center (O.1) | 115 mm |
Mount Hole Diameter (C.1) | M10x1.75 mm |
Mount Hole Diameter (C.2) | M10x1.75 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 2 qty |
No./Teeth | 10 qty |
No./Teeth (Replaces) | 10 qty |
Pinion at Rest (B) | 3.5 mm |
Rotation | CW |
Spigot Diameter (A) | 74 mm |
Unit Type | BOSCH |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
TOYOTA | Avensis 2.0 D | [2C-T] | 10.1997-05.1998 |
TOYOTA | Avensis 2.0 D-4D | [1CD-FTV] | 04.2003- |
TOYOTA | Avensis 2.0 TD | [2C-TE] | 09.1997-02.2003 |
TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 04.2004- |
TOYOTA | Corolla Verso 2.0 D-4D | [1CD-FTV] | 04.2004- |
Reference Information
PRSL054 331817 112006 2810064310 2810064430 2810064350 GS110132-A 5010077 281000G010 STR1339 MAV423020A STRL054B CST10113GS SG0991 9.43253E+11 88212897 1218166 S0471 1218766 28100-64310 28100-64430 28100-08010 JS1135 1109034 EAA-121301 1019852 DSN950 PRSL054B 9.4428E+11 281000G020 28100-0G010 11879 6010113.2 20401311RC MAV423020 6010113.1 STB1135 LRT00182 STRL054 28100-64350 9521 8EA737543-001 LRT182 1057811 20401311OE 201135 S12BH0087A2 STM644 20401311BN 28100-0G020 28100-01020 AES1282 281000B010A 6010113 0001109034 28100-0B010 25-2096 MRS17500 CST10113AS STR50147 458260 STRL054NE 190.528.102.010 7275964 0001218166 28100OG020 0001218766 STRL054U 28100-0B020 CST10113RSVideo/Publications
0001109034 0001110132 0001218166 003-T359 0986017500 111874 112006 11879 190.528.102 201088 201135 20510182 25-2096 28100-01020 28100-06020 28100-08010 28100-0B010 28100-0B020 3T359 458260 6010113 88212897 8EA011610-631 8EA737543-001 943211351010 943253110010 944280175000 9521 AES1282 CGB-28680 CST10113 CST10113AS CST10113ES CST10113GS CST10113OS CST10113RS DRS7500 DS8610 J5212117 JS1088 JS1135 LRT00182 LRT182 MAV121130 MAV5960 MRS17500 MSRC1135 MTT359 RAS38611 S0471 S1049B SG0991 STB1135 STB9135 STN1135 STR50147 STRL054 220094Add Your Number
