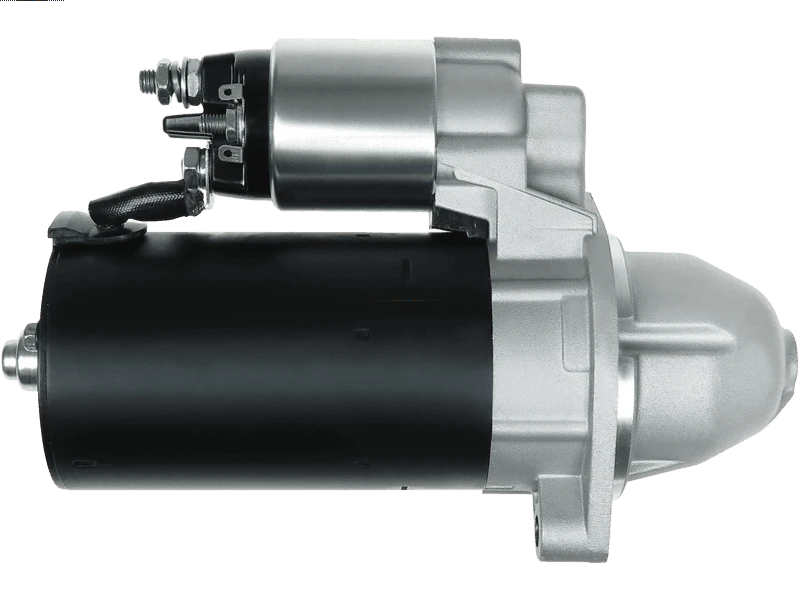

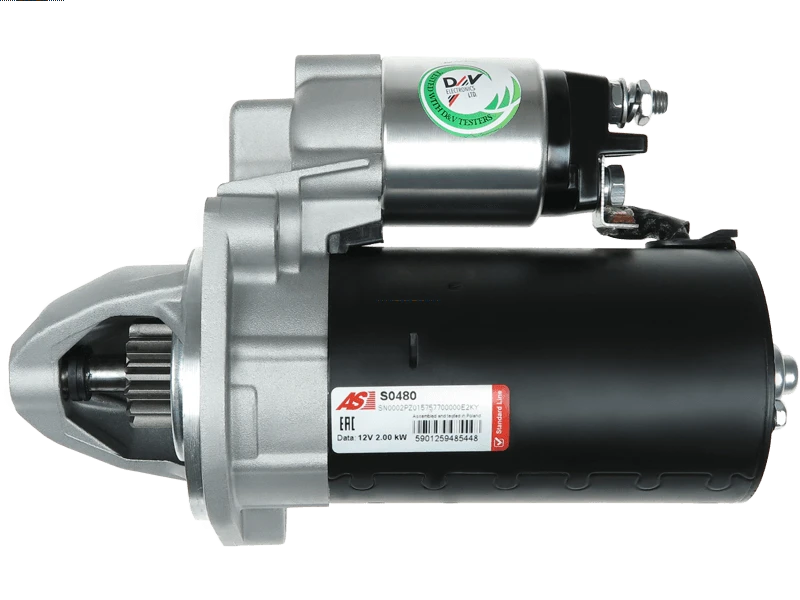

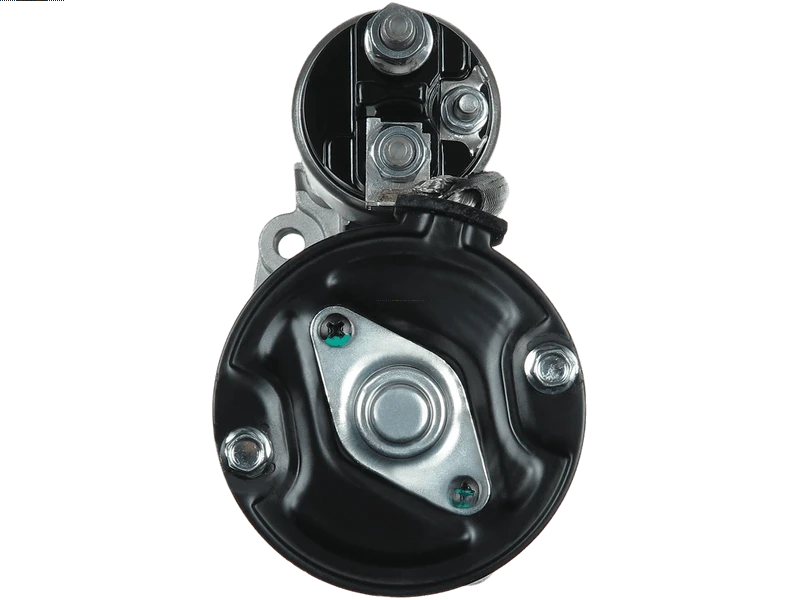

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 369.27 including GST
NZ$ 321.10 excluding GST
or four payments of $92.32
with
Learn More
each
S0480
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Associated Numbers
0001139025 0001139026 115334 20401655BN 20401655OE 255070 3216 550.568.132 6010556 6469060000 88214319 A6469060000 CS1485 CST10556AS CST10556GS S0480 UD01849S UD15197SSpecifications
| Kilowatt | 2 kW |
| Length (L.1) | 241 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 13 qty |
| No./Teeth (Replaces) | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | Sprinter 311 2.1 CDi 4x4 | (906)[OM646.985] | 02.2008- |
| MERCEDES BENZ | Sprinter 313 2.1 CDi | (906)[OM646.986] | 06.2006- |
| MERCEDES BENZ | Sprinter 315 2.1 CDi | (906)[OM646.990] | 06.2006- |
| MERCEDES BENZ | Sprinter 315 2.1 CDi 4x4 | (906)[OM646.989] | 02.2008- |
| MERCEDES BENZ | Sprinter 315 2.1 CDi 4x4 | (906)[OM646.990] | 02.2008- |
| MERCEDES BENZ | Sprinter 411 2.1 CDI | (906)[OM646.985] | 06.2009- |
| MERCEDES BENZ | Sprinter 415 2.1 CDi | (906)[OM646.989] | 06.2006- |
| MERCEDES BENZ | Sprinter 415 2.1 CDi | (906)[OM646.990] | 06.2006- |
| MERCEDES BENZ | Sprinter 415 2.1 CDI | (906)[OM646.986] | 06.2009- |
| MERCEDES BENZ | Sprinter 415 2.1 CDI | (906)[OM646.989] | 06.2009- |
| MERCEDES BENZ | Sprinter 415 2.1 CDI | (906)[OM646.990] | 06.2009- |
| MERCEDES BENZ | Sprinter 511 2.1 CDI 4x4 | (906)[OM646.985] | 06.2006- |
| MERCEDES BENZ | Sprinter 515 2.1 CDi | (906)[OM646.990] | 06.2006- |
| MERCEDES BENZ | Sprinter 515 2.1 CDI 4x4 | (906)[OM646.989] | 06.2006- |
| MERCEDES BENZ | Sprinter 515 2.1 CDI 4x4 | (906)[OM646.990] | 06.2006- |
Reference Information
| 0001139025 | BOSCH |
| 0001139026 | BOSCH |
| 0986023000 | BOSCH |
| 10010556AV | ITAB AUTOMOTIVE |
| 10010556OV | ITAB AUTOMOTIVE |
| 10439469 | ALANKO |
| 107637 | FARCOM |
| 11090241 | EUROTEC |
| 115334 | CARGO |
| 12382 | EAI |
| 20401655BN | REAL |
| 20401655OE | REAL |
| 220952A | ERA |
| 25-5000 | ELSTOCK |
| 255070 | KUHNER |
| 30179N | WAI / TRANSPO |
| 3120120 | HENKEL PARTS |
| 3120121 | HENKEL PARTS |
| 3120122 | HENKEL PARTS |
| 3216 | CEVAM |
| 325083132 | DRI |
| 332117 | LOGISTIK |
| 382ST21 | STARTCAR |
| 42023000 | HERTH+BUSS |
| 460288 | VALEO |
| 4733016 | NK |
| 5010518G | MEAT & DORIA |
| 550.568.132.010 | PSH |
| 550.568.132.018 | PSH |
| 550.568.132.210 | PSH |
| 550.568.132.440 | PSH |
| 550.568.132.460 | PSH |
| 550.568.132.461 | PSH |
| 6010556.0 | SANDO |
| 6010556.1 | SANDO |
| 6469060000 | MERCEDES |
| 64690600000083 | MERCEDES |
| 8214319 | POWERMAX |
| 88214319 | POWERMAX |
| A6469060000 | MERCEDES |
| A64690600000083 | MERCEDES |
| A79480 | ATL AUTOTECHNIK |
| AC-CBS1485 | ACAUTO |
| ANM99647 | ANDEL |
| BREF0320986023000 | CARWOOD GROUP |
| BST2614 | BORG & BECK |
| CS1485 | HC PARTS |
| CST10556AS | CASCO |
| CST10556GS | CASCO |
| DRS1069 | DELCO |
| DS2179 | DELCO |
| F032115334 | CARGO |
| IR9814 | PROTECH |
| LRS03827 | LUCAS |
| LRS3827 | LUCAS |
| MAV125560A | SIOM |
| ME9043 | SNRA |
| PRSE463 | 3EFFE |
| QRS2455 | QUINTON HAZELL |
| RNL139025 | RNL |
| S0480 | AS-PL |
| S100470 | BTS TURBO |
| S100471 | BTS TURBO |
| S104784 | BTS TURBO |
| S12BH0680 | SIDAT |
| S12BH0680A2 | SIDAT |
| S1369B | PRESTOLITE |
| SBO556 | AUTOTEAM |
| SBO556A | AUTOTEAM |
| ST01974 | TMI |
| STB1485 | KRAUF |
| STM1291 | ROLLCO |
| STR1979 | ELECTROLOG |
| STR50593 | WOODAUTO |
| STRE463 | 3EFFE |
| UD01849S | AS-PL |
| UD15197S | AS-PL |
| WG2013520 | WILMINK GROUP |
| WG2470877 | WILMINK GROUP |
| WOOSTR50593 | WOODAUTO |
