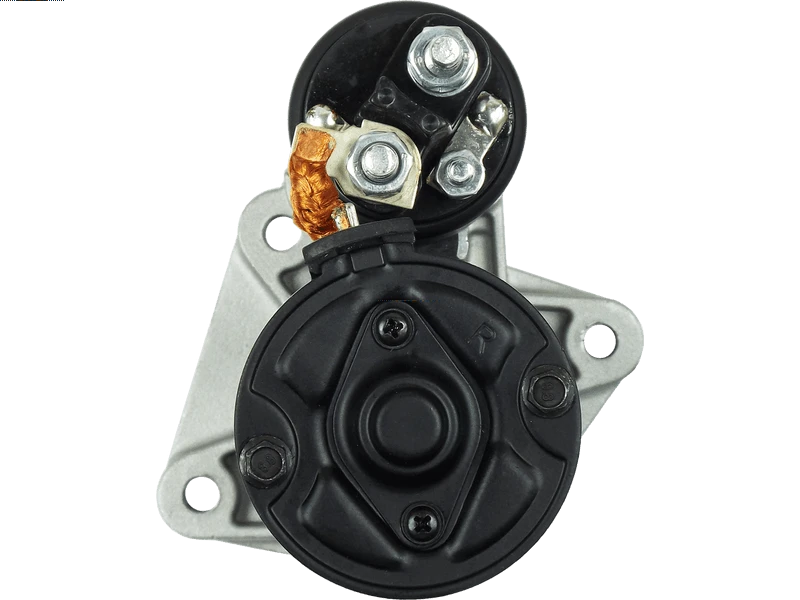

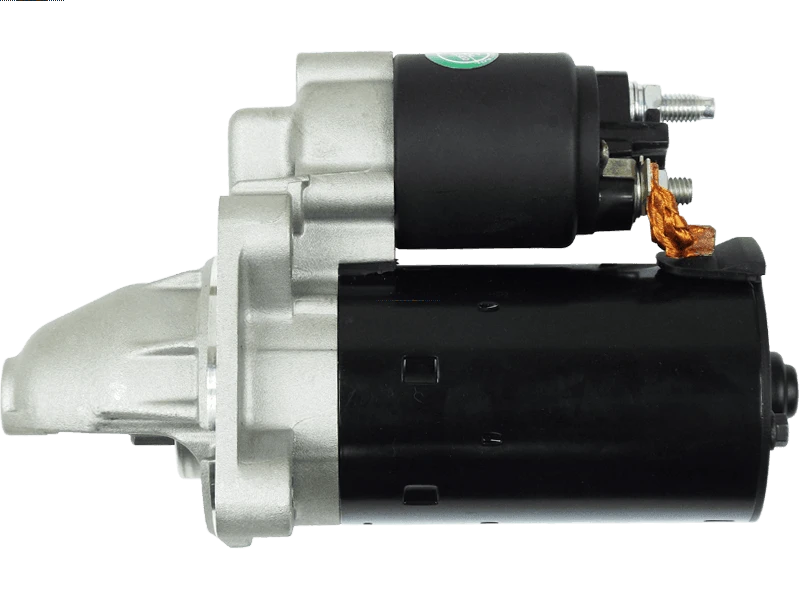

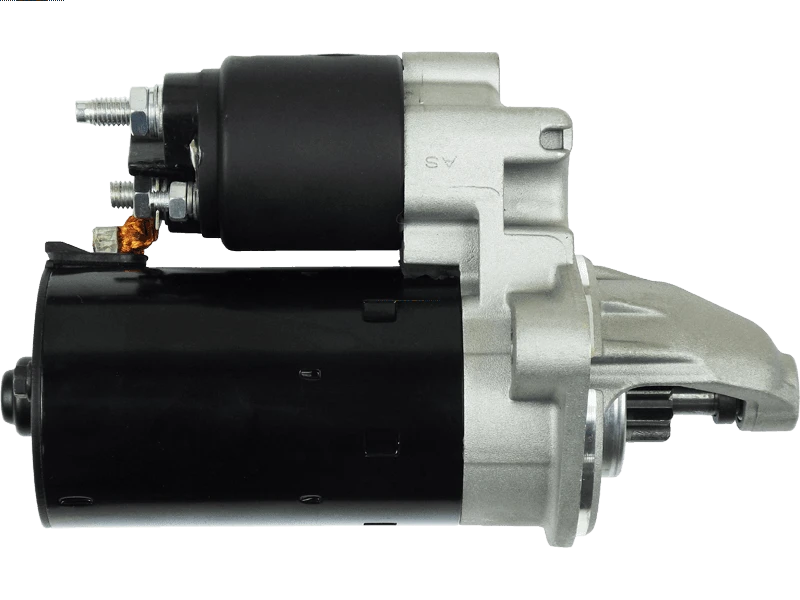

S0485 - Brand new AS-PL Starter motor

Associated Numbers

0001108408 0001108430 0001108431 0986021580 101404 101404B 1344589 1570611 20401234OE 22.1404 220422 25-4179 3114 4M5T11000CA 4M5T11000CB 590.553.103 6010432 8021580 88212920 8EA012528-021 8EA738258-471 AE8T11000AB AES1267 CS1404 CST10432 CST10432AS CST10432ES CST10432GS CST10432OS CST10432RS DRT1580 LRS02507 M000T33571 M000T33571ZC M0T33571 M0T33571ZC S1009B STR50448 UD11979S

Specifications

Kilowatt	1.40 kW
Length (L.1)	214 mm
Mount Hole Center - Center (O.1)	82 mm
Mount Hole Center - Center (O.2)	67 mm
Mount Hole Center - Center (O.3)	105 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
OEM Product	No
Pinion at Rest (B)	26 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	C-Max 1.6	[HWDA]	10.2003-03.2007
FORD	C-Max 1.6	[HWDB]	10.2003-03.2007
FORD	C-Max 1.6	[SHDA]	10.2003-03.2007
FORD	C-Max 1.6	[SHDB]	10.2003-03.2007
FORD	C-Max 1.6	[SHDC]	10.2003-03.2007
FORD	C-Max 1.6 Ti	[HXDA]	08.2004-03.2007
FORD	C-Max 1.6 Ti	[SIDA]	08.2004-03.2007
FORD	Focus 1.4	[ASDA]	04.2005-
FORD	Focus 1.4	[ASDA]	11.2004-
FORD	Focus 1.4	[ASDB]	04.2005-
FORD	Focus 1.4	[ASDB]	11.2004-
FORD	Focus 1.6	[HWDA]	04.2005-
FORD	Focus 1.6	[HWDA]	10.2006-
FORD	Focus 1.6	[HWDA]	11.2004-
FORD	Focus 1.6	[HWDB]	04.2005-
FORD	Focus 1.6	[HWDB]	10.2006-
FORD	Focus 1.6	[HWDB]	11.2004-
FORD	Focus 1.6	[SHDA]	04.2005-
FORD	Focus 1.6	[SHDA]	10.2006-
FORD	Focus 1.6	[SHDA]	11.2004-
FORD	Focus 1.6	[SHDB]	04.2005-
FORD	Focus 1.6	[SHDB]	10.2006-
FORD	Focus 1.6	[SHDB]	11.2004-
FORD	Focus 1.6	[SHDC]	04.2005-
FORD	Focus 1.6	[SHDC]	10.2006-
FORD	Focus 1.6	[SHDC]	11.2004-
FORD	Focus 1.6 C-Max	[HWDA]	10.2003-03.2007
FORD	Focus 1.6 C-Max	[HWDB]	10.2003-03.2007
FORD	Focus 1.6 LPG	[SIDA]	10.2009-
FORD	Focus 1.6 Ti	[HXDA]	04.2005-
FORD	Focus 1.6 Ti	[HXDA]	11.2004-
FORD	Focus 1.6 Ti	[HXDB]	04.2005-
FORD	Focus 1.6 Ti	[HXDB]	11.2004-
FORD	Focus 1.6 Ti C-Max	[HXDA]	08.2004-03.2007
FORD	Focus 1.6 Ti C-Max	[SIDA]	08.2004-03.2007

Reference Information

0001108408	BOSCH
0001108430	BOSCH
0001108431	BOSCH
011-001-000859R	REMANTE
06-10148-SX	STELLOX
0986021580	BOSCH
10010432OV	ITAB AUTOMOTIVE
101404	KUHNER
101404B	KUHNER
10439795	ALANKO
106441	FARCOM
11021580	EUROTEC
116779	CARGO
12357	EAI
1344589	FORD
1570611	FORD
1986S00708	BOSCH
20401234OE	REAL
220420	ERA
220422	ERA
25-4179	ELSTOCK
3114	CEVAM
3122902	HENKEL PARTS
3122903	HENKEL PARTS
3122905	HENKEL PARTS
319079102	DRI
330932	LOGISTIK
357ST21	STARTCAR
446531	VALEO
460216	VALEO
4M5T-11000-CA	FORD
4M5T-11000-CB	FORD
5010146G	MEAT & DORIA
590.553.103.010	PSH
590.553.103.210	PSH
590.553.103.461	PSH
6010432.1	SANDO
8021580	FRIESEN
88212920	POWERMAX
8EA012528-021	HELLA
944280215800	MAGNETI MARELLI
A21580	ATL AUTOTECHNIK
AC-CBS1404	ACAUTO
AE8T-11000-AB	FORD
AES1267	AUTOELECTRO
ANM23800	ANDEL
ANM23800X	ANDEL
AZMT-53-010-1400	A.Z. MEISTERTEILE
BREF032116779	CARWOOD GROUP
BREF0321986S00708	CARWOOD GROUP
CST10432GS	CASCO
DRT1580	DELCO
EZ0188	ELTA AUTOMOTIVE
F032116779	CARGO
FO9089	SNRA
IR9589	PROTECH
LRS02507	LUCAS
LRS2507	LUCAS
M000T33571	MITSUBISHI
M000T33571ZC	MITSUBISHI
M0T33571	MITSUBISHI
M0T33571ZC	MITSUBISHI
MAV124320	SIOM
MRS21580	MAGNETI MARELLI
PRSS923	3EFFE
QRS2460	QUINTON HAZELL
RNL2158	RNL
S0485	AS-PL
S100176	BTS TURBO
S12BH0697	SIDAT
S12BH0697A2	SIDAT
S134.515	PSH
S-50448	DTS
SBO432	AUTOTEAM
ST01690	TMI
STB1404	KRAUF
STR1504	ELECTROLOG
STR50448	WOODAUTO
STRS923	3EFFE
STX201051	STARDAX
UD11979S	AS-PL
V25-12-08430	VEMO
WG2472060	WILMINK GROUP
WOOSTR50448	WOODAUTO
