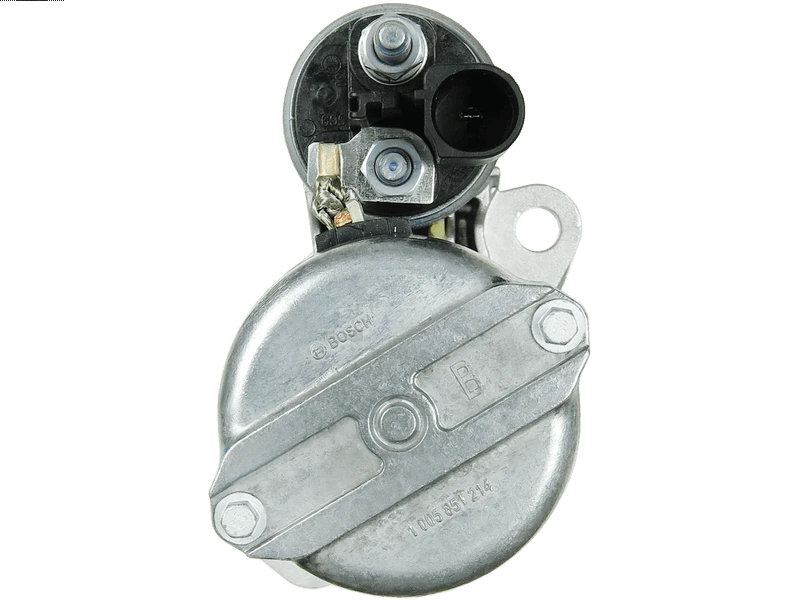

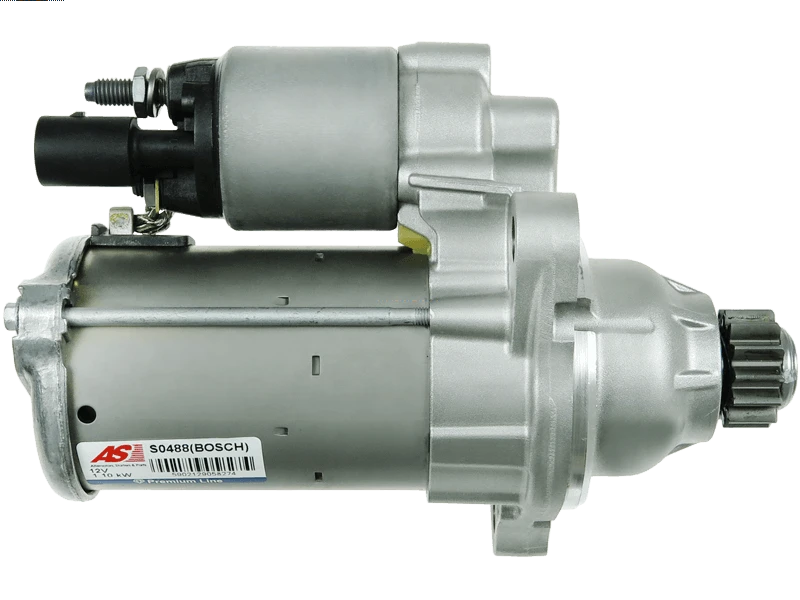

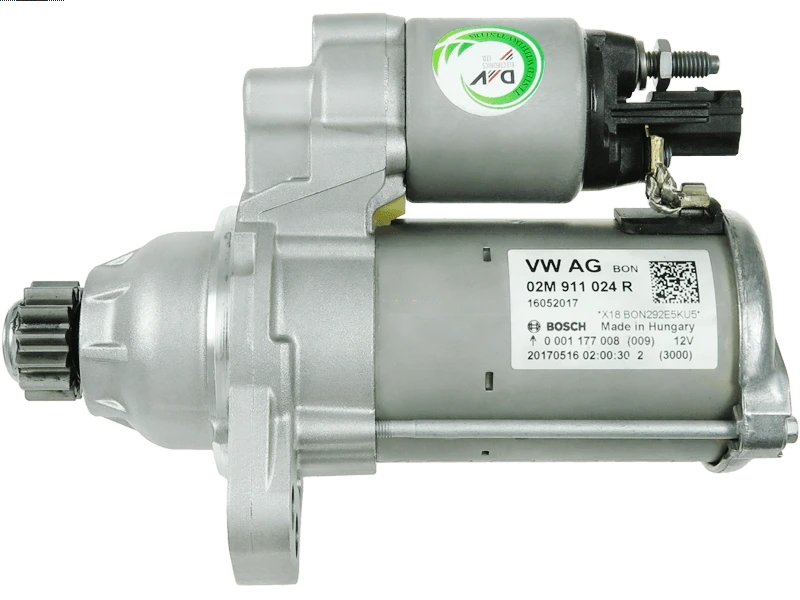

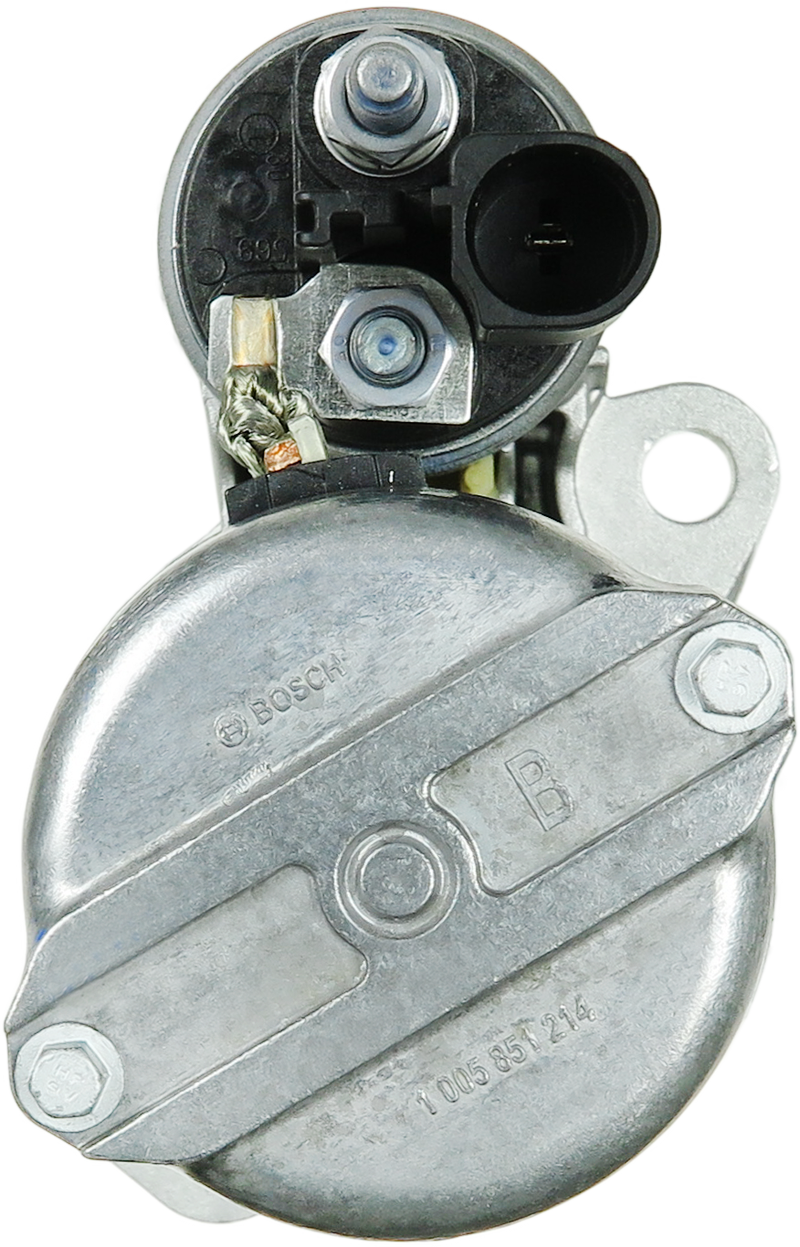

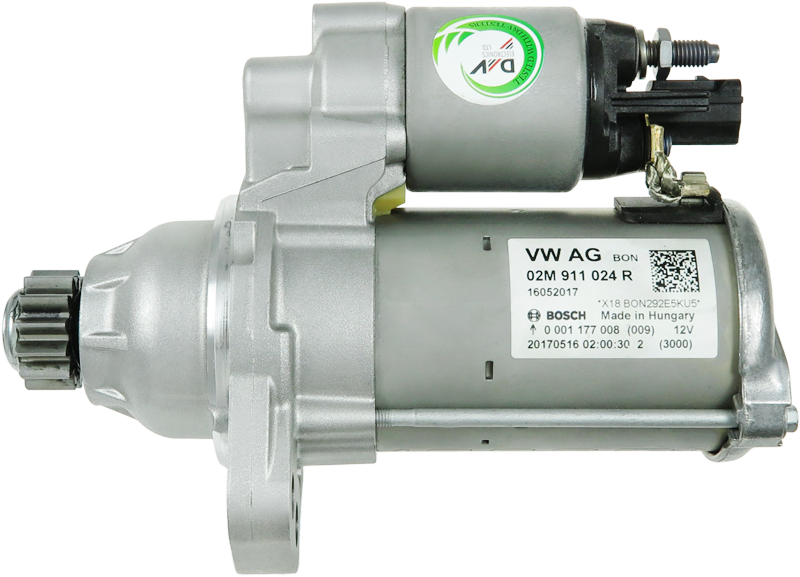

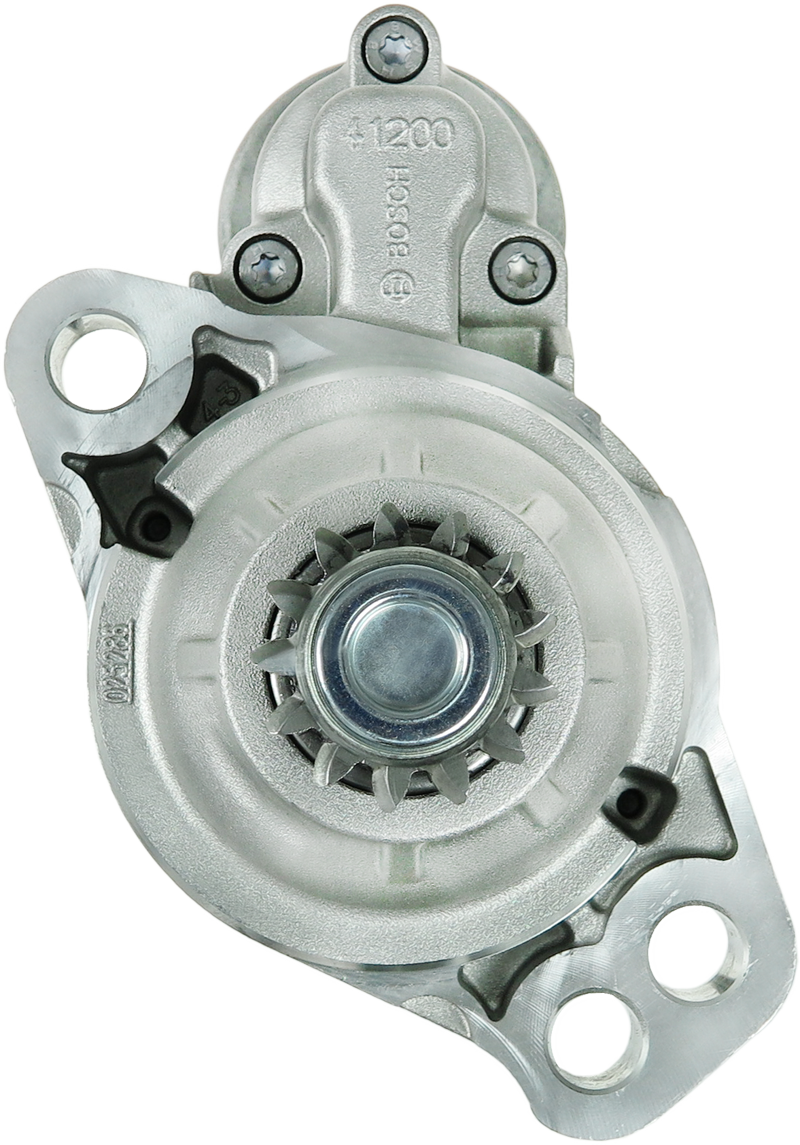

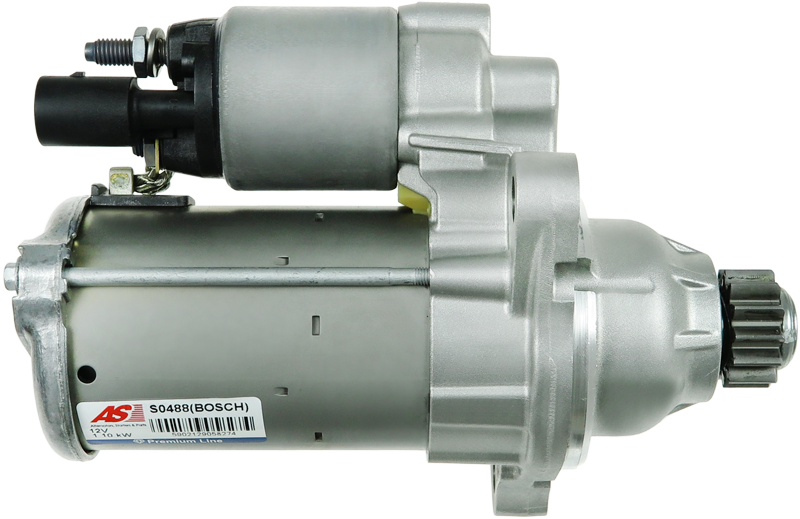

Brand new OEM BOSCH Starter motor
PREMIUM LINE
Bosch
BOSCH
Price:
NZ$ 364.38 including GST
NZ$ 316.85 excluding GST
or four payments of $91.10
with
Learn More
each
S0488(BOSCH)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001177000 0001177001 0001177006 0001177007 0001177008 0001177009 0001B01283 02M911021H 02M911021HX 02M911024R 02M911024RX 0986026140 115696 12230 19311R 220786 25-4304 254982B 300.916.133 3231 42177006 6010514 88214397 8EA738259-391 AEY2631 CST10514 CST10514AS CST10514ES CST10514GS CST10514OS CST10514RS DRS0802 DS1912 EAA-122443 EAA-122444 LRS02631 LRS2631 M1211 SG1172 STB7001 STR50605 UD14656SSpecifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 219 mm |
| Mount Hole Center - Center (O.1) | 18 mm |
| Mount Hole Center - Center (O.2) | 112 mm |
| Mount Hole Center - Center (O.3) | 112 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 62 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 79 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 2.0 Quattro | [CJXD] | 07.2016- |
| AUDI | A3 2.0 Quattro | [DJHB] | 07.2016- |
| AUDI | A3 Limousine 2.0 Quattro | [CJXD] | 08.2016- |
| AUDI | A3 Limousine 2.0 Quattro | [DJHB] | 08.2016- |
| AUDI | A3 Sportback 2.0 Quattro | [CJXD] | 07.2016- |
| AUDI | A3 Sportback 2.0 Quattro | [DJHB] | 07.2016- |
| AUDI | Q3 1.4 TFSi | [CZDB] | 07.2016- |
| SEAT | Leon 1.2 TSi | [CYVB] | 04.2014- |
| SEAT | Leon 2.0 Cupra | [CJXH] | 10.2015- |
| SEAT | Leon SC 2.0 Cupra | [CJXH] | 10.2015- |
| SEAT | Leon ST 2.0 Cupra | [CJXH] | 10.2015- |
| SEAT | Mii 1.0 | [CHYA] | 10.2011- |
| SEAT | Mii 1.0 | [CHYB] | 10.2011- |
| SKODA | Citigo 1.0 | [CHYA] | 10.2011- |
| SKODA | Citigo 1.0 | [CHYB] | 10.2011- |
| SKODA | Octavia 1.6 | [CWVA] | 01.2014- |
| VW | Golf Sportsvan 1.6 | [CWVA] | 05.2014- |
| VW | Golf VII 1.2 TSi | [CJZB] | 07.2013- |
| VW | Golf VII 1.2 TSi | [CYVA] | 07.2013- |
| VW | Jetta 1.6 | [CWVA] | 09.2015- |
| VW | Load Up 1.0 | [CHYA] | 12.2014- |
| VW | Load Up 1.0 EcoFuel | [CPGA] | 12.2014- |
| VW | Multivan 2.0 TSi | [CJKB] | 04.2015- |
| VW | New Beetle 1.4 TSi | [CZDA] | 12.2014- |
| VW | New Beetle 2.0 TSi | [CPLA] | 12.2012- |
| VW | New Beetle 2.0 TSi | [CPPA] | 12.2012- |
| VW | Polo 1.0 | [CHYA] | 01.2014- |
| VW | Polo 1.0 | [CHYB] | 01.2014- |
| VW | Polo 1.0 | [CHYC] | 08.2017- |
| VW | Polo 1.0 TSi | [CHZB] | 11.2014- |
| VW | Polo 1.2 TSi | [CJZC] | 02.2014- |
| VW | Polo 1.2 TSi | [CJZD] | 01.2014- |
| VW | Polo 2.0 | [CDLJ] | 08.2013- |
| VW | Touran 2.0 TSi | [CJKB] | 04.2015- |
| VW | Transporter 2.0 TSi | [CJKB] | 04.2015- |
| VW | Transporter 2.0 TSi 4-Motion | [CJKA] | 06.2015- |
| VW | Up 1.0 | [CHYA] | 08.2011- |
| VW | Up 1.0 | [CHYB] | 08.2011- |
| VW | Up 1.0 | 01.2014- | |
| VW | Vento 1.6 | [CWVA] | 05.2015- |
Video/Publications
