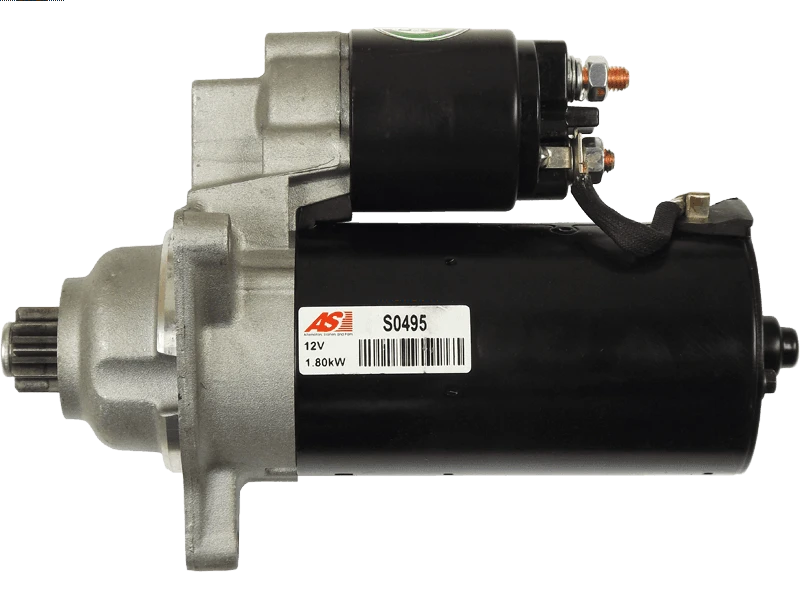

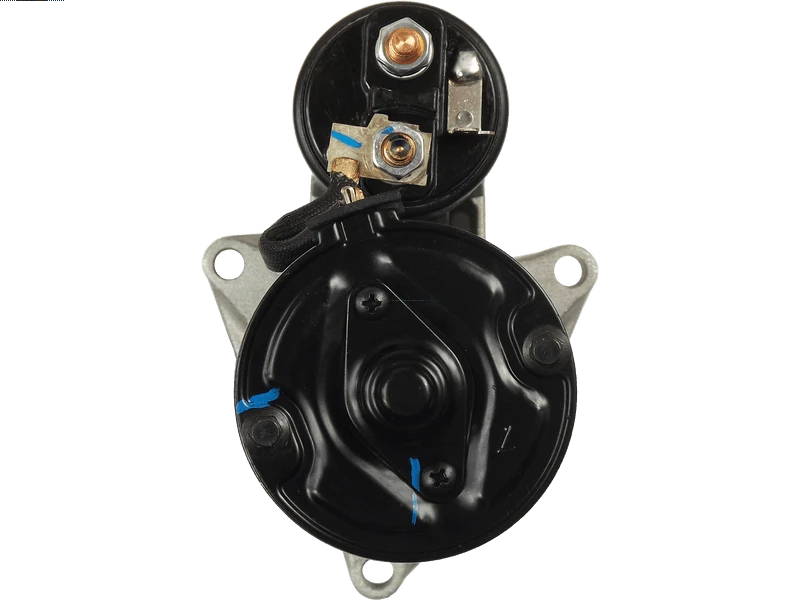

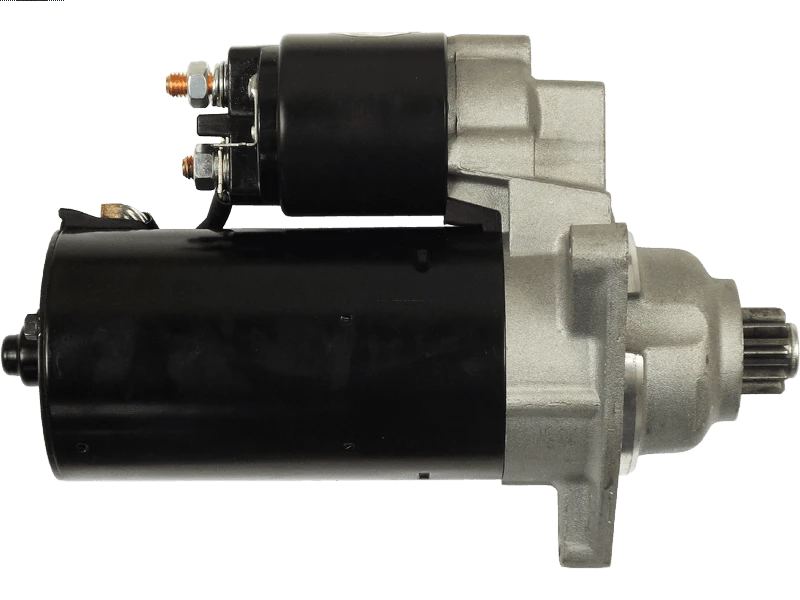

S0495 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 317.49 including GST

NZ$ 276.08 excluding GST



or four payments of $79.37 with
Afterpay Payment Offer Learn More

each
S0495
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0001110061
0001110061 0001110062 02B911023C 02B911023CX 0986016190 103412 10598 112167 11718 11805 17231N 17750N 20401101BN 20401101OE 20401112BN 20500964 22.0597 22.0598 25-1311 300.512.103 3812 42016990 455628 6010101 6010211 8016190 8212695 88212695 8EA726222-001 9141319 943241009010 944280161900 AES9164 CS598 CST10101AS CST10101GS CST10211 CST10211AS CST10211ES CST10211GS CST10211OS CST10211RS DRS6190 EAA-151884 LRS00964 RAS37201 S1046B SS349 SS359 STR50004 STR50619 UD90007S WS37201 17231R
Kilowatt1.80 kW
Length (L.1)245 mm
Mount Hole Center - Center (O.1)102 mm
Mount Hole Center - Center (O.2)107 mm
Mount Hole Center - Center (O.3)102 mm
Mount Hole Diameter (C.1)9 mm
Mount Hole Diameter (C.2)9 mm
Mount Hole Diameter (C.3)9 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
No./Teeth (Replaces)10 qty
OEM ProductNo
Pinion at Rest (B)53 mm
Product LineStandard Line
Product TypeBrand new
RotationACW
Spigot Diameter (A)76 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
VW Eurovan 2.8 Camper [AES] 01.1997-01.1998
VW Multivan 2.5 [AET] 08.1996-04.2003
VW Transporter 1.9 Diesel [1X] 09.1990-12.1995
VW Transporter 1.9 Diesel T4 [1X] 07.1990-12.1995
VW Transporter 1.9 Diesel T4 [1X] 09.1990-12.1995
VW Transporter 1.9 TD T4 [ABL] 10.1992-04.2003
VW Transporter 2.4 Diesel Syncro [AAB] 10.1992-09.1998
VW Transporter 2.5 [AAF] 11.1990-03.2004
VW Transporter 2.5 [AAF] 11.1990-04.2003
VW Transporter 2.5 [ACU] 11.1990-03.2004
VW Transporter 2.5 [ACU] 11.1990-04.2003
VW Transporter 2.5 [AEN] 11.1990-03.2004
VW Transporter 2.5 [AEN] 11.1990-04.2003
VW Transporter 2.5 Syncro [AAF] 10.1992-03.2004
VW Transporter 2.5 Syncro [AAF] 10.1992-04.2003
VW Transporter 2.5 Syncro [AAF] 11.1992-04.2003
VW Transporter 2.5 Syncro [ACU] 10.1992-03.2004
VW Transporter 2.5 Syncro [ACU] 10.1992-04.2003
VW Transporter 2.5 Syncro [ACU] 11.1992-04.2003
VW Transporter 2.5 TDi [ACV] 09.1995-04.2003
0001110061BOSCH
0001110062BOSCH
028911023CVW
02B911023BVW
02B911023CVW
02B911023CXVW
02B911023DVW
02B911023FXVW
02B911023JVW
02B911023LVW
02B911023LXVW
02B911023NNISSAN
0986016190BOSCH
103412FARCOM
112167CARGO
11718EAI
11805EAI
1516782RDAF
17231NWAI / TRANSPO
17231RWAI / TRANSPO
17750NWAI / TRANSPO
20401101BNREAL
20401101OEREAL
20401112BNREAL
220085ERA
22.0597LAUBER
22.0598LAUBER
25-1311ELSTOCK
2B911023CVW
2B911023CXVW
300.512.103PSH
300.512.103.460PSH
3812CEVAM
42016990HERTH+BUSS
455628VALEO
5010274MEAT & DORIA
6010101SANDO
6010211SANDO
8016190FRIESEN
8212695POWERMAX
88212695POWERMAX
8EA726222-001HELLA
9141319MAGNETON
943241009010MAGNETI MARELLI
944280161900MAGNETI MARELLI
AES9164AUTOELECTRO
ANM18410XANDEL
CS598HC PARTS
CST10101ASCASCO
CST10101GSCASCO
CST10211CASCO
CST10211ASCASCO
CST10211ESCASCO
CST10211GSCASCO
CST10211OSCASCO
CST10211RSCASCO
DRS6190DELCO
F032112167CARGO
LRS00964LUCAS
LRS964LUCAS
RAS37201DELCO
S0495AS-PL
S12BH0622A2SIDAT
SS349SOVEREIGN
SS359SOVEREIGN
STA0049RBOVEZ
STM523ROLLCO
STR10251ELECTROLOG
STR50004WOODAUTO
STR50619WOODAUTO
STRS7203EFFE
STX200050STARDAX
STX200050RSTARDAX
STX200160STARDAX
STX200160RSTARDAX
STX200412STARDAX
UD90007SAS-PL
WS37201DELCO
S0495
