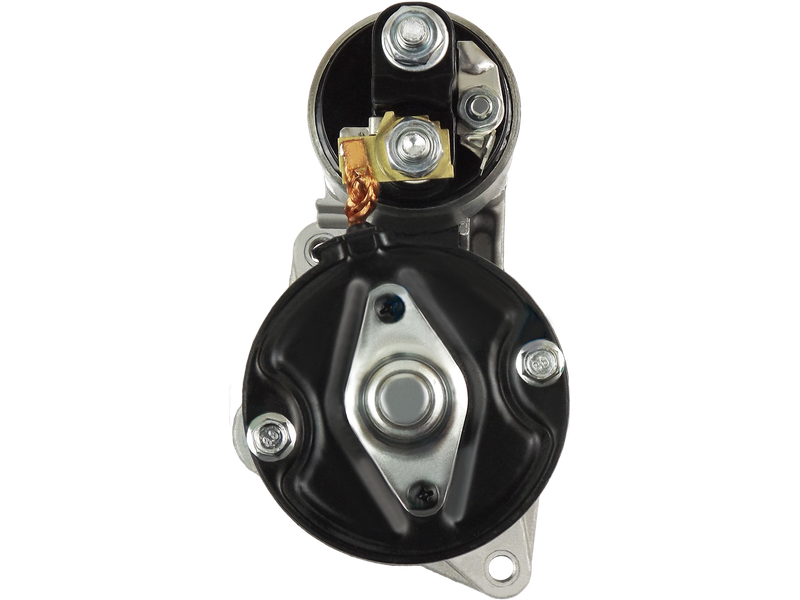

S0498 - Brand new AS-PL Starter motor

Associated Numbers

0001106014 0001477V006 0051513801 0051518301 063521060140 0986019940 101241 101241B 114051 11993 20401491BN 20401491OE 22.1241 25-3077 3032 32580N 42019940 458551 550.515.092 6010194 6601510101 8080096 88212430 8EA012527-821 8EA737906-001 944280800960 A0051513801 A6601510101 AEU1206 CS1241 CST10194 CST10194AS CST10194ES CST10194GS CST10194OS CST10194RS DRS3877 GS106014-A LRS01575

Specifications

Kilowatt	1 kW
Length (L.1)	203 mm
Mount Hole Center - Center (O.1)	100 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
OEM Product	No
Pinion at Rest (B)	16 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	70 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
SMART	City 0.8 CDi	(450..)[OM660.940]	11.1999-01.2004
SMART	Fortwo 0.8 CDi	(450..)[OM660.940]	01.2004-03.2007
SMART	Fortwo 0.8 CDi	(451)[OM660.950]	01.2007-
SMART	Fortwo 0.8 CDi	(451)[OM660.951]	08.2009-
SMART	Smart 0.8 CDi	(450..)[OM660.940]	03.2001-01.2004

Reference Information

0001106014	BOSCH
0001106025	BOSCH
0001477V003	SMART
0001477V006	SMART
0001477V006000000	SMART
0051513801	MERCEDES
005151380180	MERCEDES
0051518301	MERCEDES
011-001-000576R	REMANTE
020408	DA SILVA
063521060140	MAGNETI MARELLI
0986019940	BOSCH
10010194AV	ITAB AUTOMOTIVE
10010194OV	ITAB AUTOMOTIVE
101241	KUHNER
101241B	KUHNER
101241M	KUHNER
101241S	KUHNER
10440860	ALANKO
105117	FARCOM
11019940	EUROTEC
114051	CARGO
11993	EAI
12130136	AES
12130348	AES
1477V006000000	SMART
1638129180	EUROREPAR
1986S00649	BOSCH
20401491BN	REAL
20401491OE	REAL
220214	ERA
220214A	ERA
220214R	ERA
22.1241	LAUBER
25-3077	ELSTOCK
3130111	HENKEL PARTS
325045092	DRI
32580N	WAI / TRANSPO
32580R	WAI / TRANSPO
331381	LOGISTIK
3356	CEVAM
42019940	HERTH+BUSS
458551	VALEO
4719940	NK
5010111	MEAT & DORIA
5481FB0020357	FRANKBERG
550.515.092.010	PSH
550.515.092.210	PSH
550.515.092.280	PSH
550.515.092.340	PSH
550.515.092.440	PSH
550.515.092.460	PSH
550.515.092.461	PSH
550.515.092.462	PSH
6010194.0	SANDO
6010194.1	SANDO
6601510101	MERCEDES
660151010180	MERCEDES
803-00102	IAP QUALITY PARTS
8080096	FRIESEN
8610434	KAMOKA
88212430	POWERMAX
8EA012527-821	HELLA
8EA737906-001	HELLA
91-15-7287	WILSON
944280800960	MAGNETI MARELLI
993ST11	STARTCAR
A0001477V006	SMART
A0051513801	MERCEDES
A005151380180	MERCEDES
A0051518301	MERCEDES
A19940	ATL AUTOTECHNIK
A6601510101	MERCEDES
A660151010180	MERCEDES
AC-CBS1241	ACAUTO
AEU1206	AUTOELECTRO
ANM16097	ANDEL
ANM16097X	ANDEL
AZMT-53-010-1373	A.Z. MEISTERTEILE
BOS0001106014	WOODAUTO
BOS0001106025	WOODAUTO
BREF0320986019940	CARWOOD GROUP
BREF032114051	CARWOOD GROUP
BREF0321986S00649	CARWOOD GROUP
BST2510	BORG & BECK
CMA-622004	COMLINE
CS1241	HC PARTS
CST10194AS	CASCO
CST10194GS	CASCO
DRS3877	DELCO
F032114051	CARGO
GS106014-A	GPARTS
H5010111	HOFFER
HCS1241	HC PARTS
IR9572	PROTECH
LES0266	LE PART
LRS01575	LUCAS
LRS1575	LUCAS
MAV6840	SIOM
MAV6840A	SIOM
ME9028	SNRA
MSN2067	MAGNETI MARELLI
PRSL144	3EFFE
Q0001477V006	SMART
QRS1246	QUINTON HAZELL
RNL1994	RNL
S0498	AS-PL
S100002	BTS TURBO
S12BH0147	SIDAT
S12BH0147A2	SIDAT
S133.234	PSH
S145.232	PSH
S-50316	DTS
SBO194	AUTOTEAM
SBO194A	AUTOTEAM
SG0859	GHIBAUDI
SG0859RB	GHIBAUDI
SKSTR-0330178	STARK
ST01165	TMI
STR10224	ELECTROLOG
STR50316	WOODAUTO
STRL144	3EFFE
STX201017	STARDAX
SV36BH0147.0	7 SEVEN PARTS
T001002112	SEG AUTOMOTIVE
WG2012841	WILMINK GROUP
WG2174884	WILMINK GROUP
WOOSTR50316	WOODAUTO
WST00468	WALKER
