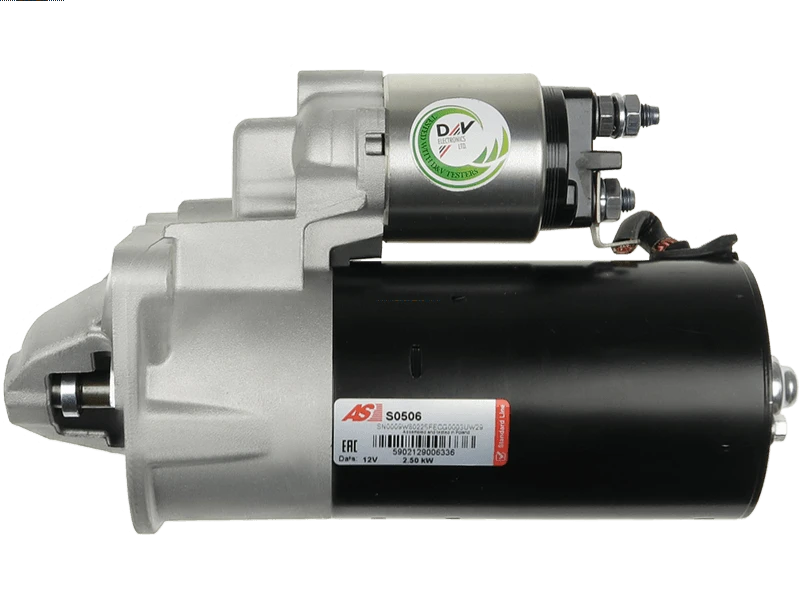

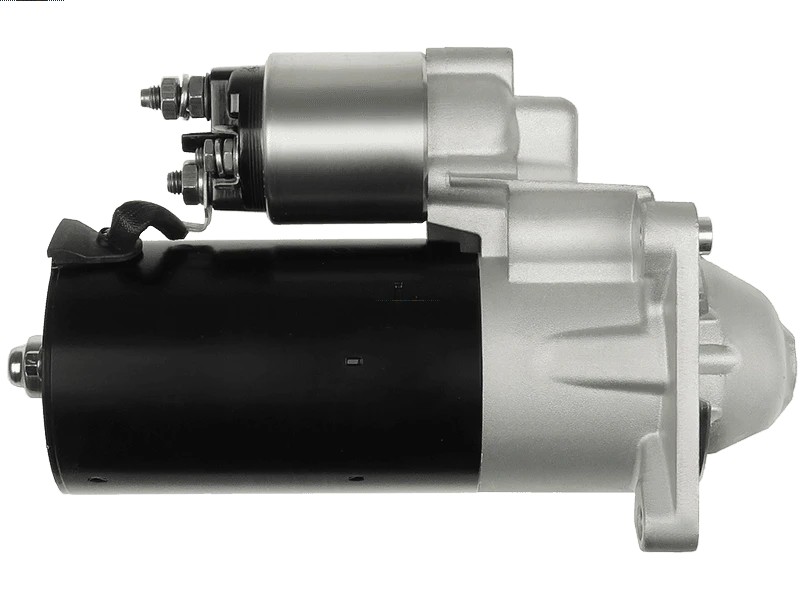

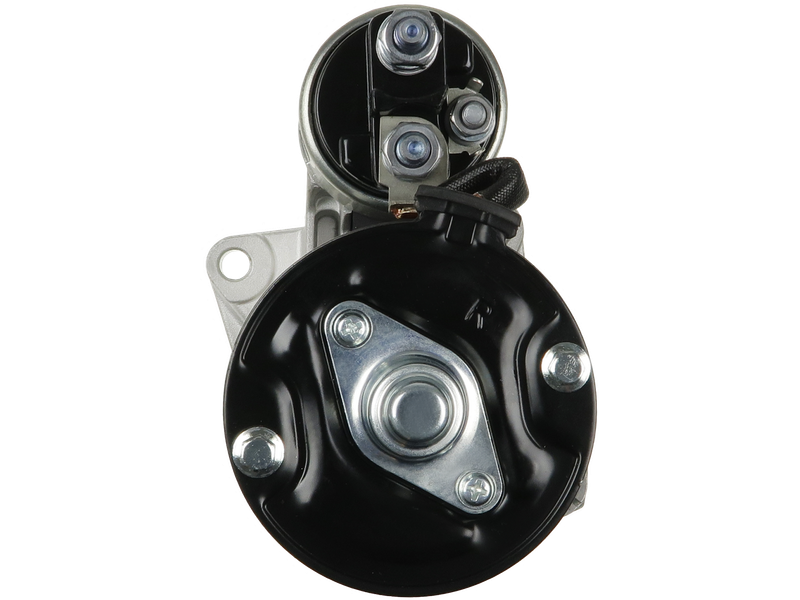

S0506 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	244 mm
Mount Hole Center - Center (O.1)	116 mm
Mount Hole Center - Center (O.2)	82 mm
Mount Hole Center - Center (O.3)	82 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	9 mm
Mount Hole Diameter (C.3)	9 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	4 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
ALFA ROMEO	Giulietta 2.0 JTDM	[940A4.000]	04.2010-
ALFA ROMEO	Giulietta 2.0 JTDM	[940A5.000]	04.2010-
ALFA ROMEO	Giulietta 2.0 JTDM	[940A7.000]	04.2010-
ALFA ROMEO	Giulietta 2.0 JTDM	[940A8.000]	04.2010-
ALFA ROMEO	Giulietta 2.0 JTDM	[940B4.000]	11.2013-
ALFA ROMEO	Giulietta 2.0 JTDM	[940B5.000]	08.2013-
ALFA ROMEO	Giulietta 2.0 JTDM	[940B6.000]	04.2010-
FIAT	500X 2.0 Multijet 4x4	[55263087]	09.2014-
FIAT	500X 2.0 Multijet 4x4	[55263088]	09.2014-
FIAT	Doblo 2.0 Multijet	[263A1.000]	02.2010-
FIAT	Ducato 2.0 Multijet 115	[250A1.000]	06.2011-
JEEP	Renegade 2.0 CRD 4x4	[EBT]	07.2014-

Reference Information

115717 AEY2580 CST10459 LRS02580 CST10459RS 220832 BOS0001139005 51810267 0001139005 7812070 71796415 12277 CST10459ES CST10459GS CST10459AS 71796274 6010459 S12BH0184A2 25-4252 CST10459OS 254932B 1139006 0001139006 331426 UD14879S 3172 5010185 33122N 254932 STB3951 S0506 STRL253 1139005 LRS2580 20401954OE STR10181 DRS0783 500.570.103 88214308 UD30030S 51984359

Video/Publications

0001139005 0001139006 115717 12277 20401954OE 220832 25-4252 254932 254932B 3172 33122N 500.570.103 51810267 6010459 88214308 AEY2580 BOS0001139005 CST10459 CST10459AS CST10459ES CST10459GS CST10459OS CST10459RS DRS0783 LRS02580 LRS2580 S0506 STB3951 STRL253 UD14879S UD30030S
