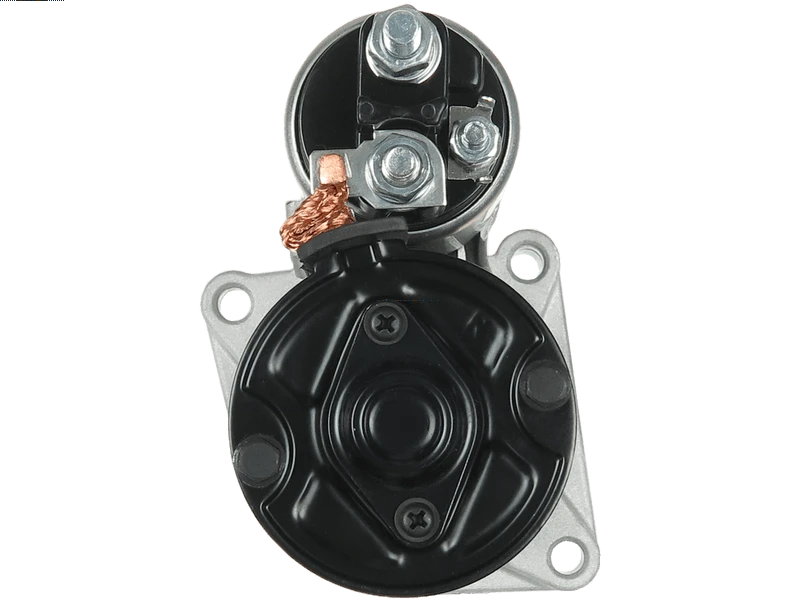

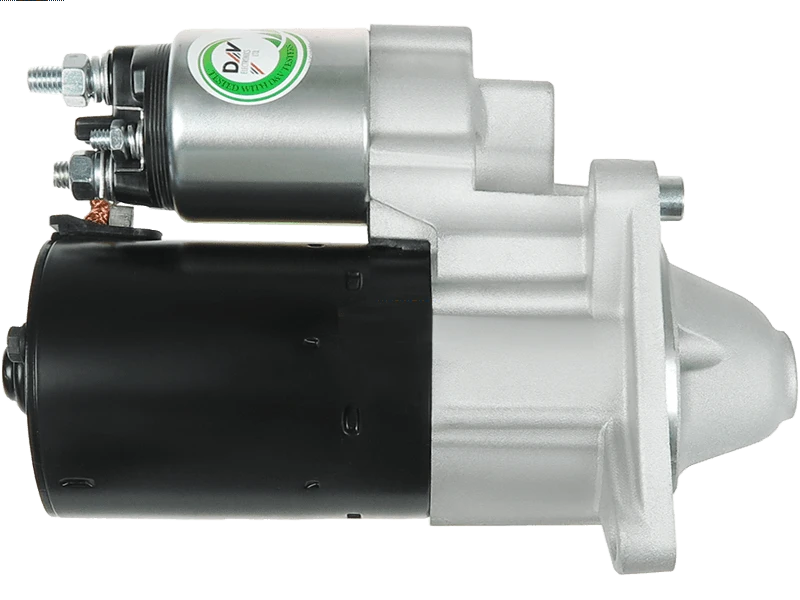

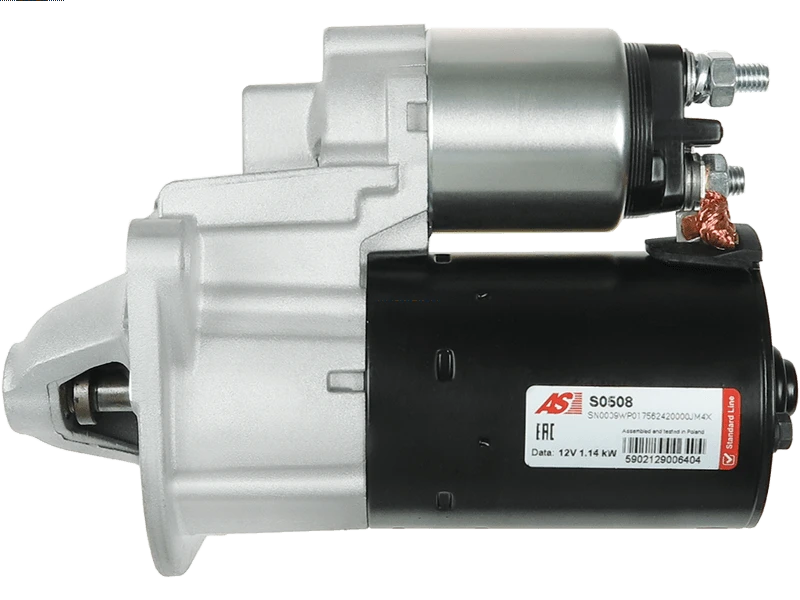

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 276.67 including GST
NZ$ 240.58 excluding GST
or four payments of $69.17
with
Learn More
each
S0508
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107478Associated Numbers
0001107478 0001107479 100.511.103 20401154OE 25-4382 254442 254442B 3168 51808557 6010451 8080297 AEY2710 CST10451GS DRS0223 LRS02710 UD30047SSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 200 mm |
| Mount Hole Center - Center (O.1) | 116 mm |
| Mount Hole Center - Center (O.2) | 82 mm |
| Mount Hole Center - Center (O.3) | 82 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| Mount Hole Diameter (C.3) | 8.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 4 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 159 1.8 TBi | [939B1000] | 01.2009-12.2011 |
| ALFA ROMEO | 4C 1.8 TBi | [960A1000] | 01.2013- |
| ALFA ROMEO | Brera 1.8 TBi | [939B1000] | 01.2009- |
| ALFA ROMEO | Giulietta 1.8 TBi | [940A1000] | 01.2010- |
| ALFA ROMEO | Giulietta 1.8 TBi | [960A1000] | 01.2013- |
| ALFA ROMEO | Spider 1.8 TBi | [939B1000] | 01.2009-12.2011 |
Reference Information
| 0001107478 | BOSCH |
| 0001107479 | BOSCH |
| 100.511.103.010 | PSH |
| 100.511.103.210 | PSH |
| 100.511.103.280 | PSH |
| 100.511.103.340 | PSH |
| 107096 | FARCOM |
| 11090267 | EUROTEC |
| 115563 | CARGO |
| 12130361 | AES |
| 25-4382 | ELSTOCK |
| 30500N | WAI / TRANSPO |
| 30500N-OS | WAI / TRANSPO |
| 51808557 | FIAT |
| 6010057.1 | SANDO |
| 71794773 | FIAT |
| AEY2710 | AUTOELECTRO |
| ASM1184 | APEC |
| AZMT-53-010-1375 | A.Z. MEISTERTEILE |
| BOS0001107478 | WOODAUTO |
| BREF0320986025670 | CARWOOD GROUP |
| BREF0321986S00706 | CARWOOD GROUP |
| DRS0223 | DELCO |
| F032115563 | BOSCH |
| LRS02710 | LUCAS |
| LRS2710 | LUCAS |
| RNL107478 | RNL |
| RNL107479 | RNL |
| S100091 | BTS TURBO |
| S104556 | BTS TURBO |
| S129.712 | PSH |
| S153.213 | PSH |
| STR50521 | WOODAUTO |
| UD30047S | AS-PL |
| WOOSTR50521 | WOODAUTO |
Video/Publications
