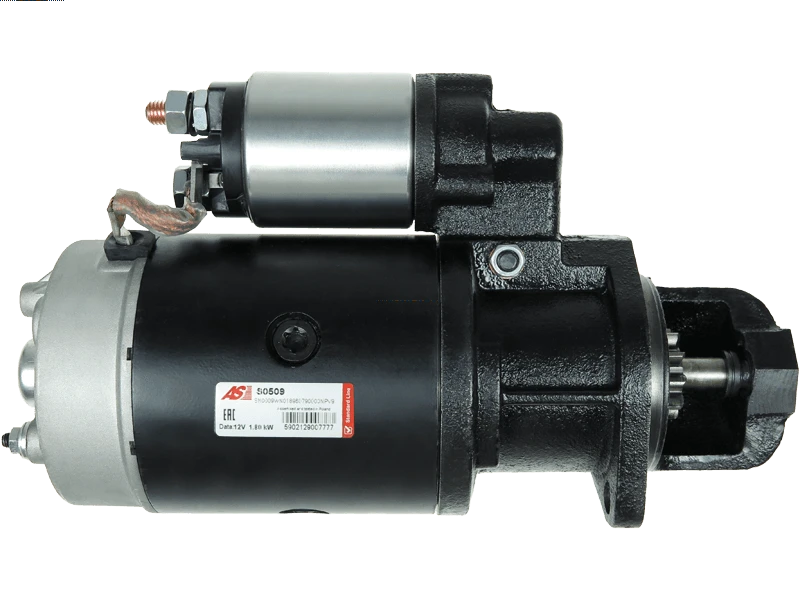

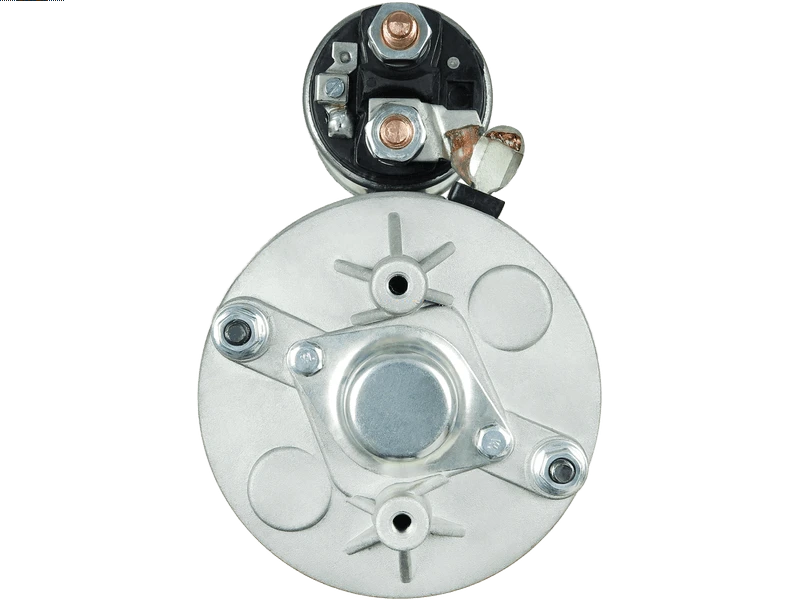

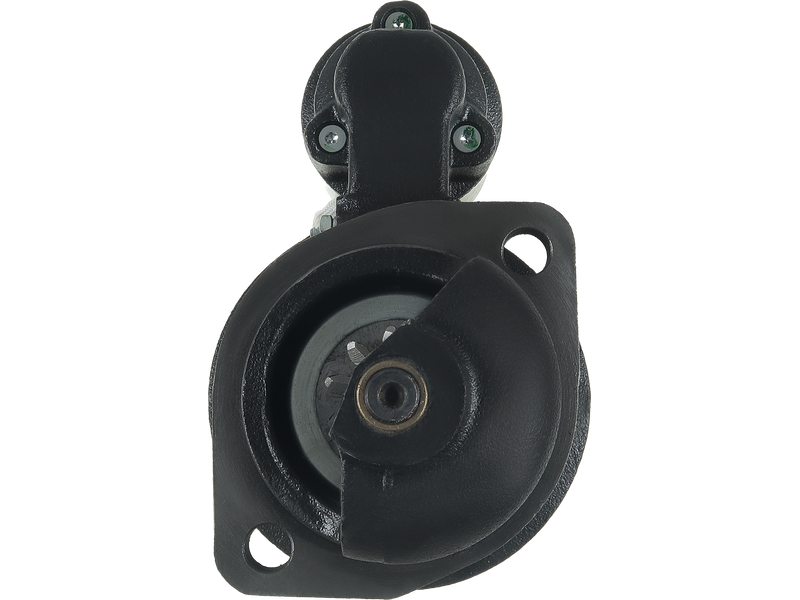

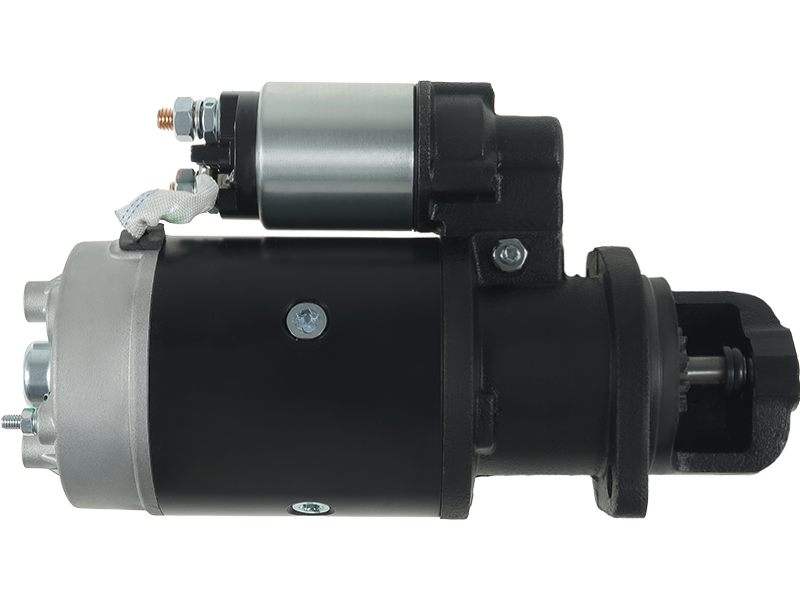

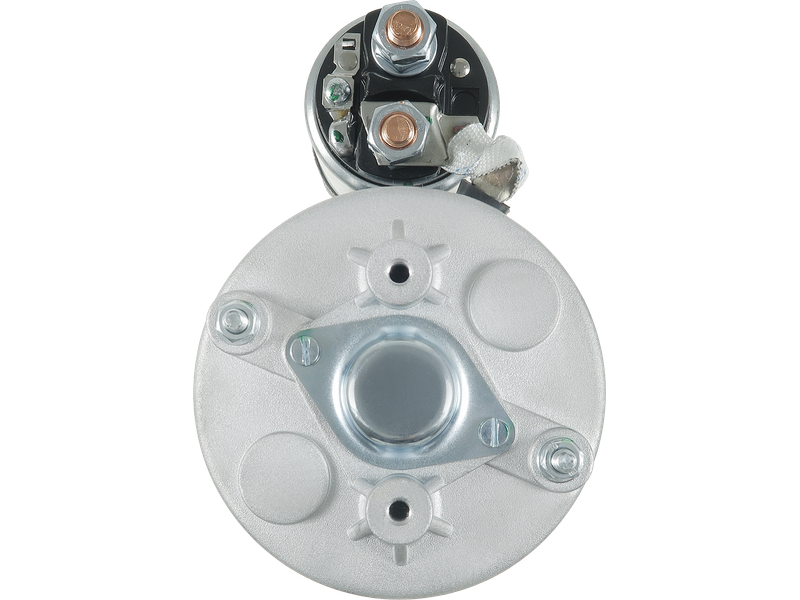

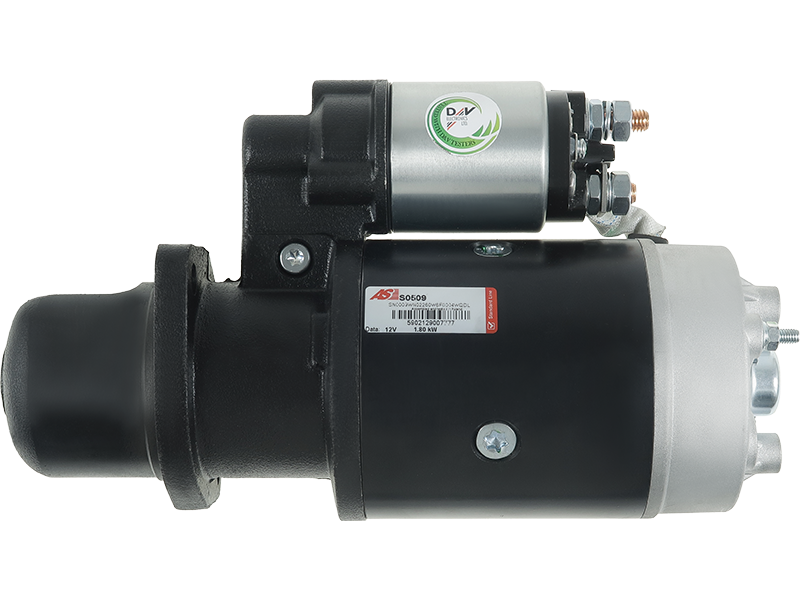

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 433.09 including GST
NZ$ 376.60 excluding GST
or four payments of $108.27
with
Learn More
each
S0509
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001366019Associated Numbers
0001354026 0001354094 0001366019 115428 20401651BN 25-1350 254272 540.012.102 6010156 711104R92 711104R93 8058 CST10156AS LRS01228 STR50519 UD30045SSpecifications
| Kilowatt | 1.80 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 323 | [IHD-111] | 01.1965-12.1974 |
Reference Information
| 0001354026 | BOSCH |
| 0001354094 | BOSCH |
| 0001366019 | BOSCH |
| 115428 | CARGO |
| 20401651BN | REAL |
| 25-1350 | ELSTOCK |
| 254272 | KUHNER |
| 5010371 | MEAT & DORIA |
| 540.012.102 | PSH |
| 540.012.102.461 | PSH |
| 6010156 | SANDO |
| 711104R92 | IHC |
| 711104R93 | IHC |
| 8058 | CEVAM |
| CST10156AS | CASCO |
| F032115428 | CARGO |
| LRS01228 | LUCAS |
| LRS1228 | LUCAS |
| S0509 | AS-PL |
| S12BH0187A2 | SIDAT |
| S133.330 | PSH |
| STR10050 | ELECTROLOG |
| STR50519 | WOODAUTO |
| STRF558 | 3EFFE |
| UD30045S | AS-PL |
Video/Publications
