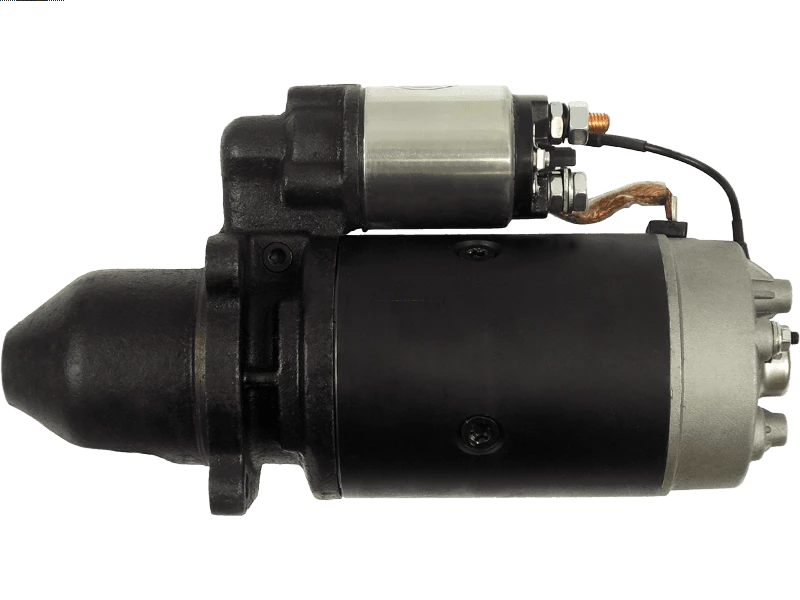

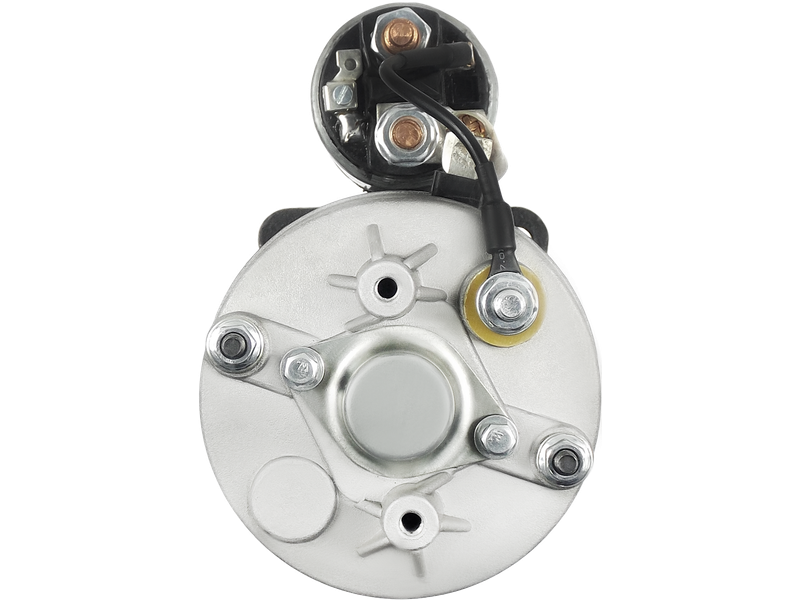

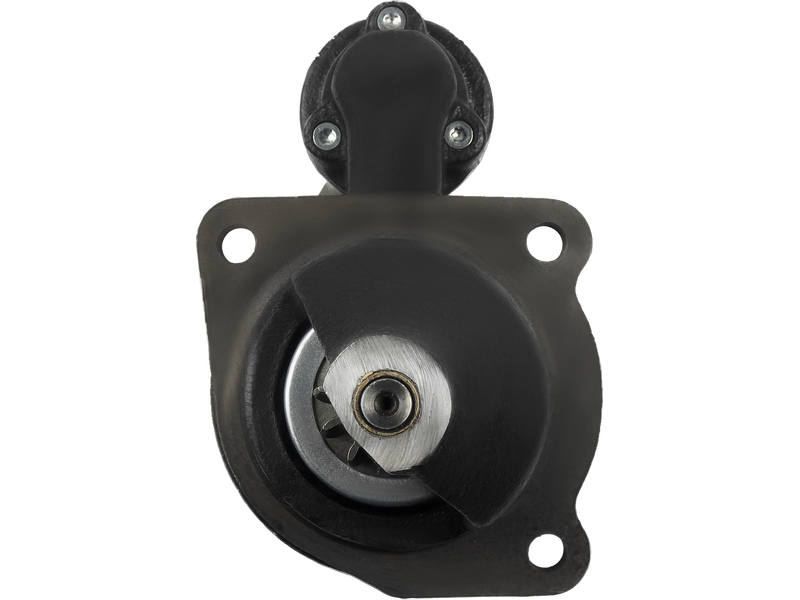

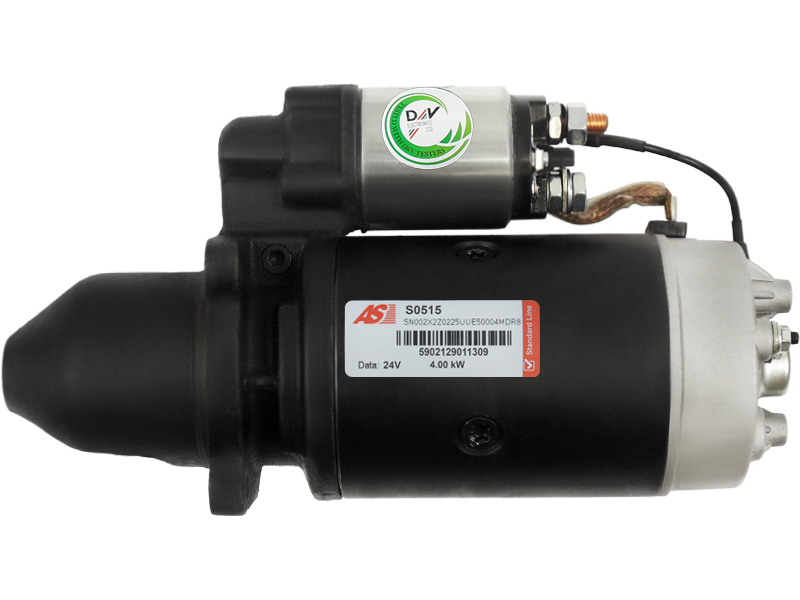

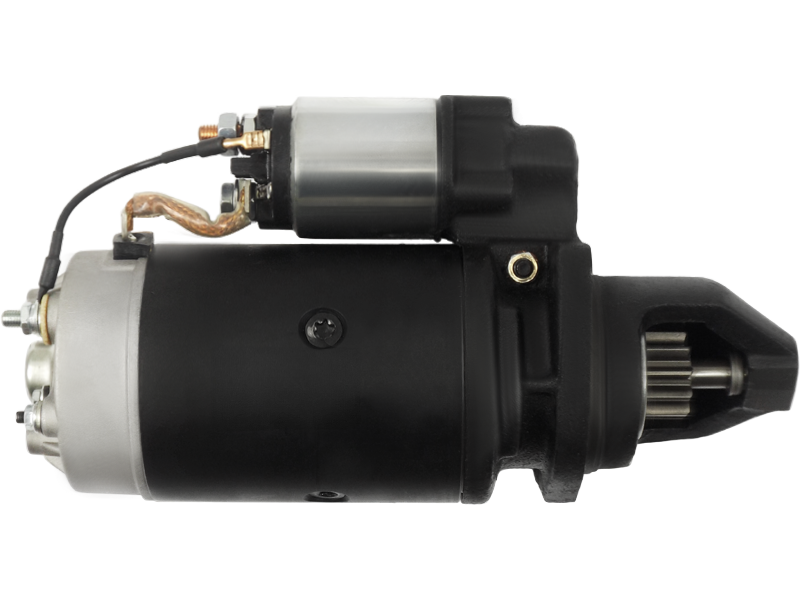

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 439.47 including GST
NZ$ 382.15 excluding GST
or four payments of $109.87
with
Learn More
each
S0515
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001368015Associated Numbers
0001360048 0001368015 11.130.734 11.132.106 114266 20401586BN 254263 254263M 260-67235 45-2179 6010685 801.004.113 801.501.113 836130388 836664355 836674650 AZF4298 AZJ3256 CST10685 CST10685AS CST10685ES CST10685GS CST10685OS CST10685RS IS0734 IS1347 LETIS1347 LRS01898 STR50196 UD11442S UNIT BOM 120-655 V836664355 V836674650Specifications
| Insulated Earth | Yes |
| Kilowatt | 4 kW |
| Length (L.1) | 340 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AGCO | 320 | [DG] | |
| AGCO | 320 | [DSG] | |
| AGCO | 411BS | ||
| AGCO | 420 | [DSRMG] | |
| AGCO | 420 4.4 | [DM] | |
| AGCO | 420 4.4 | [DSIM] | |
| AGCO | 420 4.4 | [DSM] | |
| AGCO | 44 4.4 | [CTIM] | |
| AGCO | 44B | ||
| AGCO | 49 4.4 | [CTAG] | |
| AGCO | 49 4.4 | [CTIM] | |
| AGCO | 49 4.4 | [DTAG] | |
| AGCO | 49 4.4 | [DTG] | |
| AGCO | 611C 6.0 | ||
| AGCO | 611CS 6.0 | ||
| AGCO | 620 | [DSRG] | |
| AGCO | 620 | [DSRMG] | |
| AGCO | 620 6.6 | [DM] | |
| AGCO | 620 6.6 | [DSBIM] | |
| AGCO | 620 6.6 | [DSBM] | |
| AGCO | 620 6.6 | [DSM] | |
| AGCO | 634 | [DSBAG] | |
| AGCO | 634 | [DSBG] | |
| AGCO | 634 | [DSBIG] | |
| AGCO | 634 | [DSBIMG] | |
| AGCO | 634 | [DSBMG] | |
| AGCO | 645 | [DSBAG] | |
| AGCO | 645 | [DSBIG] | |
| AGCO | 645 | [DSBIMG] | |
| AGCO | 645 8.4 | [DSIBM] | |
| AGCO | 66 6.6 | [CTIM] | |
| AGCO | 74 7.4 | [CTAG] | |
| AGCO | 74 7.4 | [CTIM] | |
| AGCO | 74 7.4 | [DTAG] | |
| AGCO | 84 8.4 | [CTAG] | |
| AGCO | 84 8.4 | [CTIM] | |
| VALMET | Onbekend |
Reference Information
| 0001360048 | BOSCH |
| 0001368015 | BOSCH |
| 01182235 | KHD |
| 11.130.734 | ISKRA / LETRIKA |
| 11.132.106 | ISKRA / LETRIKA |
| 114266 | CARGO |
| 20401586BN | REAL |
| 254263 | KUHNER |
| 254263M | KUHNER |
| 260-67235 | DIXIE |
| 331977 | LOGISTIK |
| 45-2179 | ELSTOCK |
| 6010685 | SANDO |
| 801.004.113 | PSH |
| 801.501.113 | PSH |
| 836130388 | VALMET |
| 836664355 | AGCO |
| 836674650 | AGCO |
| AZF4298 | ISKRA / LETRIKA |
| AZJ3256 | ISKRA / LETRIKA |
| CST10685 | CASCO |
| CST10685AS | CASCO |
| CST10685ES | CASCO |
| CST10685GS | CASCO |
| CST10685OS | CASCO |
| CST10685RS | CASCO |
| F032114266 | CARGO |
| IS0734 | ISKRA / LETRIKA |
| IS1347 | ISKRA / LETRIKA |
| LETIS1347 | WOODAUTO |
| LRS01898 | LUCAS |
| LRS1898 | LUCAS |
| MAV126850 | SIOM |
| MS 19 | MAHLE |
| STR10076 | ELECTROLOG |
| STR50196 | WOODAUTO |
| STRL840 | 3EFFE |
| UD11442S | AS-PL |
| UNIT BOM 120-655 | WAI / TRANSPO |
| V836130388 | FENDT |
| V836664355 | AGCO |
| V836674650 | AGCO |
