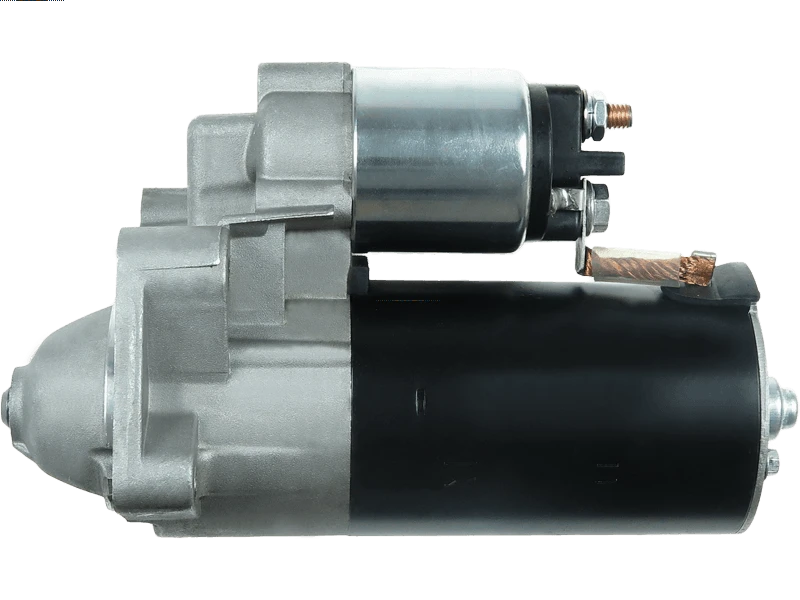

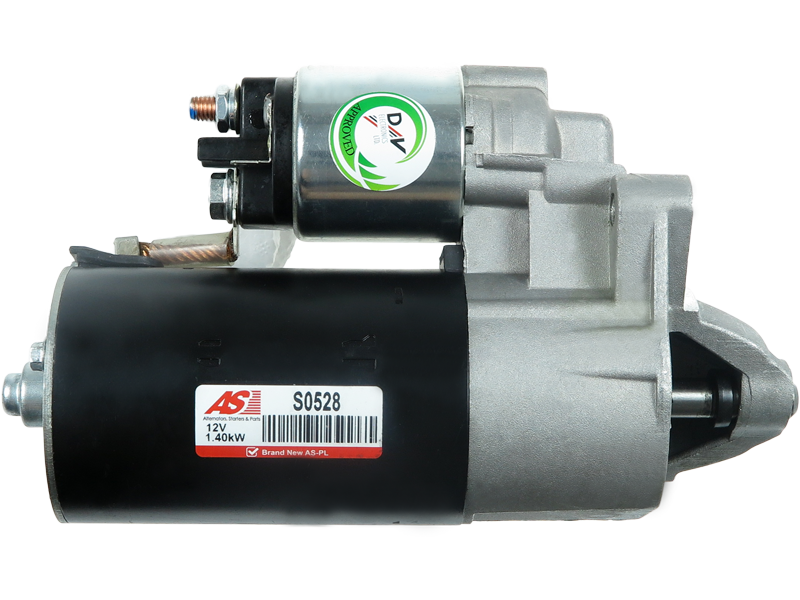

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 365.60 including GST
NZ$ 317.91 excluding GST
or four payments of $91.40
with
Learn More
each
S0528
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001108173Associated Numbers
0001108173 0986018050 101132 112080 11702 20401254OE 20510174 22.1132 25-2331 30854113 3860 570.527.093 6010452 8018050 810.511.093 8602103 943253144010 944280180500 AES2250 CS1132 CST10452 CST10452AS CST10452ES CST10452GS CST10452OS CST10452RS DRS3773 EAA-151817 LRT00250 MSR5344 STR50360 UD11976SSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 230 mm |
| Mount Hole Center - Center (O.1) | 54 mm |
| Mount Hole Center - Center (O.2) | 98 mm |
| Mount Hole Center - Center (O.3) | 64 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | -2 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | Laguna 1.6 i | [N7Q] | 05.1995-04.1998 |
| RENAULT | Laguna 1.8 i | [N7Q] | 05.1995-04.1998 |
| RENAULT | Laguna 2.0 16V | [N7Q] | 01.1995-12.2001 |
| RENAULT | Laguna 2.0 i | [N7Q] | 05.1995-04.1998 |
| VOLVO | S40 1.6 | [B4164S] | 09.1995-08.1999 |
| VOLVO | S40 1.6 | [B4164S2] | 03.1999-12.2003 |
| VOLVO | S40 1.8 | [B4184S] | 07.1995-08.1999 |
| VOLVO | S40 1.8 | [B4184S2] | 03.1999-12.2003 |
| VOLVO | S40 1.8 | 06.2001-08.2003 | |
| VOLVO | S40 1.9 T4 | [B4194T] | 05.1997-07.2000 |
| VOLVO | S40 1.9 T4 | [B4194T2] | 05.1997-07.2000 |
| VOLVO | S40 2.0 | [B4204S] | 07.1995-08.1999 |
| VOLVO | S40 2.0 16V | [B4204S] | 07.1995-12.2003 |
| VOLVO | S40 2.0 Turbo | [B4204T] | 10.1997-07.2000 |
| VOLVO | S40 2.0 Turbo T4 | [B4204T5] | 07.2000-12.2003 |
| VOLVO | V40 1.6 | [B4164S] | 12.1995-08.1999 |
| VOLVO | V40 1.6 | [B4164S2] | 03.1999-06.2004 |
| VOLVO | V40 1.8 | [B4184S] | 07.1995-08.1999 |
| VOLVO | V40 1.8 | [B4184S2] | 03.1999-06.2004 |
| VOLVO | V40 1.9 T4 | [B4194T] | 05.1997-07.2000 |
| VOLVO | V40 1.9 T4 | [B4194T2] | 05.1997-07.2000 |
| VOLVO | V40 2.0 | [B4204S] | 07.1995-08.1999 |
| VOLVO | V40 2.0 | [B4204S2] | 07.1995-08.1999 |
| VOLVO | V40 2.0 16V | [B4204S2] | 07.1995-06.2004 |
| VOLVO | V40 2.0 Turbo | [B4204T2] | 07.2000-06.2004 |
| VOLVO | V40 2.0 Turbo | [B4204T3] | 06.2001-06.2004 |
| VOLVO | V40 2.0 Turbo 16V | [B4204T] | 10.1997-07.2000 |
| VOLVO | V40 2.0 Turbo T4 | [B4204T5] | 07.2000-06.2004 |
Reference Information
| 0001108173 | BOSCH |
| 0986018050 | BOSCH |
| 101132 | KUHNER |
| 112080 | CARGO |
| 11702 | EAI |
| 20401254OE | REAL |
| 20510174 | PRESTOLITE |
| 220880 | ERA |
| 22.1132 | LAUBER |
| 25-2331 | ELSTOCK |
| 30854113 | VOLVO |
| 331237 | LOGISTIK |
| 3860 | CEVAM |
| 570.527.093 | PSH |
| 570.527.093.310 | PSH |
| 6010452 | SANDO |
| 8018050 | FRIESEN |
| 810.511.093 | PSH |
| 8602103 | VOLVO |
| 943253144010 | MAGNETI MARELLI |
| 944280180500 | MAGNETI MARELLI |
| AES2250 | AUTOELECTRO |
| ANM15993X | ANDEL |
| CS1132 | HC PARTS |
| CST10452 | CASCO |
| CST10452AS | CASCO |
| CST10452ES | CASCO |
| CST10452GS | CASCO |
| CST10452OS | CASCO |
| CST10452RS | CASCO |
| DRS3773 | DELCO |
| F032112080 | CARGO |
| LRT00250 | LUCAS |
| MAV4710 | SIOM |
| MSR5344 | MAGNETI MARELLI |
| STR1489 | ELECTROLOG |
| STR50360 | WOODAUTO |
| STRS440 | 3EFFE |
| STX200991 | STARDAX |
| UD11976S | AS-PL |
