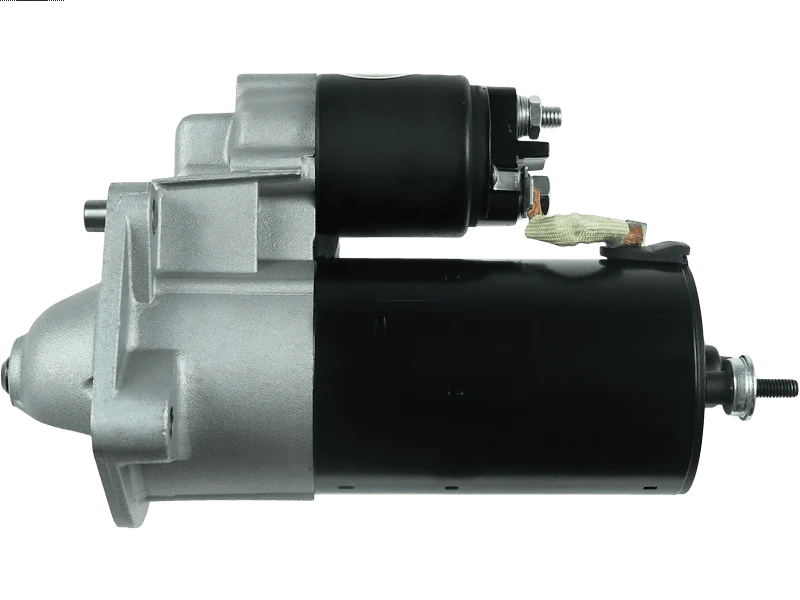

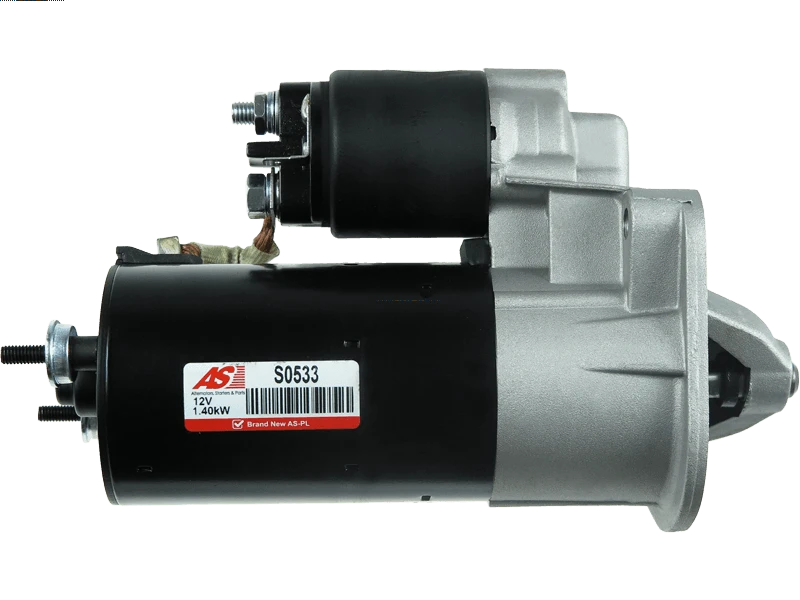

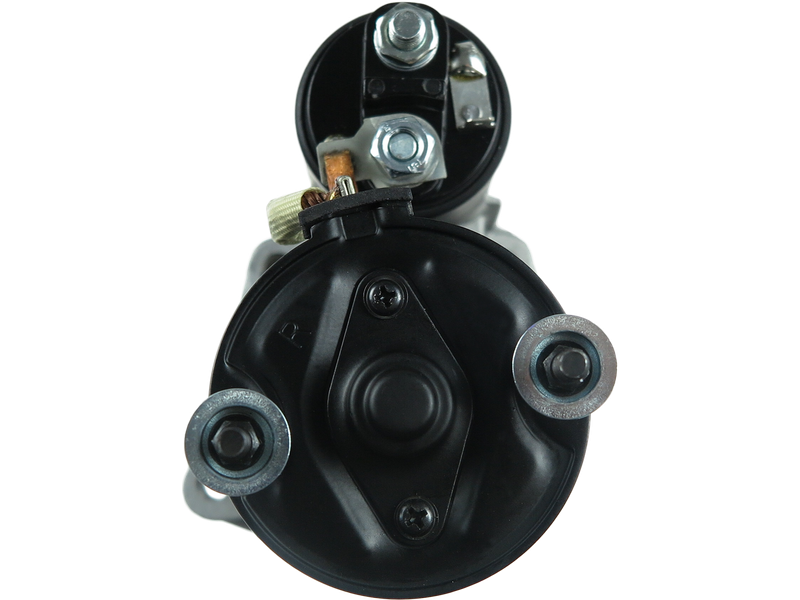

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 231.07 including GST

NZ$ 200.93 excluding GST

or four payments of $57.77 with
Learn More

UOM:

each

Alternative Item:

S0059

Product Code:

S0533

Quantity In Stock Nationally

No stock in NZ currently

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
< Critical Notes >

0001108166

0001108066 0001108107 0001108153 0001108166 0001108167 0986016660 10680 10979 11.139.309 11.139.407 112818 1363451 1363451-0 1363451-4 17508N 17508R 20510116 22.0680M 25-2037 25-3135 260-14111 30658564 30658565 30815466 30819127 3652 42016660 458190 5003810 5003810-0 5003810-8 5003918-0 5003918-9 564338 565904 6.0133.9 6010158 7700102000 7700103386 7700114428 810.504.093 8111302 8111302-0 8111302-9 8212223 8251551 8251551-0 8251551-1 8602084 8602085 8602085-0 8602085-6 8602104 8602104-0 8602104-5 8EA730196-001 91-15-7036 91-15-7036N 9128421 9128421-0 9128421-6 9162617 9162618 9162618-4 943241060010 944280166600 AES1216 AZE2123 AZE2182 CS680 CST10158 CST10158AS CST10158ES CST10158GS CST10158OS CST10158RS DRS6660 EAA-121311 IS9309 LRS02109 LRT00116 MS216 MSR1060 RAS37771 RS37771 S-6160 S1029B STR50020 STR50269 UD12029S 0001108032 Bosch show 0001108045 0001108046 0001108068 0001108069 0001108103 0001108104 0001108134 0001208420 0001208421 01108134 Andre Niermann 04671130 Chrysler 0986019257 ruil 0986CN1755 0986UN3514 11090004 EuroTec 11139428 Mahle 111425 Cargo 11846 EAI 120312A PIC 12044740 16963 Lester 17218 252100 Elstock 4419308 Fiat 4419311 4419312 4427 4427SP Spidan 4557130 4557209 4638171 4671130 5226444 5226842 5227282 5227342 5233006 5233007 5233656 5233666 634001092 DRI 72735681 830505093 PSH 91156922 Wilson A70100 ATL A70200 AZE2196 CS979 HC DRZ5150 Remy DRZ5161 IS9421 IS9421C LRS01323 Lucas MS53 S27179 Hitachi SR35N (USA) SR35X STR2011 Unipoint ARROWHEA SBO0011 BOSCH 0-001-108-032 0-001-108-045 0-001-108-046 0-001-108-066 0-001-108-068 0-001-108-069 0-001-108-103 0-001-108-104 0-001-108-134 CHRYSLER MOTORS J&N ELECTRICAL PRODUCTS 410-24001 JANNCO 410-24001R BXS0122 0001106167 0001108142 0001108189 0001108248 01108167 076576 Valeo 097147 0986016661 0986016663 11015600 11016660 11139309 11139407 11702 120358 120359A Volvo 1395 1395SP 17201 17508 1986S00702 Prestolite 252037 253135 254240 30358564 330063092 338019092 338037092 36003223 Herth Buss 5003918 589123 72735844 Renault 7701499617 8016660 Friesen 8016660F 810504093 8EA012527081 Hella 8EA730196001 8EL738060001 91157126 916660 EDR A16660 F042002047 F042S02046 F042S02047 HCS680 IS9309C LRS02568 LRT116 Magneti Marelli OSM10745 Optimum S27063 SP1243 SP1395 STR1113sa Electrolog STR1171sa STR1258sa STR2039 STR2102 STR2103 STR23967 Stabeco 0001107076 0986018870 101272 11968 25-2484 3115 810.515.093 88212400 8EA012527-811 8EA738060-001 944280188700 CS1272 DRS8870 EAA-122224 LRS01516 LRS1516 STB1272 STRS912 UD13941S ARROWHEAD SBO0042 0001105167 0-001-108-107 0-986-016-660 1666 1887 SR0483X DELCO 410-24305 LESTER LETRIKA/ISKRA LUCAS ELECTRIC S7257 S7272 MAHLE MS0216 MARELLI MITSUBISHI 30857255 PRESTOLITE RENAULT VALEO 458521 VS430 VOLVO 30816127 363092104-3 16962 17463 S1368 S1372 S0059. S0877s.

Push on exciter terminal

Kilowatt	1.40 kW
Length (L.1)	241 mm
Mount Hole Center - Center (O.1)	106 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	-1 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
BUICK	ELECTRA 3.0	LK9(183CUV6)	10.1984-09.1985
BUICK	ELECTRA 3.8	LD5	10.1984-09.1986
BUICK	ELECTRA 3.8	LN3	10.1984-09.1990
BUICK	ELECTRA 3.8	LN3	10.1986-09.1989
BUICK	ELECTRA 3.8	LN3	10.1986-09.1990
BUICK	ELECTRA 4.1	LC4	10.1981-09.1984
BUICK	LESABRE 3.8	LN3	10.1986-09.1987
BUICK	LESABRE 3.8	LN3	10.1986-09.1987
DAEWOO	LEGANZA (KLAV) 2.0	T20SED	01.2001-12.2002
DAEWOO	LEGANZA (KLAV) 2.0	X20SED	06.1997-12.2002
DAEWOO	LEGANZA (KLAV) 2.0 16V	T20SED	07.2000-04.2004
DAEWOO	LEGANZA (KLAV) 2.0 16V	X20SED	06.1997-12.2002
DAEWOO	LEGANZA (KLAV) 2.2 16V	T22SED	04.1999-12.2002
RENAULT	Safrane 1.9 16V	[N7Q710]	07.1996-12.2000
RENAULT	Safrane 1.9 16V	[N7Q711]	07.1996-12.2000
RENAULT	Safrane 2.5 20V	[N7U700]	07.1996-12.2000
RENAULT	Safrane 2.5 20V	[N7U701]	07.1996-12.2000
RENAULT	SAFRANE II (B54_) 2.0 16V (B54L)	N7Q710	07.1996-12.2000
RENAULT	SAFRANE II (B54_) 2.0 16V (B54L)	N7Q711	07.1996-12.2000
RENAULT	SAFRANE II (B54_) 2.5 20V (B54F)	N7U700	07.1996-12.2000
RENAULT	SAFRANE II (B54_) 2.5 20V (B54F)	N7U701	07.1996-12.2000
VOLVO	850 2.0	[B5202S]	08.1994-12.1996
VOLVO	850 2.0	[B5204F]	02.1993-12.1996
VOLVO	850 2.0	[B5204F]	06.1991-12.1996
VOLVO	850 2.0 Turbo	[B5204FT]	02.1993-12.1996
VOLVO	850 2.0 Turbo	[B5204FT]	08.1993-12.1996
VOLVO	850 2.0 Turbo	[B5204T]	02.1993-12.1996
VOLVO	850 2.0 Turbo	[B5204T]	08.1993-12.1996
VOLVO	850 2.0 Turbo	[B5204T2]	09.1993-10.1996
VOLVO	850 2.0 Turbo	[B5204T2]	09.1993-10.1997
VOLVO	850 2.3 T5	[B5234FT]	02.1993-12.1996
VOLVO	850 2.3 T5	[B5234FT]	08.1993-07.1996
VOLVO	850 2.3 T5	[B5234T2]	04.1996-10.1996
VOLVO	850 2.3 T5	[B5234T4]	08.1995-12.1996
VOLVO	850 2.3 T5 R	[B5234T2]	04.1996-10.1996
VOLVO	850 2.3 Turbo	[B5234FT]	01.1994-01.1994
VOLVO	850 2.3 Turbo		01.1995-01.1996
VOLVO	850 2.3 Turbo R	[B5234T5]	06.1995-10.1997
VOLVO	850 2.3 Turbo R		01.1997-01.1997
VOLVO	850 2.4	[B5254FS]	01.1993-01.1994
VOLVO	850 2.4 GLE	[B5254T]	09.1993-10.1997
VOLVO	850 2.4 GLT	[B5254FS]	01.1995-01.1996
VOLVO	850 2.5	[B5252]	08.1992-07.1994
VOLVO	850 2.5	[B5252FS]	08.1994-12.1996
VOLVO	850 2.5 10V	[B5252]	06.1991-07.1994
VOLVO	850 2.5 10V	[B5252S]	08.1994-12.1996
VOLVO	850 2.5 20V	[B5254S]	08.1991-12.1996
VOLVO	850 2.5 20V	[B5254S]	09.1992-12.1996
VOLVO	850 2.5 AWD	[B5254T]	04.1996-12.1996
VOLVO	850 (854) 2.0	B5202S	08.1994-12.1996
VOLVO	850 (854) 2.0	B5204FS	06.1991-12.1996
VOLVO	850 (854) 2.0 Turbo	B5204FT	08.1993-12.1996
VOLVO	850 (854) 2.0 Turbo	B5204T	08.1993-12.1996
VOLVO	850 (854) 2.0 Turbo	B5204T2	09.1993-10.1996
VOLVO	850 (854) 2.3 Turbo R	B5234T5	06.1995-10.1996
VOLVO	850 (854) 2.3 Turbo R	B5234T5	09.1994-10.1997
VOLVO	850 (854) 2.4	B5252	06.1991-07.1994
VOLVO	850 (854) 2.4	B5252FS	08.1994-12.1996
VOLVO	850 (854) 2.4	B5254S	08.1991-12.1996
VOLVO	850 (854) 2.4 GLE	B5254T	09.1993-10.1997
VOLVO	850 (854) T5	B5234FT	08.1993-07.1996
VOLVO	850 (854) T5-R	B5234T4	08.1995-12.1996
VOLVO	850 Estate (855) 2.0	B5202S	08.1994-12.1996
VOLVO	850 Estate (855) 2.0	B5204FS	02.1993-12.1996
VOLVO	850 Estate (855) 2.0 Turbo	B5204FT	02.1993-12.1996
VOLVO	850 Estate (855) 2.0 Turbo	B5204T	02.1993-12.1996
VOLVO	850 Estate (855) 2.0 Turbo	B5204T2	09.1993-10.1997
VOLVO	850 Estate (855) 2.3 Turbo R	B5234T5	06.1995-10.1997
VOLVO	850 Estate (855) 2.3 Turbo R	B5234T5	09.1994-10.1997
VOLVO	850 Estate (855) 2.4	B5252	08.1992-07.1994
VOLVO	850 Estate (855) 2.4	B5252FS	08.1994-12.1996
VOLVO	850 Estate (855) 2.4	B5254S	09.1992-12.1996
VOLVO	850 Estate (855) 2.4 AWD	B5254T	04.1996-10.1997
VOLVO	850 Estate (855) 2.4 GLE	B5254T	09.1993-10.1997
VOLVO	850 Estate (855) T5	B5234FT	02.1993-12.1996
VOLVO	850 Estate (855) T5-R	B5234T4	08.1995-12.1996
VOLVO	C30 (533) 2.4 i	B5244S4	10.2006-12.2012
VOLVO	C30 (533) T5	B5254T3	10.2006-12.2012
VOLVO	C30 (533) T5	B5254T7	03.2007-12.2012
VOLVO	C30 (533) T5	B5254T7	10.2007-12.2013
VOLVO	C70 2.0 20V	[B5204T2]	03.1997-09.2002
VOLVO	C70 2.0 20V	[B5204T2]	03.1998-10.2005
VOLVO	C70 2.0 Turbo	[B5204T2]	03.2000-09.2002
VOLVO	C70 2.0 Turbo	[B5204T3]	03.1997-09.2002
VOLVO	C70 2.0 Turbo	[B5204T3]	03.1998-10.2005
VOLVO	C70 2.0 Turbo	[B5204T4]	03.2000-10.2005
VOLVO	C70 2.3 T5	[B5234T3]	03.1997-09.2002
VOLVO	C70 2.3 T5	[B5234T3]	03.1998-10.2005
VOLVO	C70 2.3 T5	[B5234T9]	07.2002-10.2005
VOLVO	C70 2.3 Turbo	[B5234T3]	01.2002-01.2003
VOLVO	C70 2.4 Turbo	[B5244T]	01.2002-01.2002
VOLVO	C70 2.4 Turbo	[B5244T7]	07.2002-10.2005
VOLVO	C70 2.5	[B5244S]	03.1999-09.2002
VOLVO	C70 2.5	[B5254S]	06.1998-10.2005
VOLVO	C70 2.5	[B5254S]	11.1999-09.2002
VOLVO	C70 2.5 Turbo	[B5244T]	03.1997-09.2002
VOLVO	C70 2.5 Turbo	[B5254T]	03.1997-09.2002
VOLVO	C70 2.5 Turbo	[B5254T]	03.1998-10.2005
VOLVO	C70 I Convertible (873) 2.0	B5204T2	03.1998-10.2005
VOLVO	C70 I Convertible (873) 2.0 T	B5204T3	03.1998-10.2005
VOLVO	C70 I Convertible (873) 2.0 T	B5204T4	03.2000-10.2005
VOLVO	C70 I Convertible (873) 2.4	B5254S	06.1998-10.2005
VOLVO	C70 I Convertible (873) 2.4 T	B5244T	03.1998-10.2005
VOLVO	C70 I Convertible (873) 2.4 T	B5244T7	07.2002-10.2005
VOLVO	C70 I Convertible (873) 2.4 T	B5254T	03.1998-10.2005
VOLVO	C70 I Convertible (873) T5	B5234T3	03.1998-10.2005
VOLVO	C70 I Convertible (873) T5	B5234T9	07.2002-10.2005
VOLVO	C70 I Coupe (872) 2.0	B5204T2	03.1997-09.2002
VOLVO	C70 I Coupe (872) 2.0 T	B5204T3	03.1997-09.2002
VOLVO	C70 I Coupe (872) 2.0 T	B5204T4	03.2000-09.2002
VOLVO	C70 I Coupe (872) 2.4	B5244S	05.1999-09.2002
VOLVO	C70 I Coupe (872) 2.4	B5254S	03.1999-09.2002
VOLVO	C70 I Coupe (872) 2.4	B5254S	05.1999-09.2002
VOLVO	C70 I Coupe (872) 2.4 T	B5244T	03.1997-09.2002
VOLVO	C70 I Coupe (872) 2.4 T	B5254T	03.1997-09.2002
VOLVO	C70 I Coupe (872) T-5	B5234T3	03.1997-09.2002
VOLVO	C70 II Convertible (542) 2.4	B5244S5	03.2006-10.2009
VOLVO	C70 II Convertible (542) 2.4 i	B5244S4	03.2006-10.2009
VOLVO	C70 II Convertible (542) T5	B5254T3	03.2006-02.2007
VOLVO	C70 II Convertible (542) T5	B5254T7	03.2007-06.2013
VOLVO	S40 1.6	[B4164S]	09.1995-08.1999
VOLVO	S40 1.6	[B4164S2]	03.1999-12.2003
VOLVO	S40 1.8	[B4184S]	07.1995-08.1999
VOLVO	S40 1.8	[B4184S2]	03.1999-12.2003
VOLVO	S40 1.9 T4	[B4194T]	05.1997-07.2000
VOLVO	S40 2.0	[B4204S]	07.1995-08.1999
VOLVO	S40 2.0	[B4204S2]	01.1996-12.2004
VOLVO	S40 2.0 16V	[B4204S]	07.1995-12.2003
VOLVO	S40 2.0 Turbo	[B4204T]	10.1997-07.2000
VOLVO	S40 2.0 Turbo T4	[B4204T5]	07.2000-12.2003
VOLVO	S40 I (644) 1.6	B4164S	09.1995-08.1999
VOLVO	S40 I (644) 1.6	B4164S2	03.1999-12.2003
VOLVO	S40 I (644) 1.8	B4184S	07.1995-08.1999
VOLVO	S40 I (644) 1.8	B4184S2	03.1999-12.2003
VOLVO	S40 I (644) 1.8	B4184S2	06.2001-08.2003
VOLVO	S40 I (644) 1.8	B4184S3	07.1995-08.1999
VOLVO	S40 I (644) 1.8 LPG	B4184S9	03.1999-12.2004
VOLVO	S40 I (644) 1.9 T4	B4194T	05.1997-07.2000
VOLVO	S40 I (644) 1.9 T4	B4194T2	05.1997-07.2000
VOLVO	S40 I (644) 2.0	B4204S	07.1995-08.1999
VOLVO	S40 I (644) 2.0	B4204S	07.1995-12.2003
VOLVO	S40 I (644) 2.0	B4204S2	07.1995-12.2003
VOLVO	S40 I (644) 2.0 T	B4204T	10.1997-12.2003
VOLVO	S40 I (644) 2.0 T	B4204T2	07.2000-06.2001
VOLVO	S40 I (644) 2.0 T	B4204T3	06.2001-12.2003
VOLVO	S40 I (644) 2.0 T	B4204T3	07.2000-06.2001
VOLVO	S40 I (644) 2.0 T4	B4204T5	07.2000-12.2003
VOLVO	S40 II (544) 2.4	B5244S4	01.2004-12.2012
VOLVO	S40 II (544) 2.4	B5244S5	01.2004-12.2010
VOLVO	S40 II (544) T5	B5254T3	01.2004-12.2007
VOLVO	S40 II (544) T5	B5254T7	03.2007-12.2012
VOLVO	S40 II (544) T5 AWD	B5254T3	04.2004-12.2007
VOLVO	S40 II (544) T5 AWD	B5254T7	03.2007-12.2010
VOLVO	S60 2.0 Turbo	[B5204T5]	09.2001-
VOLVO	S60 2.3 T5	[B5234T3]	11.2000-
VOLVO	S60 2.3 T5	[B5234T7]	11.2000-
VOLVO	S60 2.3 Turbo T5	[B5234T3]	01.2002-01.2003
VOLVO	S60 2.4	[B5244S]	01.2002-01.2003
VOLVO	S60 2.4	[B5244S]	11.2000-
VOLVO	S60 2.4	[B5244S2]	11.2000-
VOLVO	S60 2.4 BiFuel	[B5244SG]	06.2002-
VOLVO	S60 2.4 T5	[B5244T5]	04.2004-
VOLVO	S60 2.4 Turbo	[B5244T3]	01.2002-01.2002
VOLVO	S60 2.4 Turbo	[B5244T3]	11.2000-
VOLVO	S60 2.4 Turbo AWD	[B5244T3]	11.2001-
VOLVO	S60 2.5 R AWD	[B5254T4]	03.2003-
VOLVO	S60 2.5 R Turbo AWD	[B5254T4]	03.2003-
VOLVO	S60 2.5 Turbo	[B5254T2]	02.2004-
VOLVO	S60 2.5 Turbo AWD	[B5254T2]	04.2004-
VOLVO	S60 I (384) 2.0 T	B5204T5	07.2000-04.2010
VOLVO	S60 I (384) 2.4	B5244S	11.2000-04.2010
VOLVO	S60 I (384) 2.4	B5244S2	07.2000-04.2010
VOLVO	S60 I (384) 2.4	B5244T4	01.2005-10.2006
VOLVO	S60 I (384) 2.4 Bifuel (CNG)	B5244SG	07.2001-04.2010
VOLVO	S60 I (384) 2.4 Bifuel (CNG)	B5244SG2	07.2001-04.2010
VOLVO	S60 I (384) 2.4 Bifuel (LPG)	B5244SG2	07.2001-04.2010
VOLVO	S60 I (384) 2.4 T	B5244T3	07.2000-04.2010
VOLVO	S60 I (384) 2.4 T AWD	B5244T3	06.2001-04.2010
VOLVO	S60 I (384) 2.5 T	B5254T2	01.2003-04.2010
VOLVO	S60 I (384) 2.5 T AWD	B5254T2	07.2002-04.2010
VOLVO	S60 I (384) R 2,5 T AWD	B5254T4	01.2003-04.2010
VOLVO	S60 I (384) T5	B5234T3	07.2000-04.2010
VOLVO	S60 I (384) T5	B5234T7	07.2000-09.2002
VOLVO	S60 I (384) T5	B5244T5	04.2004-04.2010
VOLVO	S60 II (134) 2.0 T	B5204T8	05.2012-12.2015
VOLVO	S60 II (134) T5	B5254T5	09.2011-12.2015
VOLVO	S70 2.0	[B5202FS]	01.1997-11.2000
VOLVO	S70 2.0	[B5202S]	01.1997-11.2000
VOLVO	S70 2.0	[B5204F]	01.1997-11.2000
VOLVO	S70 2.0	[B5204T4]	01.1997-11.2000
VOLVO	S70 2.0 20V	[B5204T2]	01.1997-11.2000
VOLVO	S70 2.0 Turbo	[B5204T]	01.1997-11.2000
VOLVO	S70 2.0 Turbo	[B5204T3]	01.1997-11.2000
VOLVO	S70 2.3 T5	[B5234T3]	01.1997-11.2000
VOLVO	S70 2.3 Turbo	[B5234FT]	01.1997-11.2000
VOLVO	S70 2.4	[B5244S]	01.1997-11.2000
VOLVO	S70 2.4	[B5244S2]	08.1999-11.2000
VOLVO	S70 2.4	[B5252FS]	01.1997-11.2000
VOLVO	S70 2.4	[B5254S]	06.1998-11.2000
VOLVO	S70 2.4	[GB5252S]	10.1998-11.2000
VOLVO	S70 2.4 Turbo	[B5244T]	01.1997-11.2000
VOLVO	S70 2.4 Turbo	[B5254T]	01.1997-11.2000
VOLVO	S70 2.5	[B5252S]	01.1997-11.2000
VOLVO	S70 2.5 BiFuel	[B5244SG]	07.1999-11.2000
VOLVO	S70 (874) 2.0	B5202FS	01.1997-11.2000
VOLVO	S70 (874) 2.0	B5202S	01.1997-11.2000
VOLVO	S70 (874) 2.0	B5204F	01.1997-11.2000
VOLVO	S70 (874) 2.0	B5204T2	01.1997-11.2000
VOLVO	S70 (874) 2.0	B5204T4	01.1997-11.2000
VOLVO	S70 (874) 2.0 Turbo	B5204T	01.1997-11.2000
VOLVO	S70 (874) 2.0 Turbo	B5204T3	01.1997-11.2000
VOLVO	S70 (874) 2.3	B5234T3	11.1996-11.2000
VOLVO	S70 (874) 2.3	B5234T7	04.1999-09.2000
VOLVO	S70 (874) 2.3 T5 AWD	B5234T3	11.1996-09.1998
VOLVO	S70 (874) 2.3 Turbo	B5234T4	01.1997-11.2000
VOLVO	S70 (874) 2.4	B5244S	01.1997-11.2000
VOLVO	S70 (874) 2.4	B5244S2	08.1999-11.2000
VOLVO	S70 (874) 2.4	B5244SG	08.1999-11.2000
VOLVO	S70 (874) 2.4	B5252FS	01.1997-11.2000
VOLVO	S70 (874) 2.4	B5254S	01.1997-11.2000
VOLVO	S70 (874) 2.4	B5254S	06.1998-11.2000
VOLVO	S70 (874) 2.4 AWD	B5244S	04.1999-09.2000
VOLVO	S70 (874) 2.4 AWD	B5244S2	04.1999-09.2000
VOLVO	S70 (874) 2.4 AWD	B5252FS	11.1996-05.1999
VOLVO	S70 (874) 2.4 AWD	B5254S	10.1998-05.1999
VOLVO	S70 (874) 2.4 Bifuel	B5244SG	07.1999-11.2000
VOLVO	S70 (874) 2.4 Bifuel	GB5252S	10.1998-11.2000
VOLVO	S70 (874) 2.4 Blu-Fuel	B5244S2	07.1997-09.2000
VOLVO	S70 (874) 2.4 Blu-Fuel	B5244SG	07.1997-09.2000
VOLVO	S70 (874) 2.4 T5 AWD	B5254T	11.1996-04.1999
VOLVO	S70 (874) 2.4 Turbo	B5244T	01.1997-11.2000
VOLVO	S70 (874) 2.4 Turbo	B5254T	01.1997-11.2000
VOLVO	S70 (874) T5	B5234T3	01.1997-11.2000
VOLVO	S80 2.0	[B5204T4]	06.1998-07.2006
VOLVO	S80 2.0 Turbo	[B5204T3]	06.1998-07.2006
VOLVO	S80 2.0 Turbo	[B5204T5]	12.1999-07.2006
VOLVO	S80 2.4	[B5244S]	01.1999-07.2006
VOLVO	S80 2.4	[B5244S2]	01.1999-07.2006
VOLVO	S80 2.4 BiFuel	[B5244SG2]	09.2001-07.2006
VOLVO	S80 2.4 LTP	[B5244T4]	06.2004-07.2006
VOLVO	S80 2.4 T5 AWD	[B5244T3]	04.2000-09.2003
VOLVO	S80 2.4 Turbo	[B5244T3]	06.2000-07.2006
VOLVO	S80 2.5 T AWD	[B5254T2]	04.2000-09.2003
VOLVO	S80 2.5 Turbo	[B5254T2]	03.2003-07.2006
VOLVO	S80 2.5 Turbo AWD	[B5254T2]	07.2003-07.2006
VOLVO	S80 I (184) 2.0	B5204T4	06.1998-07.2006
VOLVO	S80 I (184) 2.0 T	B5204T3	06.1998-07.2006
VOLVO	S80 I (184) 2.0 T	B5204T5	12.1999-07.2006
VOLVO	S80 I (184) 2.4	B5244S	01.1999-07.2006
VOLVO	S80 I (184) 2.4	B5244S2	01.1999-07.2006
VOLVO	S80 I (184) 2.4 Bifuel (CNG)	B5244SG2	09.2001-07.2006
VOLVO	S80 I (184) 2.4 Bifuel (LPG)	B5244SG	09.2001-07.2006
VOLVO	S80 I (184) 2.4 T	B5244T3	06.2000-07.2006
VOLVO	S80 I (184) 2.5 T	B5254T2	03.2003-07.2006
VOLVO	S80 I (184) 2.5 T AWD	B5254T2	07.2003-07.2006
VOLVO	S80 I (184) T5 AWD	B5244T3	04.2000-09.2003
VOLVO	S80 II (124) 2.5 T	B5254T10	01.2010-12.2012
VOLVO	S80 II (124) 2.5 T	B5254T12	01.2012-04.2016
VOLVO	S80 II (124) 2.5 T	B5254T14	09.2012-12.2016
VOLVO	S80 II (124) 2.5 T	B5254T6	03.2006-12.2011
VOLVO	S80 II (124) 2.5 T FlexFuel	B5254T11	01.2010-12.2011
VOLVO	S80 II (124) 2.5 T FlexFuel	B5254T8	05.2008-12.2011
VOLVO	V40 1.6	[B4164S]	12.1995-08.1999
VOLVO	V40 1.6	[B4164S2]	03.1999-06.2004
VOLVO	V40 1.8	[B4184S]	07.1995-08.1999
VOLVO	V40 1.8	[B4184S2]	03.1999-06.2004
VOLVO	V40 1.8	[B4184S3]	01.1996-12.2004
VOLVO	V40 1.9 T4	[B4194T]	05.1997-07.2000
VOLVO	V40 2.0	[B4204S]	07.1995-08.1999
VOLVO	V40 2.0 16V	[B4204S2]	07.1995-06.2004
VOLVO	V40 2.0 Turbo	[B4204T2]	07.2000-06.2004
VOLVO	V40 2.0 Turbo	[B4204T3]	06.2001-06.2004
VOLVO	V40 2.0 Turbo 16V	[B4204T]	10.1997-07.2000
VOLVO	V40 2.0 Turbo T4	[B4204T5]	07.2000-06.2004
VOLVO	V40 Estate (645) 1.6	B4164S	12.1995-08.1999
VOLVO	V40 Estate (645) 1.6	B4164S2	03.1999-06.2004
VOLVO	V40 Estate (645) 1.8	B4184S	07.1995-08.1999
VOLVO	V40 Estate (645) 1.8	B4184S2	03.1999-06.2004
VOLVO	V40 Estate (645) 1.8	B4184S3	07.1995-08.1999
VOLVO	V40 Estate (645) 1.8 Bi-Fuel	B4184S9	11.1999-08.2003
VOLVO	V40 Estate (645) 1.8 LPG	B4184S9	03.1999-06.2004
VOLVO	V40 Estate (645) 1.9 T4	B4194T	05.1997-07.2000
VOLVO	V40 Estate (645) 1.9 T4	B4194T2	05.1997-07.2000
VOLVO	V40 Estate (645) 2.0	B4204S	07.1995-06.2004
VOLVO	V40 Estate (645) 2.0	B4204S	07.1995-08.1999
VOLVO	V40 Estate (645) 2.0	B4204S2	07.1995-06.2004
VOLVO	V40 Estate (645) 2.0 T	B4204T	10.1997-07.2000
VOLVO	V40 Estate (645) 2.0 T	B4204T2	07.1999-06.2004
VOLVO	V40 Estate (645) 2.0 T	B4204T3	06.2001-06.2004
VOLVO	V40 Estate (645) 2.0 T	B4204T3	07.1999-06.2004
VOLVO	V40 Estate (645) 2.0 T4	B4204T5	07.2000-06.2004
VOLVO	V50 (545) 2.4	B5244S4	04.2004-12.2010
VOLVO	V50 (545) 2.4	B5244S5	04.2004-12.2010
VOLVO	V50 (545) T5	B5254T3	04.2004-12.2007
VOLVO	V50 (545) T5	B5254T7	03.2007-12.2012
VOLVO	V50 (545) T5 AWD	B5254T3	04.2004-12.2007
VOLVO	V50 (545) T5 AWD	B5254T7	03.2007-12.2010
VOLVO	V60 I (155) T5	B5204T9	10.2013-05.2018
VOLVO	V70 2.0	[B5202S]	01.1997-03.2000
VOLVO	V70 2.0	[B5204F]	01.1997-03.2000
VOLVO	V70 2.0	[B5204T4]	01.1997-03.2000
VOLVO	V70 2.0 20V	[B5204T2]	01.1997-03.2000
VOLVO	V70 2.0 Turbo	[B5204T]	01.1997-03.2000
VOLVO	V70 2.0 Turbo	[B5204T3]	01.1997-03.2000
VOLVO	V70 2.0 Turbo	[B5204T5]	07.2001-
VOLVO	V70 2.0 Turbo AWD	[B5204T3]	01.1997-03.2000
VOLVO	V70 2.3	[B5234FT]	01.1997-03.2000
VOLVO	V70 2.3 T5	[B5234T3]	01.1997-03.2000
VOLVO	V70 2.3 T5	[B5234T3]	03.2000-
VOLVO	V70 2.3 T5 AWD	[B5234T3]	01.1997-03.2000
VOLVO	V70 2.3 Turbo AWD	[B5234FT]	04.1997-03.2000
VOLVO	V70 2.3 Turbo T5	[B5234T3]	01.2002-01.2003
VOLVO	V70 2.4	[B5244S]	01.1997-05.2000
VOLVO	V70 2.4	[B5244S]	01.2002-01.2003
VOLVO	V70 2.4	[B5244S]	03.2000-
VOLVO	V70 2.4	[B5244S2]	03.2000-
VOLVO	V70 2.4	[B5252FS]	01.1997-03.2000
VOLVO	V70 2.4	[B5254S]	06.1998-03.2000
VOLVO	V70 2.4	[GB5244SG2]	08.1999-05.2000
VOLVO	V70 2.4	[GB5252S]	10.1998-08.1999
VOLVO	V70 2.4 BiFuel	[B5244SG]	08.1999-03.2000
VOLVO	V70 2.4 BiFuel	[B5244SG2]	09.2001-
VOLVO	V70 2.4 Turbo	[B5244T]	01.1997-03.2000
VOLVO	V70 2.4 Turbo	[B5244T3]	01.2002-01.2002
VOLVO	V70 2.4 Turbo	[B5244T3]	03.2000-
VOLVO	V70 2.4 Turbo	[B5254T]	01.1997-03.2000
VOLVO	V70 2.4 Turbo AWD	[B5244T]	01.1997-05.2000
VOLVO	V70 2.4 Turbo AWD	[B5244T3]	09.2001-
VOLVO	V70 2.4 Turbo AWD	[B5254T]	01.1997-05.2000
VOLVO	V70 2.4 Turbo T5	[B5244T5]	04.2004-
VOLVO	V70 2.4 Turbo X/C	[B5244T3]	01.2002-01.2002
VOLVO	V70 2.5 20V	[B5254S]	01.1997-12.1998
VOLVO	V70 2.5 AWD	[B5244T2]	03.1999-03.2000
VOLVO	V70 2.5 AWD	[B5254T2]	09.2002-12.2004
VOLVO	V70 2.5 T	[B5244T]	01.1997-12.1998
VOLVO	V70 2.5 T	[B5254T]	01.1997-12.1998
VOLVO	V70 2.5 Turbo	[B5254T2]	04.2004-
VOLVO	V70 2.5 Turbo AWD	[B5254T2]	09.2002-
VOLVO	V70 2.5 Turbo R AWD	[B5254T4]	03.2003-
VOLVO	V70 I (875, 876) 2.0	B5202FS	12.1995-03.2000
VOLVO	V70 I (875, 876) 2.0	B5202S	12.1995-03.2000
VOLVO	V70 I (875, 876) 2.0	B5204F	12.1995-03.2000
VOLVO	V70 I (875, 876) 2.0	B5204T2	11.1996-03.2000
VOLVO	V70 I (875, 876) 2.0	B5204T4	01.1997-12.2000
VOLVO	V70 I (875, 876) 2.0 Turbo	B5204T	12.1995-03.2000
VOLVO	V70 I (875, 876) 2.0 Turbo	B5204T3	11.1996-12.2000
VOLVO	V70 I (875, 876) 2.0 Turbo AWD	B5204T3	11.1996-12.2000
VOLVO	V70 I (875, 876) 2.3	B5234T3	11.1996-11.2000
VOLVO	V70 I (875, 876) 2.3 AWD	B5234T3	04.1997-09.1998
VOLVO	V70 I (875, 876) 2.3 AWD	B5234T7	12.1998-02.2000
VOLVO	V70 I (875, 876) 2.3 AWD	B5234T8	12.1998-02.2000
VOLVO	V70 I (875, 876) 2.3 T-5	B5234T3	11.1996-12.2000
VOLVO	V70 I (875, 876) 2.3 T-5 AWD	B5234T3	01.1997-12.2000
VOLVO	V70 I (875, 876) 2.3 T AWD	B5234T4	04.1997-03.2000
VOLVO	V70 I (875, 876) 2.3 Turbo	B5234T4	12.1995-03.2000
VOLVO	V70 I (875, 876) 2.4	B5244S	12.1995-05.2000
VOLVO	V70 I (875, 876) 2.4	B5244S2	03.1999-12.2000
VOLVO	V70 I (875, 876) 2.4	B5244SG2	03.1999-12.2000
VOLVO	V70 I (875, 876) 2.4	B5252FS	12.1995-03.2000
VOLVO	V70 I (875, 876) 2.4	B5254FS	12.1995-05.2000
VOLVO	V70 I (875, 876) 2.4	B5254S	06.1998-12.1999
VOLVO	V70 I (875, 876) 2.4	B5254S	12.1995-05.2000
VOLVO	V70 I (875, 876) 2.4 AWD	B5254S	06.1998-12.1999
VOLVO	V70 I (875, 876) 2.4 Bifuel	B5244SG	08.1999-12.2000
VOLVO	V70 I (875, 876) 2.4 Bifuel	GB5252S	05.1998-12.1999
VOLVO	V70 I (875, 876) 2.4 Turbo	B5244T	04.1996-12.2000
VOLVO	V70 I (875, 876) 2.4 Turbo	B5254T	04.1996-12.2000
VOLVO	V70 I (875, 876) 2.4 Turbo AWD	B5244T	04.1996-12.2000
VOLVO	V70 I (875, 876) 2.4 Turbo AWD	B5244T2	03.1999-12.2000
VOLVO	V70 I (875, 876) 2.4 Turbo AWD	B5254T	04.1996-12.2000
VOLVO	V70 II (285) 2.0 T	B5204T5	11.1999-08.2007
VOLVO	V70 II (285) 2.3	B5234T7	10.2000-09.2004
VOLVO	V70 II (285) 2.4	B5244S	03.2000-08.2007
VOLVO	V70 II (285) 2.4	B5244S2	03.2000-08.2007
VOLVO	V70 II (285) 2.4 Bifuel (CNG)	B5244SG	09.2001-08.2007
VOLVO	V70 II (285) 2.4 Bifuel (CNG)	B5244SG2	09.2001-08.2007
VOLVO	V70 II (285) 2.4 Bifuel (LPG)	B5244SG2	09.2001-08.2007
VOLVO	V70 II (285) 2.4 T	B5244T3	11.1999-08.2003
VOLVO	V70 II (285) 2.4 T AWD	B5244T3	09.2001-08.2002
VOLVO	V70 II (285) 2.5 T	B5254T2	07.2001-08.2007
VOLVO	V70 II (285) 2.5 T AWD	B5254T2	07.2002-08.2007
VOLVO	V70 II (285) R 2,5 T AWD	B5254T4	03.2003-08.2007
VOLVO	V70 II (285) T5	B5234T3	11.1999-12.2004
VOLVO	V70 II (285) T5	B5244T5	04.2004-08.2007
VOLVO	V70 III (135) 2.0 BiFuel	B5204T9	03.2013-12.2015
VOLVO	V70 III (135) 2.5 T	B5254T10	04.2009-12.2012
VOLVO	V70 III (135) 2.5 T	B5254T6	08.2007-12.2009
VOLVO	V70 III (135) 2.5 T FlexiFuel	B5254T11	04.2009-12.2011
VOLVO	V70 III (135) 2.5 T FlexiFuel	B5254T8	05.2008-12.2009
VOLVO	XC70 2.4 Turbo AWD	[B5244T3]	03.2000-09.2002
VOLVO	XC70 2.5 Turbo AWD	[B5254T2]	09.2002-
VOLVO	XC70 I Cross Country (295) 2.4 T XC AWD	B5244T3	03.2000-09.2002
VOLVO	XC70 I Cross Country (295) 2.4 T XC AWD	B5254T	11.1997-09.2002
VOLVO	XC70 I Cross Country (295) 2.5 T XC AWD	B5254T2	09.2002-08.2007
VOLVO	XC70 I Cross Country (295) T5 AWD	B5204T3	10.1997-03.1999
VOLVO	XC90 2.5 Turbo	[B5254T2]	10.2002-
VOLVO	XC90 I (275) 2.5 T AWD	B5254T2	10.2002-09.2014
VOLVO	XC90 I (275) 2.5 T AWD	B5254T9	10.2012-09.2014

0001108107	BOSCH
0001108142	BOSCH
0001108153	BOSCH
0001108166	BOSCH
0001108167	BOSCH
011-001-000036R	REMANTE
06-10134-SX	STELLOX
063720680010	MAGNETI MARELLI
0986016660	BOSCH
10010158AV	ITAB AUTOMOTIVE
103357	FARCOM
10440977	ALANKO
10680	KUHNER
10680V	KUHNER
11016660	EUROTEC
11.139.309	ISKRA / LETRIKA
11.139.407	ISKRA / LETRIKA
112818	CARGO
11702	EAI
1363451	VOLVO
13952	MAPCO
1648213180	EUROREPAR
17508N	WAI
17508R	WAI
201140	VALEO
20401851BN	REAL
20510116	PRESTOLITE
220104A	ERA
25-2037	ELSTOCK
25-2037CT	AINDE
30358564	VOLVO
30658564	VOLVO
30658565	VOLVO
30815466	VOLVO
30819127	VOLVO
3125502	HENKEL PARTS
3125503	HENKEL PARTS
3125504	HENKEL PARTS
330832	LOGISTIK
338019092	DRI
36050275	VOLVO
3652	CEVAM
42016660	HERTH+BUSS
458190	VALEO
460504	VALEO
4716730	NK
5003810	VOLVO
5003918	VOLVO
5010272	MEAT & DORIA
58094	OSSCA
6010158.0	SANDO
6.0133.9	IKA
702ST11	STARTCAR
7700102000	RENAULT
7700103386	RENAULT
8016660	FRIESEN
810.504.093.010	WAI
810.504.093.210	WAI
810.504.093.311	WAI
810.504.093.460	WAI
810.504.093.461	WAI
8111302	VOLVO
8251551	VOLVO
8602084	VOLVO
8602085	VOLVO
88212223	POWERMAX
8EA012527-081	HELLA
8EA730196-001	HELLA
91-15-7036	WILSON
91-15-7036N	WILSON
9128421	VOLVO
9162617	VOLVO
9162618	VOLVO
943206801010	MAGNETI MARELLI
943241060010	MAGNETI MARELLI
9442201	VOLVO
944280166600	MAGNETI MARELLI
A16660	ATL AUTOTECHNIK
AC-CBS0680	ACAUTO
AI-80165	AINDE
AM-2966	AUTO MAGNETO
ANM18880	ANDEL
ANM18880X	ANDEL
ASM1254	APEC
AZE2123	ISKRA / LETRIKA
AZE2182	ISKRA / LETRIKA
AZMT-53-010-1380	A.Z. MEISTERTEILE
BOL-I110009	BOLK
BREF0320986016660	CARWOOD GROUP
BREF032112818	CARWOOD GROUP
BST2011	BORG & BECK
BST2395	BORG & BECK
CMA-621311	COMLINE
CS680	HC PARTS
CST10158AS	CASCO
DRS6660	DELCO
F032112818	CARGO
H5010272	HOFFER
IR8271	PROTECH
IS9309	ISKRA / LETRIKA
LRT00116	LUCAS
LRT116	LUCAS
MAV121580A	SIOM
MQS680	MAGNETI MARELLI
MRS16660	MAGNETI MARELLI
MS216	MAHLE
MSR1060	MAGNETI MARELLI
MSRC680	MAGNETI MARELLI
NPANSM1254	NAPA
QRS2030	QUINTON HAZELL
RE8374N	THE NEWLINE
S0533	AS-PL
S100118	BTS TURBO
S101573	BTS TURBO
S1029B	PRESTOLITE
S12BH0798A2	SIDAT
S135.127	WAI
S144.996	WAI
SBO158A	AUTOTEAM
ST00717	TMI
STB0680	KRAUF
STM510	ROLLCO
STR1113	ELECTROLOG
STR1258	ELECTROLOG
STR50020	WOODAUTO
STR50288	WOODAUTO
STR79648	ELECTROLOG
STX200143	STARDAX
TT15516	TESLA TECHNICS
UD12029S	AS-PL
VO9005	SNRA
WG2174895	WILMINK GROUP

S0533

Differences in solenoid connection types between S0059, S0533, S0877S

View your shopping basket or Browse other items in Starter Motors.

S0533 - Brand new AS-PL Starter motor

Information

Associated Numbers

Specifications

Vehicle Applications

Reference Information

Video/Publications

< Critical Notes >

AS GROUP NZ

Terms and Conditions

Payment Due:

Penalty

Stop credit:

Debt Collection:
