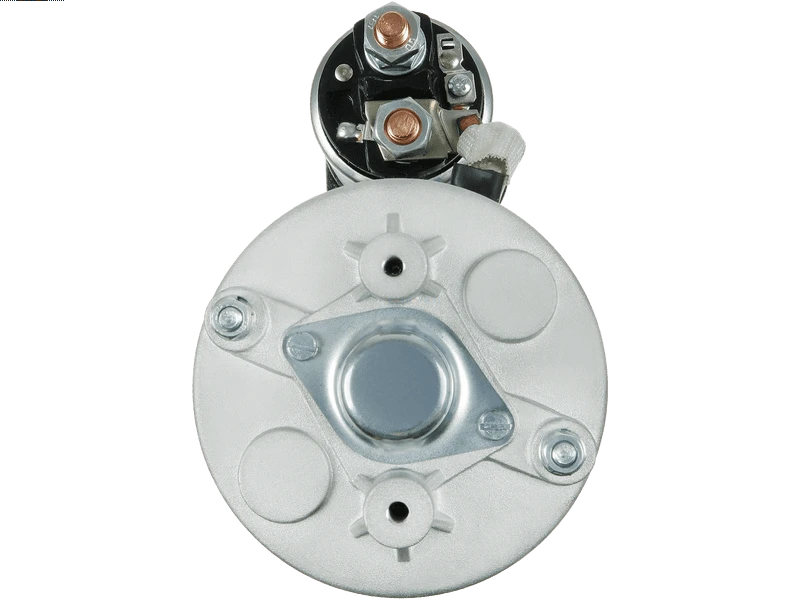

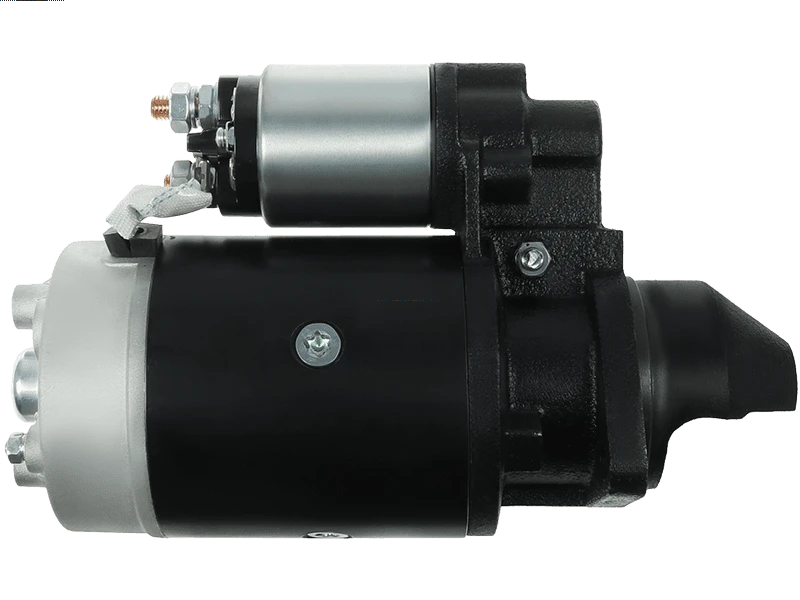

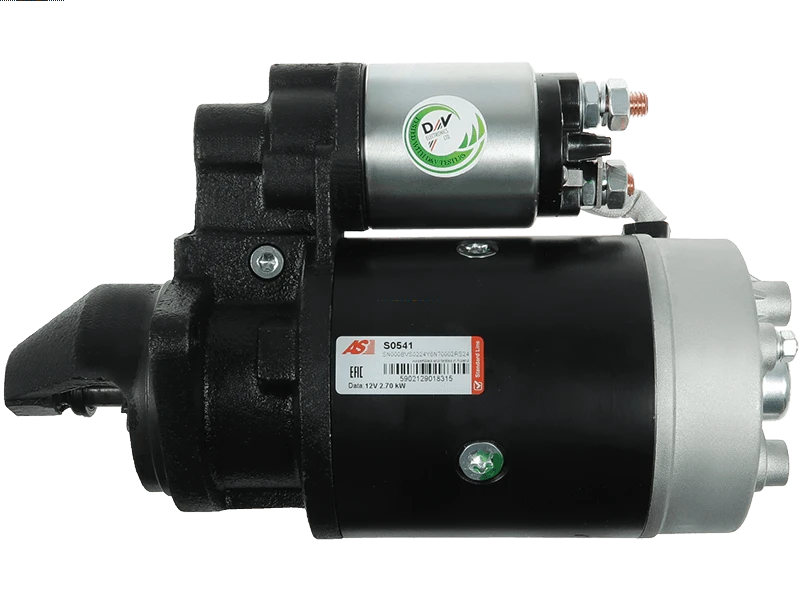

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 424.26 including GST
NZ$ 368.92 excluding GST
or four payments of $106.07
with
Learn More
each
S0541
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001362050Associated Numbers
0001354099 0001362021 0001362050 0001366009 035530046A 11.130.319 11.130.503 114265 20401192BN 25-0146 254028 254028M 260-62108 3.553.2022A 3.553.2039F 35530046A 500.006.092 6010291 63217173 8500 AZJ3140 AZJ3581 CST10291 CST10291AS CST10291ES CST10291GS CST10291OS CST10291RS CST21103GS D11E75 DRS3323 EAA-111222 IS0503 JB123708159 LRS01023 MAHMS391 MS391 MSN234 MT71L MT71LA SG1132 STR22102 UD12335S UNIT BOM 120-6122CSpecifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 294 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AGRIFULL | 235 1.4 | 03.1974-06.1980 | |
| AGRIFULL | 345 1.4 | 03.1974-06.1980 | |
| VM | 3105M11.5 | 01.1986- | |
| VM | T1054SU | 01.1976-12.1986 |
Reference Information
| 0001354016 | BOSCH |
| 0001354099 | BOSCH |
| 0001362021 | BOSCH |
| 0001362050 | BOSCH |
| 0001366009 | BOSCH |
| 035530046A | CHRYSLER |
| 11.130.207 | ISKRA / LETRIKA |
| 11.130.319 | ISKRA / LETRIKA |
| 11.130.503 | ISKRA / LETRIKA |
| 114265 | CARGO |
| 20401192BN | REAL |
| 25-0146 | ELSTOCK |
| 254028 | KUHNER |
| 254028M | KUHNER |
| 260-62108 | DIXIE |
| 331727 | LOGISTIK |
| 35530046A | CHRYSLER |
| 3.553.2022A | VM |
| 3.553.2039F | VM |
| 4010213 | FIAT |
| 500.006.092.010 | PSH |
| 500.006.092.016 | PSH |
| 500.006.092.311 | PSH |
| 6010291.0 | SANDO |
| 63217173 | MAGNETI MARELLI |
| 8500 | CEVAM |
| AZJ3140 | ISKRA / LETRIKA |
| AZJ3540 | ISKRA / LETRIKA |
| AZJ3581 | ISKRA / LETRIKA |
| CST10291AS | CASCO |
| D11E75 | VALEO |
| DRS3323 | DELCO |
| E1151812S | FIAT |
| F032114265 | CARGO |
| IS0503 | ISKRA / LETRIKA |
| JB123708159 | JUBANA |
| LRS01023 | LUCAS |
| LRS1023 | LUCAS |
| MAHMS391 | WOODAUTO |
| MAV122910 | SIOM |
| MAV2310 | SIOM |
| MAV231030 | SIOM |
| MS391 | MAHLE |
| MSN234 | MAGNETI MARELLI |
| MT71L | MAGNETI MARELLI |
| MT71LA | MAGNETI MARELLI |
| MTL12-14 | FEMSA |
| PRSL058 | 3EFFE |
| RNL362050 | RNL |
| S0541 | AS-PL |
| S12BH0261A2 | SIDAT |
| S132.706 | PSH |
| S144.076 | PSH |
| SG1132 | GHIBAUDI |
| STR1381 | ELECTROLOG |
| STR22102 | WOODAUTO |
| STR7886 | ELECTROLOG |
| STRL058 | 3EFFE |
| UD101802S | AS-PL |
| UD12335S | AS-PL |
| UNIT BOM 120-6122C | WAI / TRANSPO |
Video/Publications
