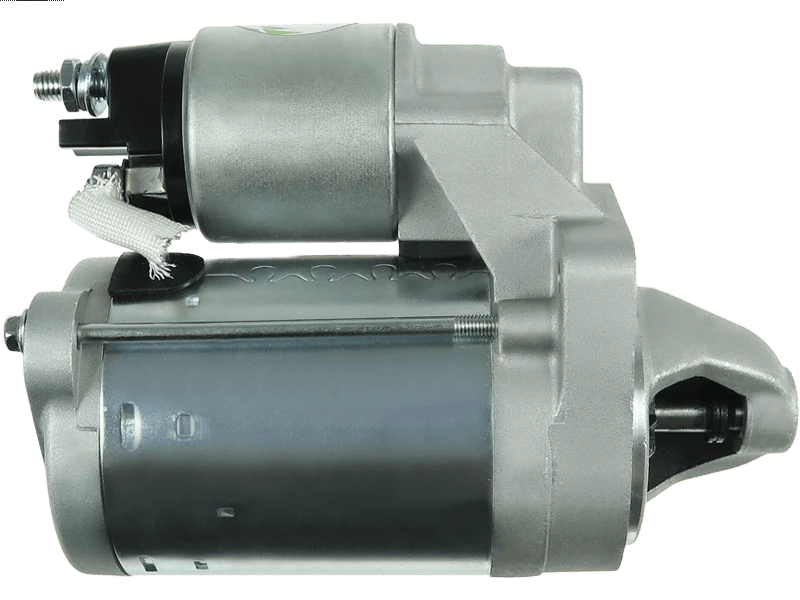

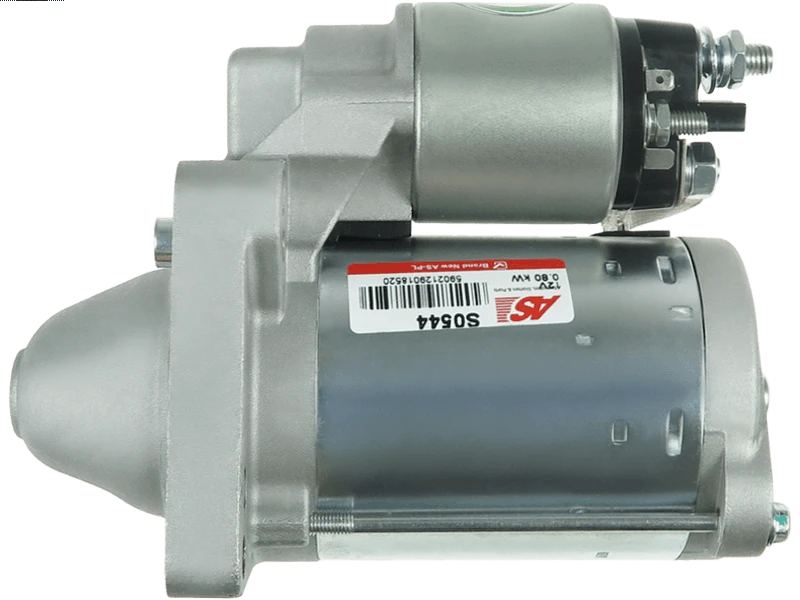

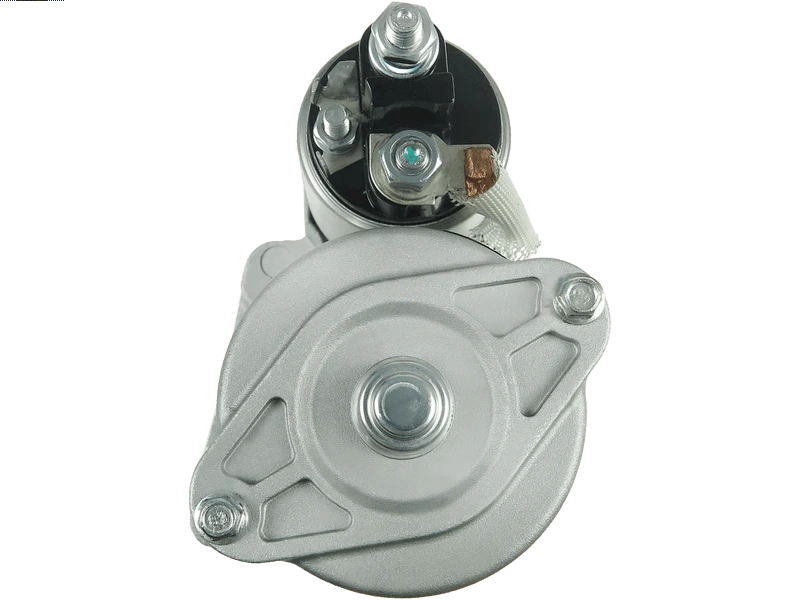

S0544 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 244.79 including GST

NZ$ 212.86 excluding GST



or four payments of $61.20 with
Afterpay Payment Offer Learn More

each
S0544
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

F000CD09A0
0986019301 101125 101379H 101379K 101379V 114123 20404461 25-2416 31282N 495108 51888975 55209989 6030110 8000090 BOSF000CD0A01 CST30110 CST30110AS CST30110ES CST30110GS CST30110OS CST30110RS F000AL0309 F000AL0310 F000C60001 F000C60004 F000CD0900 F000CD0903 F000CD09A0 F000CD09A3 F000CD0A01 LRS01474 S0544 STB8975 TSC1015 UD12062S
Kilowatt0.80 kW
Length (L.1)183 mm
Mount Hole Center - Center (O.1)67 mm
Mount Hole Center - Center (O.2)108 mm
Mount Hole Center - Center (O.3)72 mm
Mount Hole Diameter (C.1)M8x1.25 mm
Mount Hole Diameter (C.2)9.50 mm
Mount Hole Diameter (C.3)M8x1.25 mm
No./Mount holes3 qty
No./Mount holes with thread2 qty
No./Teeth9 qty
OEM ProductNo
Pinion at Rest (B)9.50 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)64 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
FIAT Doblo 1.3 MPI 01.2001-12.2006
FIAT Doblo 1.4 MPI 16V 01.2009-
FIAT Doblo 1.4 MPI 8V 01.2009-
FIAT Fiorino 1.4 Flex 12.2013-
FIAT Fiorino Furgao 1.3 MPI 8V Flex 01.2003-12.2013
FIAT Idea 1.4 Flex 01.2005-12.2010
FIAT Palio 1.0 01.2002-
FIAT Palio 1.3 01.2002-
FIAT Palio 1.4 MPI 8V 01.2002-
FIAT Palio Weekend 1.0 01.2000-
FIAT Palio Weekend 1.3 01.2000-
FIAT Palio Weekend 1.4 16V 01.2000-
FIAT Palio Weekend 1.4 8V 01.2000-
FIAT Siena 1.0 01.2002-12.2012
FIAT Siena 1.3 01.2002-12.2012
FIAT Siena 1.4 MPI 8V Flex 01.2002-12.2012
FIAT Strada 1.3 01.2002-12.2006
FIAT Strada 1.4 MPI 8V Flex 01.2002-12.2006
FIAT Strada 1.4 MPI 8V Flex 01.2005-
FIAT Uno 1.0 01.2001-
FIAT Uno 1.4 Flex 01.2001-
0986019301BOSCH
0986B05008BOSCH
0986B05009BOSCH
105121FARCOM
11019300EUROTEC
201074VALEO
220516ERA
25-2416ELSTOCK
256936RKUHNER
31282NWAI / TRANSPO
318087092DRI
42019301HERTH+BUSS
432643VALEO
446520VALEO
455553VALEO
458512VALEO
46432262FIAT
46465475FIAT
46758241FIAT
46763530FIAT
46765839FIAT
46796553FIAT
46800155FIAT
46843092FIAT
495108VALEO
500.026.083.010PSH
55185057FIAT
55201771FIAT
55209989FIAT
6030110.0SANDO
63101003MAGNETI MARELLI
63101008MAGNETI MARELLI
63101022MAGNETI MARELLI
63101023MAGNETI MARELLI
63103028FIAT
71722372FIAT
71722373FIAT
71782359FIAT
71782360FIAT
71785851FIAT
8000090DELCO
8080064FRIESEN
88212686POWERMAX
885ST11STARTCAR
8EA012526-771HELLA
8EA737609-001HELLA
943226391010MAGNETI MARELLI
944280800640MAGNETI MARELLI
AZMT-53-010-1141A.Z. MEISTERTEILE
BST2549BORG & BECK
DRS3589DELCO
F000CD0001BOSCH
F000CD0900BOSCH
F000CD0903BOSCH
F000CD09A0BOSCH
F000CD09A3BOSCH
F000CD0A01BOSCH
FI9069SNRA
LRS01474LUCAS
LRS1474LUCAS
MRS80064MAGNETI MARELLI
MSN410MAGNETI MARELLI
MSR654MAGNETI MARELLI
PRSL1473EFFE
QRS1106QUINTON HAZELL
S0544AS-PL
S12BH0790A2SIDAT
S132.839PSH
ST01027TMI
STB8975KRAUF
STR50685WOODAUTO
STR52077WOODAUTO
STR9002ELECTROLOG
STRL1473EFFE
STX200151STARDAX
TSC1015VALEO
UD12062SAS-PL
WOOSTR50685WOODAUTO
WOOSTR52077WOODAUTO
S0544
