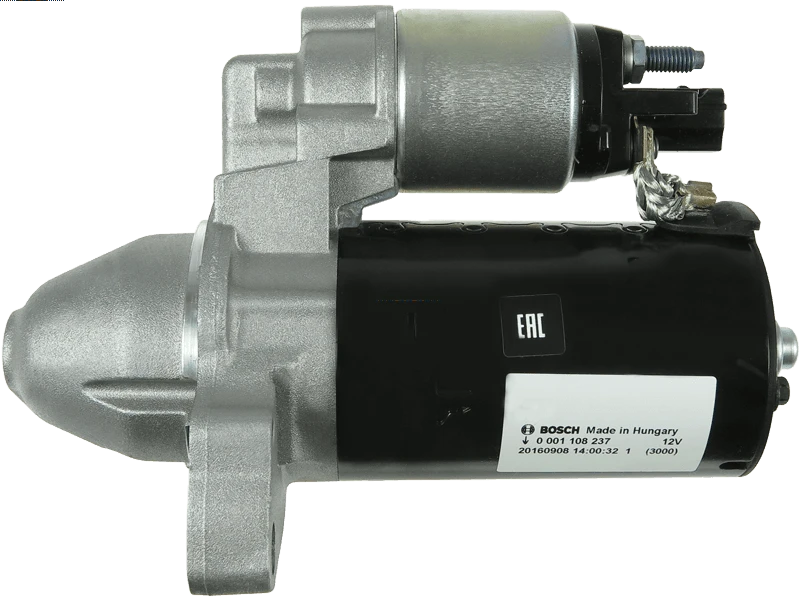

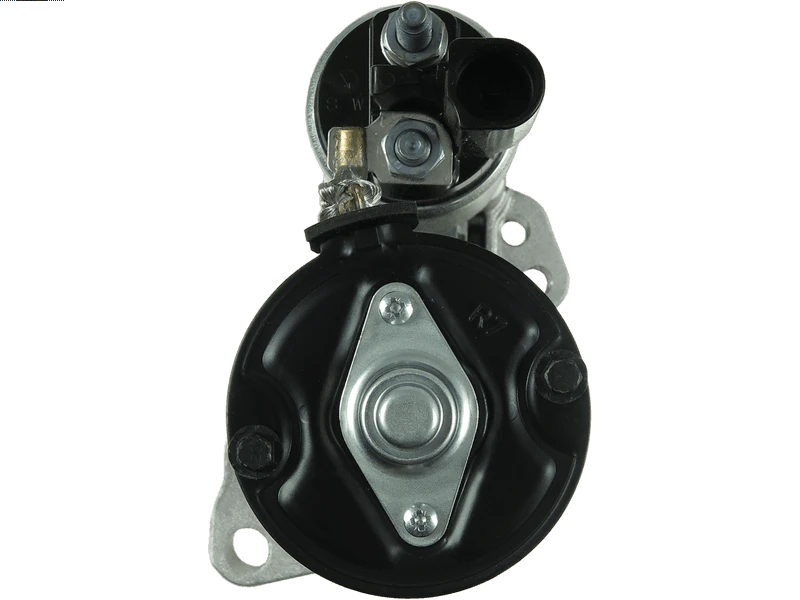

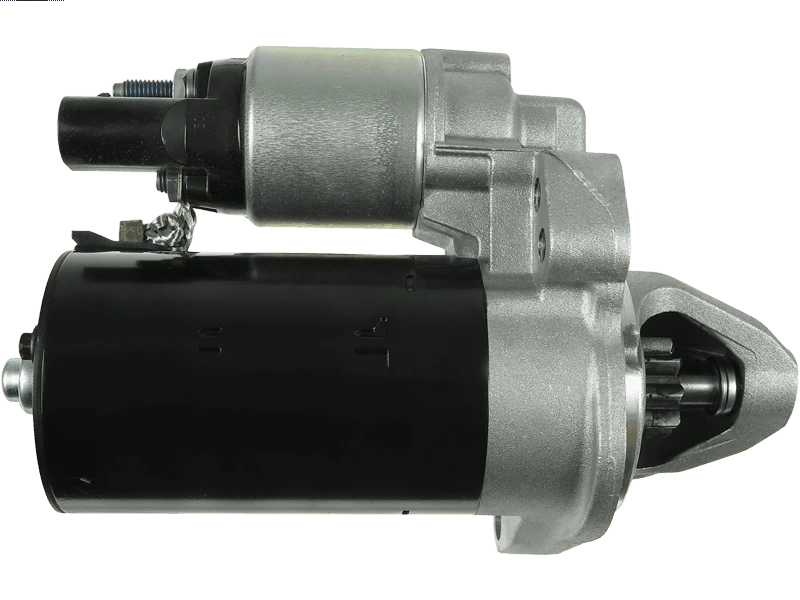

Brand new OEM BOSCH Starter motor
PREMIUM LINE
Bosch
BOSCH
Price:
NZ$ 674.54 including GST
NZ$ 586.56 excluding GST
or four payments of $168.64
with
Learn More
each
S0545(BOSCH)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1986S00698Associated Numbers
UD802871(BOSCH)S 0001108237 0001108238 115996 CST10495GS 3179 S-6265 12335 25-4133 STB8237 255536 LRS02461 88214524 200.529.092 20401594OE 6010495.1 07C911023G 07C911023GX 07C911023H 07C911023HX 19004N BOS0001108237 STR50669Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 224 mm |
| Mount Hole Center - Center (O.1) | 28 mm |
| Mount Hole Center - Center (O.2) | 115 mm |
| Mount Hole Center - Center (O.3) | 16 mm |
| Mount Hole Center - Center (O.4) | 101 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| Mount Hole Diameter (C.4) | M10x1.5 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 23 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 2.0 TDi | [BVG] | 09.2005-06.2006 |
| AUDI | A6 2.0 TDi | [BVG] | 09.2005-06.2006 |
| AUDI | A8 6.0 W12 Quattro | [BHT] | 12.2003-07.2010 |
| AUDI | A8 6.0 W12 Quattro | [BSB] | 12.2003-07.2010 |
| AUDI | A8 6.0 W12 Quattro | [BTE] | 12.2003-07.2010 |
| AUDI | Q7 4.2 FSi Quattro | [BAR] | 03.2006-05.2010 |
| AUDI | RS6 5.0 Quattro | [BUH] | 04.2008-08.2010 |
| AUDI | RS6 5.0 Quattro | [BUH] | 09.2008-08.2010 |
| AUDI | S6 5.2 Quattro | [BXA] | 03.2006-03.2011 |
| AUDI | S6 5.2 Quattro | [BXA] | 03.2006-08.2011 |
| AUDI | S8 5.2 Quattro | [BSM] | 06.2006-07.2010 |
| VW | Touareg 4.2 V8 FSi | [CGNA] | 01.2011-03.2018 |
Reference Information
| 0001108237 | BOSCH |
| 0001108238 | BOSCH |
| 06-10223-SX | STELLOX |
| 07C911023G | VW |
| 07C911023GX | VW |
| 07C911023H | VW |
| 07C911023HX | VW |
| 10010495OV | ITAB AUTOMOTIVE |
| 10438308 | ALANKO |
| 106838 | FARCOM |
| 11090271 | EUROTEC |
| 115996 | CARGO |
| 12335 | EAI |
| 19004N | WAI / TRANSPO |
| 1986S00698 | BOSCH |
| 200.529.092.010 | PSH |
| 200.529.092.018 | PSH |
| 200.529.092.211 | PSH |
| 200.529.092.280 | PSH |
| 20401594OE | REAL |
| 25-4133 | ELSTOCK |
| 25-4133CT | AINDE |
| 255536 | KUHNER |
| 255536B | KUHNER |
| 2S0506 | RIDEX |
| 311260092 | DRI |
| 3114722 | HENKEL PARTS |
| 3114723 | HENKEL PARTS |
| 3179 | CEVAM |
| 331251 | LOGISTIK |
| 335ST21 | STARTCAR |
| 5010468 | MEAT & DORIA |
| 6010495.1 | SANDO |
| 88214524 | POWERMAX |
| 91-15-7271 | WILSON |
| AC-CBS5926 | ACAUTO |
| AEY2461 | AUTOELECTRO |
| BOS0001108237 | WOODAUTO |
| CST10495GS | CASCO |
| F032115996 | CARGO |
| H5010468 | HOFFER |
| IR9633 | PROTECH |
| LRS02461 | LUCAS |
| LRS2461 | LUCAS |
| MAV124950 | SIOM |
| S12BH0599 | SIDAT |
| S12BH0599A2 | SIDAT |
| S131.519 | PSH |
| S144.753 | PSH |
| SBO495 | AUTOTEAM |
| ST01648 | TMI |
| STB8237 | KRAUF |
| STR10371 | ELECTROLOG |
| STR50669 | WOODAUTO |
| STRF954 | 3EFFE |
| STX210262 | STARDAX |
| STX210262R | STARDAX |
| TT16816 | TESLA |
| UD802871(BOSCH)S | AS-PL |
| V10-12-08237 | VEMO |
| VW9112 | SNRA |
