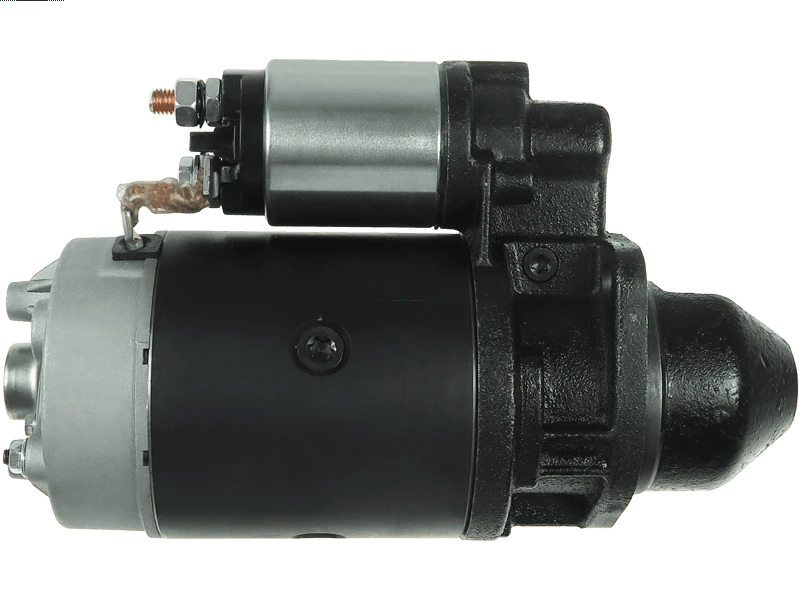

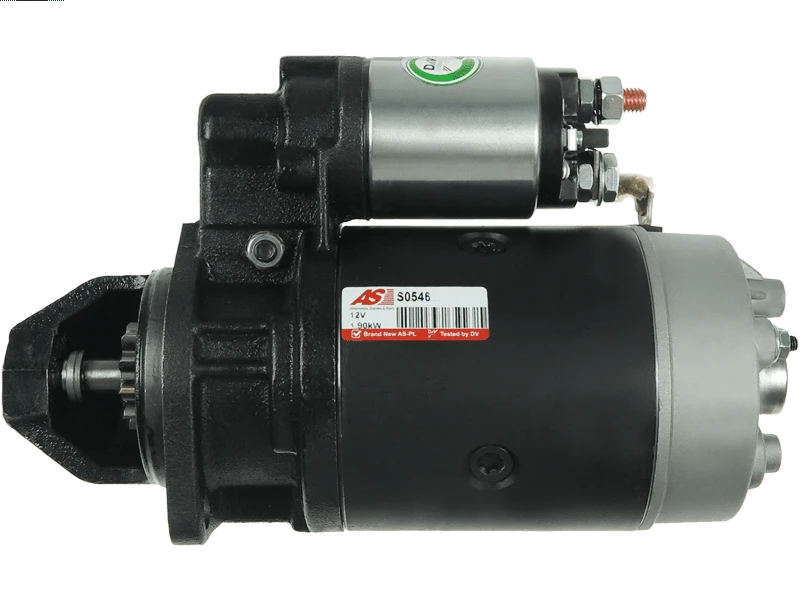

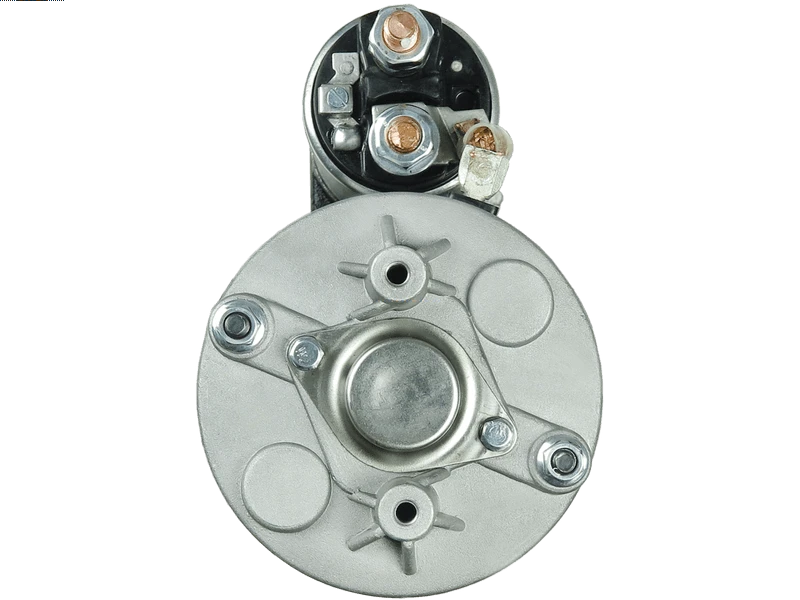

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 432.76 including GST
NZ$ 376.31 excluding GST
or four payments of $108.19
with
Learn More
each
S0546
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001366024Associated Numbers
0001354034 0001354037 0001354040 0001354075 0001354081 0001356001 0001366024 02919055 1170387 1301832 20401361BN 25-0336 254262 291-9055 510.003.112 6010163 8469 B001811057 CST10163 CST10163AS CST10163ES CST10163GS CST10163OS CST10163RS LRS01068 STR50440 UD12336S UNIT BOM 120-6177Specifications
| Kilowatt | 1.90 kW |
| Length (L.1) | 293 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DEUTZ-FAHR | D25 | ||
| DEUTZ-FAHR | D2807 1.9 | [F2L912] | 01.1986-12.1991 |
| DEUTZ-FAHR | D30 |
Reference Information
| 0001354034 | BOSCH |
| 0001354037 | BOSCH |
| 0001354040 | BOSCH |
| 0001354075 | BOSCH |
| 0001354081 | BOSCH |
| 0001356001 | BOSCH |
| 0001366024 | BOSCH |
| 02919055 | KHD |
| 1170387 | KHD |
| 1301832 | KHD |
| 20401361BN | REAL |
| 25-0336 | ELSTOCK |
| 254262 | KUHNER |
| 291-9055 | KHD |
| 510.003.112 | PSH |
| 6010163 | SANDO |
| 8469 | CEVAM |
| B001811057 | BOSCH |
| CST10163 | CASCO |
| CST10163AS | CASCO |
| CST10163ES | CASCO |
| CST10163GS | CASCO |
| CST10163OS | CASCO |
| CST10163RS | CASCO |
| LRS01068 | LUCAS |
| LRS1068 | LUCAS |
| MAV123220 | SIOM |
| S0546 | AS-PL |
| S12BH0264A2 | SIDAT |
| STR50440 | WOODAUTO |
| STRF071 | 3EFFE |
| UD12336S | AS-PL |
| UNIT BOM 120-6177 | WAI / TRANSPO |
Video/Publications
