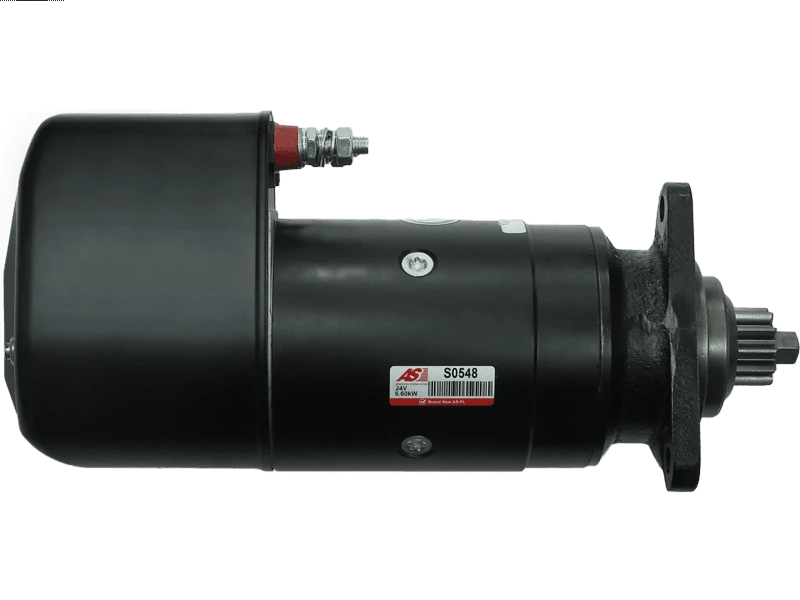

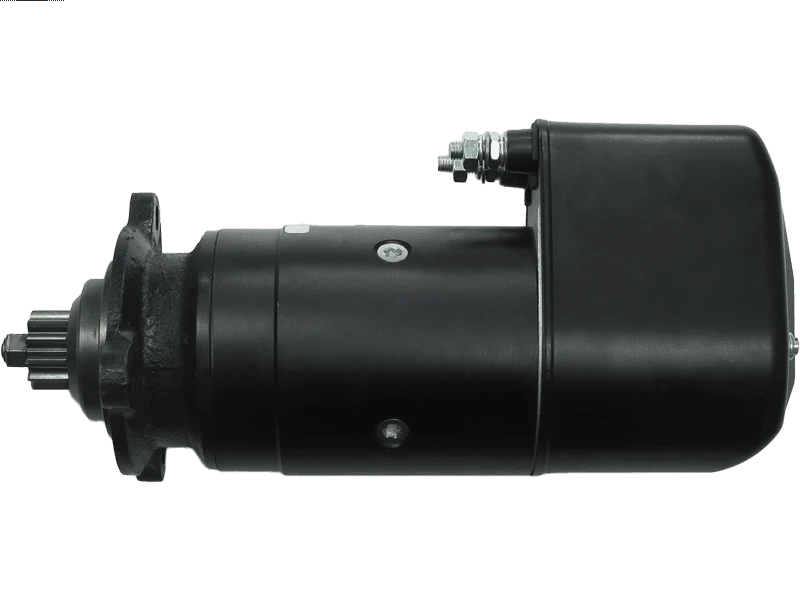

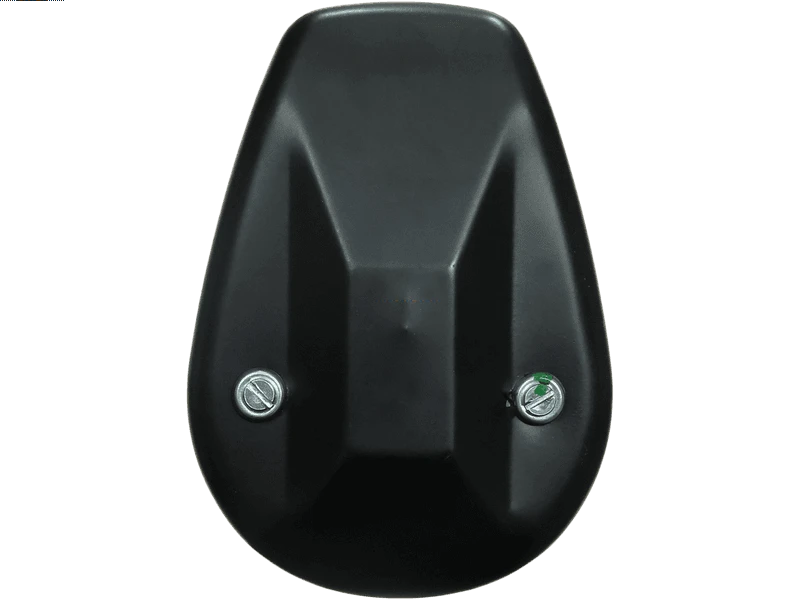

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 846.29 including GST
NZ$ 735.90 excluding GST
or four payments of $211.57
with
Learn More
each
S0548
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001417016Associated Numbers
0001411015 0001417016 035530063A 11.130.275 11.139.151 19024059 20401246EL 220242 254326 254326P 260-47289 35530063A 6010642 8167 860666 AZK5497 AZL3616 CST10642 CST10642AS CST10642ES CST10642GS CST10642OS CST10642RS DRS3767 IM616 IS9137 JB243708338 MS538 SG0499 UD12340S UNIT BOM 900-107Specifications
| Kilowatt | 6.60 kW |
| Length (L.1) | 404 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISOTTA FRASCHINI | 1306H 11.0 | 02.1985- | |
| ISOTTA FRASCHINI | 1306L 11.3 | 01.1992- | |
| ISOTTA FRASCHINI | 1306MH14 11.1 | 06.1975-01.1985 | |
| ISOTTA FRASCHINI | 1308H 15.0 | 06.1989- | |
| ISOTTA FRASCHINI | 1308MH14 14.9 | 06.1975-01.1985 | |
| ISOTTA FRASCHINI | 1308V 13.4 | 02.1992- | |
| ISOTTA FRASCHINI | V6130 11.2 | 01.1984-05.1989 | |
| ISOTTA FRASCHINI | V6130S 11.0 | 06.1989- | |
| ISOTTA FRASCHINI | V6130T 11.2 | 01.1984-05.1989 | |
| ISOTTA FRASCHINI | V6130TS 11.0 | 06.1989- | |
| ISOTTA FRASCHINI | V8130 14.9 | 01.1984-05.1989 | |
| ISOTTA FRASCHINI | V8130S 15.0 | 06.1989- | |
| ISOTTA FRASCHINI | V8130T 14.9 | 01.1984-05.1989 | |
| ISOTTA FRASCHINI | V8130TS 15.0 | 06.1989- | |
| PALMIERI | 1500 GN 11.1 | [VM-T1306V] | 06.1976-02.1985 |
| PALMIERI | 1500 GN 11.1 | [VM-V1306] | 06.1976-02.1985 |
| PALMIERI | 1500 GN 11.2 | [V6130] | 02.1985-12.1989 |
| PALMIERI | 1500 GN 14.9 | [V8130T] | 02.1985-12.1989 |
| PALMIERI | 1500 GN 14.9 | [VM-1308V] | 06.1976-02.1985 |
| PALMIERI | 1500 GN 14.9 | VM-T1308,V8130T | 06.1977-12.1990 |
| PALMIERI | 1800 GN 11.1 | [VM-T1306V] | 06.1976-02.1985 |
| PALMIERI | 1800 GN 11.1 | [VM-V1306] | 06.1976-02.1985 |
| PALMIERI | 1800 GN 14.9 | [VM-1308V] | 06.1976-02.1985 |
| PALMIERI | 1800 GN 14.9 | [VM-T1308] | 06.1977-02.1985 |
| PALMIERI | GN 134 11.2 | [V6130T] | 02.1985-12.1990 |
| PALMIERI | GN 150 14.9 | [V8130] | 02.1987-12.1989 |
| PALMIERI | GN 160 11.5 | [V6130TS] | 03.1989- |
| PALMIERI | GN 175 14.9 | [V8130S] | 03.1989-07.1991 |
| PALMIERI | GN 210 14.9 | [V8130TS] | 03.1989- |
| PALMIERI | GN 220 14.9 | [V8130S] | 03.1989-07.1991 |
| VM | 100 KVA 11.1 | 01.1973-12.1985 | |
| VM | 115 KVA 11.1 | 01.1973-12.1985 | |
| VM | 125 KVA 14.9 | 01.1973-12.1985 | |
| VM | 150 KVA 14.9 | 01.1973-12.1985 | |
| VM | T 11.0 | 01.1975-12.1985 | |
| VM | T 15.0 | 01.1975-12.1985 | |
| VM | V 11.0 | 01.1973-12.1985 | |
| VM | V 15.0 | 01.1973-12.1985 |
Reference Information
| 0001411015 | BOSCH |
| 0001417016 | BOSCH |
| 035530063A | CHRYSLER |
| 11.130.275 | ISKRA / LETRIKA |
| 11.139.151 | ISKRA / LETRIKA |
| 19024059 | DELCO |
| 20401246EL | REAL |
| 220242 | ERA |
| 254326 | KUHNER |
| 254326P | KUHNER |
| 260-47289 | DIXIE |
| 35530063A | CHRYSLER |
| 6010642 | SANDO |
| 8167 | CEVAM |
| 860666 | PRESTOLITE |
| AZK5497 | ISKRA / LETRIKA |
| AZL3616 | ISKRA / LETRIKA |
| CST10642 | CASCO |
| CST10642AS | CASCO |
| CST10642ES | CASCO |
| CST10642GS | CASCO |
| CST10642OS | CASCO |
| CST10642RS | CASCO |
| DRS3767 | DELCO |
| IM616 | AVF |
| IS9137 | ISKRA / LETRIKA |
| JB243708338 | JUBANA |
| MAV126420 | SIOM |
| MS538 | MAHLE |
| MS 538 | MAHLE |
| SG0499 | GHIBAUDI |
| STR79578 | ELECTROLOG |
| STRF063 | 3EFFE |
| UD12340S | AS-PL |
| UNIT BOM 900-107 | WAI / TRANSPO |
