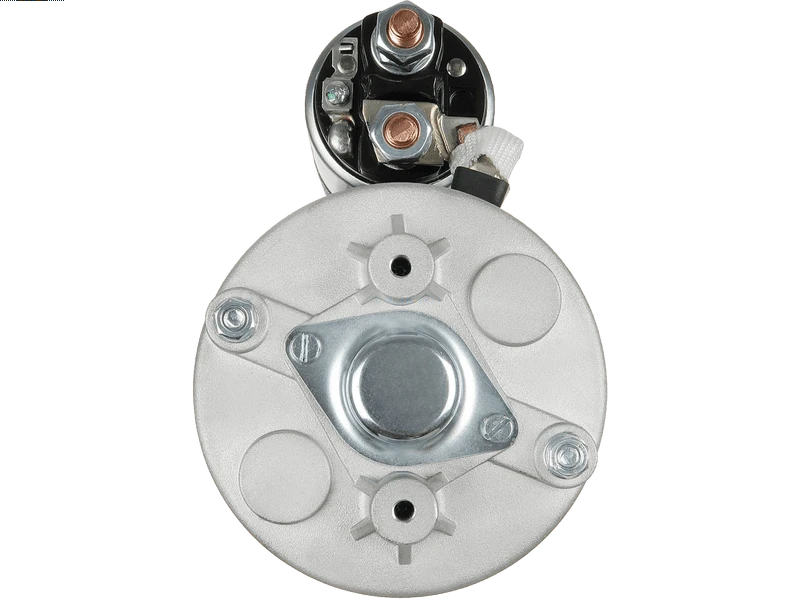

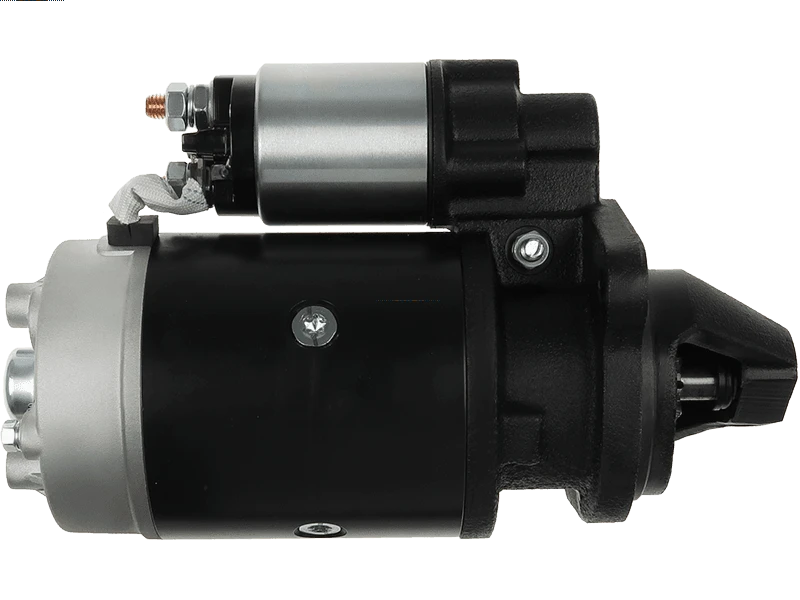

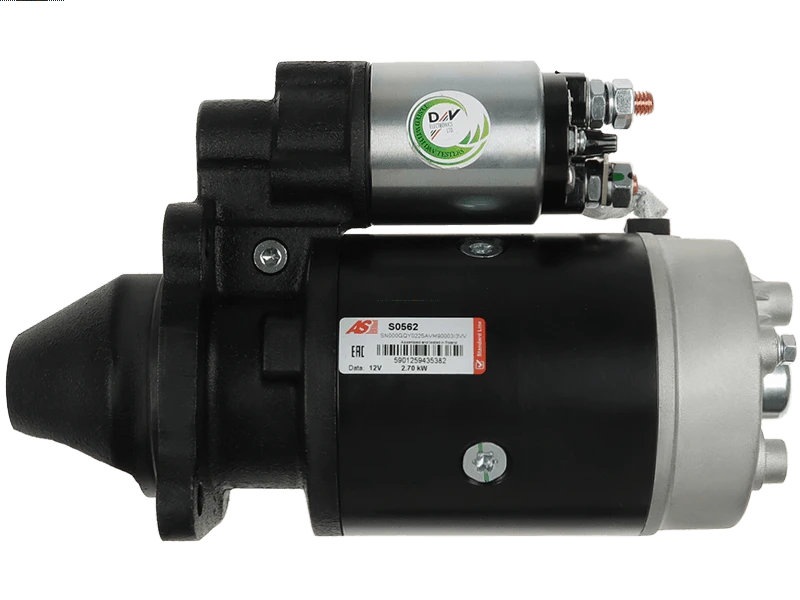

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 422.92 including GST
NZ$ 367.76 excluding GST
or four payments of $105.73
with
Learn More
UOM:
each
Alternative Item:
SGP-C10057,SAM-C10057,S0469
Product Code:
S0562
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001362314Associated Numbers
0001359072 0001362025 0001362043 0001362306 0001362314 0001362341 072080 072096 095970 0986011020 0986011021 101173 101173K 10550 10550K 11.130.669 11.130.670 111332 112219 12187645 130100090735 18460N 19024282 20401532BN 25-1178 260-62120 33420 443115142701 443115142801 570.001.093 6005003152 6005003153 6005011729 6005701125 6010235 605720100071 605720100098 605720100105 63252276 7700026780 7700046893 7700501670 7700519797 7700525064 7700525547 7700627394 8647 8EA726182-001 9142701 9142801 943252276 AZJ3218 AZJ3219 CS550 CST10235 CST10235AS CST10235ES CST10235GS CST10235OS CST10235RS D11E120 D11E131 D11E158 DRS1020 EAA-111119 F13590206001 F135902060010 IS0669 IS0670 LRS00568 M100R2004SE MAHMS351 MS351 MS353 MSR737 STR22088 UD13033S X830100006 X830100009Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 293 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FENDT | 105 S 4.2 D | [D226-4] | 02.1977-02.1992 |
| FENDT | 307 | [TD226-6] | 01.1980-12.1993 |
| FENDT | 308 4.2 D | [D226-4] | 02.1980- |
| FENDT | 600 5.7 D | [D227-6] | 02.1978- |
| FENDT | 610 5.7 D | [D226-6] | 02.1978- |
| FENDT | 611 6.2 D | [D226-6] | 02.1976- |
| FENDT | 612 6.2 D | [D226-6] | 02.1976- |
| FENDT | 614 6.2 D | [TD226-6] | 02.1978- |
| FENDT | Farmer 102, 102 S | D325-3 | 01.1972- |
| FENDT | Farmer 103 S | D225-3 | 01.1972- |
| FENDT | Farmer 103 S | D226-3 | 01.1972- |
| FENDT | Farmer 103 SA | D225-3 | 01.1972- |
| FENDT | Farmer 104 S | D226-3 | 01.1976- |
| FENDT | Farmer 104 SA | D226-3 | 01.1976- |
| FENDT | Farmer 105 S | D225-4 | 01.1972- |
| FENDT | Farmer 105 S | D226-4 | 01.1975- |
| FENDT | Farmer 106 S | D225-4 | 01.1972- |
| FENDT | Farmer 106 S | D226-4 | 01.1975- |
| FENDT | Farmer 106 SA | D225-4 | 01.1972- |
| FENDT | Farmer 108 S | D226-4 | 01.1975- |
| FENDT | Farmer 108 SA | D226-4 | 01.1975- |
| FENDT | Farmer 1 D | D325-3 | 01.1971- |
| FENDT | Farmer 305 LS | D227-4 | 01.1980- |
| FENDT | Farmer 5S | D225-4 | 01.1970-12.1972 |
| FENDT | Farmer 5SA | D225-4 | 01.1970-12.1972 |
| FENDT | Favorit 3 S | D225-4 | 01.1967- |
| FENDT | Favorit 4 S | D225-6 | 01.1970- |
| FENDT | Favorit 600 LS | D227-6 | 01.1976- |
| FENDT | Favorit 610 LS | D226-6 | 01.1984- |
| FENDT | Favorit 610 LS | D227-6 | 01.1979-12.1984 |
| FENDT | Favorit 610 LSA | D226-6 | 01.1984- |
| FENDT | Favorit 610 LSA | D227-6 | 01.1979-12.1984 |
| FENDT | Favorit 610 S | D225-6 | 01.1972-12.1976 |
| FENDT | Favorit 610 SA | D225-6 | 01.1972-12.1976 |
| FENDT | Favorit 611 S | D226-6 | 01.1972-12.1976 |
| FENDT | Favorit 611 SA | D226-6 | 01.1972-12.1976 |
| FENDT | Favorit 611 SL | D226-6 | 01.1976-12.1978 |
| FENDT | Favorit 611 SL | D226-6 | 01.1976-12.1978 |
| FENDT | Favorit 612 LS | D226-6 | 01.1983-12.1987 |
| FENDT | Favorit 612 LSA | D226-6 | 01.1988-12.1993 |
| FENDT | Favorit 612 S | D226-6 | 01.1972-12.1976 |
| FENDT | Favorit 612 SL | D226-6 | 01.1976-12.1984 |
| FENDT | Favorit 614 LS | D226-6 | 01.1977-12.1984 |
| FENDT | Favorit 614 LSA | D226-6 | 01.1983-12.1993 |
| FENDT | Favorit 614 SA | D226-6 | 01.1974-12.1976 |
| FENDT | Favorit 614 SL | D226-6 | 01.1976-12.1977 |
| FENDT | GT 231 GT | D325-3 | 01.1987- |
| FENDT | GT 231 GT | D327-3 | 01.1987- |
| RENAULT AGRICULTURE | 103-12 | D226-4 | - |
| RENAULT AGRICULTURE | 103-14 | D226-4 | - |
| RENAULT AGRICULTURE | 110-14 | D226-6 | - |
| RENAULT AGRICULTURE | 113-12 | D226-6 | - |
| RENAULT AGRICULTURE | 113-14 | D227-6 | - |
| RENAULT AGRICULTURE | 1151-4 | 115CV | - |
| RENAULT AGRICULTURE | 1181-4 | 118CV | - |
| RENAULT AGRICULTURE | 120-14 | D226-6 | - |
| RENAULT AGRICULTURE | 120-54 | D226-6 | - |
| RENAULT AGRICULTURE | 133-14 | D226-6 | - |
| RENAULT AGRICULTURE | 133-54 | D226-6 | - |
| RENAULT AGRICULTURE | 145-14 | D228-6 | - |
| RENAULT AGRICULTURE | 145-54 | D228-6 | - |
| RENAULT AGRICULTURE | 21520 | D226-3 | - |
| RENAULT AGRICULTURE | 22616 | 60CV | - |
| RENAULT AGRICULTURE | 24077 | D226-3 | - |
| RENAULT AGRICULTURE | 25173 | 68CV | - |
| RENAULT AGRICULTURE | 25903 | D226-4 | - |
| RENAULT AGRICULTURE | 27729 | D226-4 | - |
| RENAULT AGRICULTURE | 29556 | D226-4 | - |
| RENAULT AGRICULTURE | 301 | 30CV | - |
| RENAULT AGRICULTURE | 31382 | D226-4 | - |
| RENAULT AGRICULTURE | 35034 | D226-4 | - |
| RENAULT AGRICULTURE | 351 | 35CV | - |
| RENAULT AGRICULTURE | 361 | 36CV | - |
| RENAULT AGRICULTURE | 421 | 42CV | - |
| RENAULT AGRICULTURE | 456 | 46CV | - |
| RENAULT AGRICULTURE | 460 | 48CV | - |
| RENAULT AGRICULTURE | 461 | 46CV | - |
| RENAULT AGRICULTURE | 462 | 46V | - |
| RENAULT AGRICULTURE | 480 | 56CV | - |
| RENAULT AGRICULTURE | 486 | 51CV | - |
| RENAULT AGRICULTURE | 489 | 51CV | - |
| RENAULT AGRICULTURE | 490 | 65CV | - |
| RENAULT AGRICULTURE | 496 | 82CV | - |
| RENAULT AGRICULTURE | 498 | 90CV | - |
| RENAULT AGRICULTURE | 50 | 30CV | - |
| RENAULT AGRICULTURE | 50 | 33CV | - |
| RENAULT AGRICULTURE | 51 | 44CV | - |
| RENAULT AGRICULTURE | 53 | 30CV | - |
| RENAULT AGRICULTURE | 551 | 55CV | - |
| RENAULT AGRICULTURE | 551-4 | 55CV | - |
| RENAULT AGRICULTURE | 556 | 55CV | - |
| RENAULT AGRICULTURE | 56 | 46CV | - |
| RENAULT AGRICULTURE | 58-14 | D226-3 | - |
| RENAULT AGRICULTURE | 58-32 | D226-3 | - |
| RENAULT AGRICULTURE | 58-34 | D226-3 | - |
| RENAULT AGRICULTURE | 60 | 46CV | - |
| RENAULT AGRICULTURE | 61-14 | 60CV | - |
| RENAULT AGRICULTURE | 651 | 65CV | - |
| RENAULT AGRICULTURE | 65-14 | D226-3 | - |
| RENAULT AGRICULTURE | 651-4 | 65CV | - |
| RENAULT AGRICULTURE | 652 | 65CV | - |
| RENAULT AGRICULTURE | 65-32 | D226-3 | - |
| RENAULT AGRICULTURE | 65-34 | D226-3 | - |
| RENAULT AGRICULTURE | 656 | 65CV | - |
| RENAULT AGRICULTURE | 681 | 68CV | - |
| RENAULT AGRICULTURE | 68-14 | 68CV | - |
| RENAULT AGRICULTURE | 70 | 46CV | - |
| RENAULT AGRICULTURE | 70-14 | D226-4 | - |
| RENAULT AGRICULTURE | 70-32 | D226-4 | - |
| RENAULT AGRICULTURE | 70-34 | D226-4 | - |
| RENAULT AGRICULTURE | 75-14 | D226-4 | - |
| RENAULT AGRICULTURE | 751-4 | 75CV | - |
| RENAULT AGRICULTURE | 75-32 | D226-4 | - |
| RENAULT AGRICULTURE | 75-34 | D226-4 | - |
| RENAULT AGRICULTURE | 781 | 78CV | - |
| RENAULT AGRICULTURE | 80 | 55CV | - |
| RENAULT AGRICULTURE | 80-14 | D226-4 | - |
| RENAULT AGRICULTURE | 82 | 51CV | - |
| RENAULT AGRICULTURE | 851 | 85CV | - |
| RENAULT AGRICULTURE | 85-14 | D226-4 | - |
| RENAULT AGRICULTURE | 85-32 | D226-4 | - |
| RENAULT AGRICULTURE | 85-34 | D226-4 | - |
| RENAULT AGRICULTURE | 86 | 55CV | - |
| RENAULT AGRICULTURE | 89 | 58CV | - |
| RENAULT AGRICULTURE | 891 | 89CV | - |
| RENAULT AGRICULTURE | 90 | 62CV | - |
| RENAULT AGRICULTURE | 90 | 65CV | - |
| RENAULT AGRICULTURE | 90-32 | D-226-4 | - |
| RENAULT AGRICULTURE | 90-34 | D-226-4 | - |
| RENAULT AGRICULTURE | 91 | 72CV | - |
| RENAULT AGRICULTURE | 92 | 62CV | - |
| RENAULT AGRICULTURE | 94 | 80CV | - |
| RENAULT AGRICULTURE | 951 | 95CV | - |
| RENAULT AGRICULTURE | 95-14 | D226-4 | - |
| RENAULT AGRICULTURE | 96 | 90CV | - |
| RENAULT AGRICULTURE | 98 | 90CV | - |
| RENAULT AGRICULTURE | 981 | 98CV | - |
| RENAULT AGRICULTURE | Various Models | [TD226-4] | |
| RENAULT AGRICULTURE | Various Models | TD226-4 | - |
Reference Information
| 0001362025 | BOSCH |
| 0001362043 | BOSCH |
| 0001362306 | BOSCH |
| 0001362314 | BOSCH |
| 11.130.669 | ISKRA / LETRIKA |
| 111332 | CARGO |
| 112219 | CARGO |
| 12187645 | KHD |
| 130100090735 | CASE |
| 18460N | WAI |
| 19024282 | DELCO |
| 20401532BN | REAL |
| 25-1178 | ELSTOCK |
| 310415 | RENAULT |
| 310416 | RENAULT |
| 330702 | LOGISTIK |
| 443115142801 | MAGNETON |
| 570.001.093.011 | WAI |
| 570.001.093.017 | WAI |
| 570.001.093.030 | WAI |
| 6005003152 | RENAULT |
| 6005011729 | RENAULT |
| 6005701125 | RENAULT |
| 6010235.0 | SANDO |
| 605720100055 | MWM |
| 605720100071 | MWM |
| 605720100098 | MWM |
| 605720100105 | MWM |
| 72735979 | MAHLE |
| 7700026780 | RENAULT |
| 7700046893 | RENAULT |
| 7700501670 | RENAULT |
| 7700525064 | RENAULT |
| 7700525547 | RENAULT |
| 7700627394 | RENAULT |
| 8647 | CEVAM |
| 88212736 | POWERMAX |
| AM-2349 | AUTO MAGNETO |
| ANM13240X | ANDEL |
| AZJ3218 | ISKRA / LETRIKA |
| CS550 | HC PARTS |
| CST10235AS | CASCO |
| D11E120 | VALEO |
| F032111332 | CARGO |
| F032112219 | CARGO |
| F13590206001 | FENDT |
| F135902060010 | FENDT |
| G514900060100 | FENDT |
| IS0669 | ISKRA / LETRIKA |
| LRS00568 | LUCAS |
| LRS568 | LUCAS |
| MAHMS351 | WOODAUTO |
| MS351 | MAHLE |
| S0562 | AS-PL |
| S12BH0278A2 | SIDAT |
| S133.650 | WAI |
| SG2106 | GHIBAUDI |
| STR10026 | ELECTROLOG |
| STR1095 | ELECTROLOG |
| STR22088 | WOODAUTO |
| STR78016 | ELECTROLOG |
| STX210075 | STARDAX |
| UD13033S | AS-PL |
| X830100006 | FENDT |
| X830100009 | FENDT |
| X830100009000 | FENDT |
