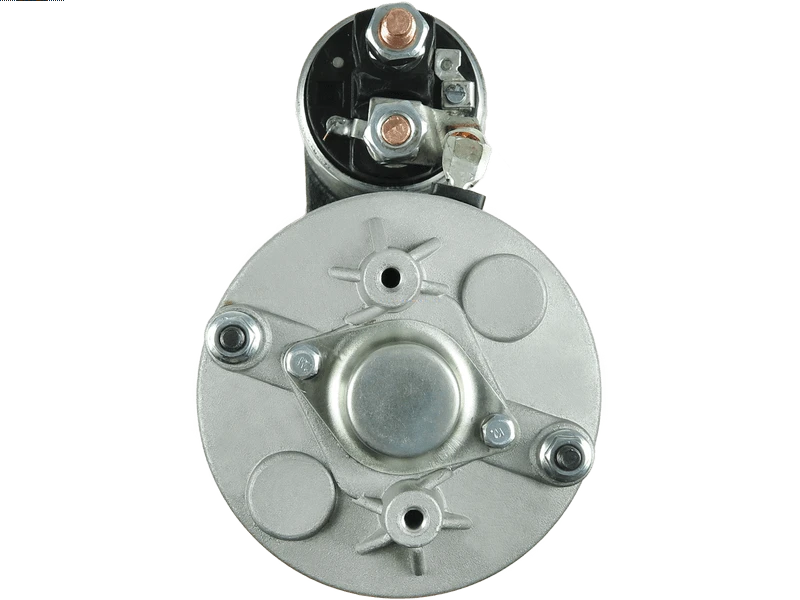

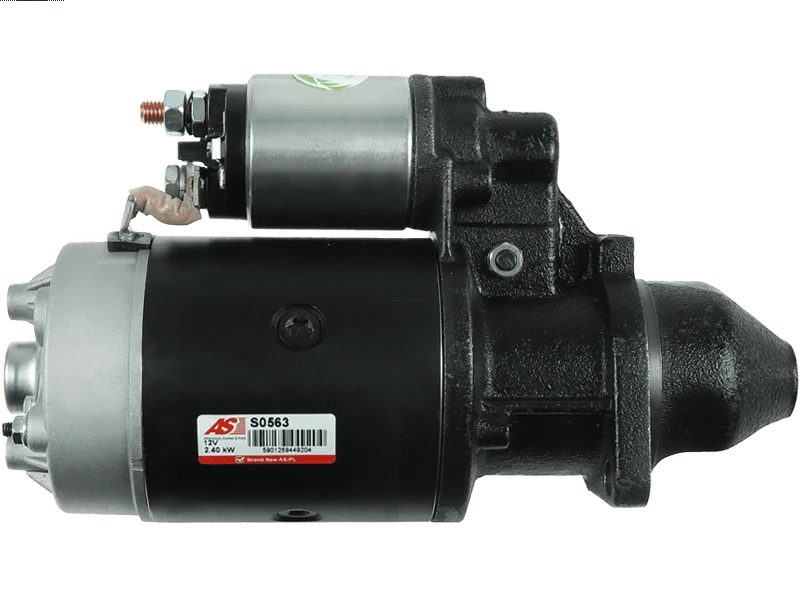

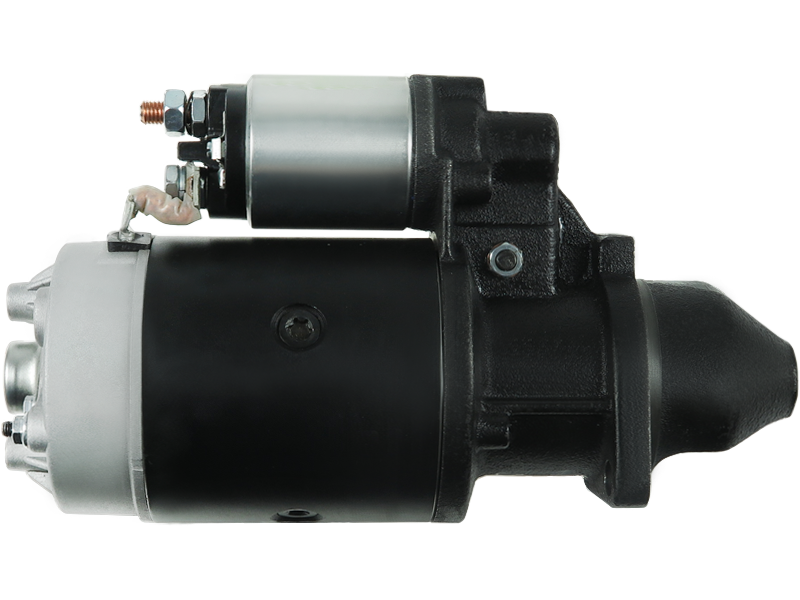

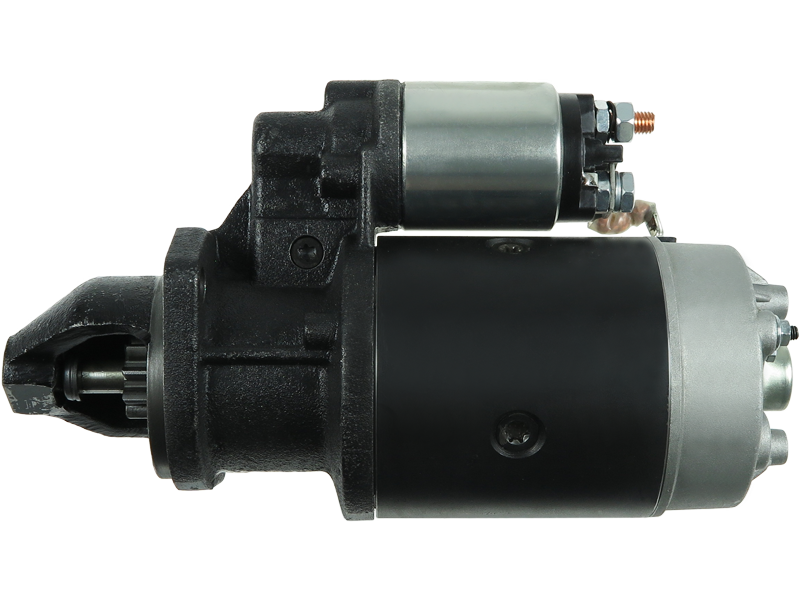

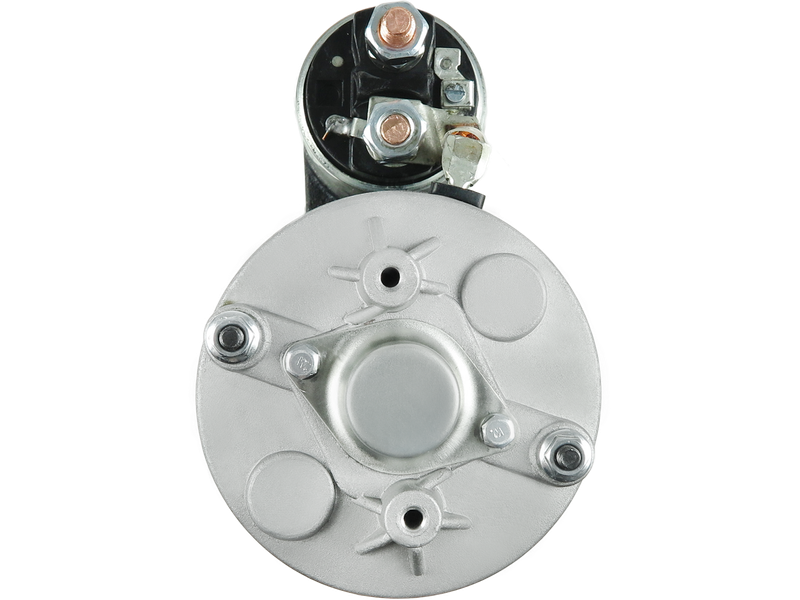

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 425.53 including GST
NZ$ 370.03 excluding GST
or four payments of $106.38
with
Learn More
each
S0563
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001362058Associated Numbers
0001354007 0001354089 0001362058 0001366003 11.130.248 20419101BN 20419101OE 25-1455 254027 254027M 254092 254092M 260-62114 6021101 690.002.092 8598 91-15-7054 AZJ3552 CST21101 CST21101AS CST21101ES CST21101GS CST21101OS CST21101RS DRS3329 IS0248 LRS01262 MAHMS392 MS392 STR22097 UD13032S UNIT BOM 120-491Specifications
| Kilowatt | 2.40 kW |
| Length (L.1) | 315 mm |
| Mount Hole Center - Center (O.1) | 106 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GOLDONI | 518 | [4LD705] | 01.1988-12.1990 |
| GOLDONI | 718 | [4LD820] | 01.1977-12.1987 |
| GOLDONI | 919 | [4LD705] | 01.1988-12.1990 |
| GOLDONI | 921 | [4LD820] | 01.1977-12.1987 |
| LOMBARDINI | Engine | [4LD820F] | 01.1982- |
| LOMBARDINI | Engine 0.6 | [4LD640] | 01.1982- |
| LOMBARDINI | Engine 0.6 | [4LD640L] | 01.1982- |
| LOMBARDINI | Engine 0.6 | [L10] | 01.1978-12.1981 |
| LOMBARDINI | Engine 0.6 | [LDA96] | 01.1977-12.1981 |
| LOMBARDINI | Engine 0.6 | [LDA97] | 01.1977-12.1979 |
| LOMBARDINI | Engine 0.6 | [LDAM96] | 01.1978- |
| LOMBARDINI | Engine 0.7 | [4LD705] | 01.1982- |
| LOMBARDINI | Engine 0.7 | [LDA100] | 01.1977- |
| LOMBARDINI | Engine 0.8 | [4LD820] | 01.1982- |
| LOMBARDINI | Engine 0.8 | [4LD820L] | 01.1982-12.1992 |
| LOMBARDINI | Engine 0.8 | [L14] | 01.1978-12.1981 |
| LOMBARDINI | Engine 0.8 | [LDA820] | 01.1976-12.1981 |
Reference Information
| 0001354007 | BOSCH |
| 0001362058 | BOSCH |
| 0001366003 | BOSCH |
| 11.130.248 | ISKRA / LETRIKA |
| 115423 | CARGO |
| 20419101BN | REAL |
| 20419101OE | REAL |
| 25-1455 | ELSTOCK |
| 254027 | KUHNER |
| 254027M | KUHNER |
| 254092 | KUHNER |
| 254092M | KUHNER |
| 260-62114 | DIXIE |
| 331728 | LOGISTIK |
| 5010423 | MEAT & DORIA |
| 6021101.0 | SANDO |
| 6021101.1 | SANDO |
| 690.002.092.010 | PSH |
| 690.002.092.016 | PSH |
| 690.002.092.311 | PSH |
| 72736020 | MAHLE |
| 8755 | CEVAM |
| 91-15-7054 | WILSON |
| ANM15549X | ANDEL |
| AZJ0102 | ISKRA / LETRIKA |
| AZJ3552 | ISKRA / LETRIKA |
| CGB-91210 | AINDE |
| CST21101AS | CASCO |
| CST21101GS | CASCO |
| DRS3329 | DELCO |
| F032115423 | CARGO |
| IS0248 | ISKRA / LETRIKA |
| LRS01262 | LUCAS |
| LRS1262 | LUCAS |
| MAHMS392 | WOODAUTO |
| MAV231010 | SIOM |
| MS392 | MAHLE |
| PRSS150 | 3EFFE |
| S0563 | AS-PL |
| S12BH0383A2 | SIDAT |
| STI0233 | KRAUF |
| STR10030 | ELECTROLOG |
| STR1816 | ELECTROLOG |
| STR22097 | WOODAUTO |
| STR79007 | ELECTROLOG |
| STRS150 | 3EFFE |
| UD101812S | AS-PL |
| UD13032S | AS-PL |
| UNIT BOM 120-491 | WAI / TRANSPO |
Video/Publications
