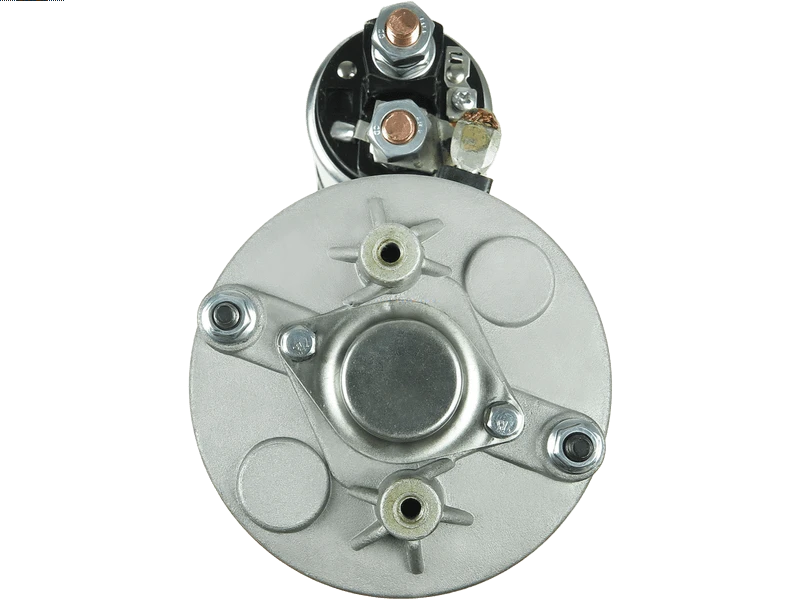

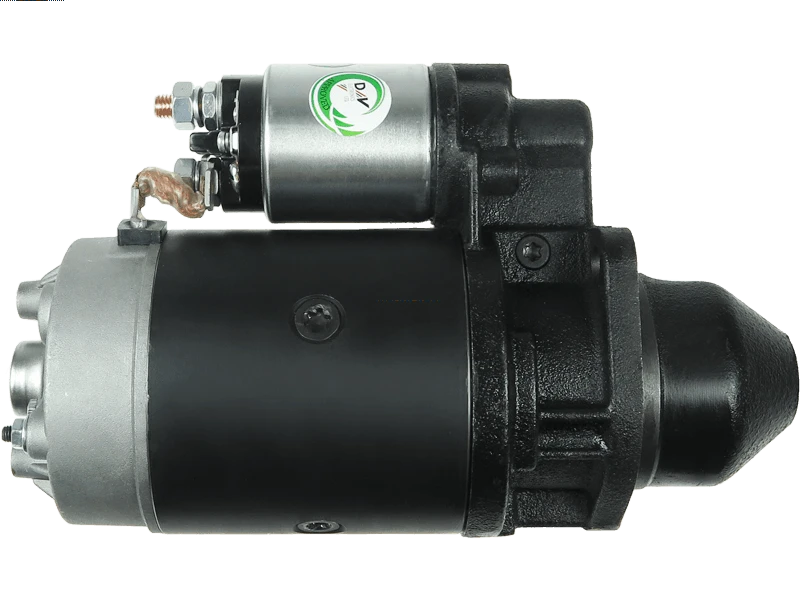

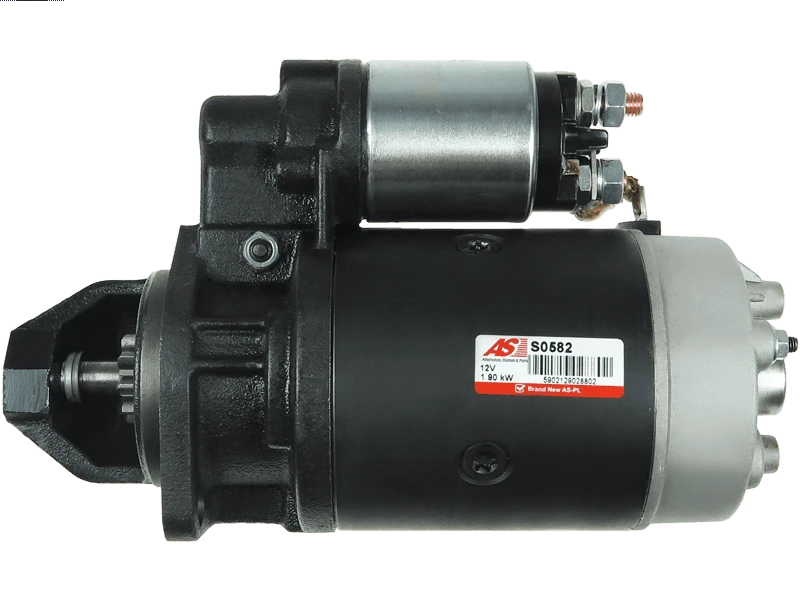

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 461.14 including GST
NZ$ 400.99 excluding GST
or four payments of $115.29
with
Learn More
each
S0582
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001366001Associated Numbers
0001354081 0001354100 0001362012 0001362013 0001362024 0001362041 0001366001 008009830001 01172683 0986012460 10707 114181 1161386 1162510 1164414 1172683 20401223BN 25-2208 254262 33455 510.506.092 6010322 8EA730223-001 91-15-6898 CS707 CST10322AS LRS01365 UD11985S UNIT BOM 120-525ASpecifications
| Kilowatt | 1.90 kW |
| Length (L.1) | 294 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ABG | Alexander 124 | [F2L912] | 01.1968-12.1975 |
| ABG | AR50 | [F2L912] | 01.1973-12.1979 |
| ABG | AW165 | [F2L912] | 01.1969-12.1975 |
| ABG | NG | [F2L912] | 01.1965-12.1976 |
| ATLAS COPCO | US85 | [F2L912] | 01.1973-12.1983 |
| DEUTZ | D2505 | [F2L812] | 01.1967-12.1967 |
| DEUTZ | D2506 | [F2L912] | 01.1968-12.1974 |
| DEUTZ | D3005 | [F2L812] | 01.1967-12.1967 |
| DEUTZ | D3006 | [F2L912] | 01.1968-12.1978 |
| DEUTZ | DX36 | [F2L912] | 01.1979-12.1985 |
| DEUTZ | DX50V | [F3L912] | 01.1979-12.1985 |
| DEUTZ-FAHR | D2807 | [F2L912] | 01.1986-12.1993 |
| DEUTZ-FAHR | D3607 | [F2L912] | 01.1986-12.1991 |
| DEUTZ-FAHR | D3607 | [F2L912] | 01.1986-12.1993 |
| DEUTZ-FAHR | D3607 | [F3L912] | 01.1986-12.1993 |
| DEUTZ-FAHR | DX36 | [F2L912] | 01.1978-12.1985 |
| FUCHS | 301 | [F2L912] | 01.1969-12.1979 |
| FUCHS | 301K | [F2L912] | 01.1969-12.1979 |
| LINDE | H12D | [F3L912] | 01.1969-12.1980 |
| O&K | L 5 | [F2L912] | 01.1969-12.1979 |
| O&K | RL 3 | [F2L912] | 01.1969-12.1979 |
| RUGGERINI | RF148 | 01.1981-12.1985 | |
| SCHAEFF | HM25 | [F2L912] | 01.1974-12.1986 |
| SCHAEFF | HR26 | [F2L912] | 01.1974-12.1986 |
| SCHAEFF | SKL300 | [F2L912] | 01.1974-12.1986 |
Reference Information
| 0001354081 | BOSCH |
| 0001354100 | BOSCH |
| 0001362012 | BOSCH |
| 0001362013 | BOSCH |
| 0001362024 | BOSCH |
| 0001362041 | BOSCH |
| 0001366001 | BOSCH |
| 008009830001 | MWM |
| 01172683 | KHD |
| 0986012460 | BOSCH |
| 10707 | KUHNER |
| 114181 | CARGO |
| 1161386 | KHD |
| 1162510 | KHD |
| 1164414 | KHD |
| 1172683 | KHD |
| 20401223BN | REAL |
| 25-2208 | ELSTOCK |
| 254262 | KUHNER |
| 33455 | EAI |
| 5010391 | MEAT & DORIA |
| 510.506.092 | PSH |
| 510.506.092.460 | PSH |
| 6010322 | SANDO |
| 8EA730223-001 | HELLA |
| 91-15-6898 | WILSON |
| B14R12X18H7622 | KHD |
| CS707 | HC PARTS |
| CST10322AS | CASCO |
| F032114181 | CARGO |
| LRS01365 | LUCAS |
| LRS1365 | LUCAS |
| MAV123220 | SIOM |
| S12BH0267A2 | SIDAT |
| STR1337 | ELECTROLOG |
| STRF147 | 3EFFE |
| STRS337 | 3EFFE |
| UD11985S | AS-PL |
| UNIT BOM 120-525A | WAI / TRANSPO |
