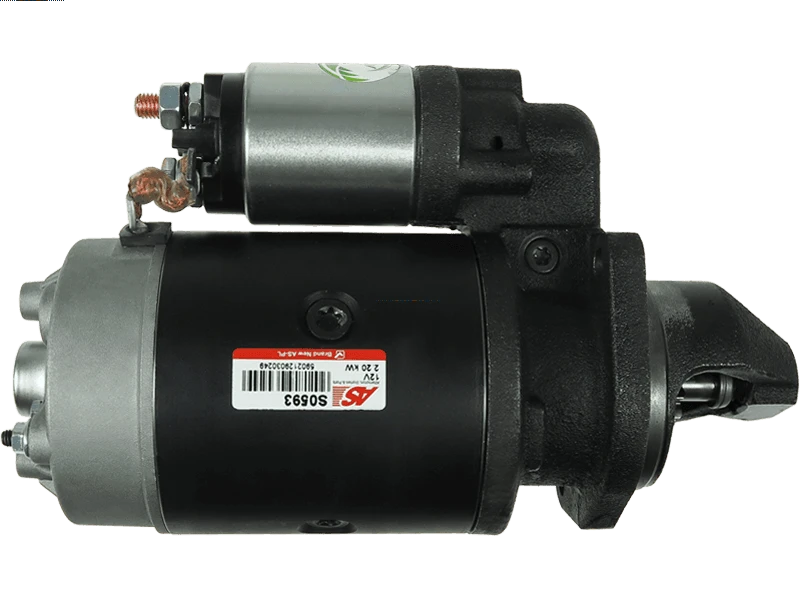

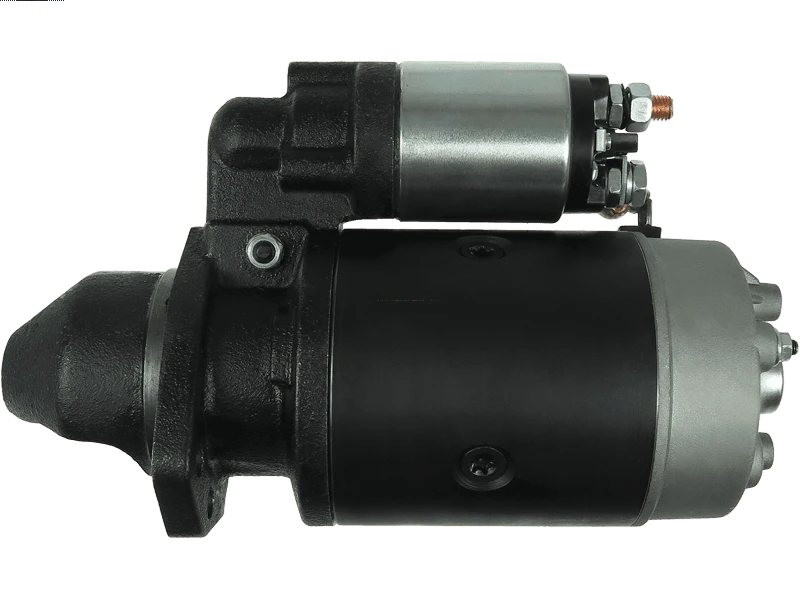

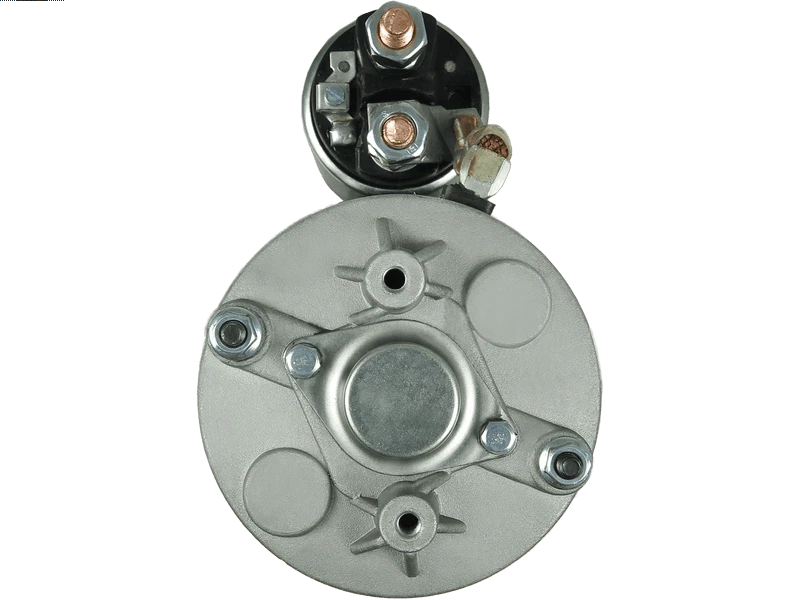

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 508.56 including GST
NZ$ 442.23 excluding GST
or four payments of $127.14
with
Learn More
each
S0593
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001362701Associated Numbers
0001362701 01179470 1179470 120-30287 20513051 25-4336 255139 560.004.113 EAA-152325 LRS02664 UD12679S UNIT BOM 120-6185Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 294 mm |
| Mount Hole Center - Center (O.1) | 27 mm |
| Mount Hole Center - Center (O.2) | 105 mm |
| Mount Hole Center - Center (O.3) | 102 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KHD | Engine 1.4 | [F2L1011] | 01.1989- |
Reference Information
| 0001362701 | BOSCH |
| 01177441 | KHD |
| 01178670 | KHD |
| 01179470 | KHD |
| 112041 | CARGO |
| 1177441 | KHD |
| 1178670 | KHD |
| 1179470 | KHD |
| 120-30287 | ROBERT'S |
| 20401295BN | REAL |
| 20513051 | PRESTOLITE |
| 25-4336 | ELSTOCK |
| 255139 | KUHNER |
| 330270 | LOGISTIK |
| 560.004.113 | PSH |
| 6010592.0 | SANDO |
| CS1184 | HC PARTS |
| CST10592AS | CASCO |
| F032112041 | CARGO |
| LRS02664 | LUCAS |
| LRS2664 | LUCAS |
| MAV125920A | SIOM |
| S133.818 | PSH |
| STR1620 | ELECTROLOG |
| STRL304 | 3EFFE |
| UD12679S | AS-PL |
| UNIT BOM 120-6185 | WAI / TRANSPO |
Video/Publications
