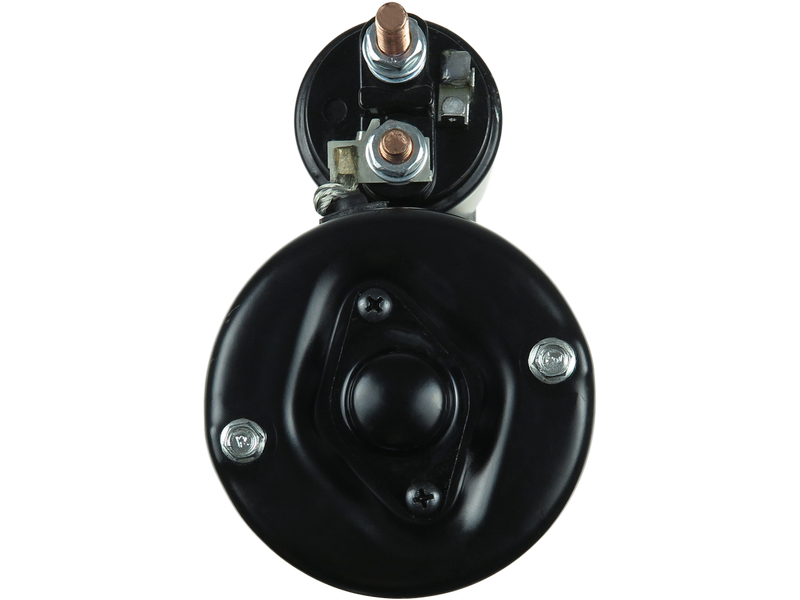

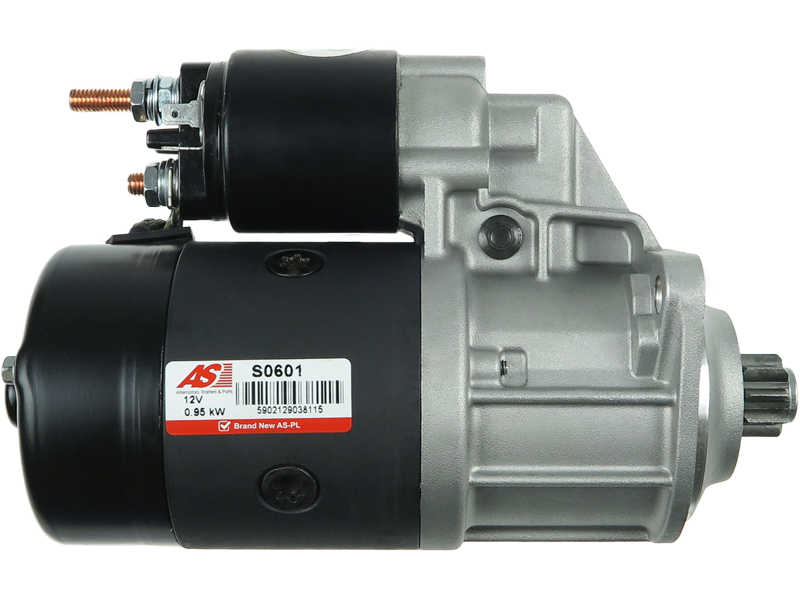

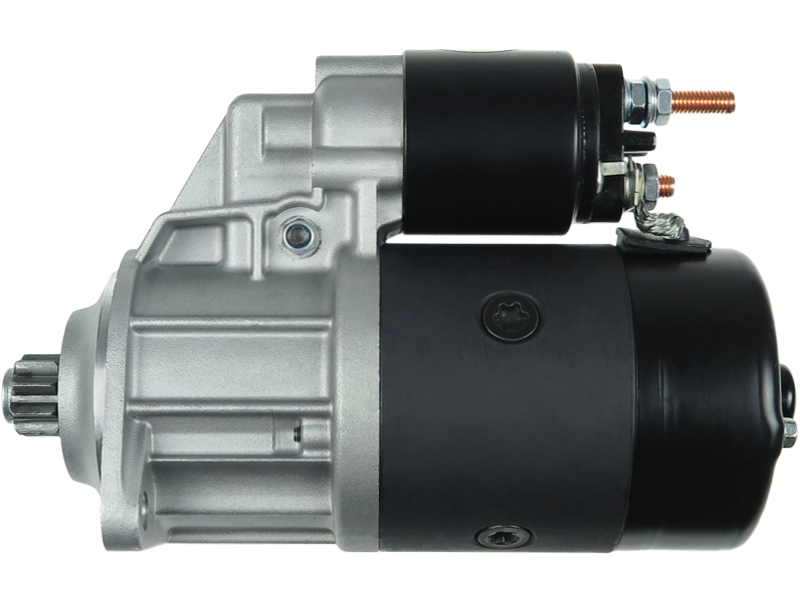

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 291.28 including GST
NZ$ 253.29 excluding GST
or four payments of $72.82
with
Learn More
each
S0601
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001212402Associated Numbers
0001212211 0001212213 0001212402 0001212403 003911023E 0986016370 10531 11715 1516769R 16958 17065R 25-0137 300.018.092 8EA726171-001 91-15-6987 943251227010 CS531 DRS6370 EAA-152028 LRS01019 S-6105 STR50532 STR50598 UD13175SSpecifications
| Kilowatt | 0.95 kW |
| Length (L.1) | 239 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 35 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Transporter 1.9 | [DG] | 08.1982-07.1992 |
| VW | Transporter 1.9 | DG] | 10.1982-07.1992 |
| VW | Transporter 1.9 | [DH] | 01.1983-07.1985 |
| VW | Transporter 1.9 | [DH] | 10.1984-02.1989 |
| VW | Transporter 2.0 | [CU] | 05.1979-04.1986 |
| VW | Transporter 2.0 | [CU] | 05.1979-12.1982 |
| VW | Transporter 2.0 | [CV] | 05.1979-12.1982 |
| VW | Transporter 2.1 | [DJ] | 03.1986-07.1992 |
| VW | Transporter 2.1 | [DJ] | 08.1984-07.1992 |
| VW | Transporter 2.1 | [MV] | 08.1985-07.1992 |
| VW | Transporter 2.1 | [SR] | 10.1986-07.1992 |
| VW | Transporter 2.1 i | [SS] | 07.1989-07.1992 |
| VW | Transporter 2.1 i Cat | [MV] | 06.1989-07.1992 |
Reference Information
| 0001212211 | BOSCH |
| 0001212213 | BOSCH |
| 0001212402 | BOSCH |
| 0001212403 | BOSCH |
| 003911023C | VW |
| 003911023CX | VW |
| 003911023D | VW |
| 003911023DX | VW |
| 003911023E | VW |
| 003911023EX | VW |
| 0986016370 | BOSCH |
| 10531 | KUHNER |
| 11715 | EAI |
| 1516769R | DAF |
| 16958 | DELCO |
| 17065R | WAI / TRANSPO |
| 25-0137 | ELSTOCK |
| 300.018.092 | PSH |
| 8EA726171-001 | HELLA |
| 91-15-6987 | WILSON |
| 943251227010 | MAGNETI MARELLI |
| ANM18590X | ANDEL |
| BCR911023A | VW |
| CS531 | HC PARTS |
| DRS6370 | DELCO |
| LRS01019 | LUCAS |
| LRS1019 | LUCAS |
| S0601 | AS-PL |
| S132.192 | PSH |
| S-6105 | DIXIE |
| STR10193 | ELECTROLOG |
| STR50532 | WOODAUTO |
| STR50598 | WOODAUTO |
| STRL714 | 3EFFE |
| STX200760 | STARDAX |
| UD13175S | AS-PL |
Video/Publications
