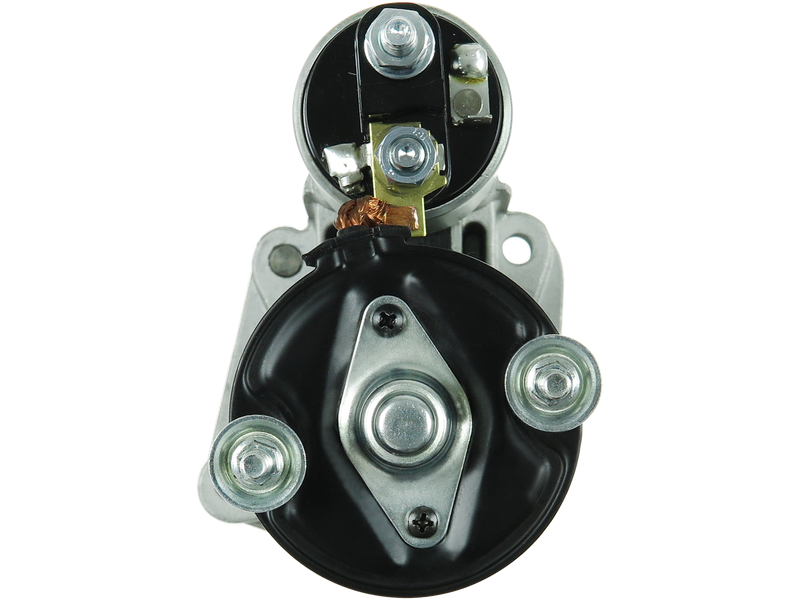

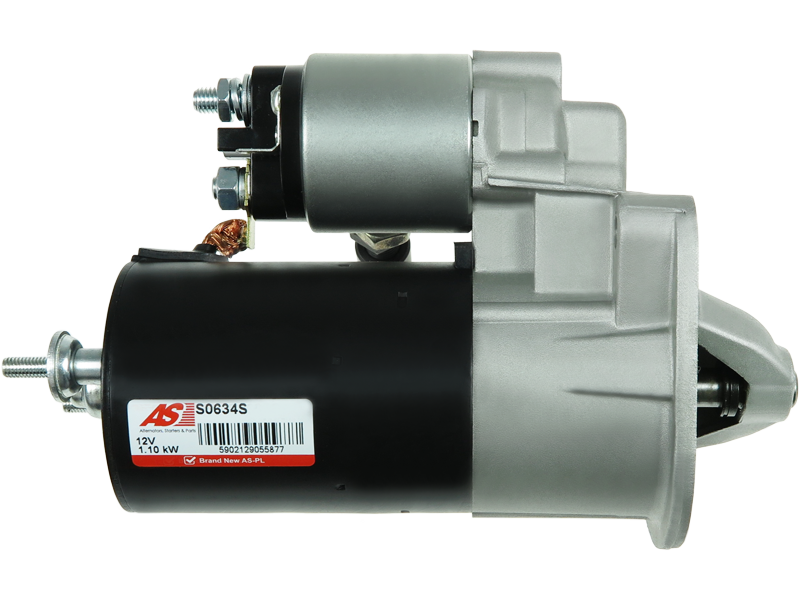

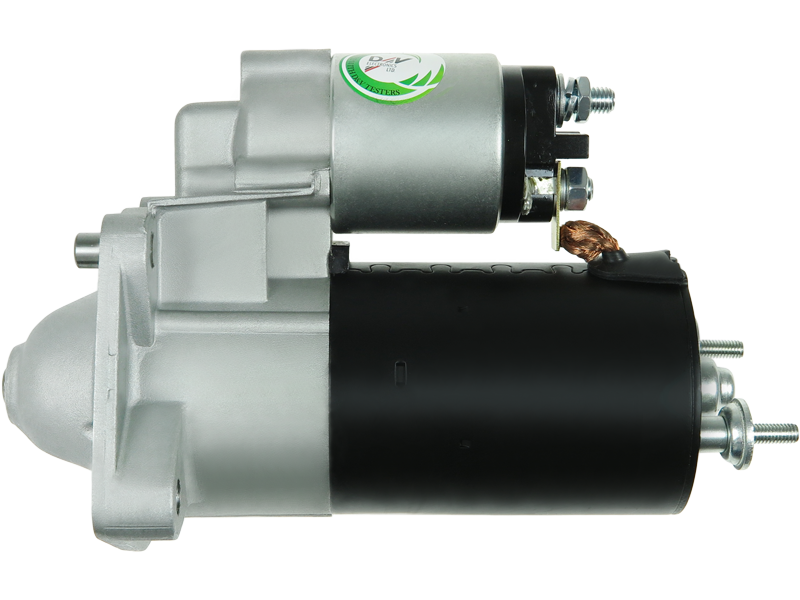

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 244.34 including GST
NZ$ 212.47 excluding GST
or four payments of $61.09
with
Learn More
each
S0634S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107076Associated Numbers
0001107076 0986018870 101272 11968 25-2484 3115 810.515.093 8602104 88212400 8EA012527-811 8EA738060-001 944280188700 CS1272 DRS8870 EAA-122224 LRS01516 S1029B STB1272 UD13941SSpecifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 225 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 1 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S40 1.8 | [B4184S2] | 01.1999-12.2003 |
| VOLVO | S40 1.8 | [B4184S9] | 01.1999-12.2003 |
| VOLVO | S40 1.9 | [B4194T] | 01.1997-12.2000 |
| VOLVO | S40 1.9 | [B4194T2] | 01.1997-12.2000 |
| VOLVO | S40 2.0 | [B4204S] | 01.1999-12.2004 |
| VOLVO | S40 2.0 | [B4204S2] | 01.1999-12.2004 |
| VOLVO | S40 2.0 T | [B4204T..] | 01.1998-12.2001 |
| VOLVO | V40 1.8 | [B4184S2] | 01.2000-12.2004 |
| VOLVO | V40 1.8 | [B4184S9] | 01.2000-12.2004 |
| VOLVO | V40 1.9 T | [B4194T] | 01.1997-12.2000 |
| VOLVO | V40 1.9 T | [B4194T2] | 01.1997-12.2000 |
| VOLVO | V40 2.0 T | [B4204T..] | 01.1998-12.2000 |
Reference Information
| 0001107076 | BOSCH |
| 0986018870 | BOSCH |
| 101272 | KUHNER |
| 11968 | EAI |
| 25-2484 | ELSTOCK |
| 30857255 | MITSUBISHI |
| 3115 | CEVAM |
| 331397 | LOGISTIK |
| 810.515.093 | PSH |
| 810.515.093.460 | PSH |
| 8602104 | VOLVO |
| 88212400 | POWERMAX |
| 8EA012527-811 | HELLA |
| 8EA738060-001 | HELLA |
| 944280188700 | MAGNETI MARELLI |
| ANM11090X | ANDEL |
| CS1272 | HC PARTS |
| DRS8870 | DELCO |
| LRS01516 | LUCAS |
| LRS1516 | LUCAS |
| S1029B | PRESTOLITE |
| S12BH0740A2 | SIDAT |
| S135.327 | PSH |
| STB1272 | KRAUF |
| STR1472 | ELECTROLOG |
| STRS912 | 3EFFE |
| STX200473 | STARDAX |
| UD13941S | AS-PL |
Video/Publications
