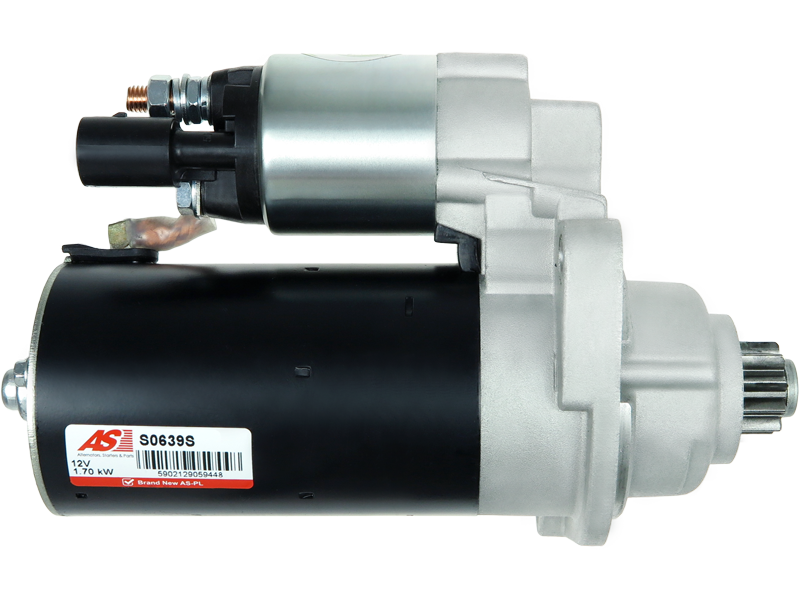

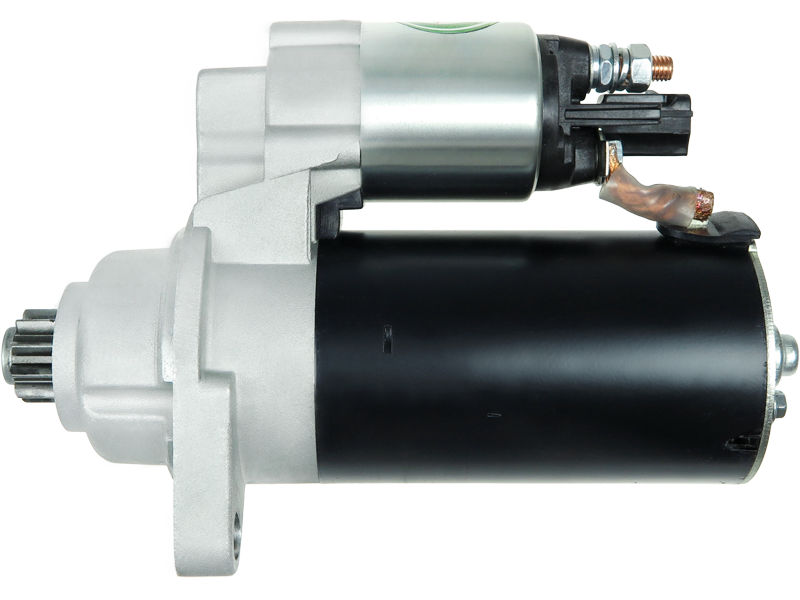

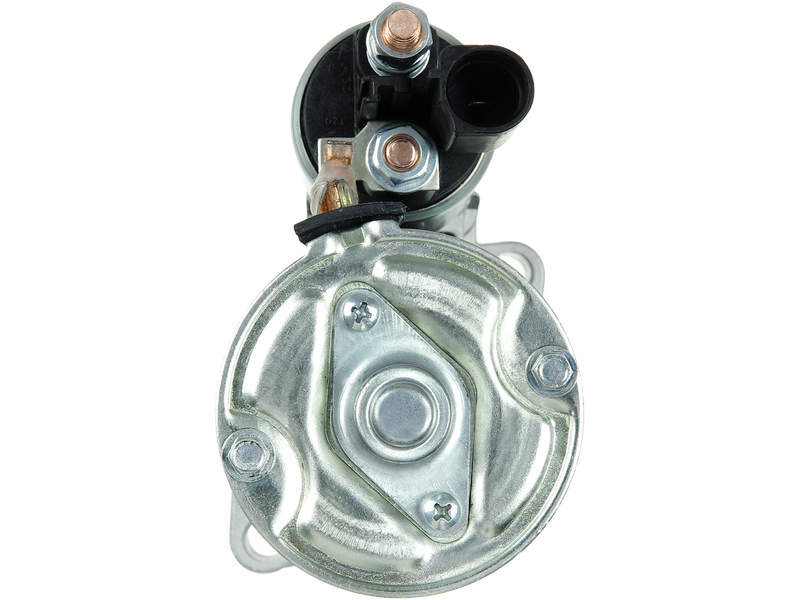

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 294.88 including GST
NZ$ 256.42 excluding GST
or four payments of $73.72
with
Learn More
each
S0639S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001123026Associated Numbers
0001123026 0001123027 02Z911023L 02Z911023LX 19087R 25-5142 300.928.102 88214387 91-15-7279 AEX1074 BOS0001123026 DRS1153 F00E100578 LRS03980 S-6289 STB3026 UD14270SSpecifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 232 mm |
| Mount Hole Center - Center (O.1) | 112 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 52.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | R8 4.2 FSi Quattro | [BYH] | 01.2007-12.2010 |
| AUDI | R8 4.2 FSi Quattro | [CNDA] | 01.2010-12.2015 |
| AUDI | R8 5.2 FSi Quattro | [BUJ] | 01.2009-12.2012 |
| AUDI | R8 5.2 FSi Quattro | [CMPA] | 01.2010-12.2012 |
| AUDI | R8 5.2 FSi Quattro | [CTPA] | 01.2012-12.2015 |
| AUDI | R8 5.2 FSi Quattro | [CTPB] | 01.2014-12.2015 |
| AUDI | R8 5.2 FSi Quattro | [CTYA] | 01.2012-12.2015 |
| LAMBORGHINI | Gallardo LP550-2 5.2 V10 | 01.2009-12.2014 | |
| LAMBORGHINI | Gallardo LP560-4 5.2 V10 | 01.2008-12.2014 | |
| LAMBORGHINI | Gallardo LP570-4 5.2 V10 | 01.2008-12.2014 |
Reference Information
| 0001123026 | BOSCH |
| 0001123027 | BOSCH |
| 0001123027-R | BOSCH |
| 02Z911023L | VW |
| 02Z911023LX | VW |
| 10010036AV | ITAB AUTOMOTIVE |
| 10010036OV | ITAB AUTOMOTIVE |
| 106943 | FARCOM |
| 11090266 | EUROTEC |
| 12514 | EAI |
| 19087N | WAI / TRANSPO |
| 19087-OS | WAI / TRANSPO |
| 19087R | WAI / TRANSPO |
| 1986S00801 | BOSCH |
| 20401630BN | REAL |
| 20401630OE | REAL |
| 25-5142 | ELSTOCK |
| 25-5142CT | AINDE |
| 256656 | KUHNER |
| 300.928.102.010 | PSH |
| 300.928.102.018 | PSH |
| 300.928.102.280 | PSH |
| 311413102 | DRI |
| 3117037 | HENKEL PARTS |
| 3117038 | HENKEL PARTS |
| 331716 | LOGISTIK |
| 3712 | CEVAM |
| 5010938 | MEAT & DORIA |
| 5010938G | MEAT & DORIA |
| 514ST21 | STARTCAR |
| 6010036.0 | SANDO |
| 6010036.1 | SANDO |
| 88214387 | POWERMAX |
| 91-15-7279 | WILSON |
| AEX1074 | AUTOELECTRO |
| ANM99874 | ANDEL |
| AU9065 | SNRA |
| BOS0001123026 | WOODAUTO |
| BREF0321986S00801 | CARWOOD GROUP |
| CST10036AS | CASCO |
| CST10036GS | CASCO |
| DRS1153 | DELCO |
| F00E100578 | BOSCH |
| H5010938 | HOFFER |
| H5010938G | HOFFER |
| IR1205 | PROTECH |
| LRS03980 | LUCAS |
| LRS3980 | LUCAS |
| MAV120360A | SIOM |
| PRSE400 | 3EFFE |
| RNL123026 | RNL |
| S100387 | BTS TURBO |
| S101589 | BTS TURBO |
| S104682 | BTS TURBO |
| S12BH0907 | SIDAT |
| S132.551 | PSH |
| S-6289 | DIXIE |
| ST02104 | TMI |
| STB3026 | KRAUF |
| STR10365 | ELECTROLOG |
| STR50748 | WOODAUTO |
| STRE400 | 3EFFE |
| STX210355 | STARDAX |
| UD14270S | AS-PL |
| WOOSTR50748 | WOODAUTO |
