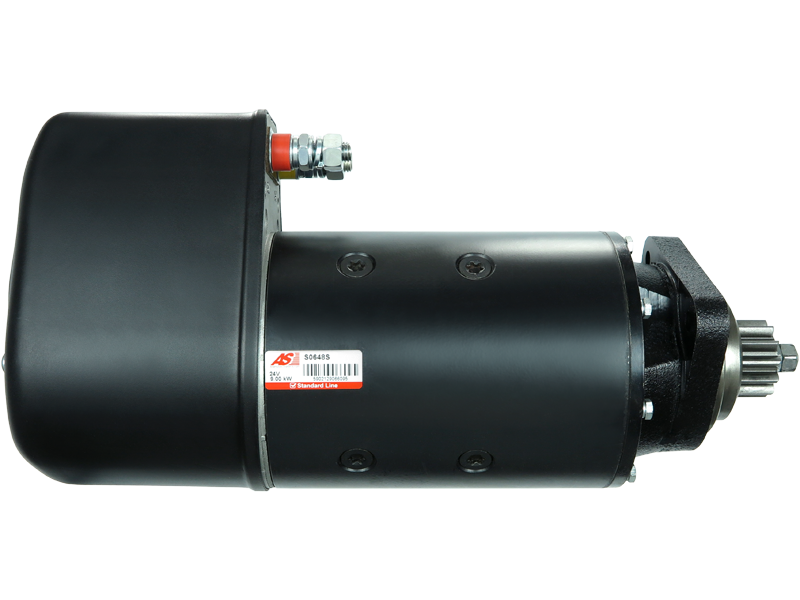

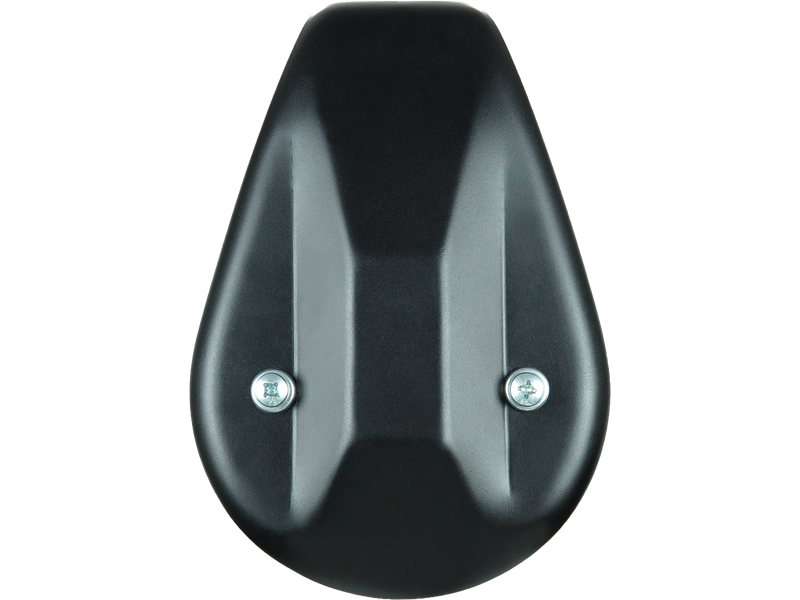

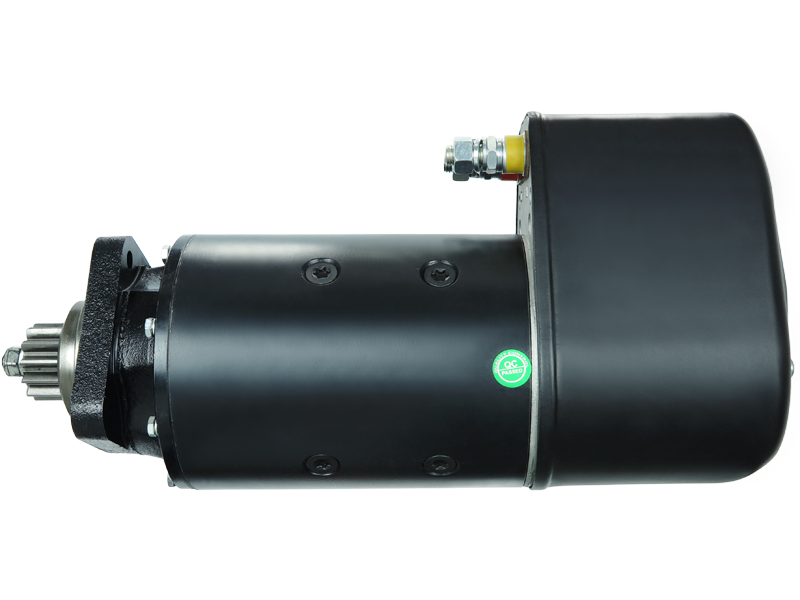

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 1,944.19 including GST
NZ$ 1,690.60 excluding GST
or four payments of $486.05
with
Learn More
each
S0648S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001510028Associated Numbers
0001510028 19024844 254809R 260-51206 6010741 771.202.123 BOS0001510028 CST10741 CST10741AS CST10741ES CST10741GS CST10741OS CST10741RS STB5128 UD13769S UNIT BOM 920-1422Specifications
| Kilowatt | 9 kW |
| Length (L.1) | 459 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MOTEURS BAUDOUIN | Engine |
Reference Information
| 0001510028 | BOSCH |
| 19024844 | DELCO |
| 254809R | KUHNER |
| 260-51206 | DIXIE |
| 6010741 | SANDO |
| 771.202.123 | PSH |
| 77726640D | MOTEURS BAUDOUIN.S.A |
| BOS0001510028 | WOODAUTO |
| CST10741 | CASCO |
| CST10741AS | CASCO |
| CST10741ES | CASCO |
| CST10741GS | CASCO |
| CST10741OS | CASCO |
| CST10741RS | CASCO |
| S135.462 | PSH |
| STB5128 | KRAUF |
| STRF183 | 3EFFE |
| UD13769S | AS-PL |
| UNIT BOM 920-1422 | WAI / TRANSPO |
Video/Publications
