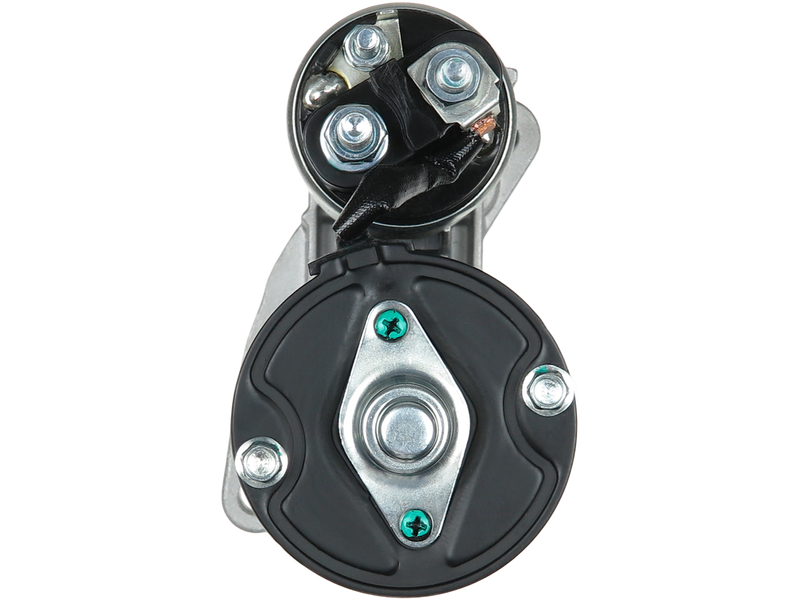

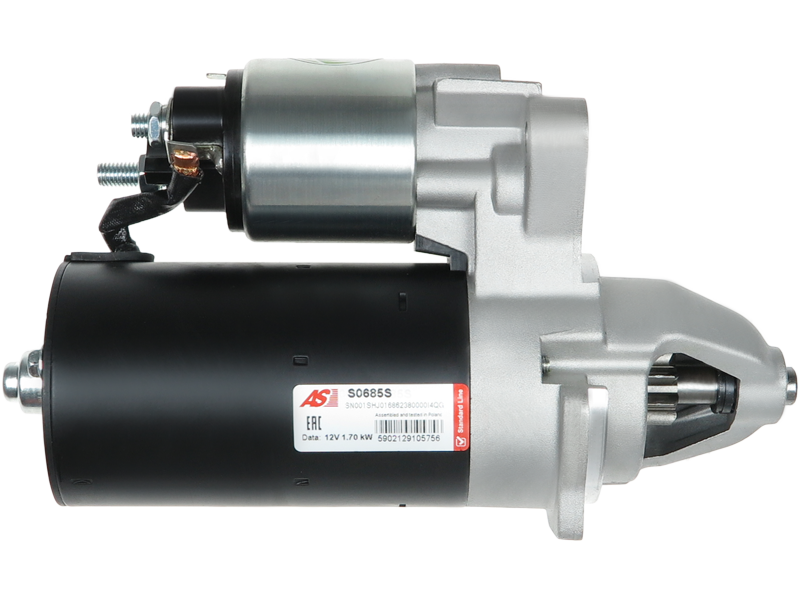

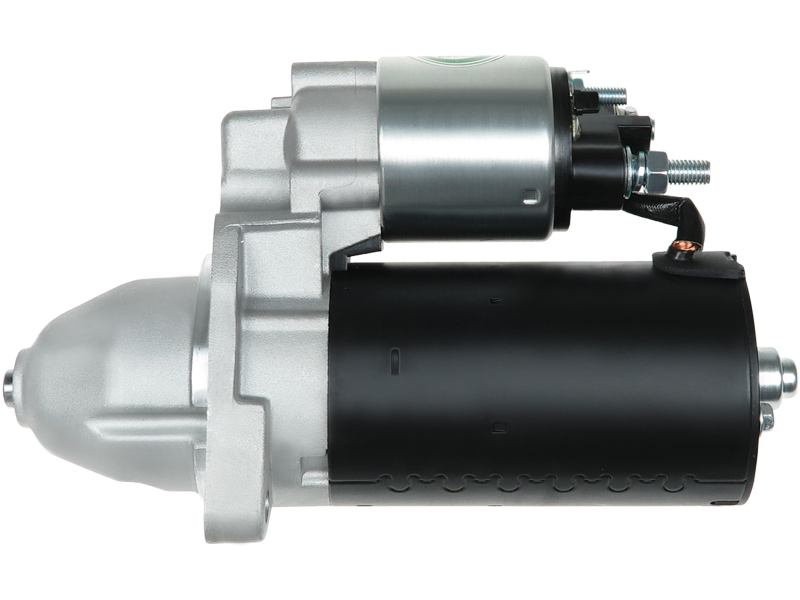

S0685S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 268.73 including GST

NZ$ 233.68 excluding GST


or four payments of $67.18 with
Afterpay Payment Offer Learn More

UOM:
each
Product Code:
S0685S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0001115022
0001115022 0001115023 012911023C 012911023CX 20401855 25-4492 256095B 300.917.092 6010558 88214763 AEY3819 BOS0001115022 CST10558 CST10558AS CST10558ES CST10558GS CST10558OS CST10558RS DRS1152 DS2262 LRS03819 STB5022 UD20358S UNITBOM120-618
Kilowatt1.70 kW
Length (L.1)242 mm
Mount Hole Center - Center (O.1)125.50 mm
Mount Hole Diameter (C.1)10.50 mm
Mount Hole Diameter (C.2)M10x1.5 mm
No./Mount holes2 qty
No./Mount holes with thread1 qty
No./Teeth9 qty
OEM ProductNo
Pinion at Rest (B)31.50 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)76 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
VW Phaeton 3.2 V6 [AYT] 04.2002-05.2005
VW Phaeton 3.2 V6 [BKL] 04.2002-05.2005
VW Phaeton 3.2 V6 4-Motion [BKL] 02.2004-11.2008
VW Phaeton 3.2 V6 4-Motion [BRK] 02.2004-11.2008
VW Phaeton 3.6 V6 4-Motion [CHNA] 11.2008-03.2016
VW Phaeton 3.6 V6 4-Motion [CMVA] 11.2008-03.2016
VW PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.2 V6 AYT 04.2002-05.2005
VW PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.2 V6 BKL 04.2002-05.2005
VW PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.2 V6 4motion BKL 02.2004-11.2008
VW PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.2 V6 4motion BRK 02.2004-11.2008
VW PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.6 V6 4motion CHNA 11.2008-03.2016
VW PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 3.6 V6 4motion CMVA 11.2008-03.2016
0001115022BOSCH
0001115023BOSCH
012911023CVW
012911023CXVW
20401855REAL
25-4492ELSTOCK
256095BKUHNER
300.917.092WAI
6010558SANDO
88214763POWERMAX
AEY3819AUTOELECTRO
BOS0001115022WOODAUTO
CST10558CASCO
CST10558ASCASCO
CST10558ESCASCO
CST10558GSCASCO
CST10558OSCASCO
CST10558RSCASCO
DRS1152DELCO
DS2262DELCO
LRS03819LUCAS
LRS3819LUCAS
S132.419WAI
S145.512WAI
STB5022KRAUF
STR1187ELECTROLOG
STRF9873EFFE
STX210286STARDAX
STX210286RSTARDAX
UD20358SAS-PL
UNITBOM120-618WAI
S0685S
