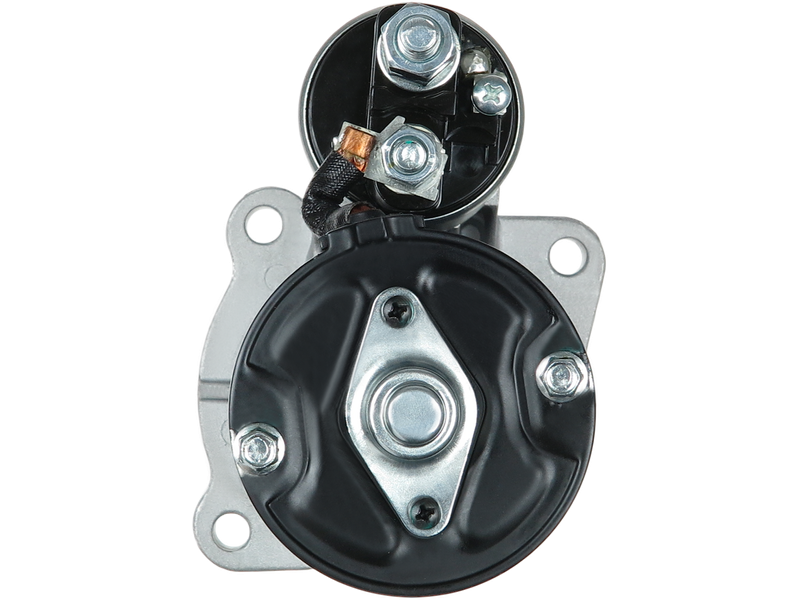

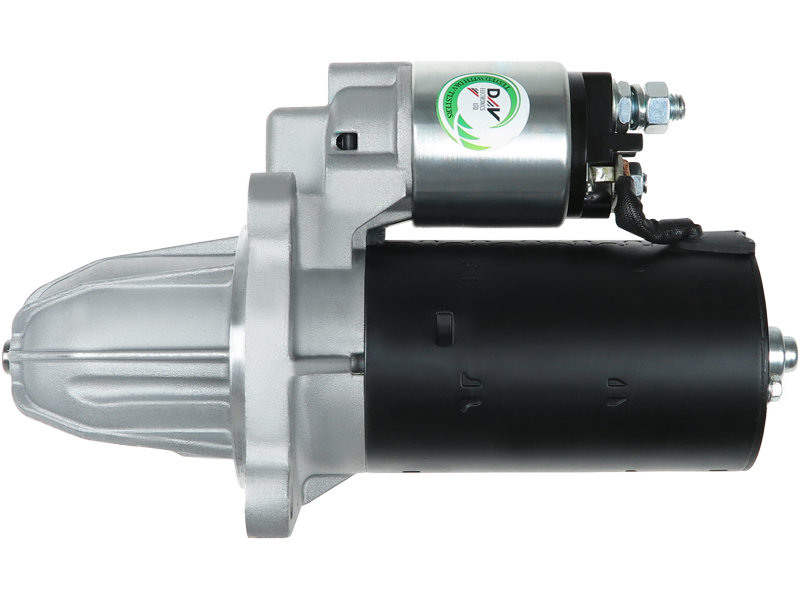

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 257.06 including GST
NZ$ 223.53 excluding GST
or four payments of $64.27
with
Learn More
UOM:
each
Product Code:
S0705S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
F000AL0128Associated Numbers
1516704R 3431517101 A3431517101 F000AL0128 STB2128 UD15367SSpecifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 266.50 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CLAAS | Jaguar 60SF 5.7 | [MB-OM352] | 10.1974-05.1976 |
| CLAAS | Mercator 50 3.8 | [MB-OM314] | 09.1973-05.1976 |
| MERCEDES-BENZ | 1722 6.0 | OM366LA | 01.1989-12.1998 |
| MERCEDES-BENZ | 914 4.0 | OM364LA | 01.1994-12.1996 |
| MERCEDES-BENZ | AGL (RoundNose) L 1113 | OM352.912 | 06.1987-06.1997 |
| MERCEDES-BENZ | AGL (RoundNose) L 1313 | OM352.912 | 03.1970-07.1997 |
| MERCEDES-BENZ | AGL (RoundNose) L 1316 | OM352.949 | 03.1974-03.1998 |
| MERCEDES-BENZ | AGL (RoundNose) L 1513 | OM352.915 | 03.1970-08.1989 |
| MERCEDES-BENZ | AGL (RoundNose) L 1516 | OM352.916 | 01.1974-01.1999 |
| MERCEDES-BENZ | AGL (RoundNose) L 2013 | OM352.912 | 01.1970-06.1997 |
| MERCEDES-BENZ | AGL (RoundNose) L 2213 | OM352.912 | 01.1970-03.1999 |
| MERCEDES-BENZ | AGL (RoundNose) L 2216 | OM352.968 | 01.1974-03.1999 |
| MERCEDES-BENZ | AGL (RoundNose) L 912 | 03.1988-03.2003 | |
| MERCEDES-BENZ | AGL (RoundNose) LA 1313 | OM352.912 | 01.1974-04.1987 |
| MERCEDES-BENZ | AGL (RoundNose) LA 1313 | OM352.963 | 01.1974-04.1987 |
| MERCEDES-BENZ | AGL (RoundNose) LB 2213 | OM352.912 | 01.1972-12.1997 |
| MERCEDES-BENZ | AGL (RoundNose) LK 1113 | OM352.912 | 01.1974-04.1987 |
| MERCEDES-BENZ | AGL (RoundNose) LK 1316 | OM352.949 | 01.1975-12.1987 |
| MERCEDES-BENZ | AGL (RoundNose) LK 1513 | OM352.915 | 10.1969-02.2001 |
| MERCEDES-BENZ | AGL (RoundNose) LK 2213 | OM352.912 | 01.1972-07.1997 |
| MERCEDES-BENZ | AGL (RoundNose) LPO 1113 | OM352.901 | 06.1974-06.1994 |
| MERCEDES-BENZ | AGL (RoundNose) LS 1313 | 07.1987-07.1997 | |
| MERCEDES-BENZ | FPN (FlatNose) 1214 C | 06.1997-12.2005 | |
| MERCEDES-BENZ | FPN (FlatNose) 1714 | 02.1991-02.2001 | |
| MERCEDES-BENZ | FPN (FlatNose) 1718 | 07.1990-12.2002 | |
| MERCEDES-BENZ | FPN (FlatNose) L 1318 | 06.1987-06.1997 | |
| MERCEDES-BENZ | HPN (LongNose) 1720 | OM366.984 | 02.1998-12.2005 |
| MERCEDES-BENZ | HPN (LongNose) L 1214 | OM366.913 | 04.1989-04.1999 |
| MERCEDES-BENZ | HPN (LongNose) L 1218 | 06.1989- | |
| MERCEDES-BENZ | HPN (LongNose) L 1314 | 01.1987-07.1997 | |
| MERCEDES-BENZ | HPN (LongNose) L 1319 | 12.1985-12.2001 | |
| MERCEDES-BENZ | HPN (LongNose) L 1620 | OM366.984 | 06.2000-12.2005 |
| MERCEDES-BENZ | HPN (LongNose) L 2217 | 11.1985-11.1995 | |
| MERCEDES-BENZ | HPN (LongNose) L 2218 | 01.1985-12.1986 | |
| MERCEDES-BENZ | HPN (LongNose) L 2314 | OM366.913 | 09.1989-09.1999 |
| MERCEDES-BENZ | HPN (LongNose) L 2318 | 01.1996- | |
| MERCEDES-BENZ | HPN (LongNose) L 2418 | OM376.946 | 03.1991-03.2001 |
| MERCEDES-BENZ | HPN (LongNose) L 2418 | OM376.955 | 03.1991-03.2001 |
| MERCEDES-BENZ | HPN (LongNose) LB 2318 | 11.1985-07.1999 | |
| MERCEDES-BENZ | HPN (LongNose) LK 2318 | 11.1985-07.1999 | |
| MERCEDES-BENZ | L 1114 5.7 | OM352 | 01.1968-12.1990 |
| MERCEDES-BENZ | L 1114 5.7 | OM352A | 01.1968-12.1990 |
| MERCEDES-BENZ | L 1116 5.7 | OM352A | 01.1978-12.1984 |
| MERCEDES-BENZ | L 1117 5.7 | OM352A | 01.1987-12.1997 |
| MERCEDES-BENZ | L 1118 6.0 | OM366A | 01.1987-12.1990 |
| MERCEDES-BENZ | L 1217 6.0 | OM366A | 01.1982-12.1996 |
| MERCEDES-BENZ | L 1317 6.0 | OM366A | 01.1982-12.1996 |
| MERCEDES-BENZ | L 1414 6.0 | OM366A | 01.1982-12.1996 |
| MERCEDES-BENZ | L 1418 10.0 | OM346 | 01.1964-12.1997 |
| MERCEDES-BENZ | L 1420 6.0 | OM366LA | 01.1992-12.2004 |
| MERCEDES-BENZ | L 1517 5.7 | OM352A | 01.1986-01.1989 |
| MERCEDES-BENZ | L 1518 5.7 | OM352A | 01.1987-01.1997 |
| MERCEDES-BENZ | L 1618 6.0 | OM366A | 01.1989- |
| MERCEDES-BENZ | L 1621 6.0 | OM366A | 01.1989- |
| MERCEDES-BENZ | L 2014 5.7 | OM352A | 01.1987- |
| MERCEDES-BENZ | L 2016 5.7 | OM352A | 01.1974- |
| MERCEDES-BENZ | L 2214 5.7 | OM352 | 01.1987- |
| MERCEDES-BENZ | LA 1117 5.9 | OM366A | 01.1983- |
| MERCEDES-BENZ | LK/LN2 1723, 1724 | OM366.999 | 01.1984-12.1998 |
| MERCEDES-BENZ | LK/LN2 712 | 04.1992-04.2002 | |
| MERCEDES-BENZ | LK/LN2 912 | 03.1988-03.2003 | |
| MERCEDES-BENZ | LN 1114 4.0 | OM364LA | 01.1995-12.1997 |
| MERCEDES-BENZ | LO 809 4.0 | OM364 | 01.1988- |
| MERCEDES-BENZ | LO 814 4.2 | OM364LA | 01.1997- |
| MERCEDES-BENZ | LO LO 812 | OM364.979 | 03.1988-12.2005 |
| MERCEDES-BENZ | LP L 608 D | OM314.915 | 09.1973-01.1987 |
| MERCEDES-BENZ | LS 1518 5.7 | OM352A | 01.1980-12.1990 |
| MERCEDES-BENZ | MK 1717,1717 L | OM366.952 | 12.1987-09.1996 |
| MERCEDES-BENZ | MK 1717 L | OM366.952 | 12.1987-09.1996 |
| MERCEDES-BENZ | NG 1614 L | OM366.906 | 08.1973-12.1996 |
| MERCEDES-BENZ | O 362 O 362 INTERURBANO | 01.1971- | |
| MERCEDES-BENZ | O 362 O 362 URBANO | 01.1971- | |
| MERCEDES-BENZ | O 364 O 364 11R | 01.1985- | |
| MERCEDES-BENZ | O 364 O 364 11R | 01.1985- | |
| MERCEDES-BENZ | O 364 O 364 12R | 01.1985- | |
| MERCEDES-BENZ | O 364 O 364 12R | 01.1985- | |
| MERCEDES-BENZ | O 364 O 364 12RA | 01.1985- | |
| MERCEDES-BENZ | O 364 O 364 12RA | 01.1985- | |
| MERCEDES-BENZ | O 365 5.7 | OM352 | 01.1987- |
| MERCEDES-BENZ | OF 1113 | OM352.997 | 01.1983- |
| MERCEDES-BENZ | OF 1113 | OM352.998 | 01.1983- |
| MERCEDES-BENZ | OF 1313, 1314 | OM352.997 | 01.1983- |
| MERCEDES-BENZ | OF 1721 | OM366.984 | 01.1998-03.2002 |
| MERCEDES-BENZ | OH 1314 | OM352.930 | 01.1987-01.1997 |
| MERCEDES BENZ AGRICULTURE | 900 3.8 | [OM314.970Turbo] | 09.1981-03.1987 |
| MERCEDES BENZ TRUCKS & BUSES | 1013 | [OM353.] | 01.1976-12.1986 |
| MERCEDES BENZ TRUCKS & BUSES | 1214 4.0 | [OM364LA] | 01.1997- |
| MERCEDES BENZ TRUCKS & BUSES | 1714 6.0 | [OM366] | 01.1991- |
| MERCEDES BENZ TRUCKS & BUSES | 1718 6.0 | [OM366A] | 01.1990- |
| MERCEDES BENZ TRUCKS & BUSES | 1718 6.0 | [OM366A] | 01.1999- |
| MERCEDES BENZ TRUCKS & BUSES | 1720 6.0 | [OM366LA] | 01.1998- |
| MERCEDES BENZ TRUCKS & BUSES | 1721 6.0 | [OM366LA] | 01.1994- |
| MERCEDES BENZ TRUCKS & BUSES | 1722 6.0 | [OM366LA] | 01.1998- |
| MERCEDES BENZ TRUCKS & BUSES | 1723 6.0 | [OM366LA] | 01.1998- |
| MERCEDES BENZ TRUCKS & BUSES | 2418 6.0 | [OM366A] | 01.1991- |
| MERCEDES BENZ TRUCKS & BUSES | 712 4.0 | [OM364A] | 01.1992- |
| MERCEDES BENZ TRUCKS & BUSES | 912 4.0 | [OM364A] | 01.1988- |
| MERCEDES BENZ TRUCKS & BUSES | 914 4.0 | [OM364LA] | 01.1994- |
| MERCEDES BENZ TRUCKS & BUSES | L 1113 5.7 | [OM352] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | L 1113 5.7 | [OM352A] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | L 1114 4.0 | [OM364LA] | 01.1994- |
| MERCEDES BENZ TRUCKS & BUSES | L 1114 5.7 | [OM352] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | L 1114 5.7 | [OM352A] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | L 1116 5.7 | [OM352A] | 01.1978- |
| MERCEDES BENZ TRUCKS & BUSES | L 1117 5.7 | [OM352A] | 01.1983- |
| MERCEDES BENZ TRUCKS & BUSES | L 1118 5.7 | [OM352A] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | L 1214 6.0 | [OM366] | 01.1989- |
| MERCEDES BENZ TRUCKS & BUSES | L 1217 6.0 | [OM366A] | 01.1995- |
| MERCEDES BENZ TRUCKS & BUSES | L 1218 6.0 | [OM366A] | 01.1989- |
| MERCEDES BENZ TRUCKS & BUSES | L 1218 6.0 | [OM366A] | 01.1998- |
| MERCEDES BENZ TRUCKS & BUSES | L 1313 5.7 | [OM352] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | L 1313 5.7 | [OM352A] | 01.1974- |
| MERCEDES BENZ TRUCKS & BUSES | L 1313 5.7 | [OM352A] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | L 1314 5.7 | [OM352] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | L 1316 5.7 | [OM352A] | 01.1974- |
| MERCEDES BENZ TRUCKS & BUSES | L 1317 5.7 | [OM352A] | 01.1983- |
| MERCEDES BENZ TRUCKS & BUSES | L 1318 5.7 | [OM352A] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | L 1319 6.0 | [OM366LA] | 01.1985-01.2001 |
| MERCEDES BENZ TRUCKS & BUSES | L 1414 6.0 | [OM366] | 01.1989- |
| MERCEDES BENZ TRUCKS & BUSES | L 1418 6.0 | [OM366A] | 01.1989- |
| MERCEDES BENZ TRUCKS & BUSES | L 1418 6.0 | [OM366A] | 01.1998- |
| MERCEDES BENZ TRUCKS & BUSES | L 1420 6.0 | [OM366LA] | 01.2001- |
| MERCEDES BENZ TRUCKS & BUSES | L 1513 5.7 | [OM352] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | L 1516 5.7 | [OM352A] | 01.1974- |
| MERCEDES BENZ TRUCKS & BUSES | L 1517 5.7 | [OM352A] | 01.1986-01.1989 |
| MERCEDES BENZ TRUCKS & BUSES | L 1518 5.7 | [OM352A] | 01.1987-01.1997 |
| MERCEDES BENZ TRUCKS & BUSES | L 1614 6.0 | [OM366] | 01.1989- |
| MERCEDES BENZ TRUCKS & BUSES | L 1618 6.0 | [OM366A] | 01.1989- |
| MERCEDES BENZ TRUCKS & BUSES | L 1620 6.0 | [OM366LA] | 01.1996- |
| MERCEDES BENZ TRUCKS & BUSES | L 1621 6.0 | [OM366LA] | 01.1989- |
| MERCEDES BENZ TRUCKS & BUSES | L 1717 6.0 | [OM366A] | 01.1995- |
| MERCEDES BENZ TRUCKS & BUSES | L 2013 5.7 | [OM352] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | L 2013 5.7 | [OM352A] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | L 2014 5.7 | [OM352A] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | L 2016 5.7 | [OM352A] | 01.1974- |
| MERCEDES BENZ TRUCKS & BUSES | L 2213 5.7 | [OM352] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | L 2213 5.7 | [OM352A] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | L 2214 5.7 | [OM352] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | L 2216 5.7 | [OM352A] | 01.1974- |
| MERCEDES BENZ TRUCKS & BUSES | L 2217 5.7 | [OM352A] | 01.1985- |
| MERCEDES BENZ TRUCKS & BUSES | L 2314 6.0 | [OM366] | 01.1989- |
| MERCEDES BENZ TRUCKS & BUSES | L 2318 6.0 | [OM366A] | 01.1989- |
| MERCEDES BENZ TRUCKS & BUSES | L 608 D 3.8 | [OM314] | 01.1973-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | LA 1113 5.7 | [OM352] | 01.1974- |
| MERCEDES BENZ TRUCKS & BUSES | LA 1117 5.7 | [OM352A] | 01.1983- |
| MERCEDES BENZ TRUCKS & BUSES | LA 1313 5.7 | [OM352] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | LA 1513 5.7 | [OM352] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | LA 2013 5.7 | [OM352] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | LA 2213 5.7 | [OM352] | 01.1974-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | LB 2218 5.7 | [OM352A] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | LB 2318 6.0 | [OM366A] | 01.1990- |
| MERCEDES BENZ TRUCKS & BUSES | LK 2218 5.7 | [OM352A] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | LK 2318 6.0 | [OM366A] | 01.1990- |
| MERCEDES BENZ TRUCKS & BUSES | LO 809 4.0 | [OM364] | 01.1988- |
| MERCEDES BENZ TRUCKS & BUSES | LO 812 4.0 | [OM364A] | 01.1988- |
| MERCEDES BENZ TRUCKS & BUSES | LO 812 4.0 | [OM364LA] | 01.2003- |
| MERCEDES BENZ TRUCKS & BUSES | LO 814 4.0 | [OM364LA] | 01.1997- |
| MERCEDES BENZ TRUCKS & BUSES | LPO 1113 5.7 | [OM352] | 01.1974- |
| MERCEDES BENZ TRUCKS & BUSES | LS 1313 5.7 | [OM352A] | 01.1985-01.1987 |
| MERCEDES BENZ TRUCKS & BUSES | LS 1518 5.7 | [OM352A] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | O 362 5.7 | [OM352A] | 01.1975- |
| MERCEDES BENZ TRUCKS & BUSES | O 364 5.7 | [OM352] | 01.1980- |
| MERCEDES BENZ TRUCKS & BUSES | O 364 5.7 | [OM352A] | 01.1980- |
| MERCEDES BENZ TRUCKS & BUSES | O 365 5.7 | [OM352] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | OF 1113 5.7 | [OM352] | 01.1988- |
| MERCEDES BENZ TRUCKS & BUSES | OF 1114 5.7 | [OM352] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | OF 1313 5.7 | [OM352] | 01.1988- |
| MERCEDES BENZ TRUCKS & BUSES | OF 1314 5.7 | [OM352] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | OF 812 4.0 | [OM364A] | 01.1991- |
| MERCEDES BENZ TRUCKS & BUSES | OH 1313 5.7 | [OM352] | 01.1982- |
| MERCEDES BENZ TRUCKS & BUSES | OH 1314 5.7 | [OM352] | 01.1987- |
| MERCEDES BENZ TRUCKS & BUSES | OH 1316 5.7 | [OM352A] | 01.1983- |
| NEW HOLLAND | 8040 5.7 | [OM352] | 01.1984-01.1989 |
| NEW HOLLAND | 8055 5.7 | [OM352A] | 01.1984-01.1989 |
| NEW HOLLAND | FNH8040 | [OM352] | |
| NEW HOLLAND | FNH8055 | [OM352] | |
| NEW HOLLAND | FNH8255 | [OM352] | |
| TOYOTA | Bandeirante 4.0 | [OM364] | 01.1991-01.1994 |
Reference Information
| 0001109805 | BOSCH |
| 1516704R | DAF |
| 3431517101 | MERCEDES |
| 550.925.093.280 | WAI |
| 80.132.01 | ZM |
| 9000083028 | BOSCH |
| A3431517101 | MERCEDES |
| F000AL0128 | BOSCH |
| F042002187 | BOSCH |
| S0705S | AS-PL |
| STB2128 | KRAUF |
| STR10407 | ELECTROLOG |
| UD15367S | AS-PL |
| ZM80.132.01 | ZM |
Video/Publications
S0705SView your shopping basket or Browse other items in Starter Motors.
