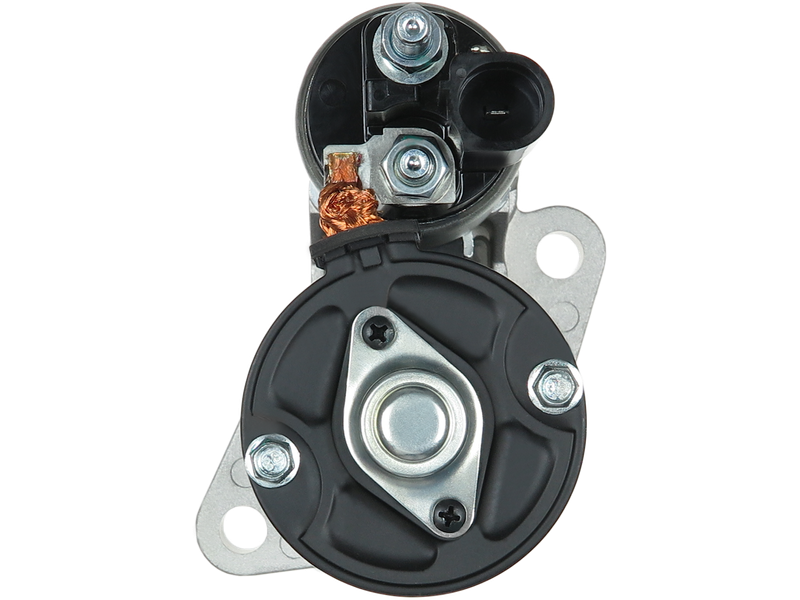

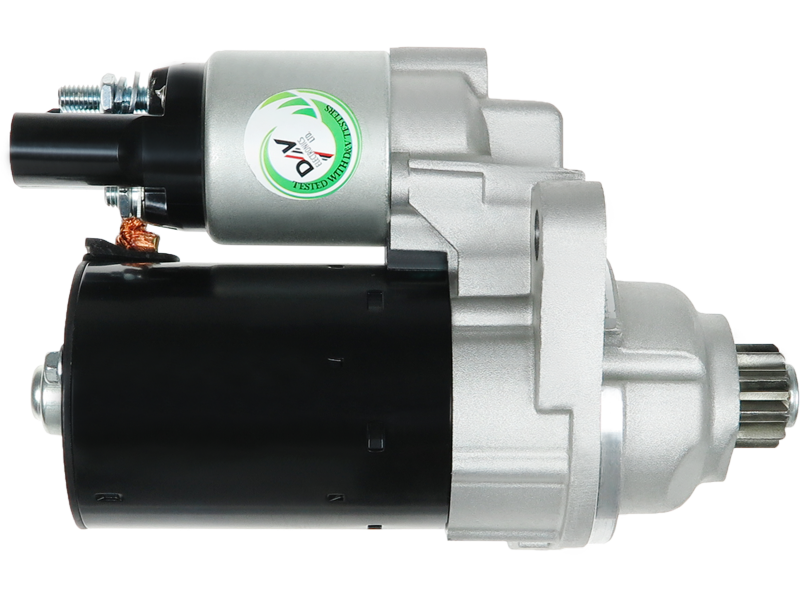

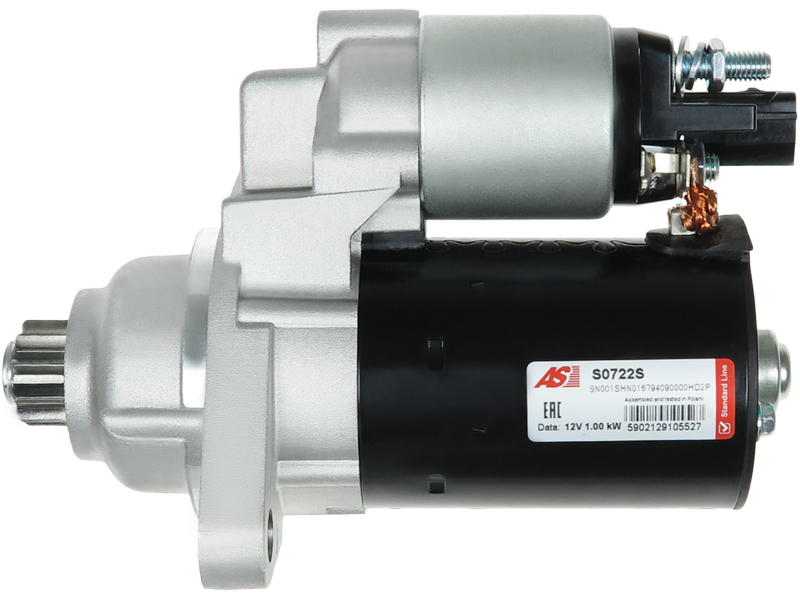

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 230.01 including GST
NZ$ 200.01 excluding GST
or four payments of $57.50
with
Learn More
UOM:
each
Product Code:
S0722S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001121420Associated Numbers
0001121420 0001121421 02T911024D STB2142 UD20362S UNIT BOM 120-680Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 203.50 mm |
| Mount Hole Center - Center (O.1) | 111.50 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 54 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 (8P1) 1.6 | BGU | 05.2003-08.2012 |
| AUDI | A3 (8P1) 1.6 | BSE | 05.2003-08.2012 |
| AUDI | A3 (8P1) 1.6 | BSF | 05.2003-08.2012 |
| AUDI | A3 (8P1) 1.6 | CCSA | 05.2003-08.2012 |
| AUDI | A3 (8P1) 1.6 E-Power | CCSA | 01.2011-08.2012 |
| AUDI | A3 (8P1) 1.6 E-Power | CMXA | 01.2011-08.2012 |
| AUDI | A3 Convertible (8P7) 1.6 | BSE | 09.2008-05.2010 |
| AUDI | A3 Sportback (8PA) 1.6 | BGU | 09.2004-03.2013 |
| AUDI | A3 Sportback (8PA) 1.6 | BSE | 09.2004-03.2013 |
| AUDI | A3 Sportback (8PA) 1.6 | BSF | 09.2004-03.2013 |
| AUDI | A3 Sportback (8PA) 1.6 | CCSA | 09.2004-03.2013 |
| AUDI | A3 Sportback (8PA) 1.6 E-Power | BSE | 01.2011-03.2013 |
| AUDI | A3 Sportback (8PA) 1.6 E-Power | CCSA | 01.2011-03.2013 |
| AUDI | A3 Sportback (8PA) 1.6 E-Power | CMXA | 01.2011-03.2013 |
| SEAT | ALTEA (5P1) 1.6 | BGU | 03.2004-03.2010 |
| SEAT | ALTEA (5P1) 1.6 | BSE | 03.2004-03.2010 |
| SEAT | ALTEA (5P1) 1.6 | BSF | 03.2004-03.2010 |
| SEAT | ALTEA (5P1) 1.6 | CCSA | 03.2004-03.2010 |
| SEAT | ALTEA (5P1) 1.6 LPG | CHGA | 09.2009-06.2013 |
| SEAT | ALTEA (5P1) 1.6 Multifuel | CMXA | 11.2010-05.2011 |
| SEAT | ALTEA XL (5P5, 5P8) 1.6 | BGU | 10.2006-11.2010 |
| SEAT | ALTEA XL (5P5, 5P8) 1.6 | BSE | 10.2006-11.2010 |
| SEAT | ALTEA XL (5P5, 5P8) 1.6 | BSF | 10.2006-11.2010 |
| SEAT | ALTEA XL (5P5, 5P8) 1.6 | CCSA | 10.2006-11.2010 |
| SEAT | ALTEA XL (5P5, 5P8) 1.6 LPG | CHGA | 09.2009-06.2013 |
| SEAT | ALTEA XL (5P5, 5P8) 1.6 Multifuel | BSE | 10.2006-11.2010 |
| SEAT | ALTEA XL (5P5, 5P8) 1.6 Multifuel | BSF | 10.2006-11.2010 |
| SEAT | ALTEA XL (5P5, 5P8) 1.6 Multifuel | CCSA | 10.2006-11.2010 |
| SEAT | ALTEA XL (5P5, 5P8) 1.6 Multifuel | CMXA | 10.2006-11.2010 |
| SEAT | CORDOBA (6L2) 2.0 | AZL | 09.2002-11.2009 |
| SEAT | CORDOBA (6L2) 2.0 | BBX | 09.2002-11.2009 |
| SEAT | IBIZA III (6L1) 2.0 | AZL | 04.2002-11.2009 |
| SEAT | IBIZA III (6L1) 2.0 | BBX | 04.2002-11.2009 |
| SEAT | LEON (1P1) 1.6 | BSE | 07.2005-12.2012 |
| SEAT | LEON (1P1) 1.6 | BSF | 07.2005-12.2012 |
| SEAT | LEON (1P1) 1.6 | CCSA | 07.2005-12.2012 |
| SEAT | LEON (1P1) 1.6 LPG | CHGA | 12.2009-12.2012 |
| SEAT | LEON (1P1) 1.6 MultiFuel | BSE | 07.2005-08.2013 |
| SEAT | LEON (1P1) 1.6 MultiFuel | CCSA | 07.2005-08.2013 |
| SEAT | LEON (1P1) 1.6 MultiFuel | CMXA | 07.2005-08.2013 |
| SEAT | TOLEDO III (5P2) 1.6 | BGU | 10.2004-05.2009 |
| SEAT | TOLEDO III (5P2) 1.6 | BSE | 10.2004-05.2009 |
| SEAT | TOLEDO III (5P2) 1.6 | BSF | 10.2004-05.2009 |
| SEAT | TOLEDO III (5P2) 1.6 | CCSA | 10.2004-05.2009 |
| SKODA | FABIA I (6Y2) 2.0 | AZL | 12.1999-03.2008 |
| SKODA | FABIA I Combi (6Y5) 2.0 | AZL | 04.2000-12.2007 |
| SKODA | FABIA I Saloon (6Y3) 2.0 | AZL | 12.1999-12.2007 |
| SKODA | OCTAVIA II (1Z3) 1.6 | BGU | 06.2004-06.2013 |
| SKODA | OCTAVIA II (1Z3) 1.6 | BSE | 06.2004-06.2013 |
| SKODA | OCTAVIA II (1Z3) 1.6 | BSF | 06.2004-06.2013 |
| SKODA | OCTAVIA II (1Z3) 1.6 | CCSA | 06.2004-06.2013 |
| SKODA | OCTAVIA II (1Z3) 1.6 | CMXA | 06.2004-06.2013 |
| SKODA | OCTAVIA II (1Z3) 1.6 LPG | BSE | 08.2009-11.2012 |
| SKODA | OCTAVIA II (1Z3) 1.6 LPG | CHGA | 08.2009-11.2012 |
| SKODA | OCTAVIA II (1Z3) 1.6 MultiFuel | CCSA | 01.2008-06.2013 |
| SKODA | OCTAVIA II (1Z3) 1.6 MultiFuel | CMXA | 01.2008-06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) 1.6 | BGU | 09.2004-06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) 1.6 | BSE | 09.2004-06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) 1.6 | BSF | 09.2004-06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) 1.6 | CCSA | 09.2004-06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) 1.6 | CMXA | 09.2004-06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) 1.6 LPG | CHGA | 08.2009-11.2012 |
| SKODA | OCTAVIA II Combi (1Z5) 1.6 MultiFuel | CCSA | 01.2008-06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) 1.6 MultiFuel | CMXA | 01.2008-06.2013 |
| VW | Bora 1.6 | ||
| VW | Bora 2.0 | ||
| VW | Golf 1.6 | ||
| VW | Golf 1.8 | ||
| VW | GOLF PLUS V (5M1, 521) 1.6 | BSE | 05.2005-12.2013 |
| VW | GOLF PLUS V (5M1, 521) 1.6 | BSF | 05.2005-12.2013 |
| VW | GOLF PLUS V (5M1, 521) 1.6 | CCSA | 05.2005-12.2013 |
| VW | GOLF PLUS V (5M1, 521) 1.6 | CMXA | 05.2005-12.2013 |
| VW | GOLF PLUS V (5M1, 521) 1.6 BiFuel | CHGA | 05.2009-12.2013 |
| VW | GOLF PLUS V (5M1, 521) 1.6 MultiFuel | CCSA | 11.2007-12.2013 |
| VW | GOLF PLUS V (5M1, 521) 1.6 MultiFuel | CMXA | 11.2007-12.2013 |
| VW | GOLF V (1K1) 1.6 | BGU | 01.2004-11.2008 |
| VW | GOLF V (1K1) 1.6 | BSE | 01.2004-11.2008 |
| VW | GOLF V (1K1) 1.6 | BSF | 01.2004-11.2008 |
| VW | GOLF V (1K1) 1.6 | CCSA | 01.2004-11.2008 |
| VW | GOLF V (1K1) 1.6 MultiFuel | CCSA | 10.2007-11.2008 |
| VW | GOLF VI (5K1) 1.6 | BSE | 10.2008-11.2012 |
| VW | GOLF VI (5K1) 1.6 | BSF | 10.2008-11.2012 |
| VW | GOLF VI (5K1) 1.6 | CCSA | 10.2008-11.2012 |
| VW | GOLF VI (5K1) 1.6 | CMXA | 10.2008-11.2012 |
| VW | GOLF VI (5K1) 1.6 BiFuel | CHGA | 03.2009-11.2012 |
| VW | GOLF VI (5K1) 1.6 MultiFuel | CCSA | 10.2008-11.2012 |
| VW | GOLF VI (5K1) 1.6 MultiFuel | CMXA | 10.2008-11.2012 |
| VW | GOLF VI Variant (AJ5) 1.6 | BSE | 07.2009-07.2013 |
| VW | GOLF VI Variant (AJ5) 1.6 | BSF | 07.2009-07.2013 |
| VW | GOLF VI Variant (AJ5) 1.6 | CCSA | 07.2009-07.2013 |
| VW | GOLF VI Variant (AJ5) 1.6 BiFuel | BSF | 07.2009-12.2010 |
| VW | GOLF VI Variant (AJ5) 1.6 BiFuel | CHGA | 07.2009-12.2010 |
| VW | GOLF VI Variant (AJ5) 1.6 MultiFuel | CCSA | 07.2010-07.2013 |
| VW | GOLF VI Variant (AJ5) 1.6 MultiFuel | CMXA | 07.2010-07.2013 |
| VW | GOLF V Variant (1K5) 1.6 | BSE | 06.2007-07.2009 |
| VW | GOLF V Variant (1K5) 1.6 | BSF | 06.2007-07.2009 |
| VW | GOLF V Variant (1K5) 1.6 | CCSA | 06.2007-07.2009 |
| VW | JETTA III (1K2) 1.6 | BGU | 09.2004-10.2010 |
| VW | JETTA III (1K2) 1.6 | BSE | 09.2004-10.2010 |
| VW | JETTA III (1K2) 1.6 | BSF | 09.2004-10.2010 |
| VW | JETTA III (1K2) 1.6 | CCSA | 09.2004-10.2010 |
| VW | JETTA IV (162, 163, AV3, AV2) 2.0 | CBPA | 06.2010-12.2017 |
| VW | JETTA IV (162, 163, AV3, AV2) 2.0 | CKJA | 06.2010-12.2017 |
| VW | Lavida 2.0 | ||
| VW | Polo 1.6 | ||
| VW | Sagitar 1.6 |
Reference Information
| 0001121420 | BOSCH |
| 0001121421 | BOSCH |
| 02T911023M | VW |
| 02T911023MX | VW |
| 02T911023T | VW |
| 02T911024D | VW |
| 02T911024Q | VW |
| 20401813OE | REAL |
| 6010318.1 | SANDO |
| 6015182.0 | SANDO |
| 6015182.1 | SANDO |
| CST10318GS | CASCO |
| MAV123180 | SIOM |
| STB2142 | KRAUF |
| STR1970 | ELECTROLOG |
| STX200279 | STARDAX |
| STX200279R | STARDAX |
| UD20362S | AS-PL |
| UNIT BOM 120-680 | WAI |
Video/Publications
