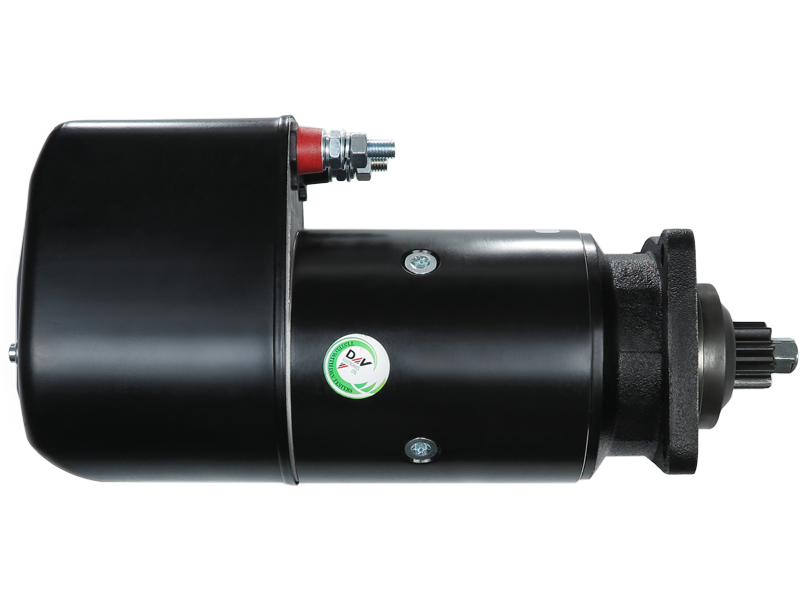

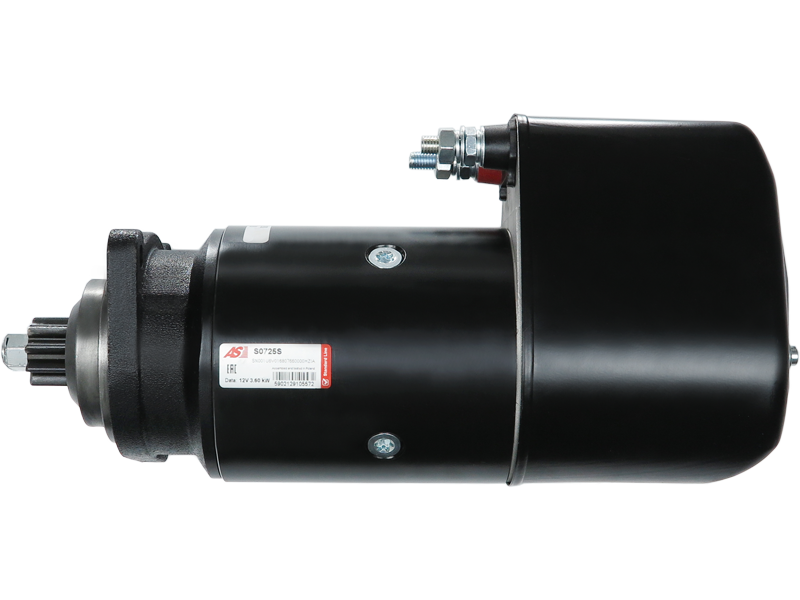

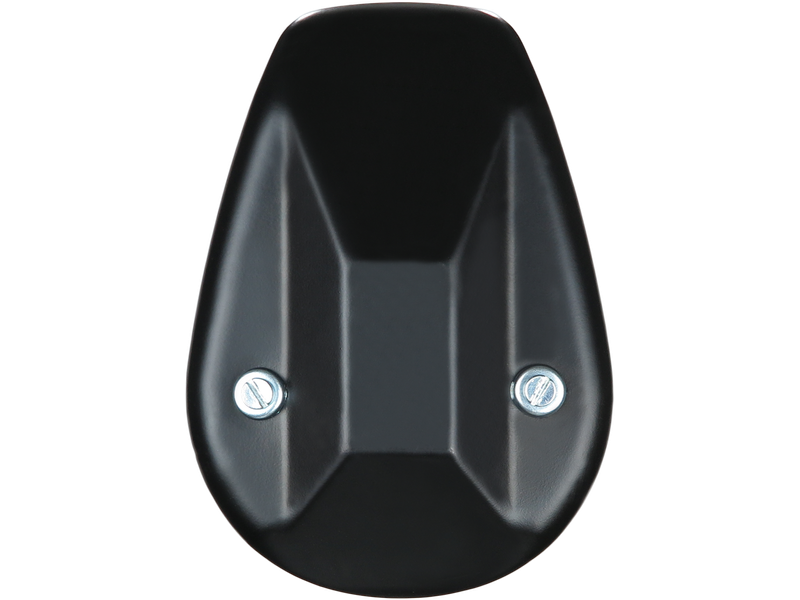

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 724.97 including GST
NZ$ 630.41 excluding GST
or four payments of $181.24
with
Learn More
UOM:
each
Product Code:
S0725S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001401066Associated Numbers
0001401035 0001401050 0001401066 0001413001 0001418001 0986011530 0986011533 10951 11.139.007 11.139.531 20401672 33594 6010276 72485844 72736140 AZK5167 AZK5572 CST10276 CST10276AS CST10276ES CST10276GS CST10276OS CST10276RS DRS1400 DS2510 IS9007 MS512 UD16609S UNIT BOM 120-581Specifications
| Kilowatt | 3.60 kW |
| Length (L.1) | 386 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 46.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CLAAS | Dominator 100 | MB-OM360 | 01.1973-12.1974 |
| CLAAS | Dominator 105 | MB-OM360.930 | 01.1974-12.1977 |
| CLAAS | Dominator 106 | MB-OM360 | 01.1979-12.1985 |
| MERCEDES-BENZ | LP LP 811 | OM353.903 | 10.1969-02.1973 |
| MERCEDES-BENZ | LP LP 813, LPL 813 | OM353.904 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LP 813, LPL 813 | OM353.965 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LP 813, LPL 813 | OM353.981 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LP 813, LPL 813 | OM353.982 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LP 911 B | OM352.907 | 01.1967-03.1977 |
| MERCEDES-BENZ | LP LP 911 B | OM352.986 | 01.1967-03.1977 |
| MERCEDES-BENZ | LP LP 913, LPL 913 | OM353.904 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LP 913, LPL 913 | OM353.965 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LP 913, LPL 913 | OM353.981 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LP 913, LPL 913 | OM353.982 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LPK 608 | OM314.910 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPK 608 | OM314.944 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPK 608 | OM314.964 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPK 608 | OM314.965 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPK 808 | OM314.910 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPK 808 | OM314.946 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPK 808 | OM314.964 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPK 808 | OM314.965 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPK 813 | OM353.904 | 03.1973-12.1984 |
| MERCEDES-BENZ | LP LPK 813 | OM353.965 | 03.1973-12.1984 |
| MERCEDES-BENZ | LP LPK 813 | OM353.981 | 03.1973-12.1984 |
| MERCEDES-BENZ | LP LPK 813 | OM353.982 | 03.1973-12.1984 |
| MERCEDES-BENZ | LP LPK 913 | OM353.904 | 01.1967-12.1984 |
| MERCEDES-BENZ | LP LPK 913 | OM353.965 | 01.1967-12.1984 |
| MERCEDES-BENZ | LP LPK 913 | OM353.981 | 01.1967-12.1984 |
| MERCEDES-BENZ | LP LPK 913 | OM353.982 | 01.1967-12.1984 |
| MERCEDES-BENZ | LP LPKF 808, LPKF 809 | OM314.910 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPKF 808, LPKF 809 | OM314.944 | 10.1969-10.1977 |
| MERCEDES-BENZ | LP LPO 811 | OM353.915 | 10.1969-02.1973 |
| MERCEDES-BENZ | LP LPO 813 | OM353.904 | 10.1969-12.1984 |
| MERCEDES-BENZ | LP LPO 813 | OM353.941 | 10.1969-12.1984 |
| MERCEDES-BENZ | LP LPO 813 | OM353.965 | 10.1969-12.1984 |
| MERCEDES-BENZ | LP LPS 811 | OM353.903 | 10.1969-02.1973 |
| MERCEDES-BENZ | LP LPS 813, LPLS 813 | OM353.904 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LPS 813, LPLS 813 | OM353.965 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LPS 813, LPLS 813 | OM353.981 | 09.1963-12.1984 |
| MERCEDES-BENZ | LP LPS 911 B | OM352.907 | 01.1967-03.1977 |
| MERCEDES-BENZ | LP LPS 911 B | OM352.986 | 01.1967-03.1977 |
| MERCEDES-BENZ | LP LPS 913 | OM353.904 | 10.1969-12.1984 |
| MERCEDES-BENZ | LP LPS 913 | OM353.965 | 10.1969-12.1984 |
| MERCEDES-BENZ | OF 1313, 1314 | OM352.997 | 01.1983- |
| MERCEDES-BENZ | T2/L L 911 | OM353.911 | 01.1972-07.1983 |
| MERCEDES-BENZ | T2/L LA 911 | OM352.908 | 01.1972-12.1995 |
| MERCEDES-BENZ | T2/L LA 911 | OM352.990 | 01.1972-12.1995 |
| MERCEDES-BENZ | T2/L LA 911 | OM353.911 | 01.1972-12.1995 |
| MERCEDES-BENZ | T2/L Platform/Chassis L 608 D (310.300, 310.301, 310.302, 310.303, 310.304,... | OM314.948 | 01.1970-12.1988 |
| MERCEDES-BENZ | T2/L Platform/Chassis L 608 D (310.300, 310.301, 310.302, 310.303, 310.304,... | OM314.967 | 01.1970-12.1988 |
| MERCEDES-BENZ | T2/L Platform/Chassis L 608 D (310.340, 310.341, 310.342, 310.344, 310.345,... | OM314.946 | 02.1984-12.1988 |
| MERCEDES-BENZ | T2/L Platform/Chassis L 608 D (310.340, 310.341, 310.342, 310.344, 310.345,... | OM314.948 | 02.1984-12.1988 |
| MERCEDES-BENZ | T2/L Platform/Chassis L 608 D (310.340, 310.341, 310.342, 310.344, 310.345,... | OM314.961 | 02.1984-12.1988 |
| MERCEDES-BENZ | T2/L Platform/Chassis L 608 D (310.340, 310.341, 310.342, 310.344, 310.345,... | OM314.963 | 02.1984-12.1988 |
| MERCEDES-BENZ | T2/L Van L 608 D (310.311, 310.312, 310.313, 310.314, 310.315,... | ADE314N | 01.1970-12.1988 |
| MERCEDES-BENZ | T2/L Van L 608 D (310.311, 310.312, 310.313, 310.314, 310.315,... | OM314.948 | 01.1970-12.1988 |
| MERCEDES-BENZ | T2/L Van L 608 D (310.311, 310.312, 310.313, 310.314, 310.315,... | OM314.967 | 01.1970-12.1988 |
| MERCEDES-BENZ | UNIMOG U 100, U 110T, U 1100T | OM353.901 | 01.1977- |
| MERCEDES-BENZ | UNIMOG U 100, U 110T, U 1100T | OM353.940 | 01.1977- |
| MERCEDES-BENZ | UNIMOG U 100, U 110T, U 1100T | OM353.980 | 01.1977- |
| MERCEDES-BENZ | UNIMOG U 100, U 110, U 1100L | OM353.901 | 01.1977-05.1988 |
| MERCEDES-BENZ | UNIMOG U 100, U 110, U 1100L | OM353.940 | 01.1977-05.1988 |
| MERCEDES-BENZ | UNIMOG U 100, U 110, U 1100L | OM353.980 | 01.1977-05.1988 |
| MERCEDES-BENZ | UNIMOG U 1150L | OM353.907 | 05.1988- |
| MERCEDES-BENZ | UNIMOG U 1150,U 1150L | OM353.940 | 05.1988- |
| MERCEDES-BENZ | UNIMOG U 1150,U 1150L | OM353.940 | 05.1988- |
| MERCEDES-BENZ | UNIMOG U 125, U 1100L | OM353.907 | 01.1977-01.1988 |
| MERCEDES-BENZ | UNIMOG U 54 | OM314.916 | 04.1966-03.1972 |
| MERCEDES-BENZ | UNIMOG U 66, U 72 | OM314.917 | 03.1969-01.1988 |
| MERCEDES-BENZ | UNIMOG U 72 ,U 80 | OM314.917 | 01.1969-01.1977 |
| MERCEDES-BENZ | UNIMOG U 800 | OM314.917 | 01.1977-03.1990 |
| MERCEDES-BENZ | UNIMOG U 800 | OM314.917 | 05.1988-03.1990 |
| MERCEDES-BENZ | UNIMOG U 800L | OM314.917 | 01.1977-03.1990 |
| MERCEDES-BENZ | UNIMOG U 80 T, U 90 T | OM352.903 | 05.1966- |
| MERCEDES-BENZ | UNIMOG U 80 T, U 90 T | OM352.984 | 05.1966- |
| MERCEDES-BENZ | UNIMOG U 80, U 84, U 90 | OM352.903 | 05.1969-01.1988 |
| MERCEDES-BENZ | UNIMOG U 80, U 84, U 90 | OM353.902 | 05.1969-01.1988 |
| MERCEDES-BENZ | UNIMOG U 900 | OM353.902 | 01.1977- |
| MERCEDES-BENZ | UNIMOG U 900 | OM353.902 | 05.1988- |
| MERCEDES-BENZ | UNIMOG U 900 | OM353.940 | 01.1977-01.1988 |
| MERCEDES-BENZ | UNIMOG U 900 | OM356.912 | 11.1988- |
| MERCEDES-BENZ | UNIMOG U 900 | OM366.939 | 11.1988- |
| MERCEDES BENZ TRUCKS & BUSES | LP608 3.8 | [OM314.910] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LP608 3.8 | [OM314.944] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LP808 3.8 | [OM314.910] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LPKF 3.8 | [OM314.910] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LPKF808 3.8 | [OM314.910] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LPKO608 3.8 | [OM314.944] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LPO608 3.8 | [OM314.910] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LPO608 3.8 | [OM314.944] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LPO808 3.8 | [OM314.910] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LPS608 3.8 | [OM314.910] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | LPS608 3.8 | [OM314.944] | 10.1969-01.1973 |
| MERCEDES BENZ TRUCKS & BUSES | OM 314 3.8 | 07.1976-12.1988 | |
| MERCEDES BENZ TRUCKS & BUSES | Unimog 403 3.8 | [OM314.916] | 04.1966-02.1973 |
| MERCEDES BENZ TRUCKS & BUSES | Unimog 403 3.8 | [OM314.917] | 04.1969-02.1973 |
| MERCEDES BENZ TRUCKS & BUSES | Unimog 413 3.8 | [OM314.953] | 04.1969-02.1973 |
| MERCEDES BENZ TRUCKS & BUSES | Unimog U 54 3.8 | [OM314.916] | 04.1966-02.1973 |
| MERCEDES BENZ TRUCKS & BUSES | Unimog U 66 3.8 | [OM314.917] | 04.1969-02.1973 |
| MERCEDES BENZ TRUCKS & BUSES | Unimog U 800 3.8 | [OM314.917] | 01.1977-01.1981 |
| MERCEDES BENZ TRUCKS & BUSES | Unimog U 800 3.8 | [OM314.917] | 02.1981-03.1990 |
| MERCEDES BENZ TRUCKS & BUSES | Unimog U 800L 3.8 | [OM314.917] | 01.1977-01.1981 |
| MERCEDES BENZ TRUCKS & BUSES | Unimog U 80 3.8 | [OM314.953] | 04.1969-02.1973 |
| VOLVO BM | DR631 | ||
| VOLVO BM | DR631 | - | |
| VOLVO BM | DS630 | ||
| VOLVO BM | DS630 | - | |
| VOLVO BM | GM612 | ||
| VOLVO BM | GM612 | - | |
| VOLVO BM | SM660 | ||
| VOLVO BM | SM660 | - | |
| VOLVO BM | SM661 | ||
| VOLVO BM | SM661 | - | |
| VOLVO BM | SM665 | ||
| VOLVO BM | SM665 | - | |
| VOLVO BM | SM667 | ||
| VOLVO BM | SM667 | - | |
| VOLVO BM | T350 | ||
| VOLVO BM | T350 | - | |
| VOLVO BM | T T350 Boxer | TR1113 | 01.1959-12.1967 |
Reference Information
| 0001401007 | BOSCH |
| 0001401011 | BOSCH |
| 0001401017 | BOSCH |
| 0001401025 | BOSCH |
| 0001401034 | BOSCH |
| 0001401035 | BOSCH |
| 0001401049 | BOSCH |
| 0001401050 | BOSCH |
| 0001401056 | BOSCH |
| 0001401061 | BOSCH |
| 0001401066 | BOSCH |
| 0001401067 | BOSCH |
| 0001401068 | BOSCH |
| 0001401070 | BOSCH |
| 0001413001 | BOSCH |
| 0001413002 | BOSCH |
| 0001413006 | BOSCH |
| 0001418001 | BOSCH |
| 0001418012 | BOSCH |
| 0001513101 | MERCEDES |
| 0001513301 | MERCEDES |
| 000151330180 | MERCEDES |
| 0011513601 | MERCEDES |
| 0021518001 | MERCEDES |
| 0021518401 | MERCEDES |
| 002151840180 | MERCEDES |
| 0031515601 | MERCEDES |
| 003151560180 | MERCEDES |
| 0031515901 | MERCEDES |
| 003151590180 | MERCEDES |
| 00572010003 | MWM |
| 01170739 | KHD |
| 0122946900 | RENAULT |
| 01301500 | KHD |
| 01320738 | KHD |
| 0325339011 | RENAULT |
| 0986011400 | BOSCH |
| 0986011530 | BOSCH |
| 0986011533 | BOSCH |
| 110537 | CARGO |
| 11.130.116 | ISKRA / LETRIKA |
| 11.130.126 | ISKRA / LETRIKA |
| 11.139.007 | ISKRA / LETRIKA |
| 11.139.008 | ISKRA / LETRIKA |
| 11.139.037 | ISKRA / LETRIKA |
| 11.139.519 | ISKRA / LETRIKA |
| 11.139.531 | ISKRA / LETRIKA |
| 1170739 | KHD |
| 1301500 | KHD |
| 1320738 | KHD |
| 1322450 | CLAAS |
| 1326150 | CLAAS |
| 182-30408 | ROBERT'S |
| 19024000 | DELCO |
| 19024148 | DELCO |
| 19024561 | DELCO |
| 20401442BN | REAL |
| 20401442EL | REAL |
| 20401672BN | REAL |
| 20401672EL | REAL |
| 220258 | ERA |
| 220298 | ERA |
| 220299 | ERA |
| 240519 | VOLVO |
| 291 8662 | KHD |
| 3106 | EFEL |
| 33579 | EAI |
| 413T090001 | STEYR |
| 413T090001 | VALEO |
| 458000 | VALEO |
| 458001 | VALEO |
| 458010 | VALEO |
| 51262017012 | MAN |
| 550.202.093.010 | WAI |
| 550.202.093.016 | WAI |
| 550.202.093.310 | WAI |
| 550.202.093.390 | WAI |
| 550.202.093.770 | WAI |
| 6010244.0 | SANDO |
| 6010244.3 | SANDO |
| 6010276.0 | SANDO |
| 6010276.3 | SANDO |
| 605720100003 | MWM |
| 6092820 | CLAAS |
| 6601769 | VOLVO |
| 6643899 | VOLVO |
| 72485844 | MAHLE |
| 72736140 | MAHLE |
| 72736144 | MAHLE |
| 72741797 | MAHLE |
| 80068C92 | CASE |
| 81.26201-9015 | MAN |
| 82068C91 | CASE |
| 82068C92 | CASE |
| 91-15-6938 | WILSON |
| A0001513101 | MERCEDES |
| A0001513301 | MERCEDES |
| A000151330180 | MERCEDES |
| A0011513601 | MERCEDES |
| A0021518001 | MERCEDES |
| A0021518401 | MERCEDES |
| A002151840180 | MERCEDES |
| A0031515601 | MERCEDES |
| A003151560180 | MERCEDES |
| A0031515901 | MERCEDES |
| A003151590180 | MERCEDES |
| AM-2012S | AUTO MAGNETO |
| AZK5105 | ISKRA / LETRIKA |
| AZK5106 | ISKRA / LETRIKA |
| AZK5167 | ISKRA / LETRIKA |
| AZK5168 | ISKRA / LETRIKA |
| AZK5196 | ISKRA / LETRIKA |
| AZK5558 | ISKRA / LETRIKA |
| AZK5572 | ISKRA / LETRIKA |
| BNG4/12CR201 | BOSCH |
| BNG4/12CR215 | BOSCH |
| BNG4/12CR218 | BOSCH |
| C9R12X4H7622 | KHD |
| CGB-11401 | AINDE |
| CS951 | HC PARTS |
| CST10244AS | CASCO |
| CST10244ES | CASCO |
| CST10276AS | CASCO |
| CST10276ES | CASCO |
| DRS1400 | DELCO |
| DRS1540 | DELCO |
| DS2510 | DELCO |
| DS2650 | DELCO |
| F032110537 | CARGO |
| IS0116 | ISKRA / LETRIKA |
| IS0126 | ISKRA / LETRIKA |
| IS9007 | ISKRA / LETRIKA |
| IS9008 | ISKRA / LETRIKA |
| MS512 | MAHLE |
| MS710 | MAHLE |
| ND53301A | PEUGEOT |
| S0725S | AS-PL |
| S12BH0778A2 | SIDAT |
| S133.129 | WAI |
| STR1060 | ELECTROLOG |
| STR22016 | WOODAUTO |
| STR79437 | ELECTROLOG |
| STR79438 | ELECTROLOG |
| UD16609S | AS-PL |
Video/Publications
S0725SView your shopping basket or Browse other items in Starter Motors.
