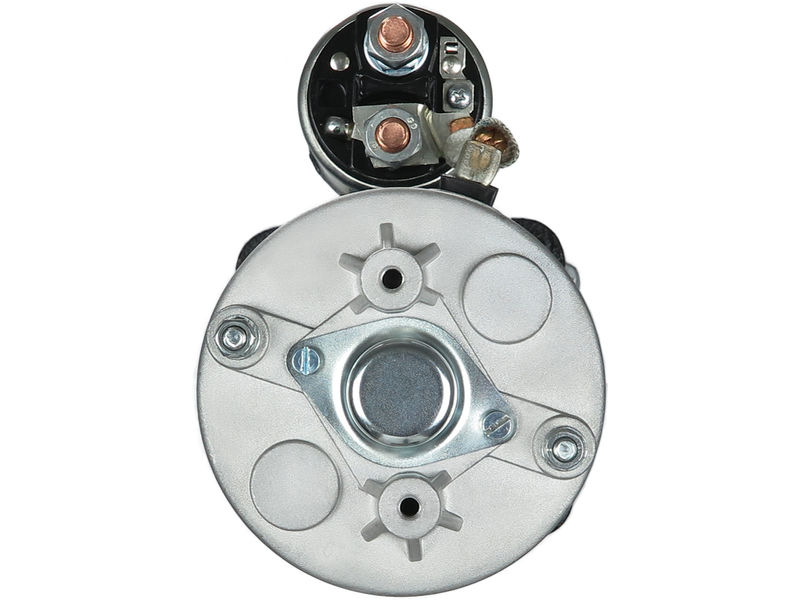

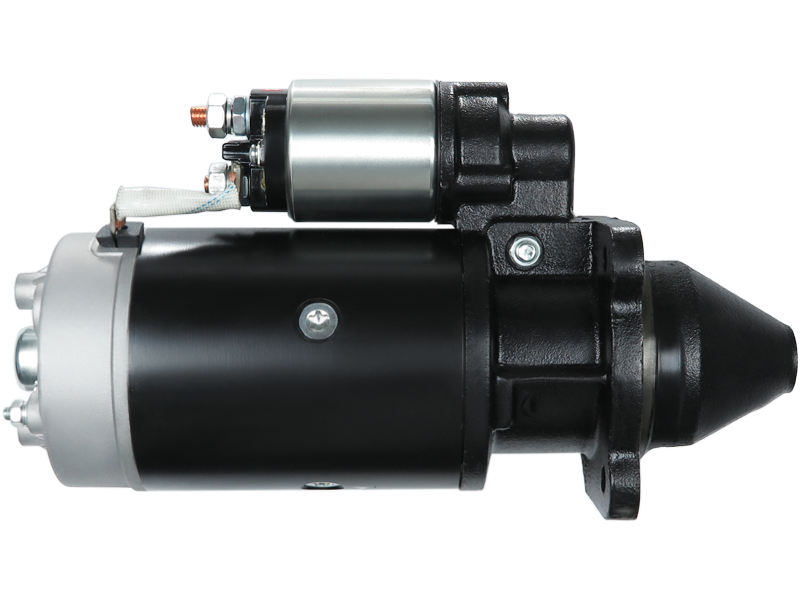

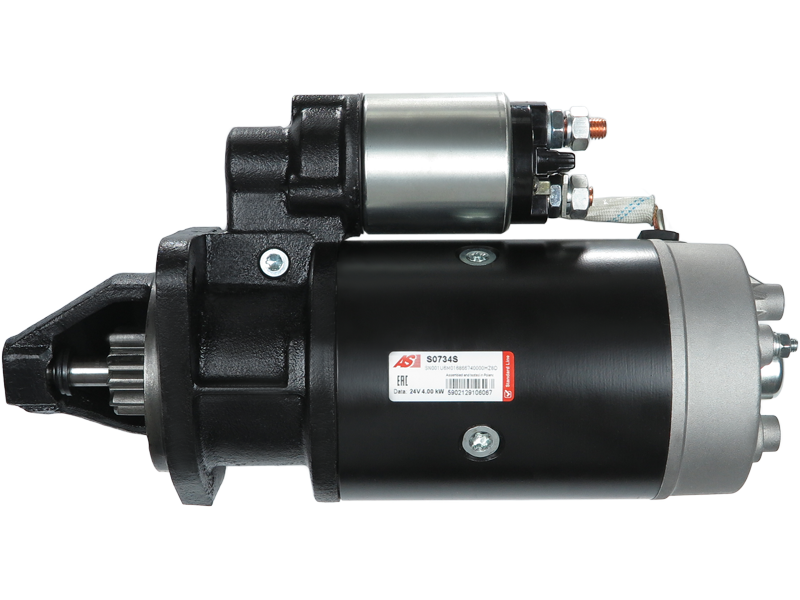

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 440.20 including GST
NZ$ 382.78 excluding GST
or four payments of $110.05
with
Learn More
each
S0734S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001368027Associated Numbers
0001360055 0001368027 063523680270 120-30127 19024291 20401516 254410 260-67208 2873D306 33896 45-2494 581.001.103 6010615 8634 CST10615 CST10615AS CST10615ES CST10615GS CST10615OS CST10615RS LRS04183 MSN2056 STB1708 STR50067 UD16600S UNIT BOM 902-368 0001368064 UD16605SSpecifications
| Kilowatt | 4 kW |
| Length (L.1) | 340.50 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 89.50 mm |
| Mount Hole Center - Center (O.3) | 89.50 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 312B | ||
| JCB | 416-6B | ||
| JCB | JS 175W | [D4A140] | |
| VOLVO | FLC | [D4A140] | 01.1996-12.2000 |
| VOLVO | FLC140 4.0 | [D4A140] | 01.1996-12.2000 |
Reference Information
| 0001360055 | BOSCH |
| 0001368027 | BOSCH |
| 0001368064 | BOSCH |
| 063523680270 | MAGNETI MARELLI |
| 120-30127 | ROBERT'S |
| 19024291 | DELCO |
| 20401516 | REAL |
| 254410 | KUHNER |
| 260-67208 | DIXIE |
| 2873D306 | PERKINS |
| 2873D602 | PERKINS |
| 33896 | EAI |
| 45-2494 | ELSTOCK |
| 581.001.103 | PSH |
| 6010615 | SANDO |
| 71434200 | JCB |
| 714/34200 | JCB |
| 8634 | CEVAM |
| CST10615 | CASCO |
| CST10615AS | CASCO |
| CST10615ES | CASCO |
| CST10615GS | CASCO |
| CST10615OS | CASCO |
| CST10615RS | CASCO |
| LRS04183 | LUCAS |
| LRS4183 | LUCAS |
| MAV126150 | SIOM |
| MSN2056 | MAGNETI MARELLI |
| S134.167 | PSH |
| STB1708 | KRAUF |
| STR10284 | ELECTROLOG |
| STR1029 | ELECTROLOG |
| STR50067 | WOODAUTO |
| STRF160 | 3EFFE |
| STRL847 | 3EFFE |
| UD16600S | AS-PL |
| UD16605S | AS-PL |
| UNIT BOM 902-368 | WAI / TRANSPO |
Video/Publications
