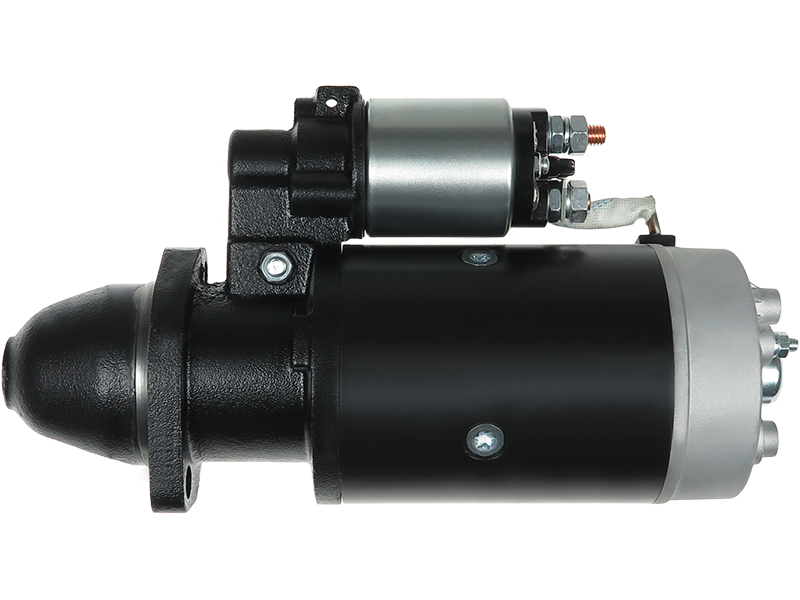

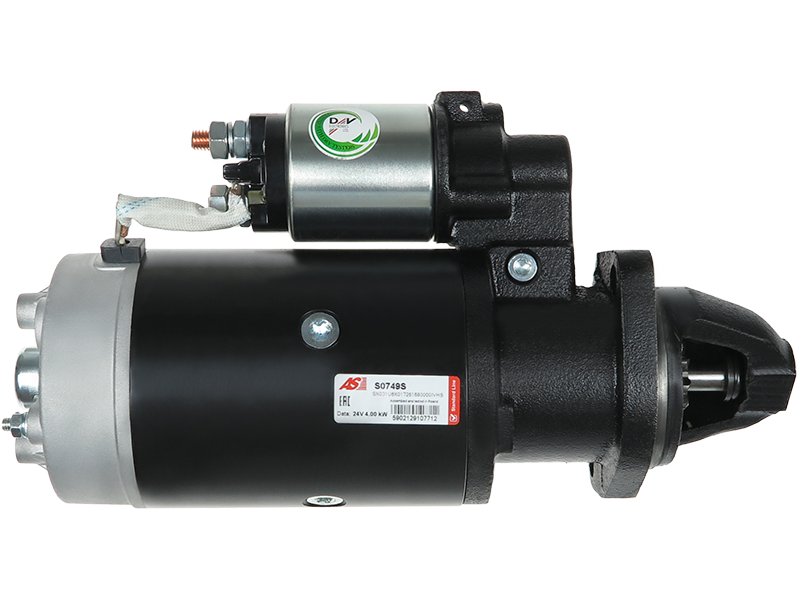

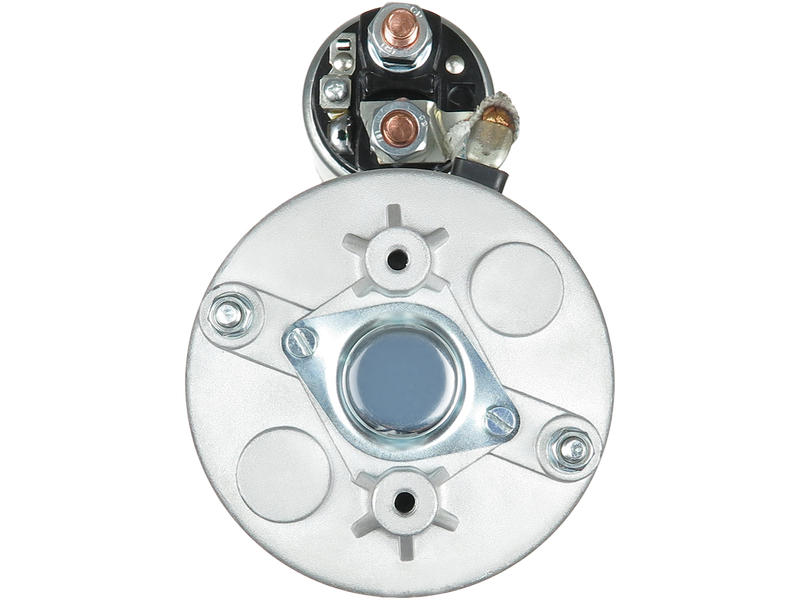

S0749S - Brand new AS-PL Starter motor

Specifications

Kilowatt	4 kW
Length (L.1)	340 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	22 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
MWM	D208-6		01.1965-12.1973
MWM	D225-4		01.1967-12.1976
MWM	D225-6		01.1967-12.1977
MWM	D308-6		01.1965-12.1973
MWM	D325-4		01.1967-12.1974
MWM	D325-6		01.1967-12.1977

Reference Information

BOM 0001368014 STRF656 12153819 UNIT 1368014 6010609 900-576 CST10609 UD16598S CST10609RS 1360004 0001360004 254535 260-67223 CST10609OS 20401906 551.017.092 EAA-111800 6.0572E+11 STB1804 CST10609AS CST10609GS CST10609ES

Video/Publications

0001360004 0001368014 12153819 20401906 254535 260-67223 551.017.092 6010609 605720100021 605720100030 CST10609 CST10609AS CST10609ES CST10609GS CST10609OS CST10609RS EAA-111800 STB1804 STRF656 UNIT BOM 900-576 UD16598S
