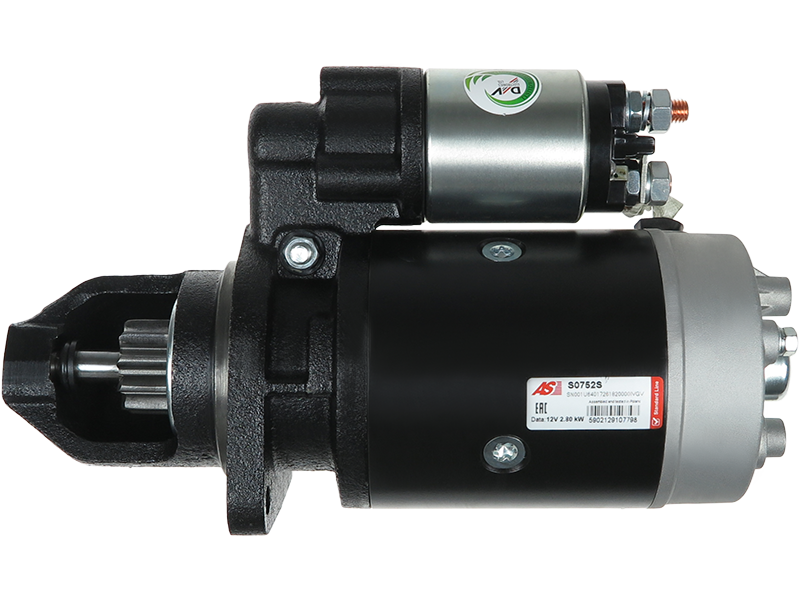

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 627.26 including GST
NZ$ 545.44 excluding GST
or four payments of $156.82
with
Learn More
each
S4053,S0803S,S9284S,S9284(LETRIKA)
S0752S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001362310Associated Numbers
0001354107 0001362310 0986015040 10106 112660 17077N 19083020 20401733 20500240 25-0198 260-62121 33391 3575730 3575730RX 3675130 3675130RX 403300R92 529965R92 537140R94 537140R95 540.007.103 6010337 88212511 8EA725963-001 91-15-6995 CS106 CST10337 CST10337AS CST10337ES CST10337GS CST10337OS CST10337RS LRS00240 SG0158 STL0106 STM1205 STR25014 UD16582S 0001367042Specifications
| Kilowatt | 2.80 kW |
| Length (L.1) | 315 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 4210 | [IHD-239] | 01.1994-12.1996 |
| CASE | 4230 | [IHD-268] | 01.1994-12.1996 |
| CASE | 4240 | [IHDT-268] | 01.1994-12.1996 |
| CASE | 454 3.0 | [IHD-179] | 01.1971-12.1975 |
| CASE | 474 | [IHD-206] | 01.1973-12.1975 |
| CASE | 484 3.0 | [IHD-179] | 01.1977-12.1982 |
| CASE | 485 4 | 01.1988- | |
| CASE | 485XL 3.0 | [IHD-179] | 01.1982-12.1991 |
| CASE | 495 3.0 | [IHD-179] | 01.1991-12.1994 |
| CASE | 574 | [IHD-239] | 01.1971-12.1976 |
| CASE | 584 | [IHD-206] | 01.1977-12.1982 |
| CASE | 585XL | [IHD-206] | 01.1982-12.1991 |
| CASE | 595 | [IHD-206] | 01.1991-12.1994 |
| CASE | 674 | [IHD-239] | 01.1973-12.1981 |
| CASE | 684 | [IHD-239] | 01.1977-12.1982 |
| CASE | 685XL | [IHD-239] | 01.1982-12.1991 |
| CASE | 695 | [IHD-239] | 01.1991-12.1994 |
| CASE | 784 | [IHD-246] | 01.1977-12.1981 |
| CASE | 785 | [IHD-246] | 01.1981-12.1985 |
| CASE | 885XL | [IHD-268] | 01.1983-12.1990 |
Reference Information
| 0001354107 | BOSCH |
| 0001362310 | BOSCH |
| 0001367042 | BOSCH |
| 0986015040 | BOSCH |
| 10106 | KUHNER |
| 112660 | CARGO |
| 17077N | WAI / TRANSPO |
| 19083020 | DELCO |
| 20401733 | REAL |
| 20500240 | PRESTOLITE |
| 25-0198 | ELSTOCK |
| 260-62121 | DIXIE |
| 33391 | EAI |
| 3575730 | CUMMINS |
| 3575730RX | CUMMINS |
| 3675130 | CUMMINS |
| 3675130RX | CUMMINS |
| 403300R92 | CASE |
| 529965R92 | CASE |
| 537140R94 | CASE |
| 537140R95 | CASE |
| 540.007.103 | PSH |
| 6010337 | SANDO |
| 88212511 | POWERMAX |
| 8EA725963-001 | HELLA |
| 91-15-6995 | WILSON |
| CGB-25040 | AINDE |
| CS106 | HC PARTS |
| CST10337 | CASCO |
| CST10337AS | CASCO |
| CST10337ES | CASCO |
| CST10337GS | CASCO |
| CST10337OS | CASCO |
| CST10337RS | CASCO |
| F032112660 | CARGO |
| LRS00240 | LUCAS |
| LRS240 | LUCAS |
| MAV123370 | SIOM |
| S12BH0670A2 | SIDAT |
| S133.291 | PSH |
| SG0158 | GHIBAUDI |
| STL0106 | KRAUF |
| STM1205 | ROLLCO |
| STR0480 | 3EFFE |
| STR10041 | ELECTROLOG |
| STR10063 | ELECTROLOG |
| STR25014 | WOODAUTO |
| UD16582S | AS-PL |
Video/Publications
