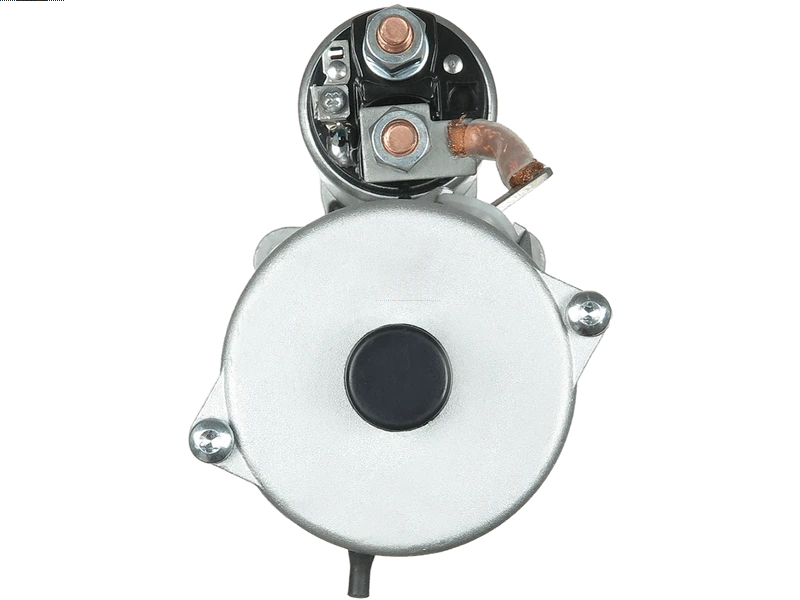

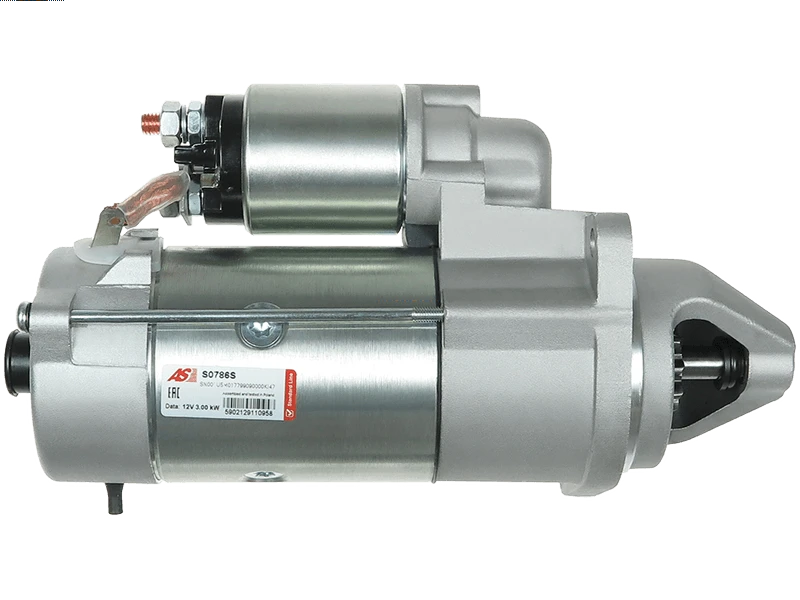

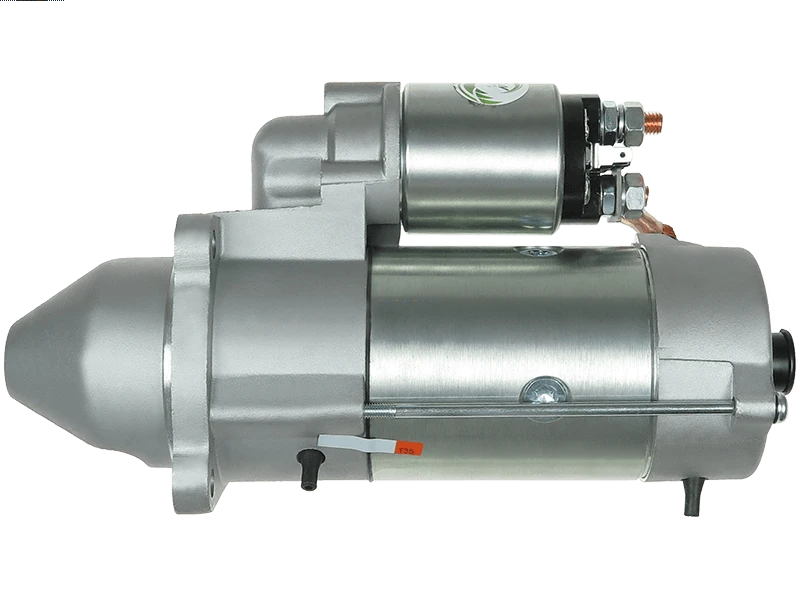

S0786S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 599.67 including GST

NZ$ 521.45 excluding GST



or four payments of $149.92 with
Afterpay Payment Offer Learn More

each
S0786S
No stock in NZ currently
No stock in NZ currently
0001262021
0001262021 UD16564S 0001262022 0001230020 0001230026 0001262019 0001262020 2852178 8003 19083000 DRS0026 DS1136 EAA-121767 25-4079 47132888 SG9063 504357110 323019050 504031929 504357109 254129 254129B 254129M LRS02407 88213989 500.545.103 120-20191 19980N STR50579 STR50290
Kilowatt3 kW
Length (L.1)316 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)127 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
OEM ProductNo
Pinion at Rest (B)27 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)89 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
CARRARO Agricube 100 4.5 10.2010-
CARRARO Agricube 70 3.2 10.2010-
CARRARO Agricube 80 3.2 10.2010-
CARRARO Agricube 90 3.2 10.2010-
CASE 121E Series 3 [432T/M3] 01.2008-12.2015
CASE 420CT Series 3 [432T/M3] 01.2008-12.2012
CASE 420 Series 3 [432T/M3] 01.2008-12.2012
CASE 435 Series 3 [432T/M3] 01.2008-12.2012
CASE 570NXT 3.4 [F5HFL413B] 01.2012-12.2014
CASE 586H 3.4 [F5H] 01.2012-12.2023
CASE 588H 3.4 [F5H] 01.2012-12.2023
CASE Farmall 105U 4.5 [N45] 01.2008-12.2012
CASE Farmall 65A 3.2 [F32] 01.2010-12.2015
CASE Farmall 75A 3.2 [F32] 01.2010-12.2015
CASE Farmall 85C 3.2 [F32] 01.2007-12.2012
CASE Farmall 85U 4.5 [N45] 01.2008-12.2014
CASE Farmall 90 4.5 [N45] 01.2007-12.2014
CASE Farmall 95 4.5 [N45] 01.2007-12.2015
CASE Farmall 95C 3.2 [F32] 01.2007-12.2012
CASE Farmall 95N 4.5 [N45] 01.2008-12.2015
CASE Farmall 95U 4.5 [N45] 01.2008-12.2015
CASE JX1070U 4.5 [4-274] 01.2004-12.2008
CASE JX1080U [4-274] 01.2004-12.2008
CASE JX1085C [4-274] 01.2005-12.2008
CASE JX1090U [4-274] 01.2004-12.2008
CASE JX1095C [4-274] 01.2005-12.2008
CASE JX1100U [4-274] 01.2004-12.2008
CASE SR200 3.2 [432T/M3] 01.2011-12.2015
CASE SR200 3.4 [F5HFL463] 01.2013-12.2019
CASE SR210 3.4 [F5HFL463] 01.2013-12.2019
CASE SR220 3.4 [F5HFL413] 01.2013-12.2019
CASE SR240 3.4 [F5HFL463] 01.2015-12.2019
CASE SR250 3.2 [F5CE5454] 01.2013-12.2020
CASE SR250 3.4 [F5HFL413] 01.2011-12.2017
CASE SR270 3.4 [F5BFL413] 01.2015-12.2017
CASE SV250 3.2 [432T/M3] 01.2011-12.2012
CASE SV250 3.2 [F5CE5454] 01.2013-12.2020
CASE SV250 3.4 [F5HFL413] 01.2013-12.2015
CASE SV280 3.4 [F5HFL463] 01.2015-12.2019
CASE SV300 3.2 [432T/M3] 01.2011-12.2015
CASE SV300 3.4 [F5HFL413] 01.2012-12.2017
CASE SV300 3.4 [F5HFL413] 01.2012-12.2019
CASE SV300 3.4 [F5HFL413] 01.2015-12.2017
CASE SV340 3.4 [F5BFL413] 01.2016-12.2019
CASE TR270 3.2 [432T/M3] 01.2011-12.2015
CASE TR270 3.4 [F5HFL463] 01.2013-12.2019
CASE TR310 3.4 [F5HFL463] 01.2017-12.2019
CASE TR320 3.2 [432T/M3] 01.2011-12.2013
CASE TR320 3.4 [F5HFL413] 01.2011-12.2017
CASE TR320 3.4 [F5HFL413] 01.2012-12.2019
CASE TR340 3.4 [F5BFL413] 01.2015-12.2019
CASE TV370 3.4 [F5HFL463] 01.2017-12.2019
CASE TV380 3.2 [432T/M3] 01.2011-12.2013
CASE TV380 3.4 [F5HFL413] 01.2012-12.2017
CASE TV380 3.4 [F5HFL413] 01.2012-12.2019
CASE TV380 3.4 [F5HFL413] 01.2015-12.2017
CASE TV450 3.4 [F5BFL413] 01.2018-12.2019
CASE TX1055 4.5 [F4BE] 01.2008-12.2015
CASE TX742 4.5 [F4BE] 01.2007-12.2015
CASE TX842 4.5 [F4BE] 01.2006-12.2016
CASE TX945 4.5 [F4BE] 01.2006-12.2016
DIECI 4017
KOMATSU WB97S-5 4.5 [F4GE9894F] 01.2006-12.2013
MCCORMICK MTX135 6.8 [6Cyl] 01.2004-12.2007
MCCORMICK MTX150 6.8 [6Cyl] 01.2004-12.2007
MCCORMICK TTX190M 6.8 01.2008-12.2013
MCCORMICK XTX145 6.8 01.2006-12.2008
NEW HOLLAND B110 4.5 [445T/M2] 01.2006-
NEW HOLLAND B115 4.5 [445T/M2] 01.2006-
NEW HOLLAND B95 4.5 [445T/M2] 01.2006-
NEW HOLLAND C185 [334T/M2] 01.2006-12.2011
NEW HOLLAND C227 3.2 [F5CE9454] 01.2011-12.2014
NEW HOLLAND C227 3.2 [F5CE9454] 01.2013-12.2019
NEW HOLLAND C227 3.4 [F5HFL463] 01.2013-12.2020
NEW HOLLAND C232 3.2 [F5CE9454] 01.2011-12.2019
NEW HOLLAND C232 3.2 [F5CE9454] 01.2013-12.2019
NEW HOLLAND C232 3.4 [F5HFL413] 01.2013-12.2015
NEW HOLLAND C232 3.4 [F5HFL463] 01.2013-12.2020
NEW HOLLAND C234 3.4 [F5BFL413] 01.2016-12.2019
NEW HOLLAND C237 3.4 [F5BFL463] 01.2017-12.2021
NEW HOLLAND C238 3.2 [F5CE9454] 01.2011-12.2013
NEW HOLLAND C238 3.2 [F5CE9454] 01.2012-12.2019
NEW HOLLAND C238 3.4 [F5HFL413] 01.2011-12.2015
NEW HOLLAND C238 3.4 [F5HFL413] 01.2015-12.2018
NEW HOLLAND C245 3.4 [F5BFL413] 01.2018-12.2019
NEW HOLLAND F50C 3.4 [F5H] 01.2021-12.2024
NEW HOLLAND L185 3.4 [334TM2] 01.2006-12.2011
NEW HOLLAND L221 3.4 [F5HFL463] 01.2013-12.2020
NEW HOLLAND L223 3.2 [F5CE5454] 01.2011-12.2019
NEW HOLLAND L223 3.4 [F5HFL463] 01.2013-12.2015
NEW HOLLAND L225 3.2 [F5CE5454] 01.2011-12.2012
NEW HOLLAND L225 3.2 [F5CE5454] 01.2013-12.2019
NEW HOLLAND L225 3.4 [F5HFL413] 01.2013-12.2015
NEW HOLLAND L225 3.4 [F5HFL413] 01.2013-12.2019
NEW HOLLAND L228 3.4 [F5HFL463] 01.2015-12.2019
NEW HOLLAND L230 3.2 [F5CE5454] 01.2011-12.2013
NEW HOLLAND L230 3.2 [F5CE5454] 01.2011-12.2017
NEW HOLLAND L230 3.2 [F5CE5454] 01.2012-12.2019
NEW HOLLAND L230 3.4 [F5HFL413] 01.2015-12.2016
NEW HOLLAND LM5040 4.5 [F4GE] 01.2007-12.2014
NEW HOLLAND LM5040 4.5 [NEF] 01.2007-
NEW HOLLAND LM5060 4.5 [F4GE] 01.2007-12.2014
NEW HOLLAND LM5060 4.5 [NEF] 01.2007-
NEW HOLLAND LM5080 4.5 [F4GE] 01.2007-12.2014
NEW HOLLAND LM5080 4.5 [NEF] 01.2007-
NEW HOLLAND M357 4.5 [F4GE] 01.2007-12.2015
NEW HOLLAND M427 4.5 [F4GE] 01.2007-12.2015
NEW HOLLAND M428 4.5 [F4GE] 01.2007-12.2012
NEW HOLLAND M459 4.5 [F4GE] 01.2007-12.2012
NEW HOLLAND M551 4.5 [F4GE] 01.2007-12.2015
NEW HOLLAND S110 4.5 [F4GE] 01.2007-12.2011
NEW HOLLAND S70 4.5 [F4GE] 01.2007-12.2015
NEW HOLLAND S85 4.5 [F4GE] 01.2007-12.2015
NEW HOLLAND T4050F 4.5 [4Cyl(95HP)] 01.2008-12.2015
NEW HOLLAND T5040 4.5 [4Cyl(85HP)] 01.2008-12.2015
NEW HOLLAND T5050 4.5 [4Cyl(95HP)] 01.2008-12.2015
NEW HOLLAND T5060 4.5 [4Cyl(105HP)] 01.2008-12.2015
NEW HOLLAND T5070 4.5 [4Cyl(115HP)] 01.2008-12.2015
NEW HOLLAND T6.160 4.5 10.2012-
NEW HOLLAND T6.175 6.7 10.2012-
NEW HOLLAND TD5050 4.5 [4Cyl(93HP)] 01.2008-12.2015
NEW HOLLAND TK4050 4.5 [4Cyl(94HP)] 01.2009-12.2015
NEW HOLLAND TK4050M 4.5 [4Cyl(94HP)] 01.2009-12.2015
NEW HOLLAND TK4060 4.5 [4Cyl(99HP)] 01.2009-12.2015
NEW HOLLAND TL100A 4.5 [4Cyl(98HP)] 01.2004-12.2008
NEW HOLLAND TL80A 4.5 [4Cyl(80HP)] 01.2004-12.2008
NEW HOLLAND TL90A 4.5 [4Cyl(90HP)] 01.2004-12.2008
NEW HOLLAND U80C 3.4 [F5H] 01.2021-12.2024
NEW HOLLAND W50B 3.2 [F5CE9454C] 01.2008-12.2015
NEW HOLLAND W50C 3.0 [F5HFL463B] 01.2014-12.2020
NEW HOLLAND W60B 3.2 [F5CE9454G] 01.2008-12.2015
NEW HOLLAND W60C 3.4 [F5HFL463C] 01.2014-12.2020
NEW HOLLAND W70B 3.2 [F5CE9454E] 01.2008-12.2015
NEW HOLLAND W70C 3.4 [F5HFL463A] 01.2014-12.2020
NEW HOLLAND W80B 3.2 [F5CE5454B] 01.2008-12.2015
NEW HOLLAND W80C 3.0 [F5HFL463A] 01.2014-12.2020
NEW HOLLAND Workmaster 65 3.2 10.2009-
NEW HOLLAND Workmaster 75 3.2 10.2009-
REDROCK TH280S
0001230020BOSCH
0001230022BOSCH
0001230026BOSCH
0001262019BOSCH
0001262020BOSCH
0001262021BOSCH
0001262022BOSCH
10010304AVITAB AUTOMOTIVE
10010304OVITAB AUTOMOTIVE
10439595ALANKO
106557FARCOM
114021CARGO
120-20191ROBERT'S
120-20191NOEROBERT'S
19980NWAI / TRANSPO
20401403BNREAL
20401403OEREAL
25-4079ELSTOCK
25-4079CTAINDE
254129KUHNER
254129BKUHNER
254129MKUHNER
254129SKUHNER
2852178CASE
3118803HENKEL PARTS
3118804HENKEL PARTS
3118805HENKEL PARTS
3118808HENKEL PARTS
323019050FIAT
330400MEC-DIESEL
330401MEC-DIESEL
331868LOGISTIK
47132888FIAT
500.546.103.011PSH
500.546.103.013PSH
500.546.103.280PSH
5010507GMEAT & DORIA
504031929FIAT
504357109FIAT
504357110CASE
6010304.0SANDO
6010304.1SANDO
618036102DRI
7.61125DT SPARE PARTS
8003CEVAM
861092PRESTOLITE
88213989POWERMAX
8EA015642-631HELLA
91-15-7314WILSON
A90940ATL AUTOTECHNIK
AC-CBS5557ACAUTO
BOS0001250002WOODAUTO
CST10304ASCASCO
CST10304GSCASCO
DRS0026DELCO
F032114021CARGO
LES0391LE PART
LRS02407LUCAS
LRS2407LUCAS
QRS2452QUINTON HAZELL
S0786SAS-PL
S12BH0666SIDAT
S12BH0666A2SIDAT
S132.974PSH
S144.574PSH
S-50290DTS
S513038BTS TURBO
SEG0001250002WOODAUTO
ST01599TMI
STB4021KRAUF
STM1287ROLLCO
STR1609ELECTROLOG
STR41393EFFE
STR50290WOODAUTO
STR50561WOODAUTO
STR50579WOODAUTO
UD16564SAS-PL
WOOSTR50290WOODAUTO
WOOSTR50561WOODAUTO
WOOSTR50579WOODAUTO
S0786S
