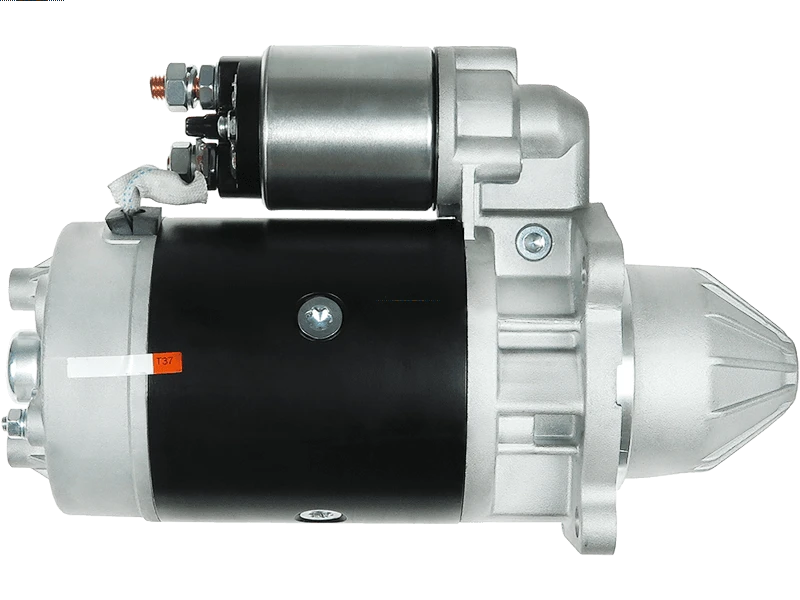

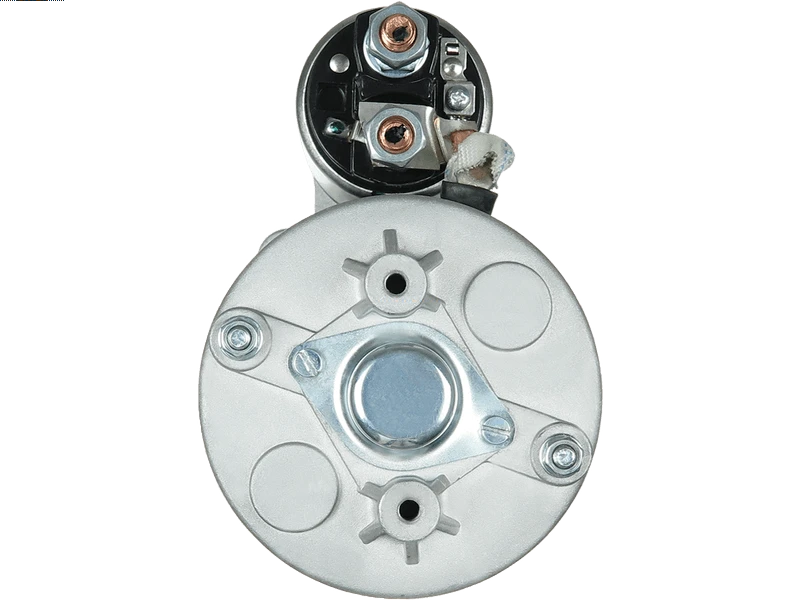

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 470.86 including GST
NZ$ 409.44 excluding GST
or four payments of $117.72
with
Learn More
each
S0789S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001362703Associated Numbers
0001362703 UD16584S 0001230014 0001262001 0001262034 CST10361GS CST10230GS CST10230AS 01180228 01182233 1182233 TS-6136 260-69102 F514900060040 IS0841 11.130.841 AZF4514 11.132.066 01180928KZ 1180928 1181976 MS446 72736074 560.001.093 35261435 20401163OE 20401032BN 20401032OE 120-30108 090015728 6010361.1 6010230.1 6010230.0 UNIT BOM 920-994 91-15-6896N 91-15-6896 STR50590 MAHMS446Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 293 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DEUTZ | D6807 | [F4L912] | 01.1986-12.1994 |
| DEUTZ | D7007 | [F4L912] | 01.1986-12.1994 |
| DEUTZ | DX3.10 | [F3L912] | 01.1986-12.1994 |
| DEUTZ | DX3.30 | [F3L912] | 01.1986-12.1994 |
| DEUTZ | DX3.50 | [F3L913] | 01.1986-12.1994 |
| DEUTZ | DX3.60 | [F4L912] | 01.1986-12.1994 |
| DEUTZ | DX3.70 | [F4L912] | 01.1986-12.1994 |
| DEUTZ | DX3.80 | [F4L913] | 01.1986-12.1994 |
| DEUTZ | DX3.90 | [F4L913] | 01.1986-12.1994 |
| DEUTZ | DX4.10 | [F4L912] | 01.1986-12.1994 |
| DEUTZ | DX4.31 | [F4L913] | 01.1986-12.1994 |
| DEUTZ | DX4.50 | [BF4L913T] | 01.1986-12.1994 |
| DEUTZ | DX4.51 | [BF4L913T] | 01.1990-12.1994 |
| DEUTZ | DX4.70 | [BF4L913] | 01.1984-12.1994 |
| DEUTZ | DX6.05 | [F6L912] | 01.1986-12.1994 |
| DEUTZ | DX6.10 | [F6L912] | 01.1986-12.1994 |
| DEUTZ | DX6.30 | [F4L913] | 01.1986-12.1994 |
| DEUTZ | DX6.30 | [F6L913] | 01.1986-12.1994 |
| DEUTZ | DX6.31 | [BF6L913T] | 01.1990-12.1994 |
| DEUTZ | DX6.50 | [BF6L913] | 01.1984-12.1994 |
| DEUTZ | DX6.60 | [BF6L913] | 01.1984-12.1994 |
| DEUTZ | DX7.10 | [BF6L913] | 01.1984-12.1994 |
| DEUTZ | M1080 | [F5L912] | 01.1981-12.1994 |
| DEUTZ | M1202 | [F6L912] | 01.1980-12.1994 |
| DEUTZ | M2385 | [F6L912] | 01.1988-12.1995 |
| DEUTZ | M3360 | [F4L912] | 01.1987-12.1994 |
| DEUTZ | M980 | [F4L912] | 01.1981-12.1994 |
| DEUTZ | M980 | [F4L912] | 01.1983-12.1994 |
Reference Information
| 0001262001 | BOSCH |
| 0001362703 | BOSCH |
| 01161384 | KHD |
| 01163669 | KHD |
| 01180228 | DEUTZ |
| 01182233 | DEUTZ |
| 05710901 | BOMAG |
| 05710927 | BOMAG |
| 090015728 | SAME |
| 11.132.066 | ISKRA / LETRIKA |
| 1161384 | DEUTZ |
| 1163994 | KHD |
| 1170051 | KHD |
| 1170052 | KHD |
| 1174166 | KHD |
| 1178686 | KHD |
| 1182233 | DEUTZ |
| 120-30108 | ROBERT'S |
| 20401321BN | REAL |
| 20401321EL | REAL |
| 20401321OE | REAL |
| 260-69102 | DIXIE |
| 35261435 | PRESTOLITE |
| 42522733 | FIAT |
| 560.001.093 | PSH |
| 6010123.0 | SANDO |
| 6010123.1 | SANDO |
| 6010123.3 | SANDO |
| 70756112 | ZETTELMEYER |
| 72736074 | MAHLE |
| 91-15-6896 | WILSON |
| 91-15-6896N | WILSON |
| CST10123AS | CASCO |
| CST10123ES | CASCO |
| CST10123GS | CASCO |
| G380900060010 | FENDT |
| IS0841 | ISKRA / LETRIKA |
| MAV3320A | SIOM |
| S133.623 | PSH |
| S143.927 | PSH |
| STR50590 | WOODAUTO |
| STR79036 | ELECTROLOG |
| TS-6136 | DIXIE |
| UD16584S | AS-PL |
| UNIT BOM 920-994 | WAI / TRANSPO |
Video/Publications
