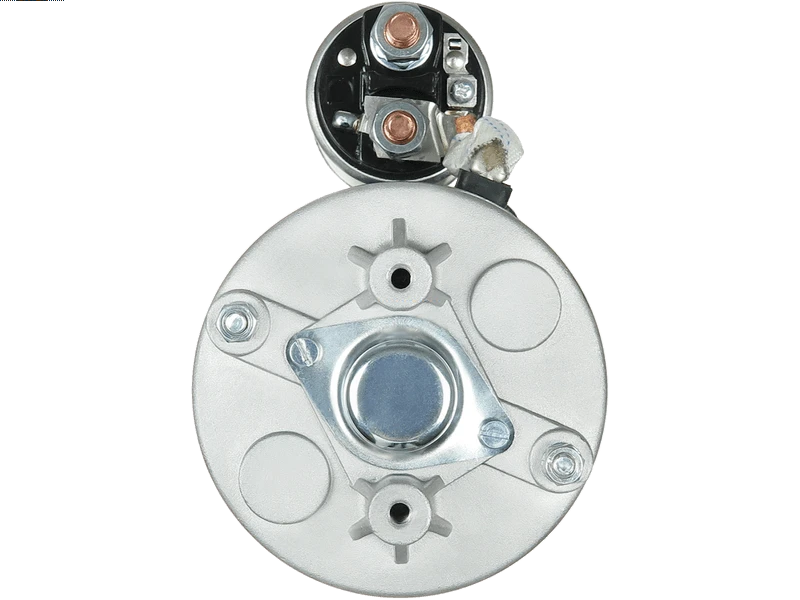

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 500.91 including GST
NZ$ 435.57 excluding GST
or four payments of $125.23
with
Learn More
each
S0795S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001364300Associated Numbers
0001364300 UD16586S 05710935 0001364101 112651 CST10695AS 8676 DRS2700 DS3810 260-64201 33464 45-0249 IS0030 11.132.342 AZJ3481 11.130.672 AZJ3221 01179595 1179595 1164376 STB2651 LRS01813 MS174 72735802 88213615 561.001.113 20401596BN 120-30110 182-30199 6010695.0 5278775 5636102 D11E149 91-15-6929 STR50285 STR22080 MAHMS174 TS-6054Specifications
| Kilowatt | 4.80 kW |
| Length (L.1) | 358 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KHD | Engine | [F4L413R] | 01.1973-12.1975 |
| KHD | Engine | [F5L413R] | 01.1973-12.1975 |
| KHD | Engine | [F6L413R] | 01.1973- |
| KHD | Engine 9.6 | [BF6L413FR] | 01.1988- |
Reference Information
| 0001364101 | BOSCH |
| 0001364300 | BOSCH |
| 01179595 | KHD |
| 05710935 | BOMAG |
| 11.130.672 | ISKRA / LETRIKA |
| 11.132.342 | ISKRA / LETRIKA |
| 112651 | CARGO |
| 1164376 | KHD |
| 1179595 | KHD |
| 120-30110 | ROBERT'S |
| 182-30199 | ROBERT'S |
| 20401596BN | REAL |
| 260-64201 | DIXIE |
| 33464 | EAI |
| 45-0249 | ELSTOCK |
| 5278775 | TAM |
| 561.001.113 | PSH |
| 5636102 | TAM |
| 6010695.0 | SANDO |
| 72735802 | MAHLE |
| 8676 | CEVAM |
| 88213615 | POWERMAX |
| 91-15-6929 | WILSON |
| AZJ0602 | ISKRA / LETRIKA |
| AZJ3221 | ISKRA / LETRIKA |
| AZJ3481 | ISKRA / LETRIKA |
| CST10695AS | CASCO |
| D11E149 | VALEO |
| DRS2700 | DELCO |
| DS3810 | DELCO |
| F032112651 | CARGO |
| IS0030 | ISKRA / LETRIKA |
| LRS01813 | LUCAS |
| LRS1813 | LUCAS |
| MAHMS174 | WOODAUTO |
| MAV126110 | SIOM |
| MAV126950 | SIOM |
| MS174 | MAHLE |
| MS 174 | MAHLE |
| MS 612 | MAHLE |
| S0795S | AS-PL |
| S133.682 | PSH |
| S144.094 | PSH |
| STB2651 | KRAUF |
| STR1112 | ELECTROLOG |
| STR22080 | WOODAUTO |
| STR50285 | WOODAUTO |
| STR7839 | ELECTROLOG |
| STRL165 | 3EFFE |
| TS-6054 | DIXIE |
| UD16586S | AS-PL |
Video/Publications
