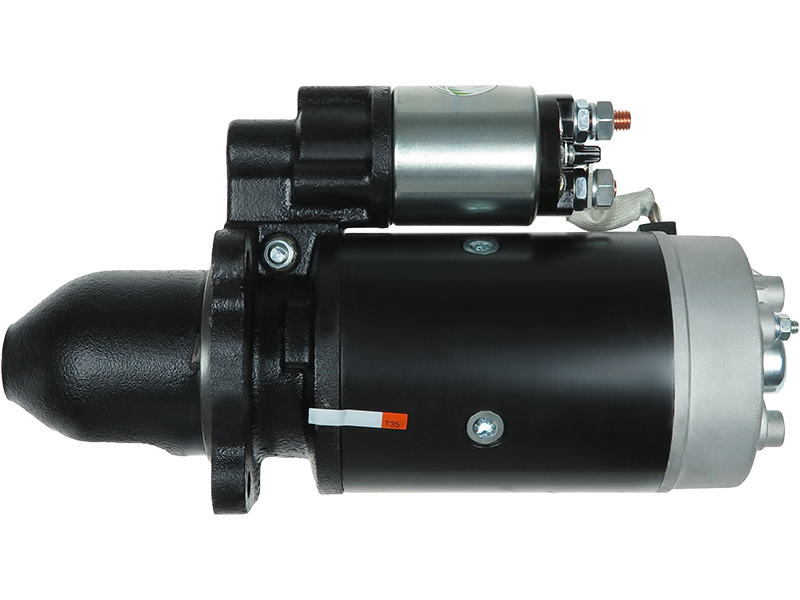

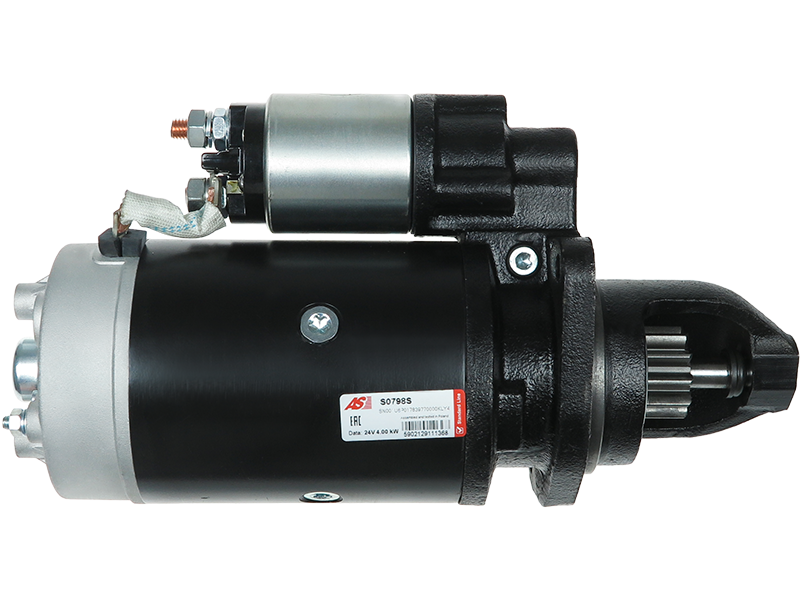

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 455.86 including GST
NZ$ 396.40 excluding GST
or four payments of $113.97
with
Learn More
each
S0798S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001368041Associated Numbers
0001368041 UD16603S 0986013710 8711 260-67212 45-0375 11.130.686 AZJ3230 IS0686 STB3230 STG3230 255736 LRS01823 MS327 72735955 88214013 801.002.113 801.503.113 UNIT BOM 120-824 STR50166 MAHMS327Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 340.50 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Oil Sealed | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AGCO | 411 C | ||
| AGCO | 611 C 6.6 | 06.1981-12.1985 |
Reference Information
| 0001368041 | BOSCH |
| 0986013710 | BOSCH |
| 11.130.686 | ISKRA / LETRIKA |
| 255736 | KUHNER |
| 260-67212 | DIXIE |
| 45-0375 | ELSTOCK |
| 72735955 | MAHLE |
| 801.002.113 | PSH |
| 801.503.113 | PSH |
| 8711 | CEVAM |
| 88214013 | POWERMAX |
| AZJ3230 | ISKRA / LETRIKA |
| IS0686 | ISKRA / LETRIKA |
| LRS01823 | LUCAS |
| LRS1823 | LUCAS |
| MAHMS327 | WOODAUTO |
| MS327 | MAHLE |
| MS 327 | MAHLE |
| S135.193 | PSH |
| S135.248 | PSH |
| S145.186 | PSH |
| STB3230 | KRAUF |
| STG3230 | KRAUF |
| STR10083 | ELECTROLOG |
| STR50166 | WOODAUTO |
| STR79048 | ELECTROLOG |
| STRE348 | 3EFFE |
| UD16603S | AS-PL |
| UNIT BOM 120-824 | WAI / TRANSPO |
Video/Publications
