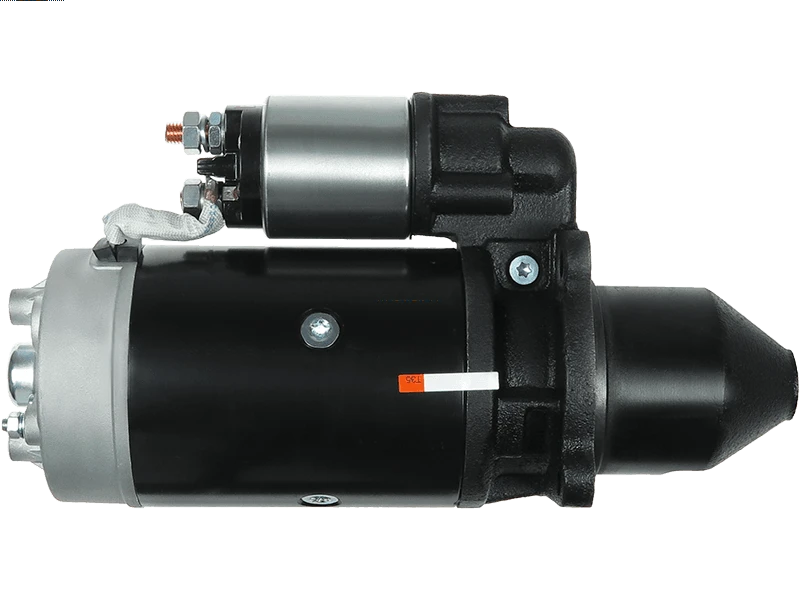

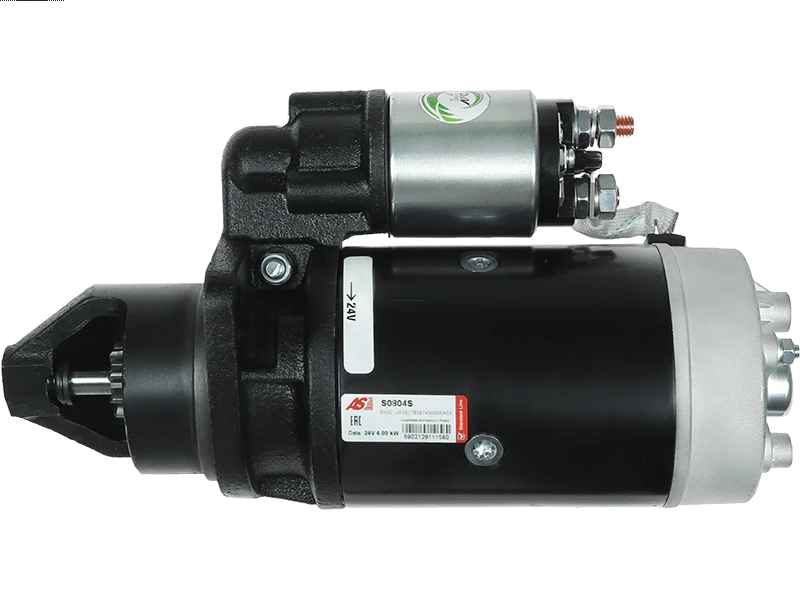

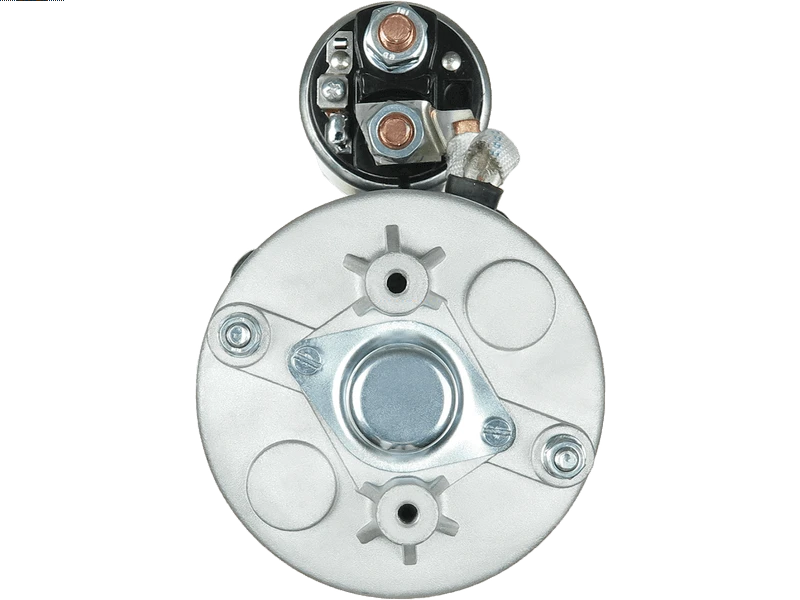

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 446.86 including GST
NZ$ 388.57 excluding GST
or four payments of $111.72
with
Learn More
each
S0804S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001368030Associated Numbers
0001368030 UD16601S 0986011370 0001360023 0001360036 112132 CST10614AS 8668 260-67207 EAA-111142 EAA-121489 33898 45-0354 SG9125 CS97 8EA726253-001 8EA012586-561 11.130.766 AZJ3277 IS0766 STB0726 10726 LRS00796 MS319 72735947 88212823 811.001.093 20401416BN 6010614.0 9004880691 243007 4785541 4880691 19782N UNIT BOM 120-6052A 91-15-6895 STR50164 MAHMS319Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 341 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO BM | 4400 5.5 | [D60A] | 01.1976-06.1979 |
| VOLVO BM | D45 | 06.1983-06.1994 | |
| VOLVO BM | LM621 4.0 | [D42A] | 12.1973-06.1978 |
| VOLVO BM | LM641 4.0 | [D42A] | 12.1973-06.1978 |
| VOLVO BM | LM841 5.5 | [D50B] | 01.1976-06.1979 |
| VOLVO BM | LM841 5.5 | [D60A] | 01.1976-06.1979 |
| VOLVO BM | LM845 5.0 | [D50B] | 01.1971-12.1973 |
| VOLVO BM | LM846 5.5 | [D50B] | 01.1976-06.1979 |
| VOLVO BM | LM846 5.5 | [D60A] | 01.1976-06.1979 |
Reference Information
| 0001360023 | BOSCH |
| 0001360036 | BOSCH |
| 0001368030 | BOSCH |
| 0986011370 | BOSCH |
| 10726 | KUHNER |
| 11.130.766 | ISKRA / LETRIKA |
| 112132 | CARGO |
| 19782N | WAI / TRANSPO |
| 20401416BN | REAL |
| 243007 | VOLVO |
| 260-67207 | DIXIE |
| 3097086M91 | MASSEY FERGUSON |
| 330878 | LOGISTIK |
| 33898 | EAI |
| 45-0354 | ELSTOCK |
| 4785541 | VOLVO |
| 4880691 | VOLVO |
| 6010614.0 | SANDO |
| 72735947 | MAHLE |
| 811.001.093 | PSH |
| 8668 | CEVAM |
| 88212823 | POWERMAX |
| 9004880691 | VOLVO |
| 91-15-6895 | WILSON |
| ANM13590X | ANDEL |
| AZJ3277 | ISKRA / LETRIKA |
| CGB-21370 | AINDE |
| CS726 | HC PARTS |
| CST10614AS | CASCO |
| F032112132 | CARGO |
| IS0766 | ISKRA / LETRIKA |
| LRS00796 | LUCAS |
| LRS796 | LUCAS |
| MAHMS319 | WOODAUTO |
| MS319 | MAHLE |
| MS 319 | MAHLE |
| S0804S | AS-PL |
| S24BH0151A2 | SIDAT |
| SG9125 | GHIBAUDI |
| STB0726 | KRAUF |
| STR1898 | ELECTROLOG |
| STR50164 | WOODAUTO |
| STX200842 | STARDAX |
| UD16601S | AS-PL |
| UNIT BOM 120-6052A | WAI / TRANSPO |
