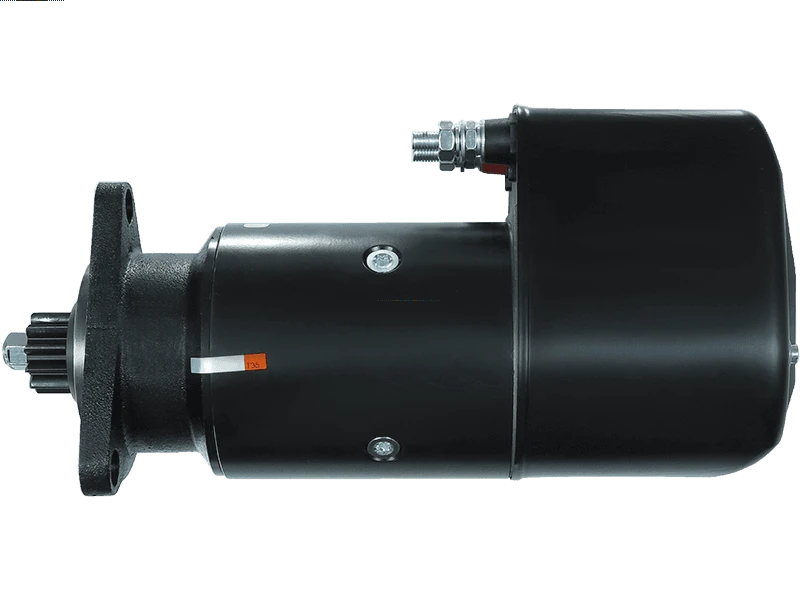

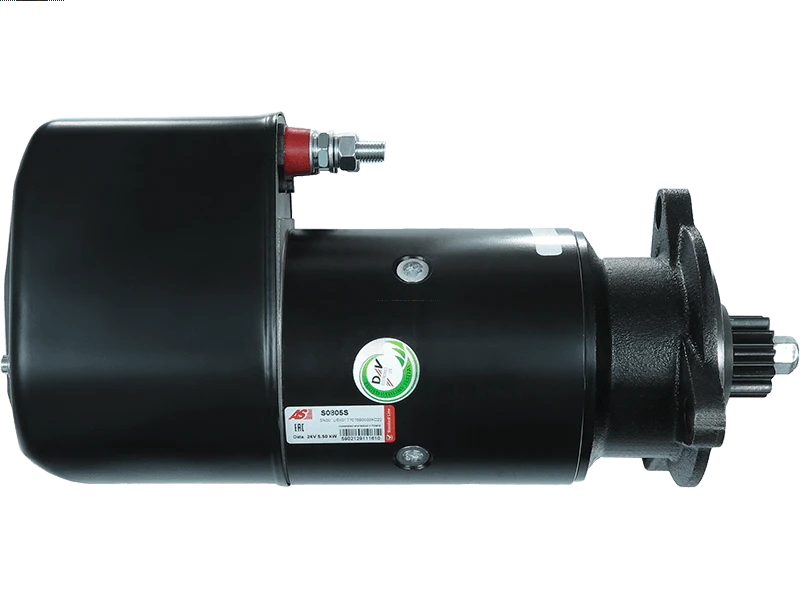

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 717.65 including GST
NZ$ 624.04 excluding GST
or four payments of $179.41
with
Learn More
each
S0805S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001410037Associated Numbers
0001410037 UD16611S 260-46220 45-0114 STB0098 1098 LRS00878 943252197010 MSR693 943252197 911.201.113 279932 163394 455534 91-15-6945Specifications
| Insulated Earth | Yes |
| Kilowatt | 5.50 kW |
| Length (L.1) | 388 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 17 mm |
| Mount Hole Diameter (C.2) | 17 mm |
| Mount Hole Diameter (C.3) | 17 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 37.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SCANIA | 110 | [D11] | 01.1968-12.1974 |
| SCANIA | 110 | [DS11] | 01.1968-12.1974 |
| SCANIA | 111 | [D11] | 01.1975-12.1980 |
| SCANIA | 111 | [DS11] | 01.1975-12.1980 |
| SCANIA | 112 | [D11] | 01.1978-12.1990 |
| SCANIA | 112 | [DN11] | 01.1978-12.1990 |
| SCANIA | 112 | [DS11] | 01.1978-12.1990 |
| SCANIA | 112 | [DSC11] | 01.1978-12.1990 |
| SCANIA | B110 | [D11] | 01.1968-12.1973 |
| SCANIA | B110 Super | [DS11] | 01.1969-12.1976 |
| SCANIA | BF110 | [D11] | 01.1968-12.1973 |
| SCANIA | BF110 Super | [DS11] | 01.1969-12.1976 |
| SCANIA | BK112 | [DS11] | 01.1982-12.1983 |
| SCANIA | BK112 | [DS11.15B] | 01.1982-12.1983 |
| SCANIA | CF110L | [D11] | 01.1968-12.1970 |
Reference Information
| 0001410037 | BOSCH |
| 1098 | KUHNER |
| 110214 | CARGO |
| 1516654R | DAF |
| 1516832R | DAF |
| 163394 | SCANIA |
| 220239 | ERA |
| 22710 | EFEL |
| 260-46220 | DIXIE |
| 279932 | SCANIA |
| 349576 | SCANIA |
| 45-0114 | ELSTOCK |
| 455534 | VALEO |
| 571454 | SCANIA |
| 911.201.113 | PSH |
| 911.201.113.460 | PSH |
| 91-15-6945 | WILSON |
| 943252197 | MAGNETI MARELLI |
| 943252197010 | MAGNETI MARELLI |
| F032110214 | CARGO |
| LRS00878 | LUCAS |
| LRS878 | LUCAS |
| MAV1213 | SIOM |
| MSR693 | MAGNETI MARELLI |
| STB0098 | KRAUF |
| UD16611S | AS-PL |
Video/Publications
