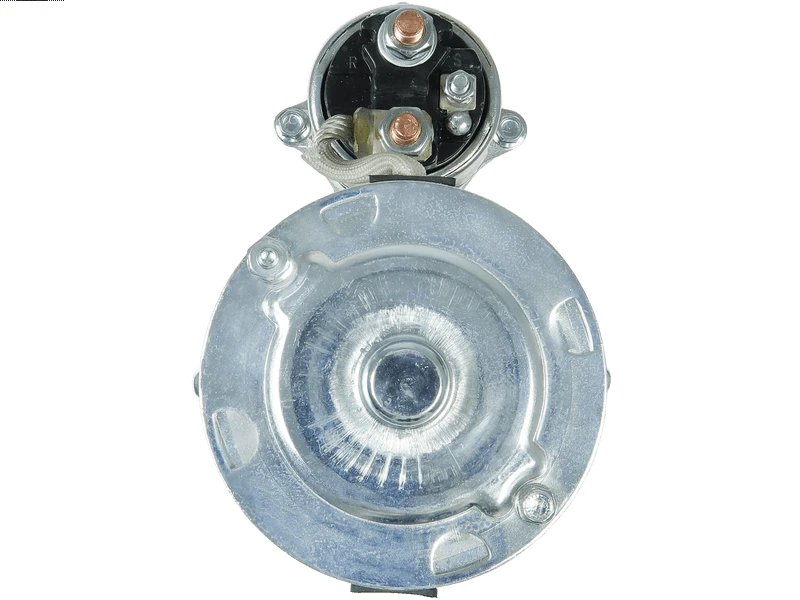

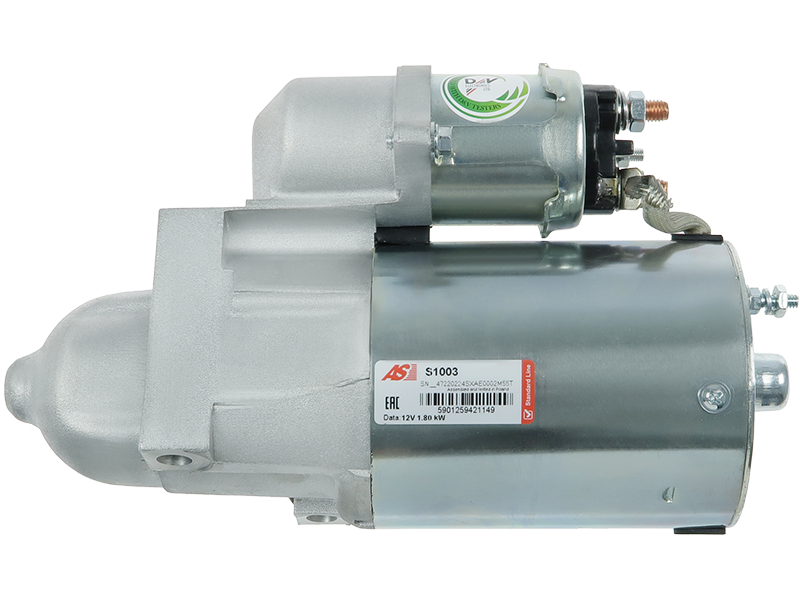

S1003 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 354.81 including GST

NZ$ 308.53 excluding GST
each
S1003
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

10455011 10455013 10455016 10455042 10455050 10455054 10455070 10465065 111034 11832 12572716 1998427 1998524 22.0858 22.0858M 25-1483 60858 6313N 6313R 6416N 6416R 6419N 8213330 8982775013 8EA732681-001 9000910 DRZ5153 DRZ5155 LRS01275 S1094R STR80006 US858
Kilowatt1.8 kW
Length (L.1)267 mm
Mount Hole Center - Center (O.1)83 mm
Mount Hole Center - Center (O.2)83 mm
Mount Hole Diameter (C.1)10 mm
Mount Hole Diameter (C.2)10 mm
Mount Hole Diameter (C.3)11 mm
Mount Hole Diameter (C.4)11 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
Pinion at Rest (B)18 mm
RotationCW
Spigot Diameter (A)68.5 mm
Unit TypeDELCO
Voltage12 V
Make Model Type Year
CHEVROLET Astre 4.3 01.1992-12.1998
CHEVROLET Blazer 4.3 01.1995-
CHEVROLET C10 5.0 01.1985-12.1986
CHEVROLET C1500 4.3 01.1988-12.1995
CHEVROLET C20 5.0 01.1985-12.1986
CHEVROLET C2500 4.3 01.1988-12.1995
CHEVROLET Camaro 2.8 01.1985-12.1989
CHEVROLET Camaro 3.1 RS 01.1990-12.1992
CHEVROLET Camaro 3.4 01.1993-12.1995
CHEVROLET Camaro 3.4 V6 [L32] 12.1992-12.1995
CHEVROLET Camaro 5.0 [LG4] 01.1985-12.1986
CHEVROLET G10 4.3 01.1991-12.1997
CHEVROLET G10 4.3 Express 01.1996-12.1997
CHEVROLET G10 4.3 Sportvan 01.1991-12.1993
CHEVROLET G10 5.0 01.1996-12.1997
CHEVROLET G10 5.0 Express 01.1996-12.1997
CHEVROLET G20 4.3 01.1991-12.1997
CHEVROLET G20 4.3 Sportvan 01.1991-12.1995
CHEVROLET G20 5.0 01.1996-12.1996
CHEVROLET G20 5.0 Express 01.1996-12.1997
CHEVROLET G30 4.3 01.1991-
CHEVROLET K10 5.0 Suburban 01.1985-12.1986
CHEVROLET K1500 4.3 01.1988-12.1998
CHEVROLET K1500 5.0 01.1996-12.1999
CHEVROLET K2500 4.3 01.1988-12.1995
CHEVROLET P30 4.3 01.1990-12.1995
CHEVROLET S10 2.8 01.1984-12.1993
CHEVROLET S10 2.8 Blazer 01.1984-12.1990
CHEVROLET S10 4.3 01.1988-12.1995
CHEVROLET S10 4.3 Blazer 01.1991-12.1994
CHEVROLET Silverado 4.3 1500 01.1999-12.1999
GMC C1500 4.3 01.1988-12.1988
GMC C1500 4.3 SieRa 01.1989-12.1995
GMC C1500 4.3 SieRa XC 01.1989-12.1997
GMC C1500 5.0 SieRa 01.1992-12.1997
GMC C1500 5.0 SieRa XC 01.1992-12.1997
GMC C15/C1500 5.0 01.1985-12.1986
GMC C2500 4.3 01.1988-12.1988
GMC C2500 4.3 SieRa 01.1989-12.1995
GMC C2500 4.3 SieRa XC 01.1989-12.1993
GMC C2500 5.0 SieRa 01.1992-12.1996
GMC C2500 5.0 SieRa XC 01.1992-12.1996
GMC C25/C2500 5.0 01.1985-12.1986
GMC G15/G1500 4.3 Rally 01.1991-12.1993
GMC G15/G1500 4.3 Savana 01.1996-12.1997
GMC G15/G1500 4.3 Vandura 01.1991-12.1995
GMC G15/G1500 5.0 01.1994-
GMC G15/G1500 5.0 Rally 01.1992-12.1993
GMC G15/G1500 5.0 Savana 01.1996-12.1997
GMC G15/G1500 5.0 Vandura 01.1992-12.1995
GMC G25/G2500 4.3 Rally 01.1991-12.1995
GMC G25/G2500 4.3 Vandura 01.1991-12.1995
GMC G25/G2500 5.0 Rally 01.1992-12.1995
GMC G25/G2500 5.0 Savana 01.1996-12.1997
GMC G25/G2500 5.0 Vandura 01.1992-12.1995
GMC G35/G3500 4.3 01.1992-12.1995
GMC G35/G3500 4.3 01.1996-12.1996
GMC G35/G3500 4.3 Rally 01.1995-12.1996
GMC G35/G3500 4.3 Savana 01.1996-12.1996
GMC G35/G3500 4.3 Vandura 01.1991-12.1996
GMC Jimmy 4.3 01.1995-12.1995
GMC K1500 4.3 01.1988-12.1988
GMC K1500 4.3 SieRa 01.1989-12.1997
GMC K1500 4.3 SieRa XC 01.1989-12.1997
GMC K1500 5.0 SieRa 01.1991-12.1998
GMC K1500 5.0 SieRa XC 01.1991-12.1998
GMC K15/K1500 5.0 01.1985-12.1986
GMC K2500 4.3 01.1988-12.1988
GMC K2500 4.3 SieRa 01.1989-12.1995
GMC K2500 4.3 SieRa XC 01.1989-12.1993
GMC K2500 5.0 SieRa 01.1991-12.1995
GMC K2500 5.0 SieRa XC 01.1991-12.1995
GMC P35/P3500 4.3 01.1990-12.1995
GMC S15 2.8 01.1984-12.1990
GMC S15 2.8 Jimmy 01.1984-12.1989
GMC S15 4.3 01.1988-12.1990
GMC S15 4.3 Jimmy 01.1988-12.1994
GMC Safari 4.3 01.1990-12.1994
GMC Safari 4.3 XT 01.1991-12.1996
GMC SieRa 4.3 1500 01.1999-12.1999
GMC Sonoma 2.8 01.1991-12.1993
GMC Sonoma 2.8 GT 01.1992-12.1992
GMC Sonoma 4.3 01.1991-12.1995
GMC Sonoma 4.3 GT 01.1992-12.1992
JEEP Cherokee 2.8 01.1984-12.1986
JEEP Cherokee 2.8 Chief 01.1986-12.1986
JEEP Cherokee 2.8 Laredo 01.1986-12.1986
JEEP Cherokee 2.8 Pioneer 01.1986-12.1986
JEEP Comanche 2.8 Custom 01.1986-12.1986
JEEP Comanche 2.8 X 01.1986-12.1986
JEEP Comanche 2.8 XLS 01.1986-12.1986
PONTIAC Firebird 2.8 01.1985-12.1989
PONTIAC Firebird 2.8 S/E 01.1985-12.1986
PONTIAC Firebird 3.4 01.1993-12.1995
1998427 STR2700 1998524 6313R CST60127AS 111034 9000910 6060127 8213330 12572716 S1094R 10455070 25-1483 10455050 20409721BN 10455013 8982775013 ANM97373X 6416N S1003 E4TF11000A 10455054 6416R 10455011 6313N LRS1275 10455016 DRZ5153 10465065 US858 DRZ5155 STR80006 60858 STRW062 22.0858 LRS01275 6419N 8EA732681-001 22.0858M 10455042 11832
10455011 10455013 10455016 10455042 10455050 10455054 10455070 10465065 111034 11832 12572716 1998427 1998524 22.0858 22.0858M 25-1483 60858 6313N 6313R 6416N 6416R 6419N 8213330 8982775013 8EA732681-001 9000910 DRZ5153 DRZ5155 LRS01275 LRS1275 S1094R STR80006 STRW062 US858 S1003
