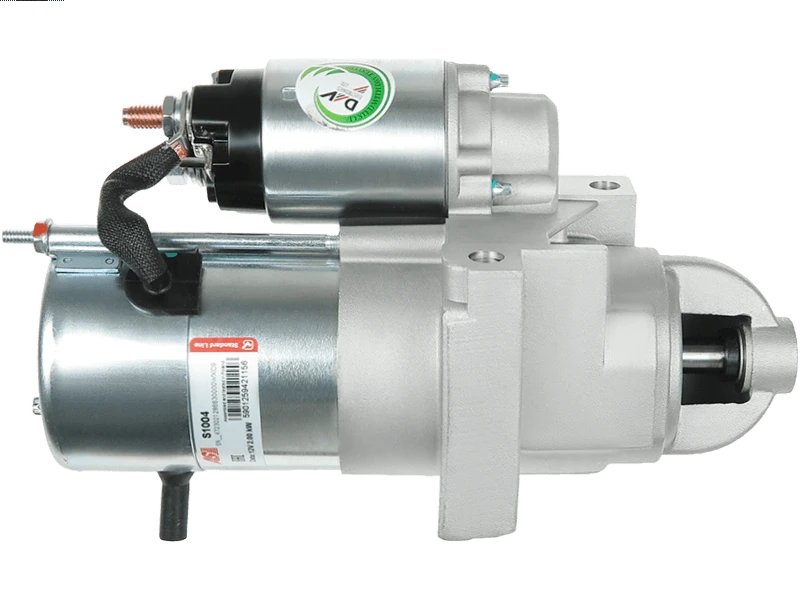

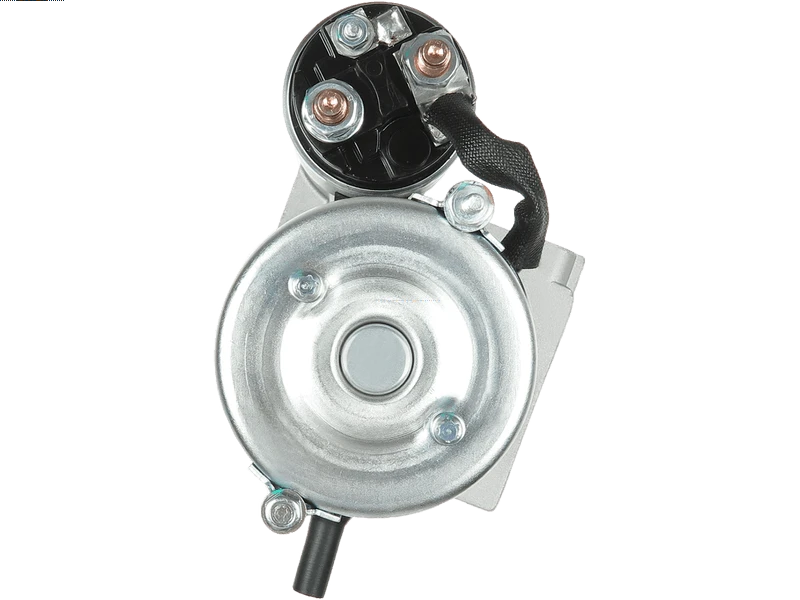

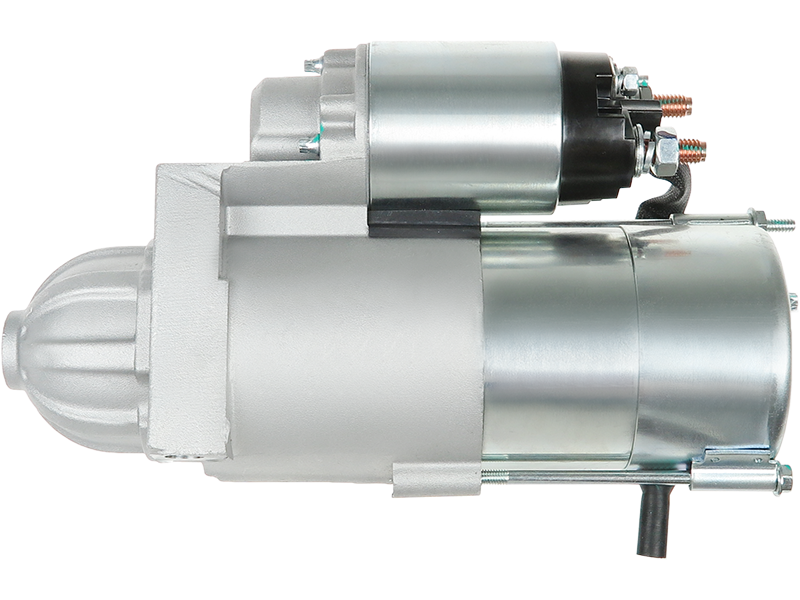

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 343.77 including GST
NZ$ 298.93 excluding GST
or four payments of $85.94
with
Learn More
each
S1004
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Associated Numbers
112240 12570823 20409201BN 20409201OE 22.1029 25-2318 601029 6060102 88212508 8EA737904-001 9000786 9000841 9000860 CST60102AS CST60102GS LRS01419 S1004 S1094R STR80104 US1029Specifications
| Kilowatt | 2.0 kW |
| Length (L.1) | 233 mm |
| Mount Hole Center - Center (O.1) | 84 mm |
| Mount Hole Center - Center (O.2) | 84 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| Mount Hole Diameter (C.4) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CADILLAC | Escalade 5.7 | 01.1999-01.2000 | |
| CADILLAC | Escalade 5.8 | [LO5] | 10.1998- |
| CHEVROLET | 2500 8.1 | 01.2001-01.2002 | |
| CHEVROLET | Astro 4.3 | 01.1992-01.2005 | |
| CHEVROLET | Avalanche 8.1 | 01.2002- | |
| CHEVROLET | Blazer 4.3 | [L35] | 01.1994- |
| CHEVROLET | Blazer 4.3 | 01.1996-01.2000 | |
| CHEVROLET | C1500 5.7 | 01.1996-01.1999 | |
| CHEVROLET | C2500 5.7 | 01.1996-01.1999 | |
| CHEVROLET | C2500 7.4 | 01.1994-01.2000 | |
| CHEVROLET | C3500 7.4 | 01.1994-01.2000 | |
| CHEVROLET | C3500 8.1 | 01.2001- | |
| CHEVROLET | Express 5.0 | 01.1999-01.2002 | |
| CHEVROLET | Express 5.7 | 01.1999-01.2002 | |
| CHEVROLET | Express 7.4 | 01.1999-01.2000 | |
| CHEVROLET | Express 8.1 | 01.2001-01.2002 | |
| CHEVROLET | G10 5.7 | 01.1996-01.1997 | |
| CHEVROLET | G1500 5.7 | 01.1998- | |
| CHEVROLET | G20 5.7 | 01.1996-01.1997 | |
| CHEVROLET | G2500 5.7 | 01.1998- | |
| CHEVROLET | G30 5.7 | 01.1996- | |
| CHEVROLET | G30 7.4 | 01.1996- | |
| CHEVROLET | G3500 5.7 | 01.1998- | |
| CHEVROLET | G3500 7.4 | 01.1998- | |
| CHEVROLET | K1500 5.7 | 01.1996-01.1999 | |
| CHEVROLET | K2500 5.7 | 01.1996-01.1999 | |
| CHEVROLET | K2500 7.4 | 01.1994-01.2001 | |
| CHEVROLET | K3500 7.4 | 01.1994-01.2001 | |
| CHEVROLET | P30 4.3 | 01.1996-01.1999 | |
| CHEVROLET | P30 5.7 | 01.1996-01.1999 | |
| CHEVROLET | P30 7.4 | 01.1996-01.1999 | |
| CHEVROLET | S10 4.3 | 01.1996-01.1998 | |
| CHEVROLET | Silverado 6.0 | 01.1999- | |
| CHEVROLET | Silverado 8.1 | 01.2001-01.2002 | |
| CHEVROLET | Tahoe 5.7 | 01.1995-01.2001 | |
| ISUZU | Hombre 4.3 | 01.1997-01.2000 | |
| OLDSMOBILE | Bravada 4.3 | 01.1996-01.2000 |
Reference Information
| 10465167 | DELCO |
| 12570823 | DELCO |
| 22.1029 | LAUBER |
| 25-2318 | ELSTOCK |
| 339392 | LOGISTIK |
| 601029 | KUHNER |
| 88212508 | POWERMAX |
| 8EA737904-001 | HELLA |
| 9000786 | DELCO |
| 9000841 | DELCO |
| 9000860 | DELCO |
| LRS01419 | LUCAS |
| LRS1419 | LUCAS |
| MAV621020 | SIOM |
| S1004 | AS-PL |
| S1094R | PRESTOLITE |
| STR2087 | ELECTROLOG |
| STR2193 | ELECTROLOG |
| STR80104 | WOODAUTO |
| STRS630 | 3EFFE |
| STRW344 | 3EFFE |
| US1029 | HC PARTS |
