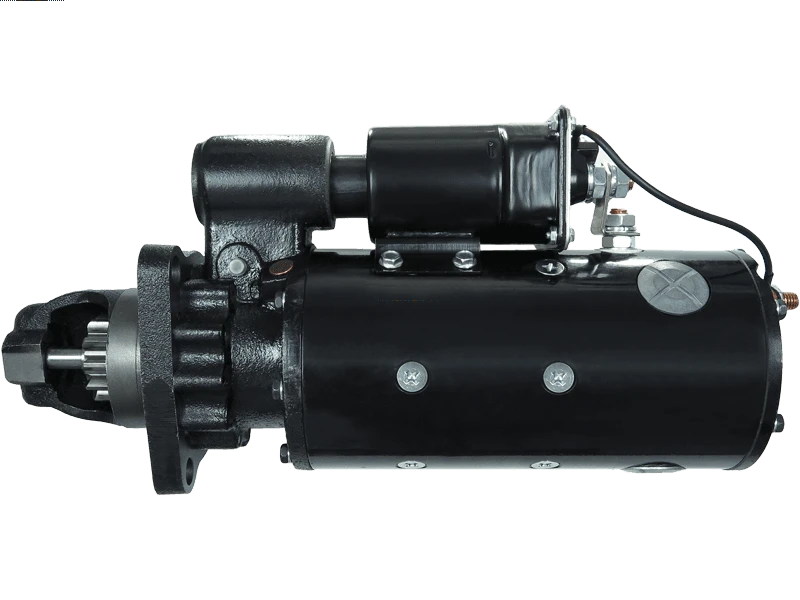

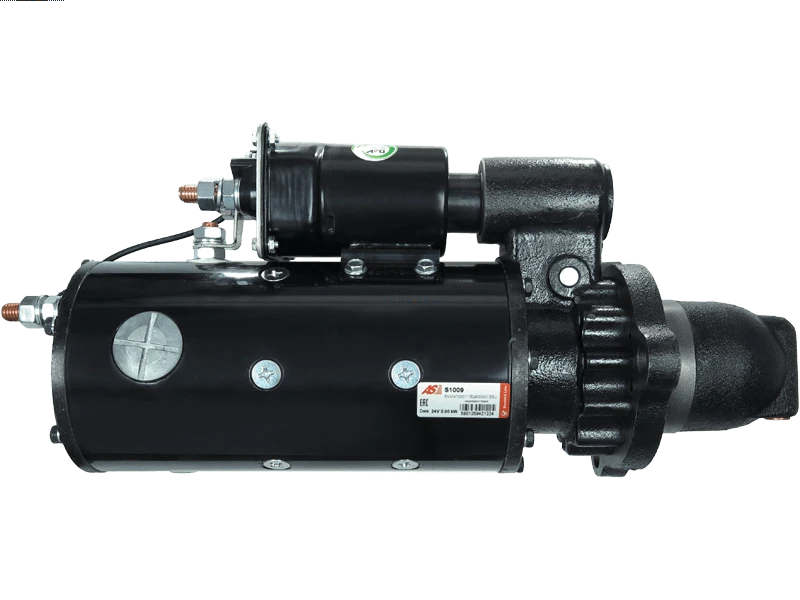

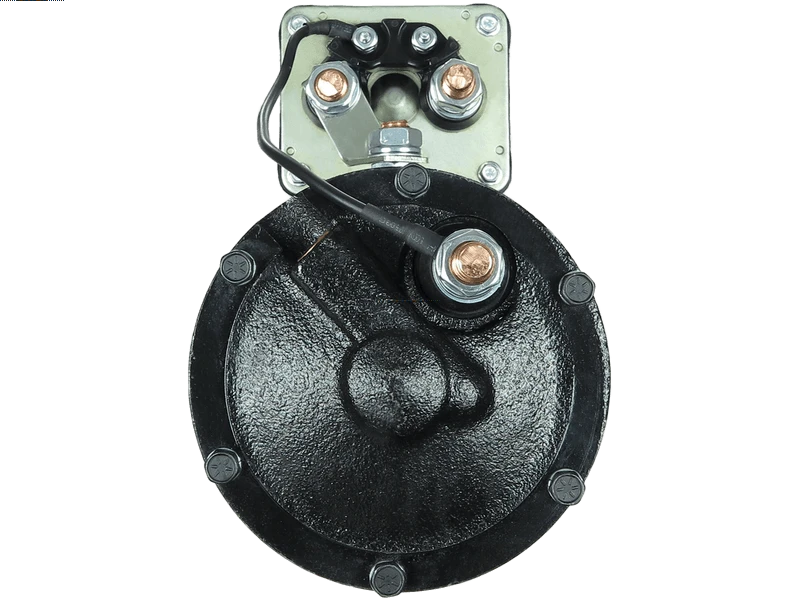

S1009 - Brand new AS-PL Starter motor

Specifications

Kilowatt	9 kW
Length (L.1)	520 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	16.5 mm
Mount Hole Diameter (C.2)	16.5 mm
Mount Hole Diameter (C.3)	16.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	47 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	DELCO
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CATERPILLAR	Various Models		01.1993-
FIAT-ALLIS	FD 20 5.9 Diesel	[8215.02.520]	03.1984-03.1999
IVECO	8215 13.8	[8215.22.545]	01.1987-12.1999
IVECO	8262 12.9	[8262.43.001]	01.1990-12.2003

Reference Information

1109643 1109646 1109642 4930R 73130627 30004699 1990249 1990248 3T2876 1990246 0R5211 4930N 7T0806 1990244 10479126 73130197 20-1297T91 1109647 1109768 73130196 1516993R 10479124 1109649 10479125 73130198 1990251 1990250 731130627 1109755 9L6464 6T0650 0R5213 1109631 1109630 255353 5L648 1990259 6T0647 1990255 6T0640 1109636 1990254 1990253 3C8205 5000811448 1109638 1109759 6T0643 1109985 1990262 3T2780 0R4259 1109984 489717C91 1109987 1990260 3T8967 9L6474 1109986 6V0590 1109980 8L8204 MAV626050 5L5353 8L8205 5L5354 338-3454 4081236 3603868RX 1990269 4081237 1990268 3636821 4081238 1990267 3636820 4081239 1990264 8201153 1990263 1990273 1109973 9L6484 1990271 STR2611 1990270 1109970 1109298 1109972 349-6530 1109971 70675686 70675685 1109296 1109291 1109290 1109293 M125R3031SE 1109292 10461057 1990278 1109978 1109977 1990276 10461739 1990275 1109979 1990274 0R4272 237-1962 10478866 10478865 3T8947 3T8949 8201091 OR5213 60827 272-7123 10R9815 M128R3839SE 10R9816 8200207 STRJ646 1109798 3T8954 1109797 1993840 1993841 1109553 CST60605 4081235 5N2685 1109791 6N1886 3T8961 E3HZ-11002-B 10478863 E3HZ-11002-C 3T8963 739912C91 E3HZ-11002-A STRS209 1109787 10478888 1993852 10478887 1109782 1109780 739911C9 6060605 M125R3001SEP 2T0797 1990229 CST60605GS 1109776 1109775 10478878 1109778 1109777 1109772 1109771 1109774 2371962 10478879 73114229 352-9848 M128R3601SE 1990239 1990237 1990235 1990231 10478883 10R1852 5L4405 6V0890 M128R3837SE 5L8205 4095033 3000576 4N0959 3603888RX 6V0885 6N9677 CST60605ES 641.004.113 3010125RX MS7-411 3021038 3L8205 4M4615 3004700 70620350 6V0511 8200592 MS7-408 6V0513 MS7-406 MS7-407 MS7-404 1109222 MS7-403 1109224 4094953 M128R3838SE 3603887RX OR4272 4N3349 MS1-401A 4N3343 RE10464 1993825 8200208 4094949 8200456 4094950 4094951 4094952 8837 3632274RX 110347 1109842 1109963 1990284 1109841 1109844 1109965 1109843 1109288 1109287 MS7-301A 1109840 1109961 1109289 10478907 462588C91 10478908 1109286 CST60605RS 1109285 10478909 S1009 3004699 CST60605AS 1109846 1109845 1109968 3632272 3632271 1109277 3632274 3632273 1109279 1109278 1109275 4N1061 STR20012 401237 3651892 1109839 1109838 3T2787 3T3876 173184 3T2785 1109837 3T2782 10479339 255353M 60827D 60827P US827 255353D 60827M CGB-1061 10461125 CST60605OS 10479343 255353P 3063771 10478911 10478912 MS7-300A 300700 1109493 5L3648 E2HT-11001-DA 1109494 10461381 D8HZ-11002-C M0017505ME 338977 4780974 70697811 3010125 3T3778 5LG48 6N9667 8EA730307-001

Video/Publications

0R4272 0R5211 0R5213 10461057 10461125 10461381 10461739 10478863 10478865 10478866 10478878 10478879 10478883 10478887 10478888 10478907 10478908 10478909 10478911 10478912 10479124 10479125 10479126 10479339 10479343 10R9815 110347 1109222 1109224 1109275 1109277 1109278 1109279 1109285 1109286 1109287 1109288 1109289 1109290 1109291 1109292 1109293 1109296 1109298 1109493 1109494 1109553 1109630 1109631 1109636 1109638 1109642 1109643 1109646 1109647 1109649 1109755 1109759 1109768 1109771 1109772 1109774 1109775 1109776 1109777 1109778 1109780 1109782 1109787 1109791 1109797 1109798 1109837 1109838 1109839 1109840 1109841 1109842 1109843 1109844 1109845 1109846 1109961 1109963 1109965 1109968 1109970 1109971 1109972 1109973 1109977 1109978 1109979 1109980 1109984 1109985 1109986 1109987 173184 1990229 1990231 1990235 1990237 1990239 1990244 1990246 1990248 1990249 1990250 1990251 1990253 1990254 1990255 1990259 1990260 1990262 1990263 1990264 1990267 1990268 1990269 1990270 1990271 1990273 1990274 1990275 1990276 1990278 1990284 1993825 1993840 1993841 1993852 20-1297T91 237-1962 2371962 255353 255353D 255353M 255353P 272-7123 3000576 3004699 3004700 3010125 3021038 3063771 338-3454 3603868RX 3603887RX 3603888RX 3632274 3632274RX 3636820 3636821 3651892 3L8205 3T2780 3T2785 3T2787 3T2876 3T3778 3T3876 3T8947 3T8949 3T8954 3T8961 3T8963 3T8967 4081236 462588C91 489717C91 4930N 4930R 4M4615 4N0959 4N3343 4N3349 5L3648 5L4405 5L5353 5L5354 5L648 5L8205 5LG48 5N2685 6060605 60827 60827D 60827M 60827P 641.004.113 6N9667 6N9677 6T0640 6T0647 6V0511 6V0590 6V0885 6V0890 70620350 70675686 70697811 73114229 73130196 73130197 73130198 73130627 739911C9 739912C91 8200207 8200208 8200456 8200592 8201091 8201153 8837 8EA730307-001 8L8204 8L8205 9L6464 9L6474 9L6484 CGB-1061 CST60605 CST60605AS CST60605ES CST60605GS CST60605OS CST60605RS D8HZ-11002-C E2HT-11001-DA E3HZ-11002-A E3HZ-11002-B E3HZ-11002-C M0017505ME M125R3001SEP M125R3031SE M128R3601SE M128R3837SE M128R3838SE M128R3839SE MAV626050 MS1-401A MS7-300A MS7-301A MS7-403 MS7-404 MS7-406 MS7-407 MS7-408 MS7-411 RE10464 S1009 STR20012 STRJ646 STRS209 US827
