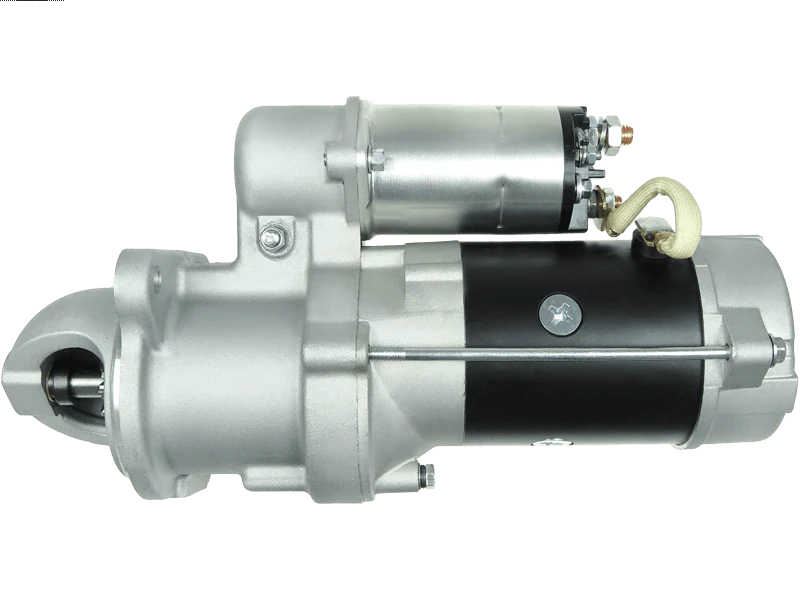

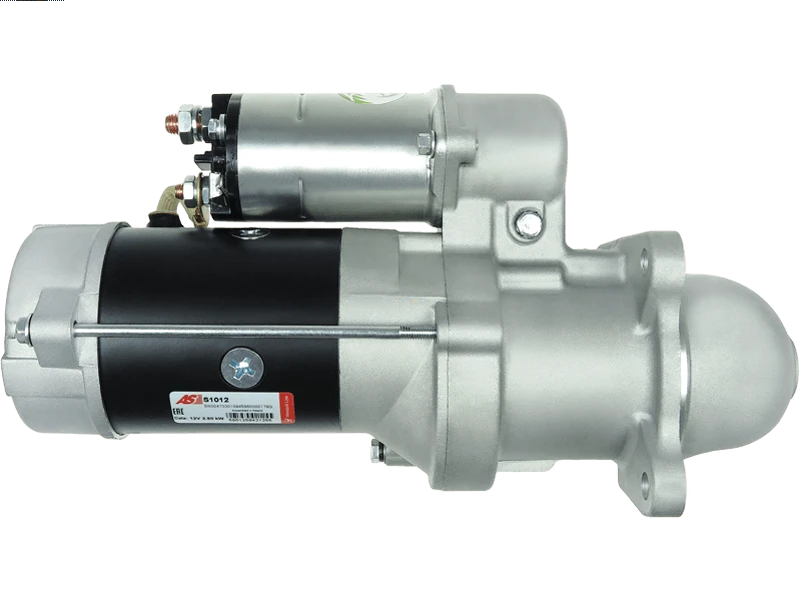

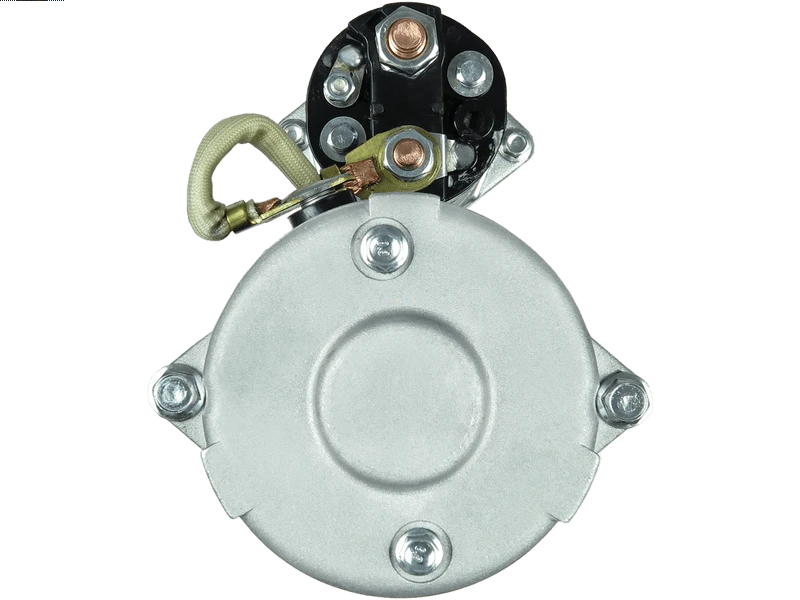

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 455.63 including GST
NZ$ 396.20 excluding GST
or four payments of $113.91
with
Learn More
each
S1012
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1113288Associated Numbers
1109540 111222 1113288 1998292 1998389 20409901BN 25-1459 254710 33782 35259630 6060109 60868 6581N 8EA732860-001 CST60109AS CST60109GS DRZ5124 LRS01264 STR80060 US868Specifications
| Kilowatt | 2.80 kW |
| Length (L.1) | 338 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CLARK | GCX40 | [Perkins] | 01.1990- |
| CLARK | GCX50 | [Perkins] | 01.1990- |
| CLARK | GPX35D | [Perkins] | 01.1990- |
| CLARK | GPX40D | [Perkins] | 01.1990- |
| CLARK | GPX50D | [Perkins] | 01.1990- |
Reference Information
| 1109540 | DELCO |
| 111222 | CARGO |
| 1113288 | DELCO |
| 1998292 | DELCO |
| 1998389 | DELCO |
| 20409901BN | REAL |
| 220007253 | YALE |
| 2385788 | CLARK |
| 25-1459 | ELSTOCK |
| 254710 | KUHNER |
| 2743535 | CLARK |
| 3005407 | HYSTER |
| 33782 | EAI |
| 35259630 | PRESTOLITE |
| 6060109 | SANDO |
| 60868 | KUHNER |
| 6581N | WAI / TRANSPO |
| 8EA732860-001 | HELLA |
| CST60109AS | CASCO |
| CST60109GS | CASCO |
| DRZ5124 | DELCO |
| F032111222 | CARGO |
| LRS01264 | LUCAS |
| LRS1264 | LUCAS |
| MAV621090 | SIOM |
| S1012 | AS-PL |
| S12DR0466A2 | SIDAT |
| STR2665 | ELECTROLOG |
| STR80060 | WOODAUTO |
| STRL182 | 3EFFE |
| STRS675 | 3EFFE |
| US868 | HC PARTS |
Video/Publications
