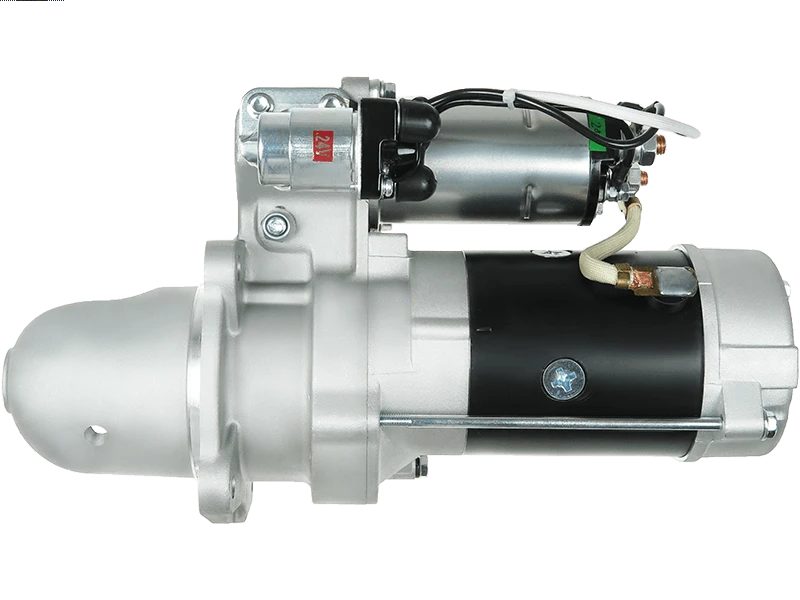

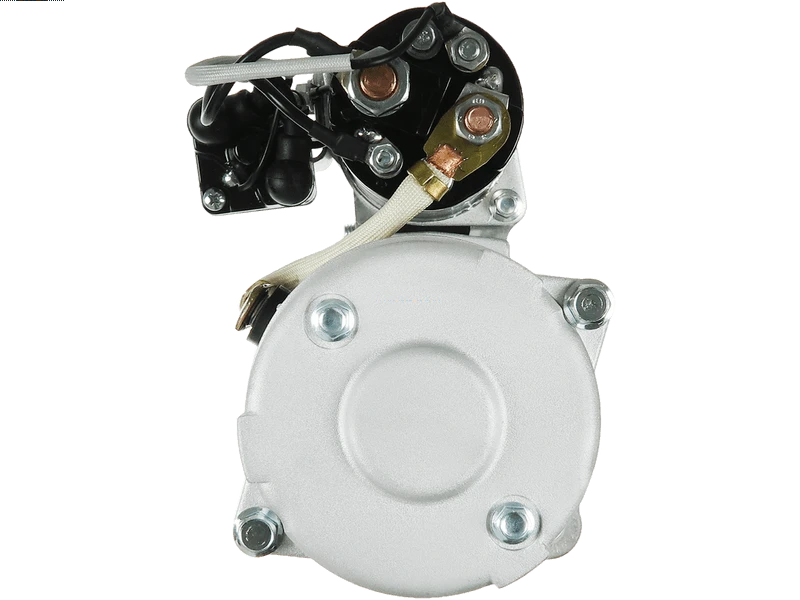

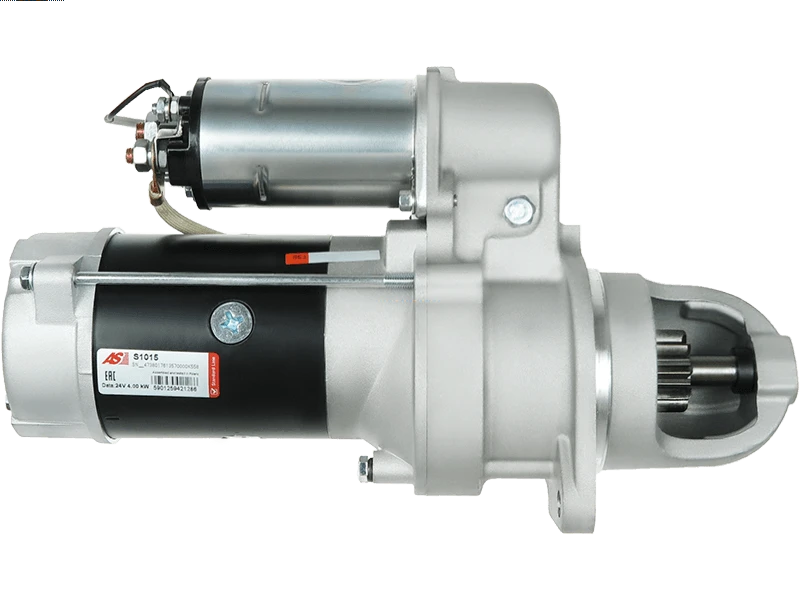

S1015 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S1015
Price: 580.01 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DELCO

Price:

NZ$ 580.01 including GST

NZ$ 504.36 excluding GST

UOM:

each

Product Code:

S1015

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

0-23000-2350 0-23000-2358 0-23000-2590 0041516201 0041518401 0051512001 0061512101 081495002 101112 101112P 101381 101381P 10461470 10479626 10479650 111982 254963 254963D 254963P 28.1381 28.1381M 33947 45-2344 6050617 6904N 8200138 860321 88212501 8846 8EA749553-001 A0041516201 A0061512101 CS1381 CST50617GS DRS0057 DRX67095 DRX67149 EAA-121241 IS0728 LRT00225 M93R3066SE STR80146

Kilowatt	4 kW
Length (L.1)	343 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	45 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	DELCO
Voltage	24 V

Make	Model	Type	Year
MERCEDES BENZ TRUCKS & BUSES	1016 4.3	[OM900.912][OM900.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1017 4.2	[OM904.911]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	1017 4.3	[OM904.911]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	1018 4.3	[OM900.913][OM900.919]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1022 4.8	[OM924.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1023 6.4	[OM906.910][OM902.916][OM906.915]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1024 6.4	[OM902.916][OM906.915]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1117 4.2	(LK/LN2)[OM904.907]	03.1996-12.1998
MERCEDES BENZ TRUCKS & BUSES	1214 4.3	[OM904.910][OM904.916]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	1215 4.3	[OM900.912][OM904.922]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1216 4.3	[OM900.912][OM904.922]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1217 4.3	[OM904.911]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	1218 4.3	[OM900.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1222 4.8	[OM924.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1223 6.4	[OM902.916][OM906.910][OM906.915]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1224 6.4	[OM902.916][OM906.910][OM906.915]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1225 6.4	[OM906.919]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	1226 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1228 6.4	[OM906.911][OM906.916][OM902.918]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1229 6.4	[OM906.911][OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1317 4.2	(LK/LN2)[OM904.907]	03.1996-12.1999
MERCEDES BENZ TRUCKS & BUSES	1317 4.3	[OM904.911]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	1318 4.3	[OM900.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1322 4.8	[OM924.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1323 6.4	[OM906.910][OM902.916][OM906.915]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1324 6.4	[OM902.916][OM906.910][OM906.915]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1325 6.4	[OM906.919]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	1326 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 6.4	[OM906.911][OM906.916][OM902.918]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1329 6.4	[OM906.911][OM906.916][OM902.918]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1517 4.2	(LK/LN2)[OM904.907]	03.1996-12.1998
MERCEDES BENZ TRUCKS & BUSES	1517 4.3	[OM904.911]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	1518 4.3	[OM900.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1522 4.8	[OM924.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1523 6.4	[OM906.910][OM902.916][OM906.915]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1524 6.4	[OM902.916][OM906.910][OM906.915]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1525 6.4	[OM906.919]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	1526 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1528 6.4	[OM906.911][OM906.916][OM902.918]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	1529 6.4	[OM906.911][OM906.916][OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1823 6.4	[OM906.920][OM906.922]	01.1998-09.2004
MERCEDES BENZ TRUCKS & BUSES	1823 6.4	[OM906.940]	03.1998-
MERCEDES BENZ TRUCKS & BUSES	1828 6.4	[OM906.921][OM906.923]	05.1998-09.2004
MERCEDES BENZ TRUCKS & BUSES	1828 6.4	[OM906.941]	03.1998-03.2001
MERCEDES BENZ TRUCKS & BUSES	2523 6.4	[OM906.920]	05.1998-09.2004
MERCEDES BENZ TRUCKS & BUSES	2528 6.4	[OM906.921]	05.1998-09.2004
MERCEDES BENZ TRUCKS & BUSES	2628 6.4	[OM906.921]	05.1998-09.2004
MERCEDES BENZ TRUCKS & BUSES	2628 6.4	[OM906.941][OM906.952]	01.1998-03.2001
MERCEDES BENZ TRUCKS & BUSES	611 4.0	(T2/LN1)[OM354.901](T2/LN1)[OM354.902]	06.1994-09.2001
MERCEDES BENZ TRUCKS & BUSES	614 4.3	[OM904.908]	09.1996-
MERCEDES BENZ TRUCKS & BUSES	615 4.3	[OM904.923]	09.1998-01.2001
MERCEDES BENZ TRUCKS & BUSES	711 4.3	(LK/LN2)[OM904.905]	03.1996-12.1998
MERCEDES BENZ TRUCKS & BUSES	712 4.3	[OM900.911][OM900.917][OM904.915][OM904.909]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	713 4.3	[OM904.915][OM900.911][OM900.917][OM904.909]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	714 4.2	[OM904.910][OM904.916]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	715 4.3	[OM900.912][OM900.918][OM904.922]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	716 4.3	[OM904.922][OM900.912][OM900.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	717 4.2	[OM904.911][OM904.917]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	811 4.2	(LK/LN2)[OM904.905]	03.1996-12.1998
MERCEDES BENZ TRUCKS & BUSES	812 4.3	[OM904.908][OM904.923]	09.1996-01.2001
MERCEDES BENZ TRUCKS & BUSES	812 4.3	[OM904.909][OM900.911][OM900.917]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	813 4.3	[OM900.911][OM900.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	814 4.2	(LK/LN2)[OM904.906]	03.1996-
MERCEDES BENZ TRUCKS & BUSES	814 4.2	[OM904.910][OM904.916]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	814 4.3	[OM904.908]	09.1996-01.2001
MERCEDES BENZ TRUCKS & BUSES	815 4.3	[OM904.922][OM906.922][OM900.912][OM900.918]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	815 4.3	[OM904.923]	09.1996-01.2001
MERCEDES BENZ TRUCKS & BUSES	816 4.3	[OM904.922][OM900.912][OM900.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	817 4.2	(LK/LN2)[OM904.907]	03.1996-
MERCEDES BENZ TRUCKS & BUSES	817 4.3	[OM904.911]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	818 4.2	[OM900.913][OM900.919]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	818 4.3	[OM900.913][OM900.919]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	822 4.8	[OM924.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	823 6.4	[OM902.916]][OM906.915]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	824 6.4	[OM902.916][OM906.910][OM906.915]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	915 4.3	[OM900.912][OM900.918][OM904.922]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	916 4.3	[OM900.912]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	916 4.3	[OM900.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	916 4.3	[OM904.922]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	917 4.2	(LK/LN2)[OM904.907]	03.1996-12.1999
MERCEDES BENZ TRUCKS & BUSES	917 4.2	[OM904.911]	01.1998-10.2004
MERCEDES BENZ TRUCKS & BUSES	918 4.3	[OM900.919]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	922 4.8	[OM924.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	923 6.4	[OM902.916][OM906.915]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	923 6.4	[OM906.910]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	924 6.4	[OM906.910][OM902.916][OM906.915]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	O 345 6.4	[OM906.960]	11.2001-
MERCEDES BENZ TRUCKS & BUSES	O 520 4.3	[OM904.942]	04.1999-
MERCEDES BENZ TRUCKS & BUSES	O 530 G 6.4	[OM906.930][OM906.960][OM909.921][OM906.961][OM909.901]	01.1999-09.2004
MERCEDES BENZ TRUCKS & BUSES	O 530 L 6.4	[OM906.930][OM909.921]	01.1999-09.2004
MERCEDES BENZ TRUCKS & BUSES	O 530 N 12.0	[OM457.942]	01.1999-09.2004
MERCEDES BENZ TRUCKS & BUSES	O 530 N3 6.4	[OM906.930]	01.1998-09.2004
MERCEDES BENZ TRUCKS & BUSES	O 530 N3 6.4	[OM906.931]	01.1998-
MERCEDES BENZ TRUCKS & BUSES	O 810 4.3	[OM904.904]	09.1996-01.2001
MERCEDES BENZ TRUCKS & BUSES	O 814 4.3	[OM904.908]	09.1996-01.2001
MERCEDES BENZ TRUCKS & BUSES	O 815 4.3	[OM904.923]	09.1996-01.2001
MERCEDES BENZ TRUCKS & BUSES	U 3000 4.2	[OM904.953]	09.2002-
MERCEDES BENZ TRUCKS & BUSES	U 300 4.2	[OM904.927][OM904.928]	03.2000-
MERCEDES BENZ TRUCKS & BUSES	U 4000 4.2	[OM904.952][OM904.953]	09.2002-
MERCEDES BENZ TRUCKS & BUSES	U 400 4.2	[OM904.928]	03.2000-
MERCEDES BENZ TRUCKS & BUSES	U 400 6.4	[OM906.935]	03.2000-
MERCEDES BENZ TRUCKS & BUSES	U 5000 4.8	[OM924.916]	09.2002-
MERCEDES BENZ TRUCKS & BUSES	U 500 6.4	[OM906.935][OM906.955]	02.2001-

DRX67149 45-2344 10461470 IS0728 LRT00225 254963 61512203 101381P 51512201 61512201 DRS0057 6050617 41516201 51512001 860321 10479626 A0041516201 8EA749553-001 111982 MS STR80146 6904N 71513401 254963D A0071513401 0-23000-2358 CST50617GS 28.1381M CS1112 0-23000-2350 0-23000-2590 81495002 61516701 ANM12277X 41518401 61512101 STRL723 101381 EAA-121241 STR2017 A0061516701 28.1381 DRX67095 141 A0061512101 A0051512201 254963P 8200138 CS1381 10479650 88212501 33947 S1015

0-23000-2350 0-23000-2358 0-23000-2590 0041516201 0041518401 0051512001 0061512101 081495002 101112 101112P 101381 101381P 10461470 10479626 10479650 111982 114523 254963 254963D 254963P 28.1381 28.1381M 33947 45-2344 6050617 6904N 8200138 860321 88212501 8846 8EA749553-001 A0041516201 A0061512101 CGB-27240 CS1112 CS1381 CST50617GS DRS0057 DRX67095 DRX67149 EAA-121241 IS0728 LRT00225 M93R3066SE MAV126550 MS 141 STR80146 STRL723 S1015 220278
